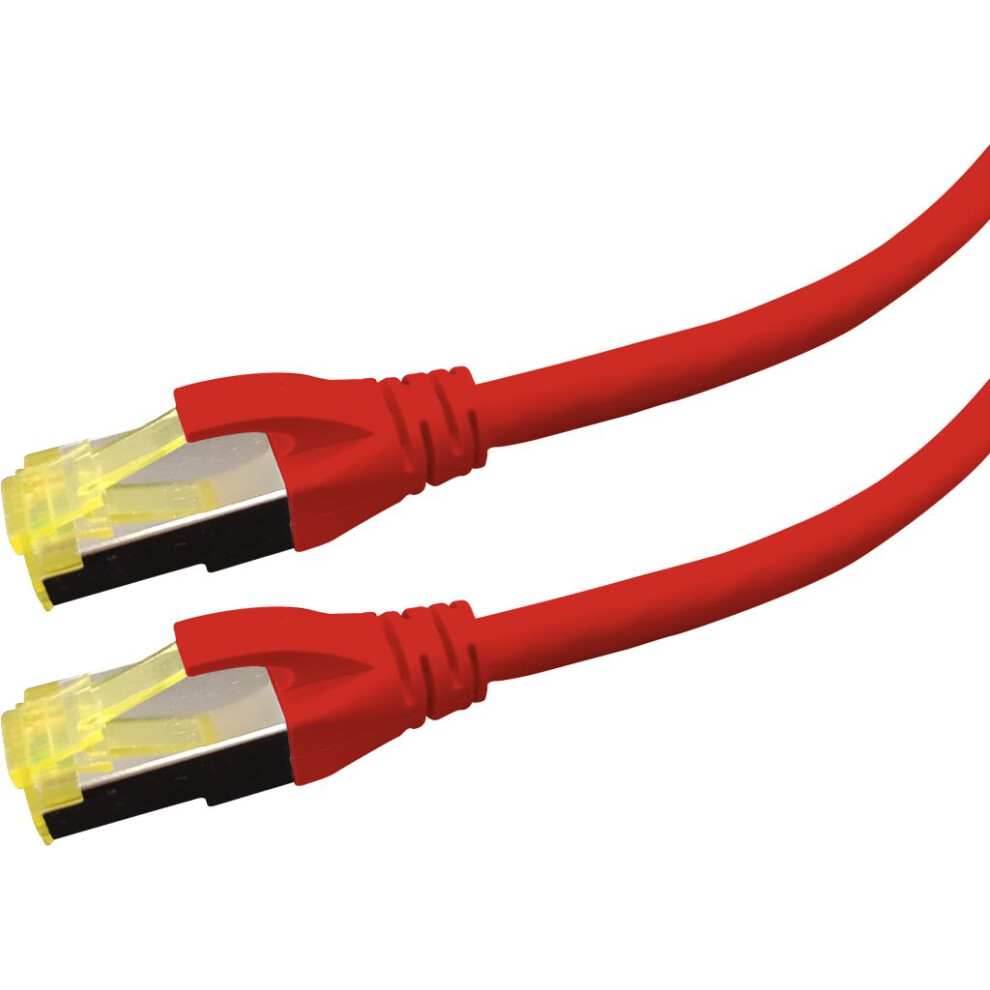

LOGON PREMIUM CAT6A S/FTP LSOH 5M Red

LOGON PREMIUM CAT6A S/FTP LSOH 5M Red Description

Model: Logon Premium APR6A050R CAT6A S/FTP 26AWG 4PAIR LSOH Patch Cable 5m Red Specifications CONSTRUCTION Conductor Material: Stranded AWG 26 bare copper Cable AWG: 7/0.16 mm Shield Overlap: Aluminum/polyester âÂ25% Braid Shield Coverage: Aluminum Magnesium Alloy wire âÂ40% Insulations Materials: SKIN-FOAM- SKIN Insulations Nom. Thickness: 0.26 Insulations Diameter: 1.02 (Â0.05mm) Outer Jacket: LSZH Jacket Nom. Thickness: 0.5 Jacket Diameter: 6.2 (Â0.30mm) Lenght: 5 meter Color: Red ELECTRONIC PERMORMANCE Max. Conductor: DC Resistance: 148 (ÃŽÂ/km) Min. Insulation Resistance: 5000 (ÃŽÂ/km) Dielectric Strength: DC-1KV/1 Min 1.0-250MHZ Characteristic Impedance 100Â15 (ohms) 1.0-500MHZ Delay Skew âÂ45 (ns/100m) Pair to Ground Capacitance Unbalance âÂ330 (Pf/100m) Resistance Unbalance between pairs âÂ4 (%) Max Mutual Capacitance 5.6 (nF/100m) Before Aging Tensile Strength âÂ9 (Mpa) Before Elongation âÂ100(%) After Aging 100ÂC*24h*7d Tensile Strength âÂ75% After Aging 100ÂC*24h*7d Before Elongation âÂ50 Velocity of Propagation NVP 78% Features:- AWG wire size: 26/7- Cable length: 5- Cable shielding: S/FTP (S-STP)- Cable standard: Cat6a- Conductor material: Copper- Connector 1: RJ45- Connector 1 gender: Male- Connector 2: RJ45- Connector 2 gender: Male- Halogen-free: Yes- Jacket material: Low smoke zero halogen (LSZH)- Product colour: RedVendor information:- Brand Name: LOGON PREMIUM- Warranty: 2- Product.Details.Specifications.Level1: Server, Computer & Printer Parts- Product.Details.Specifications.Level2: Cables- Product.Details.Specifications.Level3: Network Cables
