Lovibond MD 610 Photometer

Lovibond MD 610 Photometer Description

Now With Bluetooth®*

The very popular Lovibond® MD 600 series has been further enhanced. The new photometer enjoys the same popular, portable style of the MD 600 and incorporates all the same technology. Additionally, now, the MD Series includes a Bluetooth inferface for connection to smart phones and tablets to connect to iOS® and AndroidTM app for data management and email delivery.

The AquaLX® app, available free of charge, offers the possibility of transferring measurements to smart phones or tablets via Bluetooth. The data management then enables analysis and exort as a CSV file or graph via email. The app is available free of charge for iOS® and AndroidTM

Download the AndroidTM version here.
Download the iOS® version here.

The photometers combine the mobility of a portable photometer with the characteristics of a modern laboratory photometer. The waterproof design makes them ideal for a field instrument, and they have the functionality and features to be used as laboratory photometers.

The units cover all the important parameters for water analysis from Aluminium to Zinc and have over 130 methods pre-programmed. Compatible with Tablet, Liquid and Powder reagents and supplied with vial adaptors for 13mm and 16mm tubes, the photometers give flexibility of choice for many tests. In addition to the pre-programmed methods, up to 10 user defined calibration curves can be programmed if required.

A large graphic display aids analysis by providing on screen method prompts, information regarding test measurement range and reagent type, and automatic countdown timers for accurate reaction periods. The internal memory is capable of storing up to 1000 results with date, time and sample ID. These results can be reviewed at any time, and can be transmitted to Smartphones or Tablets via the Bluetooth® connection.

With 6 LED light sources, the photometers can measure at peak absorbances for many different methods, ensuring result accuracy and reliability for many applications.

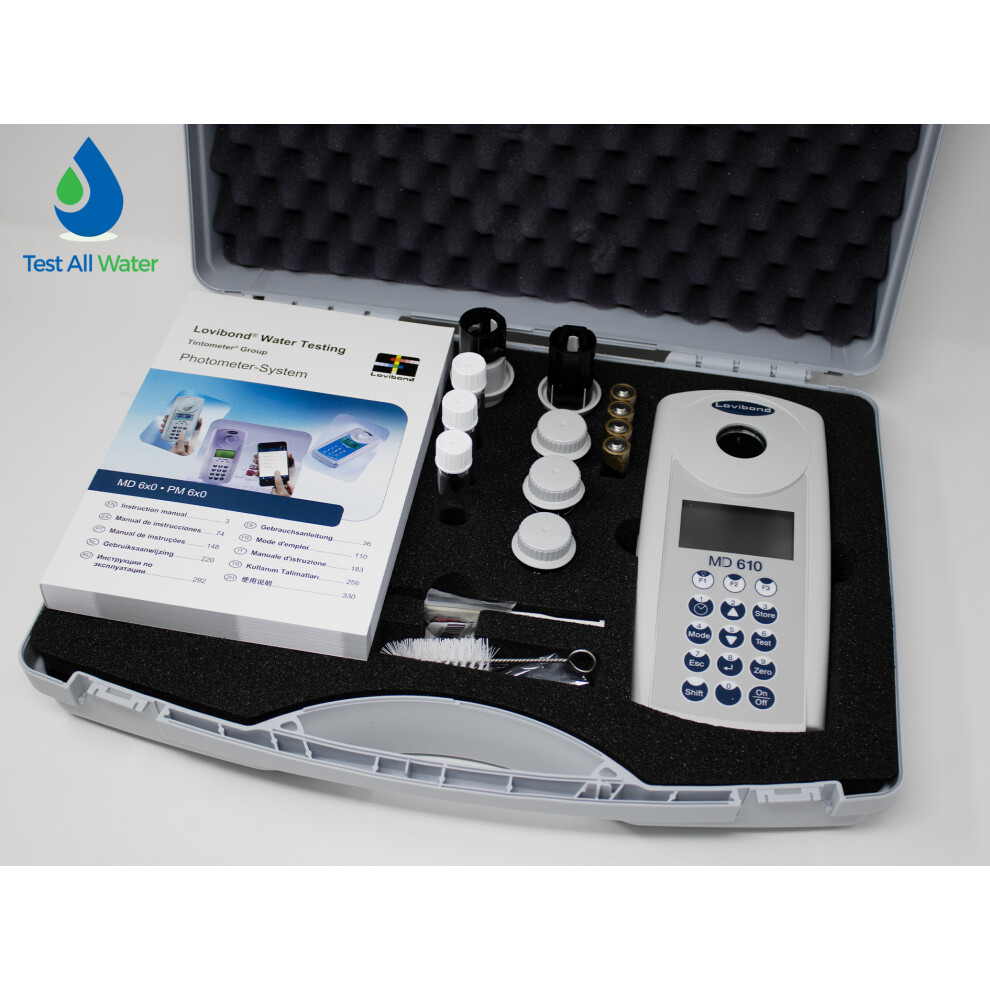

Delivery Content:

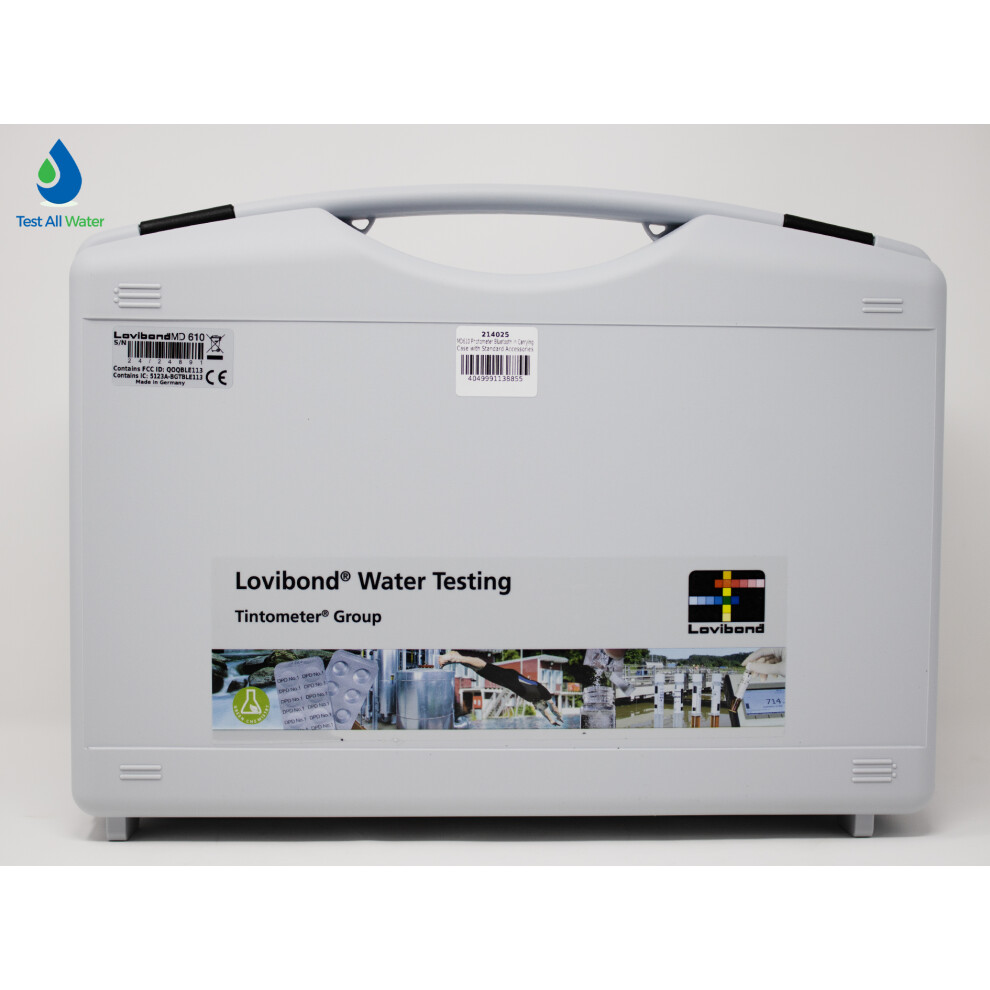

• Instrument in carrying case

• Batteries, 4 x AA
  • 3 x photometer vials, 24mm ø

• 3 x photometer vials, 16mm ø

• 2 x Vial adaptors for 16mm ø and 13mm ø tubes

• Stirring / crushing rod

• Vial cleaning brush

• Instruction manual and guarantee sheet

Please note, for the Phosphonate test, a UV Lamp may be required. See Ancillaries Tab for details

Specification

Display: Graphic Display

Interfaces: Infra red interface for test data transfer (via IRiM) RJ45 socket for internal updates

Optics:LEDs, Interference Filters (IF) and photo sensor in transparent sample chamber.

Wavelength specifications of interference filters:

430 nm ? ? = 5 nm

530 nm ? ? = 5 nm

560 nm ? ? = 5 nm

580 nm ? ? = 5 nm

610 nm ? ? = 6 nm

660 nm ? ? = 5 nm

Wavelength Accuracy: ± 1nm

Photometric Accuracy: 2% full scale (at 20 ° C to 25 ° C)

Photometric Resolution: 0.005 A

Operation: Acid and solvent resistant touch sensitive keypad; audible feedback via integrated beeper

Power Supply: 4 x AA batteries; operating time 26 hours continuous or 3500 tests

Auto Off: approx 20 minutes after last keypress with audible signal

Dimensions:Unit 210 x 95 x 45 mm

Carry case 395 x 295 x 106 mm

Unit Weight: 450g

Ambient Conditions: 5-40 ° C, 30-90% rel humidity (non condensing)

Memory Capacity: 1000 data sets with time, date, sample ID

Conformity: CE

Replacement Product Codes

Stock Code Reagent Test Qty

513210BT Alkalinity Total M Photometer Tablets Alkalinity Total M 100

517612BT Ammonia No1/No2 Tablets Combi Pack 250 each Ammonia 250

535500 Ammonia Vario Powder Reagent Set Ammonia 100

535600 Ammonia LR Vario Tube Test Set Ammonia 50

535650 Ammonia HR Vario Tube Test Set Ammonia 50

513230BT Alkalinity P Photometer Tablets Alkalinity Total M 100

517602BT Aluminium No1/No2 tablets combi pack, 250 eachAluminium 250

535000 Aluminium Vario Powder Set Aluminium 100

517682 Boron No1/No2 Combi Pack 200 each Boron 200

517742BT Chloride T1/T2 Tablets Combi Pack, 250 eachChloride 250

56R018490 Chloride Photometer Liquid Reagent Pack Chloride 65ml

537300 Persulphate Powder Reagent for Chromium Chromium 100

537310 Chromium Hexavalent Vario Powders Chromium

1002420720 COD Vario Vials 0-150 mg/l, 16mm ø COD25

2420710 COD Vario Vials 0-150 mg/l, Mercury Free, 16mm øCOD25

2420721 COD Vario Vials 0-1500 mg/l, 16mm øCOD25

2420711 COD Vario Vials 0-1500 mg/l, Mercury Free, 16mm øCOD25

2420722 COD Vario Vials 0-15000 mg/l, 16mm øCOD25

2420712 COD Vario Vials 0-15000 mg/l, Mercury Free, 16mm øCOD25

517692BT Copper No1/No2 Tablets Combi Pack 250 each Copper 250

56L024030 Coppercol Liquid Reagent 1 Copper 30ml

56L024130 Coppercol Liquid Reagent 2 Copper 30ml

56L024210 Coppercol Powder Reagent 3 Copper 10g

513560BT Copper No 2 Tablets Copper 100

530300 Copper Vario Cu 1 10ml Powder Pack Copper 100

2418875 Cyanide 11/12/13 Reagent Set Cyanid 200

511370BT Cyanuric Acid CyA-Test Tablets Cyanuric Acid 100

513220BT DEHA Tablets DEHA 100

461181 DEHA Solution DEHA 100ml

536000 DEHA Vario Powder, Liquid Reagent Set DEHA 200

467481 SPADNS Liquid Reagent Fluoride 250ml

205630 Fluoride Standard Liquid Reagent Fluoride 30ml

517762BT Calcium Hardness Calcio No1/No2 Tablets Combi PackCalcium Hardness 250

515660BT Hardcheck P photometer tablets, total hardness Hardness 100

462910 Hydrazine Test Powder, with spoon Hydrazine 30g

531200 Hydrazine Vario Hydra 2 Liquid Reagent Hydrazine 100ml

380470 Hydrazine Vacu-vial ® reagent set Hydrazine 30 tests

511050BT DPD No 1 Tablets Iodine 100

515370BT Iron Low Range Tablets Iron 100

515420BT Iron (II) Low Range Tablets Iron 100

530560 Iron Vario Ferro F10 Powder Reagents Iron 100

530550 Iron Vario TPTZ F10 Powder Reagents Iron 100

535090Manganese Vario LR Powder Liquid Reagent SetManganese100

530640Rochelle Salt Vario SolutionManganese30ml

535100Manganese Vario HR Powder Reagent SetManganese100

56L026530Manganese Liquid Reagent Manganese30ml

56L026630Manganese Liquid Reagent BManganese30ml

56L030430Manganese Liquid Reagent CManganese30ml

517632BTMolybdate No1/No2 Tablets, Combi Pack 250 eachMolybdate250

535450Molybdate Low Range Vario Powder Liquid Reagent SetMolybdate100 tests

535300Molybdenum Vario HR1/HR2/HR3 Powder Reagent SetMolybdate100

56R023790Molybdate HR Liquid Reagent PackMolybdate100

515630BTNickel No1 TabletsNickel100

515640BTNickel No2 Tablets Nickel100

465230Nitrate Test PowderNitrate100 tests

502810Nitrate Test TabletsNitrate100

512310Nitrite LR TabletsNitrite100

535580Nitrate Vario Tube Test Reagent SetNitrate50

512310 Nitrite LR TabletsNitrate100

530980Nitrite Vario Nitri 3 Powder ReagentsNitrite100

535550Nitrogen Total LR Vario Tube Test Reagent SetNitrogen Total50

535560Nitrogen Total HR Vario Tube Test Reagent SetNitrogen Total50

511220BTDPD No 4 TabletsActive Oxygen100

380450Dissolved Oxygen Vacu Vial ® Reagent SetDissolved Oxygen30

511050BTDPD No 1 TabletsOzone100

511080BTDPD No 3 TabletsOzone100

512170BTDPD Glycine Tablets (for Cl separation)Ozone100

516100BTPHMB Photometer TabletsPHMB100

517651BTPhosphate LR No1 / No2 Combi Pack, 100 of each tabletOrtho-phosphate100

517661Phosphate HR No1/No2 Tablets, Combi Pack 100 eachOrtho-phosphate100

531550 Phosphate Vario Phos3 Powder ReagentsOrtho-phosphate100

535200Phosphate Vario Ortho-phosphate Tube Test SetOrtho-phosphate50

380460Phosphate ortho HR Vacu Vial ® Reagent SetOrtho-phosphate30

380480Phosphate ortho LR Vacu Vial ® Reagent SetOrtho-phosphate30

535250Phosphate Vario Acid Hydrolyzable/Total Phosphate Tube Test SetPhosphate Total50

535210Phosphate Vario Total Phosphate Tube Test SetPhosphate Total50

56R019090Phosphate HR Liquid Reagent SetPhosphate Total100

535220Phosphonate Vario Powder Reagent SetPhosphonate100

515700Bromocresol Purple Photometer TabletspH Value100

511770BTPhenol Red Photometer Tablets pH Value100

515710Thymol Blue Photometer TabletspH Value100

471040Phenol Red Liquid SolutionpH Value15ml

56R019165Polyacrylate Liquid Reagent SetPolyacrylate100

515670Potassium T TabletsPotassium100

517671Silica No1/No2 Tablet, Combi Pack 100 eachSilica100

535690 Silica LR Vario Powder Liquid Reagent SetSilica100

535700 Silica HR Vario Powder Liquid Reagent SetSilica100

56R023896 Silica Liquid Reagent SetSilica80

517721BT Chlorine HR / Acidifying GP Combi Pack, 100 of each Tablet Sodium Hypochlorite 100

515450BTSulphate Turbidity TabletsSulphate100

532160Sulphate Vario Sulpha 4 Powder Packs, 10mlSulphate100

56R019290Sulphide No1 / No2 Tablet Combi PackSulphide100

518020Sulphite LR TabletsSulphite100

532200Benzotriazole Powder Reagent SetTriazoles100

459300Urea Reagent 1Urea15ml

459400Urea Reagent 2Urea10ml

512620BTCopper/Zinc LR TabletsZinc100

512390BTEDTA TabletsZinc100

56R019490Zinc Reagent SetZinc100

513240BTAlkalinity M HR Photometer TabletsAlkalinity Total M100

517721BTChlorine HR / Acidifying GP Combi Pack, 100 of each TabletChlorine (total)100

424991Hydrogen Peroxide Reagent SolutionHydrogen Peroxide15 ml

56R018990Iron LR Liquid Reagent SetIron100

56R023590Iron HR 2 Liquid Reagent SetIron100

56R023765Phosphate LR Liquid Reagent SetPhosphate Total100

513210BTAlkalinity Total M Photometer TabletsAcid Demand100

511050BTDPD No 1 TabletsBromine100

511050BTDPD No 1 TabletsChlorine100

511080BTDPD No 3 TabletsChlorine100

530100Chlorine DPD Free Vario Powders, F10Chlorine100

530120Chlorine DPD Total Vario Powders, F10Chlorine100

512170BTDPD Glycine Tablets (for Cl separation)Chlorine Dioxide100

511050BTDPD No 1 TabletsChlorine Dioxide100

517612BTAmmonia No1/No2 Tablets Combi Pack 250 eachUrea250

517622BTManganese LR1/LR2 Tablets Combi Pack, 250 each Manganese250

Ancilliary Items:

Stock Code

Name

197629

Photometer Cell ø 24mm with lid, pack of 5

197665

Photometer Cell ø 16mm with lid, pack of 10

364120

Crushing / Stirring Rod, pack of 10

380030

Vial Cleaning Brush, long

215640

Verification Standard Kit, MaxiDirect / MD 600

366110

Syringe, Plastic 1ml

366070

Syringe, Plastic 2ml

366120

Syringe, Plastic 5ml

369090

Syringe, Plastic, 10ml

385130

Dilution / Shaker Tube 100ml

400744

UV Lamp (220V)

400745

UV Lamp (110V)
