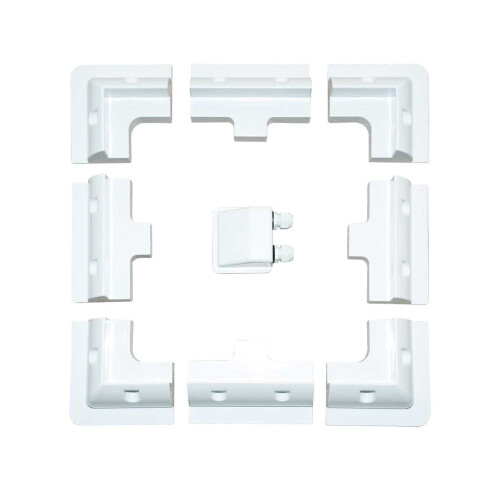

LOWENERGIE Solar Panel Mounting Brackets (4 Corners, 4 Sides and Cable Entry, White)

LOWENERGIE Solar Panel Mounting Brackets (4 Corners, 4 Sides and Cable Entry, White) Description

ABS white corner and 2 sets side brackets & cable entry

– Ideal for bonding to the roof – no need for drilling

– Great for motor homes, camper vans, caravans, lorries, buses, boats and yachts

– Can also be used on flat roofs of buildings, sheds, garages or other flat surfaces

Easy Installation, holes should be drilled in each bracket, and corresponding holes in the solar panel frame on each side; then brackets should be fixed to the solar panel using self-tapping screws (not included). Finally, brackets can be bonded to the roof using an appropriate sealant or adhesive tape (not included) – sealant is recommended for stronger bonding.

Specifications

Corner Brackets

• Material: plastic
• Colour: White
• Size (1 bracket): 15 x 15 x 6.5cm
• Weight: (4 brackets): 1.6kg

Small Side brackets

• Material: plastic
• Colour: White
• Size (1 bracket): 18 x 9 x 6.5 cm
• Weight: (2 brackets): 1.0 kg

Twin Cable Entry

• Watertight cable entry for 4-12mm cables
• Ideal for mounting solar panels on motorhomes, campervans, caravans or boats, buildings, garages, sheds and other roofs
• Easily bonded to the surface using a suitable sealant
• Can be used as a single cable gland (plugs for closing cable holes included)
• Material: Plastic
• Colour: White
• Size: 12 x 10 x 5cm
