LSM6DSV 6-Axis Sensor Module Six-Axis IMU Module Gyroscope and Accelerometer for SPI/IIC Smol Slime

LSM6DSV 6-Axis Sensor Module Six-Axis IMU Module Gyroscope and Accelerometer for SPI/IIC Smol Slime Description

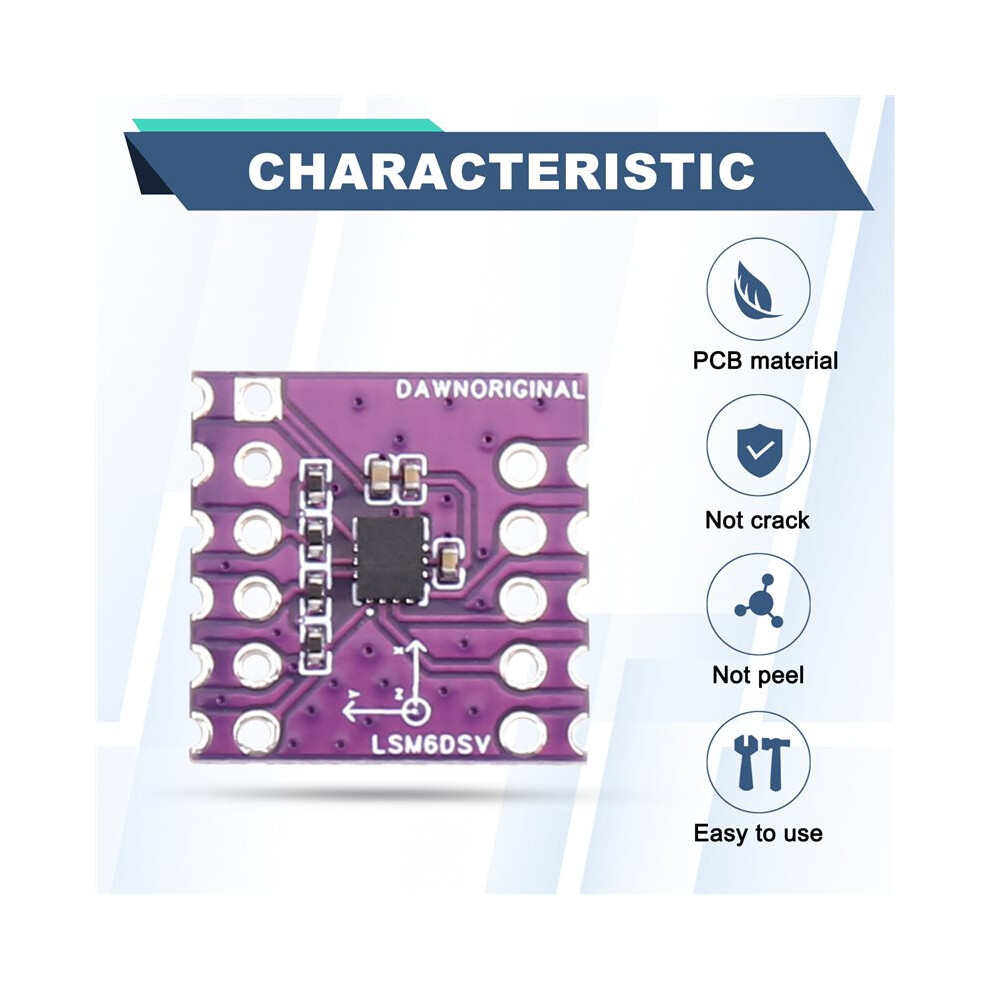

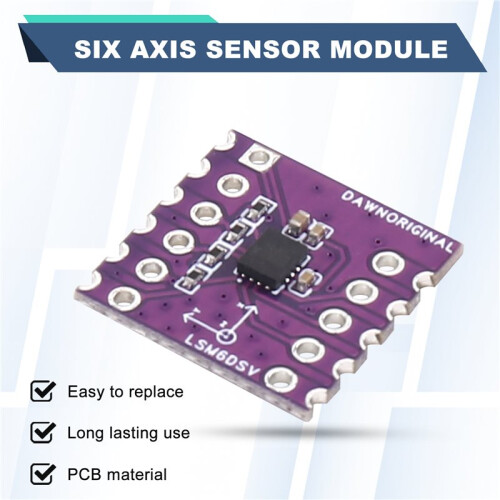

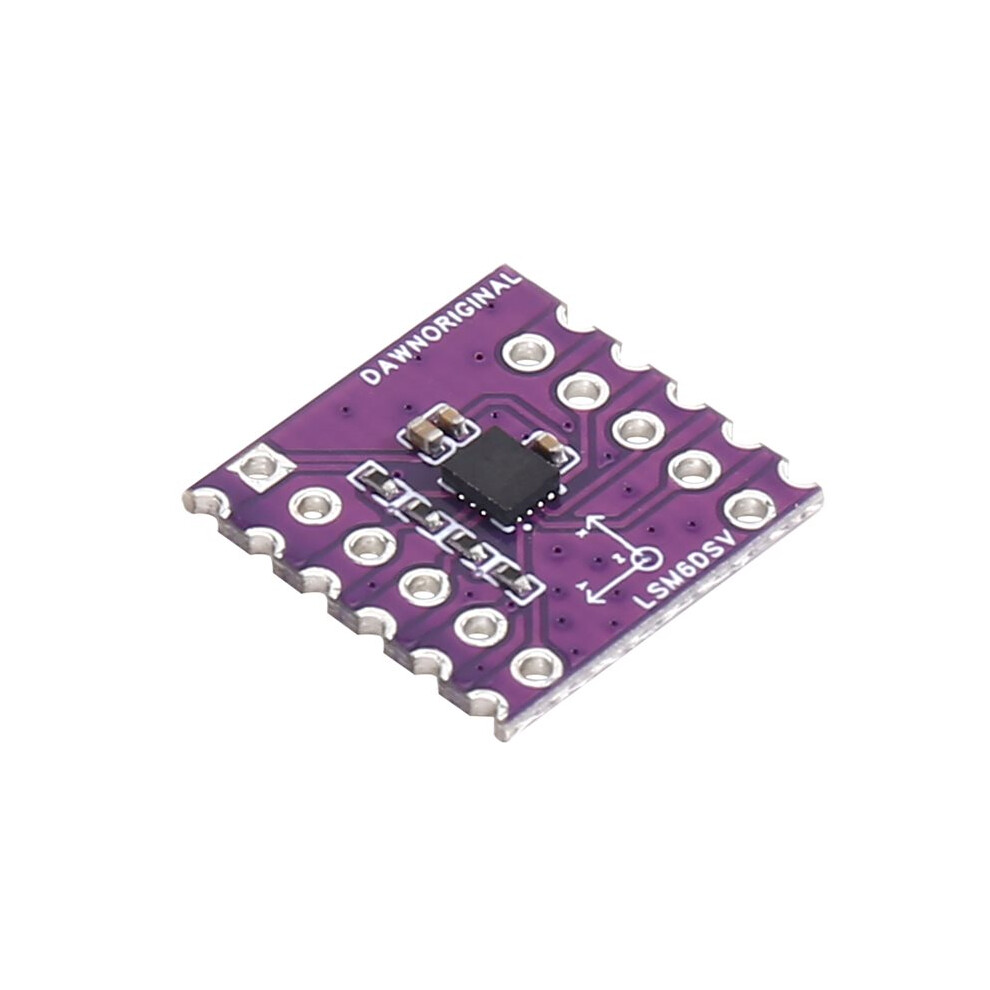

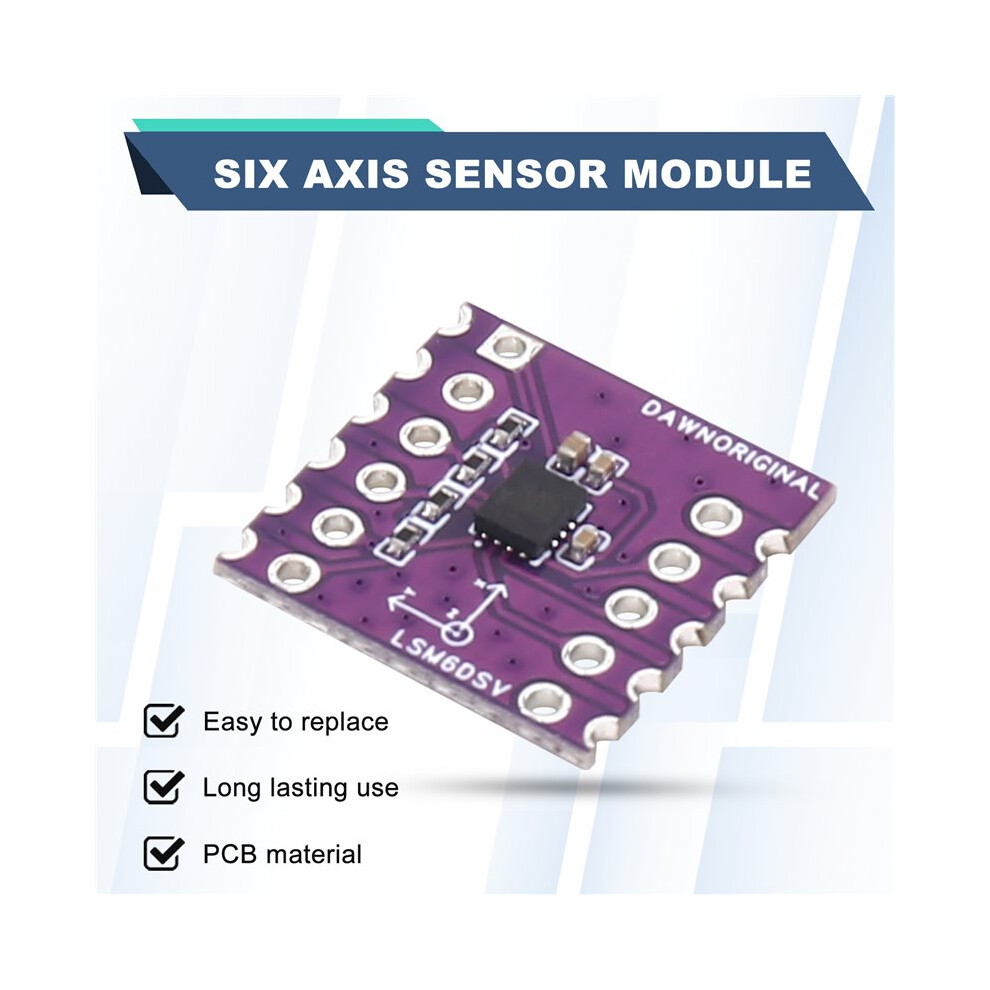

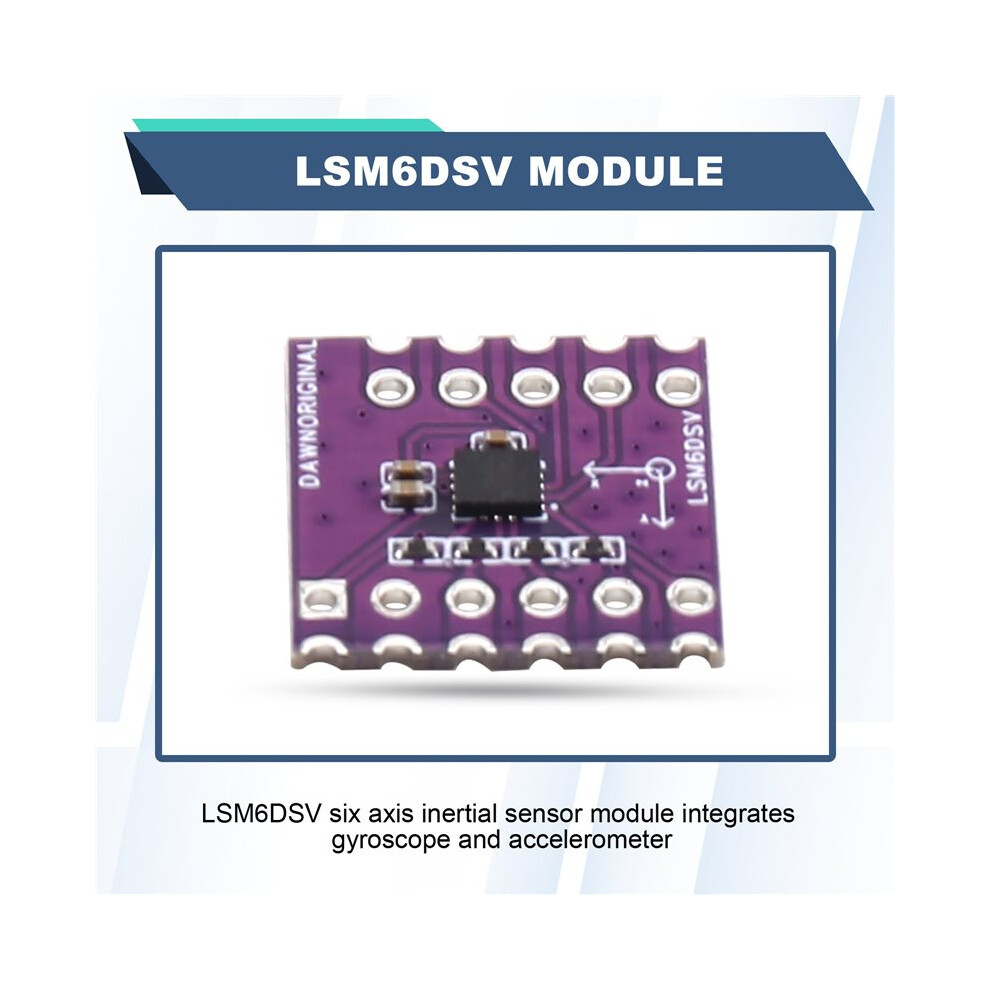

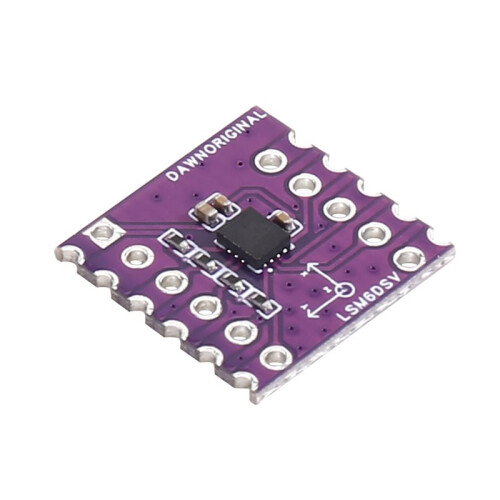

This LSM6DSV 6-axis inertial sensor module integrates gyroscope & accelerometer.

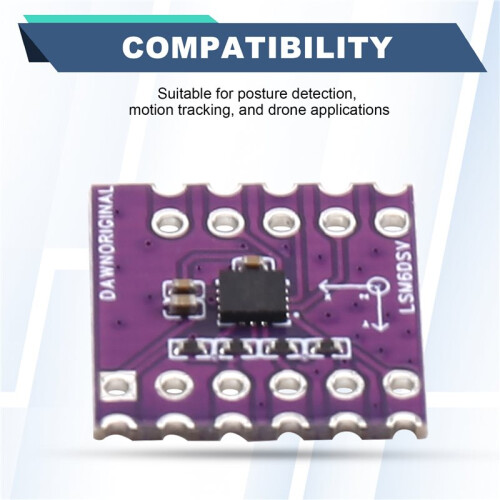

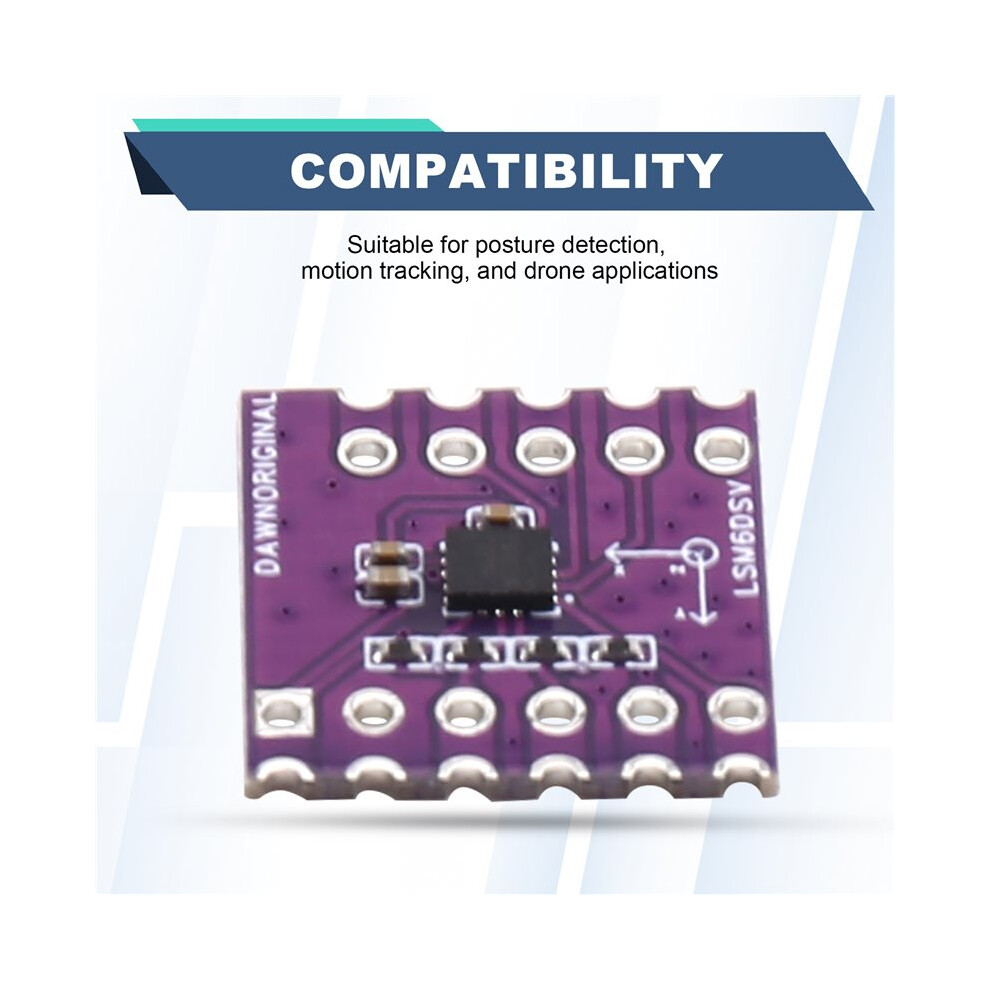

Supporting SPI and I2C dual communication interfaces for attitude detection, motion tracking and drone applications.
Compatible for Smol Slime (nRF) / for Slime VR (ESP).

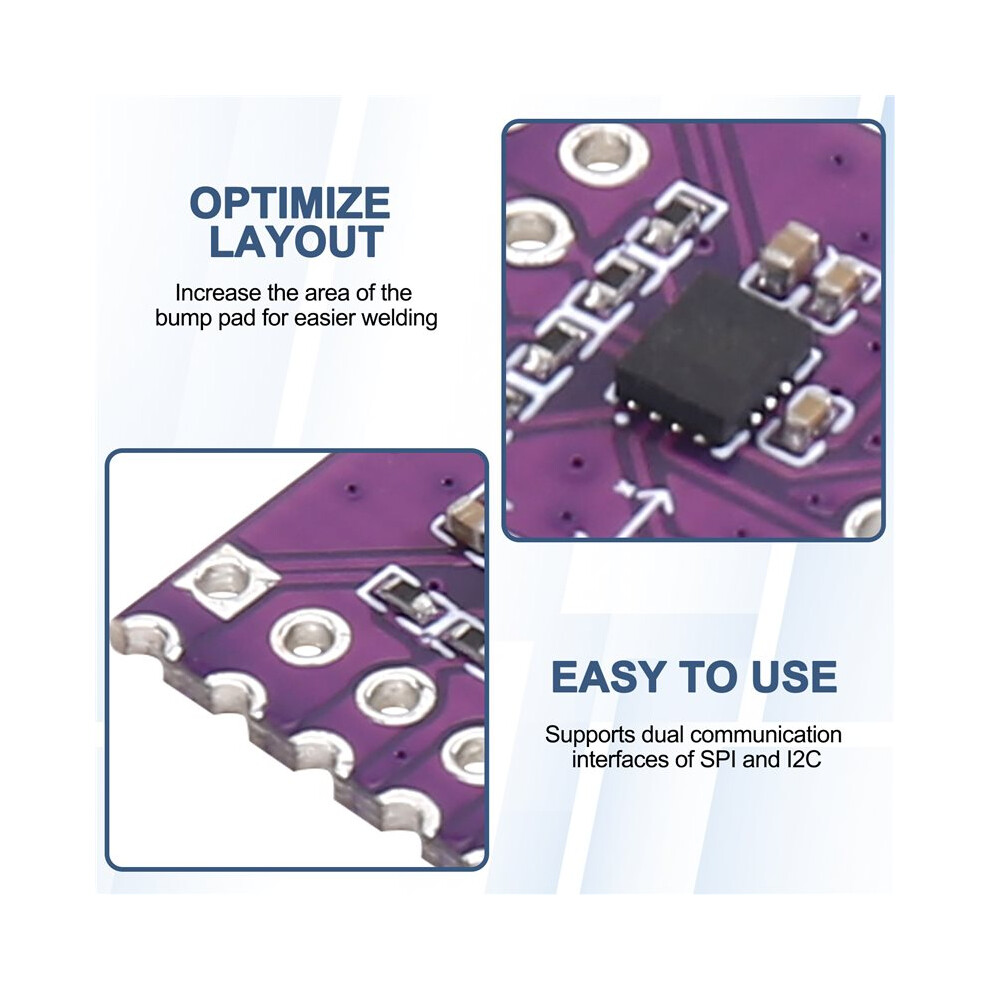

1. Fool-proof design (asymmetrical pin header layout)
2. Optimized layout for superior electrical performance
3. Adjusted IMU magnetometer clearance for optimized performance
4. Increased castellated pad area for easier soldering

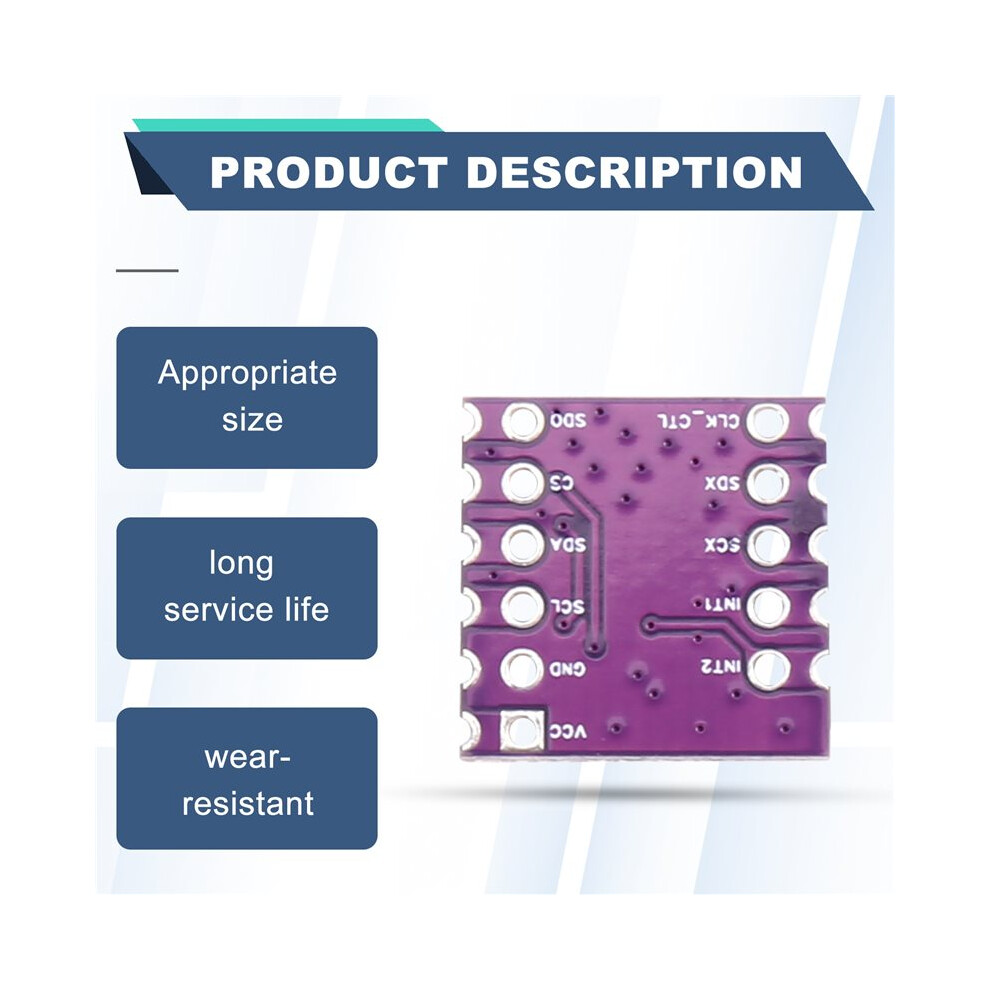

Pin header definitions:
VCC(3V3)----/(NC)
GND----INT2
SCL----INT1
SDA----SCX
CS----SDX
SDO----CLK_CTL
Color:
Material: PCB

Package Contents:
1 * LSM6DSV Module
