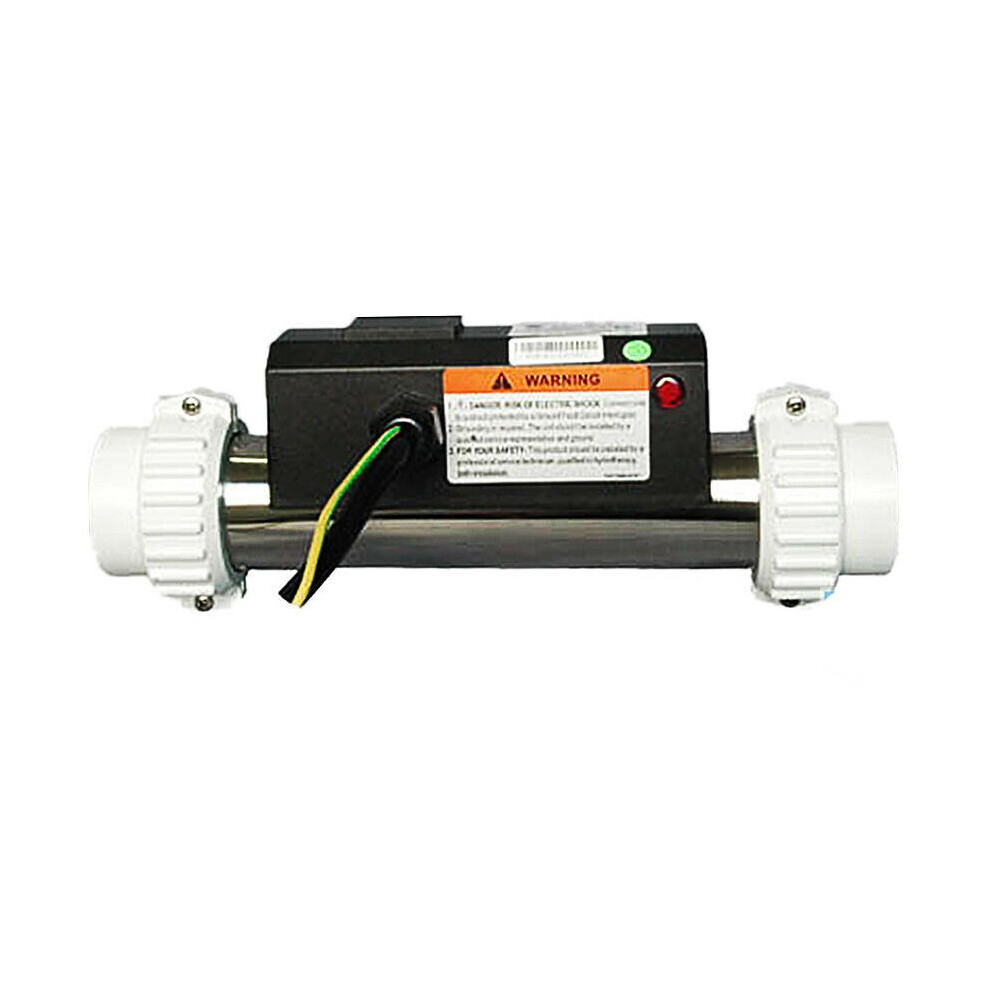

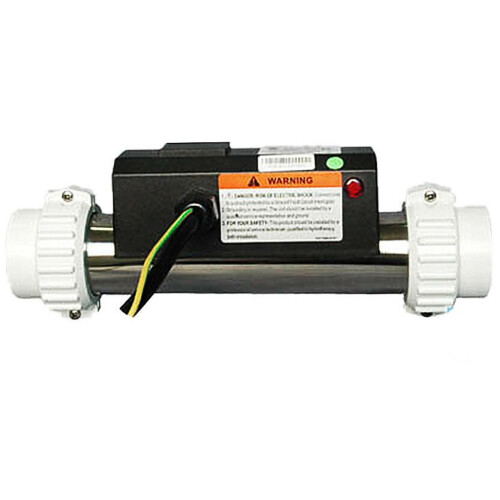

LX H30-R1 Flow Type Heater 3kw - Hot Tub Heaters

LX H30-R1 Flow Type Heater 3kw - Hot Tub Heaters Description

Type of product: Heater assembly Make and Model: Chinese LX Whirlpool Bath. H30-R1 Power: Volts:?230 Hz:?50 KW:?3.0 Amps:?13.6 Specification Sensor compatibility:?Controlled by the system control box Material spec: Required flow rate:?Set by pressure switch, this switch will need to be pressurised, if it runs straight to a big bore out let with no bends, there will be no back pressure and it may not work Flow detection:?Pressure switch built in to the heater run on a separate cord Compatible with: Most Chinese spas with a small plumbing change or can be used as a remote heater on a bespoke project Connections / Fixings: 1.5" white plastic female sockets to connect to plumbing Dimensions: Heater length: Heater Diameter:?50mm Overall height:?120mm Overall length complete:?340mm Additional notes: This unit replaces the Rooster heater as they kept failing. This heater is longer than the Rooster so you may need to alter the plumbing slightly High limit thermal cut out built in. This unit is rated IPX5 and has CE approval
