M10 GPS Module with Compass for GNSS Beidou GLONASS Replacement M8Q 5883

M10 GPS Module with Compass for GNSS Beidou GLONASS Replacement M8Q 5883 Description

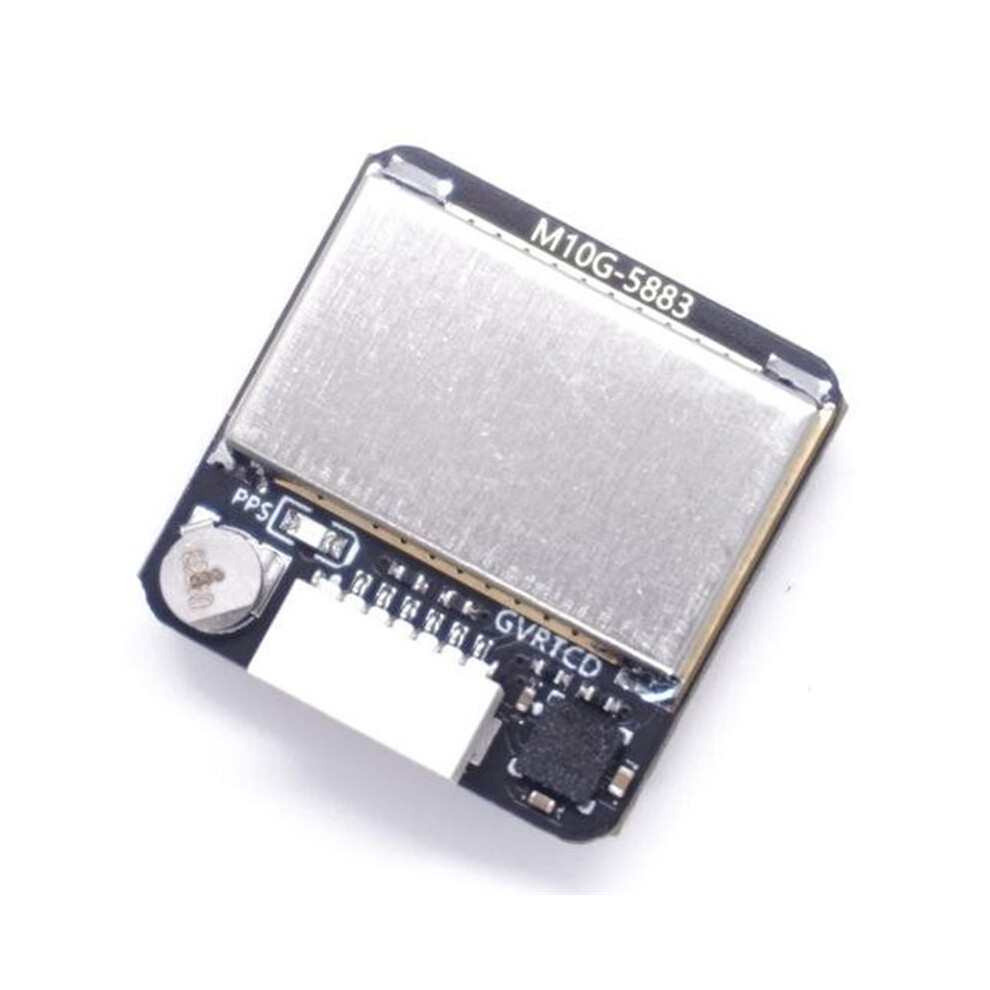

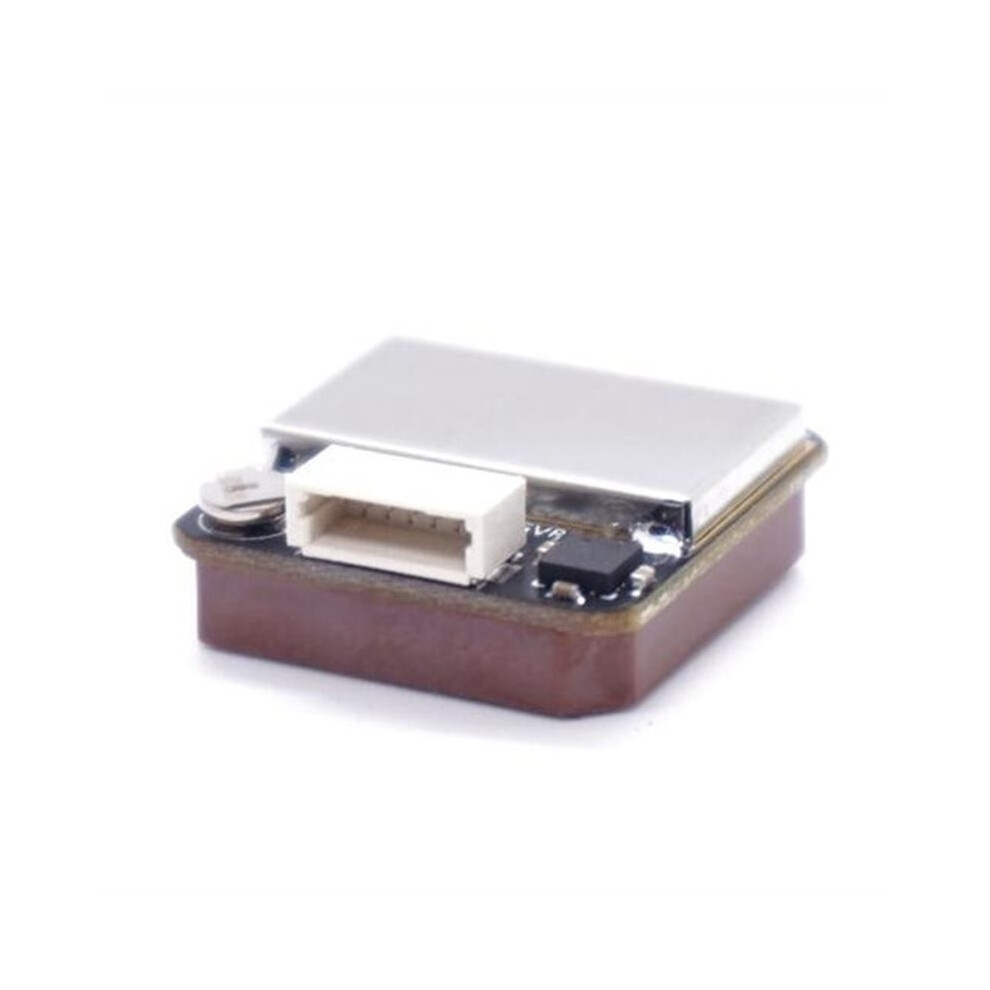

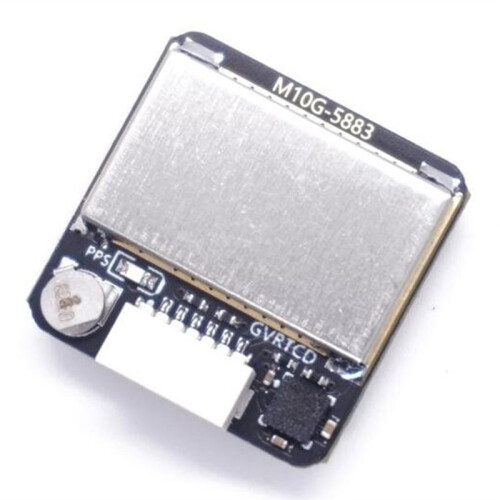

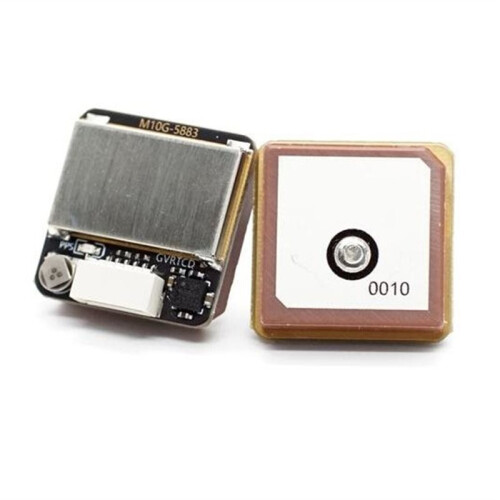

M10G-5883 GNSS module integrates the 10th generation receiver chip - M10050, and the magnetic sensor - QMC5883L.
It supports all L1 GNSS signals (GPS/GLONASS/Galileo/BeiDou) and can use to 32 satellites simultaneously for navigation.

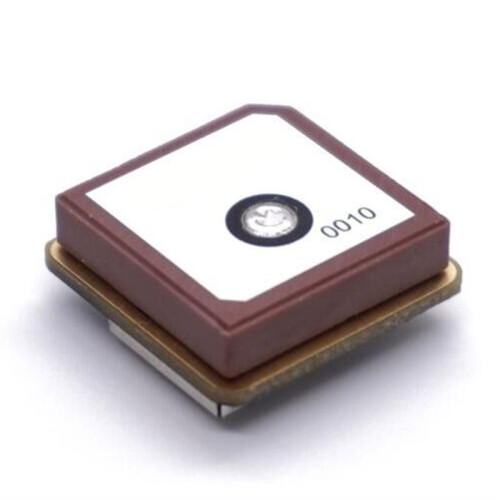

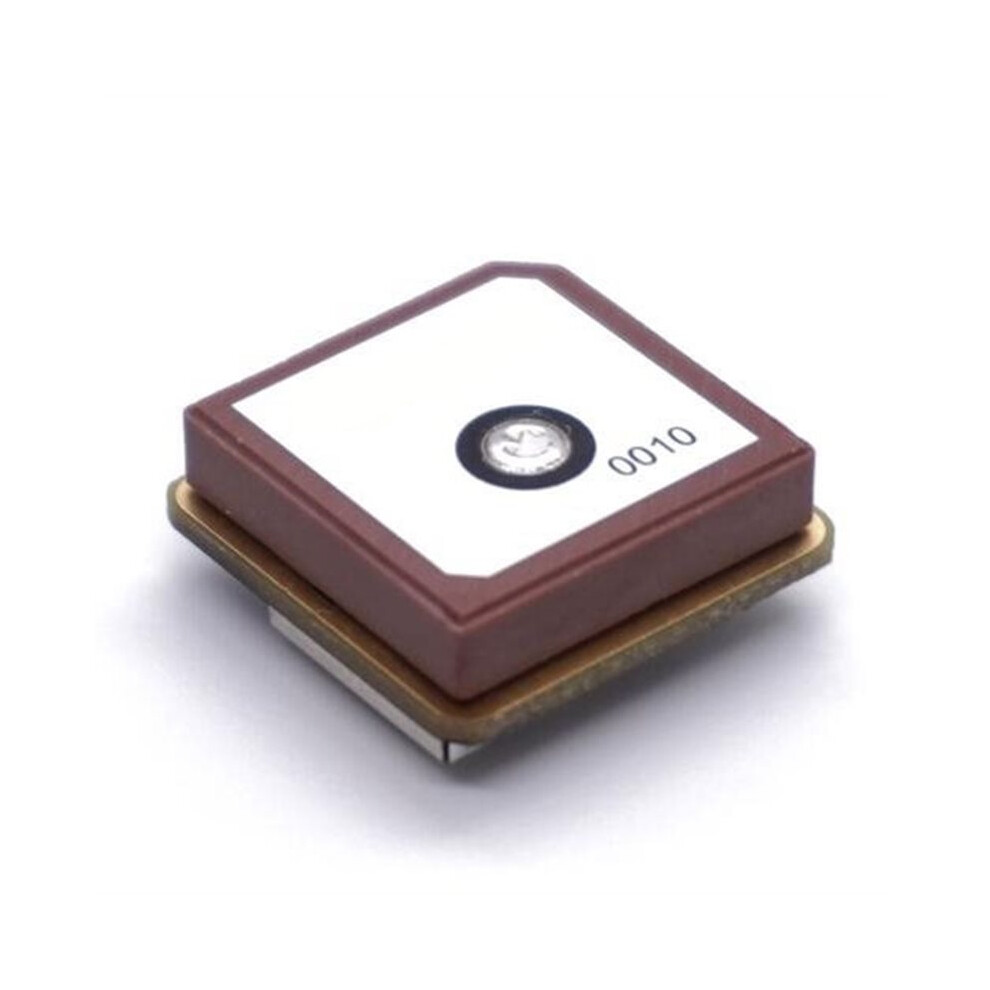

The high-gain 18 x 18 x 4mm patch antenna provides the best balance between performance and small size.
Built-in flash, parameters can still be saved when the module lost power.
Max Navigation rate: 5Hz, with a UART baud rate of 115200 default.

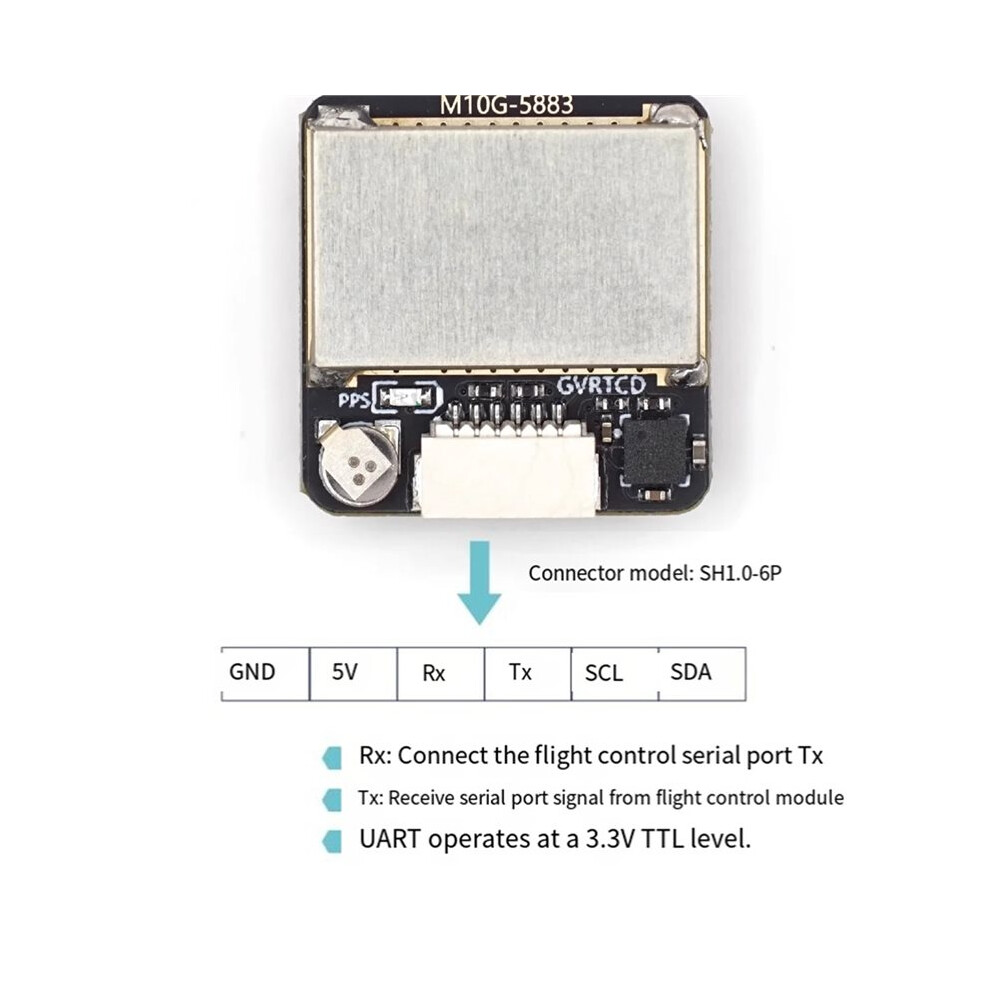

The M10G-5883 GNSS module integrates the 10th generation receiver chip - M10050, and the magnetic sensor - QMC5883L. It supports all L1 GNSS signals (GPS/GLONASS/Galileo/BeiDou) and can use to 32 satellites simultaneously for navigation. The high-gain 18 x 18 x 4mm patch antenna provides the best balance between performance and small size. Built-in flash, parameters can still be saved when the module lost power. The input voltage range is 5V, with a concurrent current of 30mA. The output protocol is UBX-PVT (default), and the PPS LED is (solid after powering , blinking (1Hz) when GNSS gets 3D fix). The module features a UART (TX, RX) interface for M10050 and an I2C (DA, CL) interface for Compass QMC5883L.
Color: As Shown
Material: Plastic+Metal

Package Contents:
1*Module
