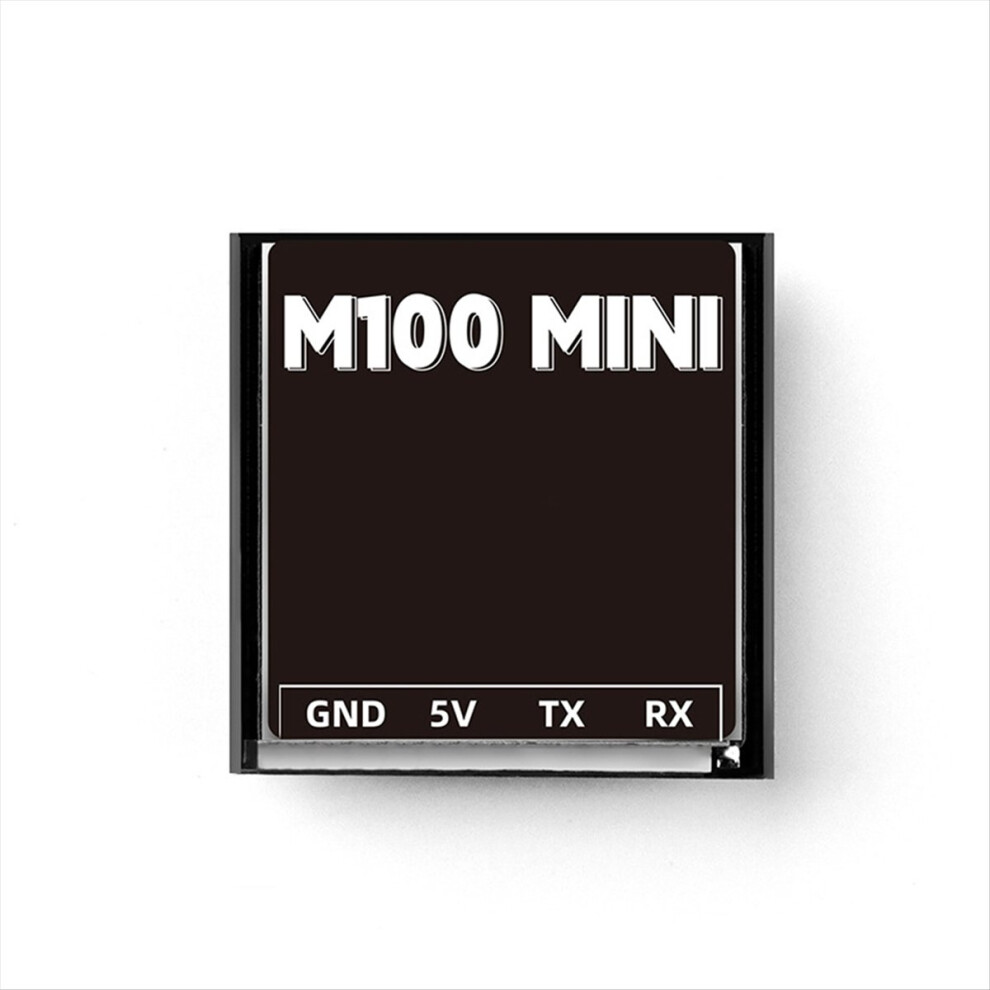

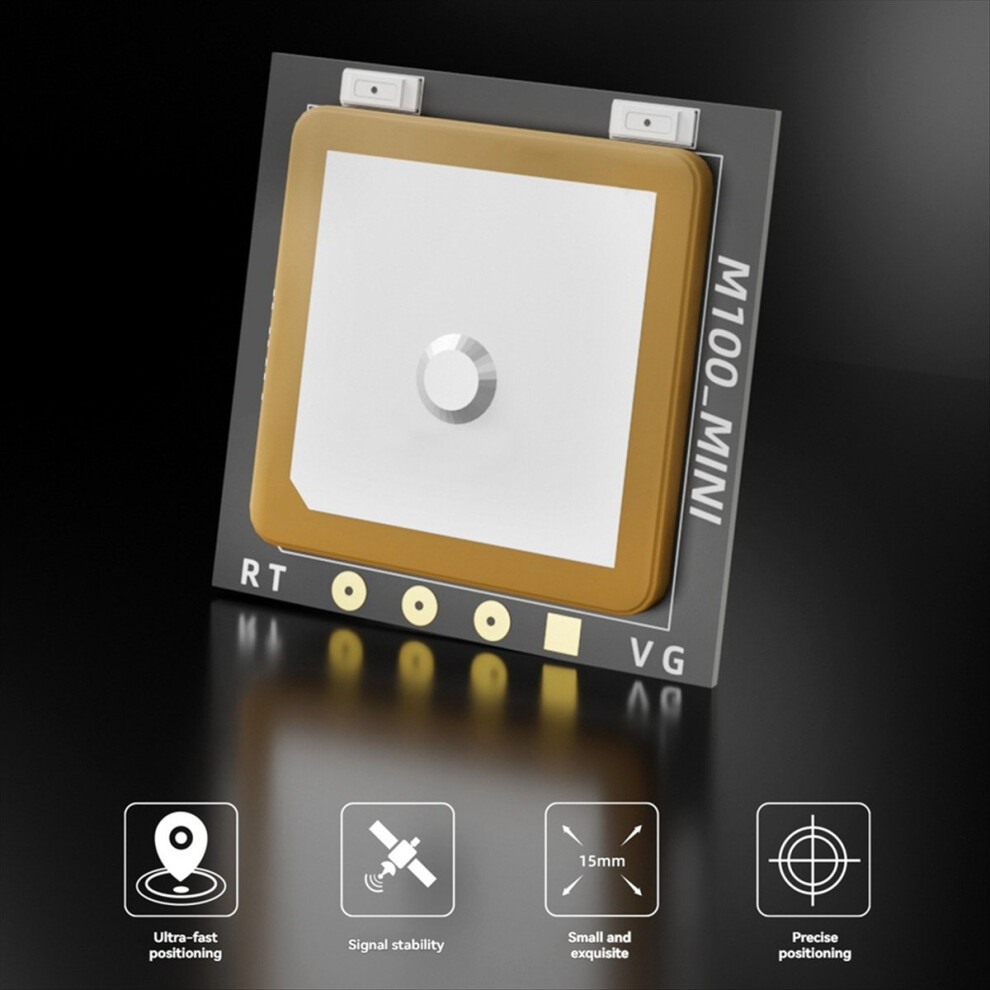

M100 MINI GPS Module Built-in Ceramic Antenna UBLO

M100 MINI GPS Module Built-in Ceramic Antenna UBLO Description

1. Using the new 10th generation UBLOX chip design, fast and accurate positioning.
2. Small size, compatible with 2-7 inch traversal Drone on the market

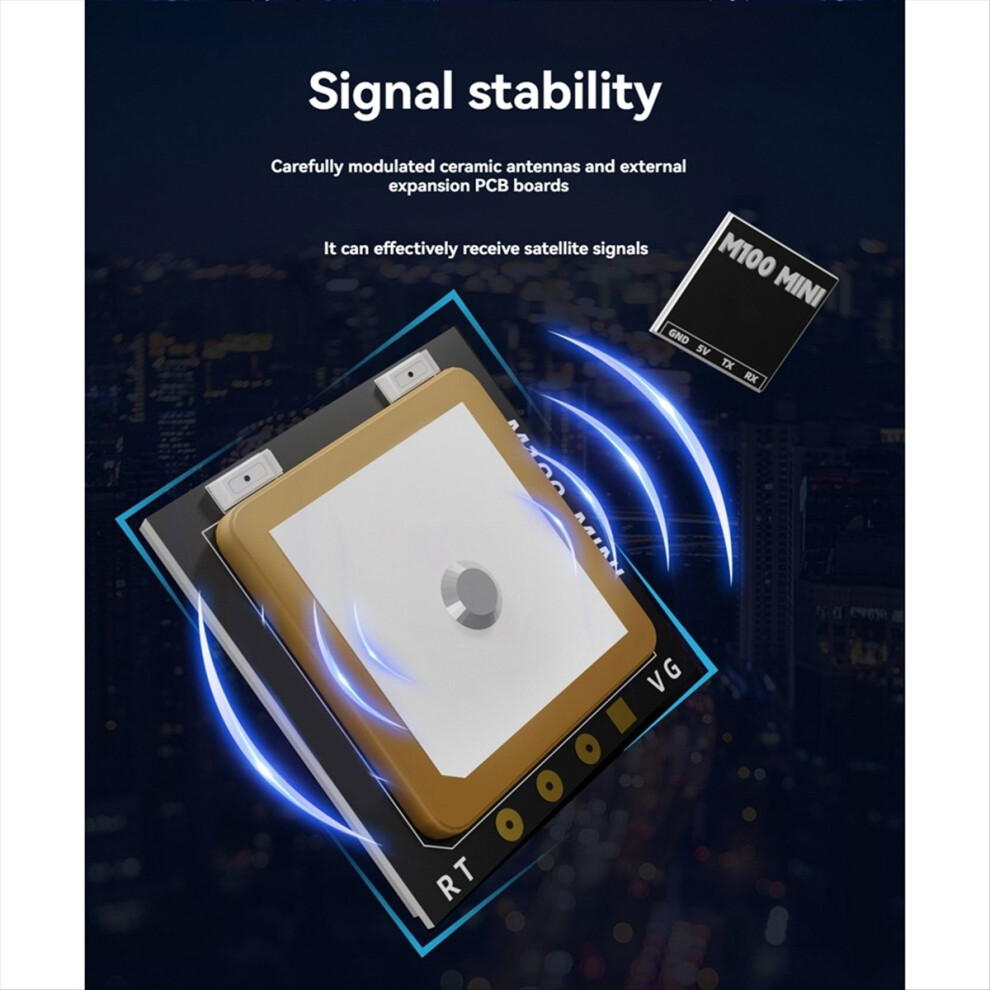

3. ceramic antenna and externally expanded PCB design to effectively receive satellite signals
4. Support GPS, , BDS three-mode positioning, fast positioning in any area

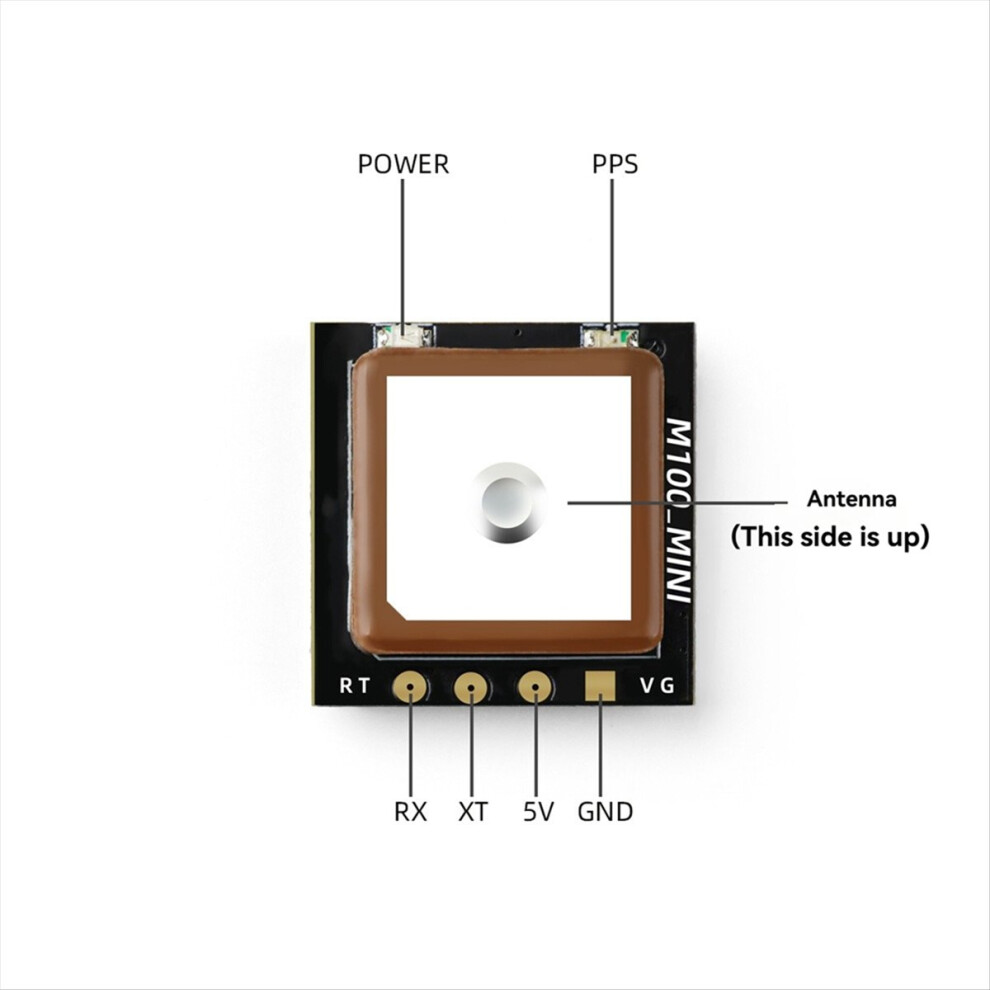

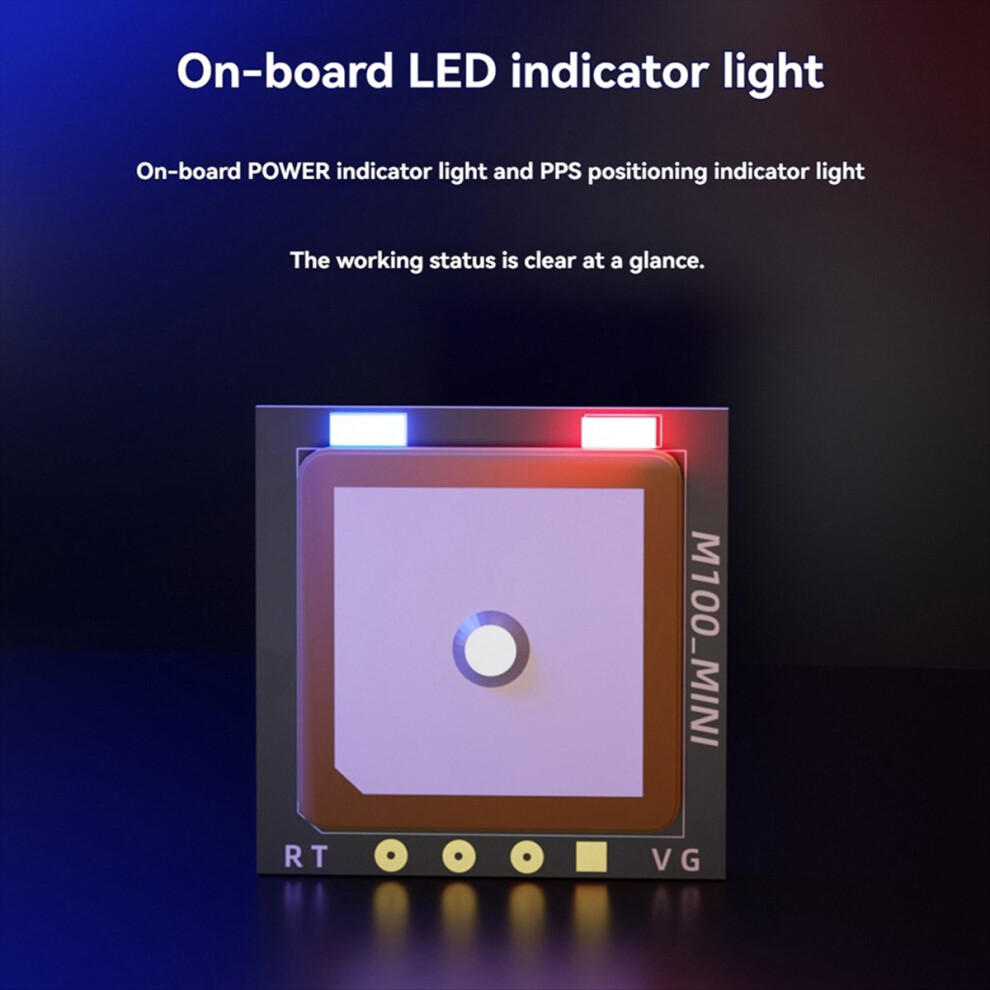

5. Onboard POWER and indicator lights, the working status is clear at a glance

Compatible power supply, support 3.3V-5V DC power input
Using UBLOX output protocol and 10Hz output frequency
Chip: M10(10th Generation Chip)
Antenna: Ceramic Antenna
Frequency: GPS L1,GLONASS L1,BDS B1, E1,SBAS L1,OZSS L1
Receive Channel: 72ch
Baud Rate: 115200bps
Output Protocol: UBLOX
Output Frequency: 10Hz
Input: 3.3V-5V
Speed Accuracy: 0.05m/s
Horizontal positioning accuracy: 2D
ACC2.0m(Outdoor)
Receiver Sensitivity: Trace -166dBm
Capture -160dBm
Characteristics: High:50000m,Speed: 500m/s,acceleration 4G
Operating temperature: -40-+85
Storage temperature: -40-+105
Note: due to different production batches, the product appearance and printed words be different, which not affect the use.
Color:Black
Material:plastic

Package Contents:
1 * GPS Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
