M1018 GPS Positioning Module Supports GPS+BDS++QZS

M1018 GPS Positioning Module Supports GPS+BDS++QZS Description

A compact, fast-positioning, easy-to-use GPS locator
Using U-B LOX output protocol, 10Hz output frequency, stronger anti-interference and faster positioning speed
Supports GPS+BDS++QZSS +SBAS joint positioning, supporting up to 48 satellites

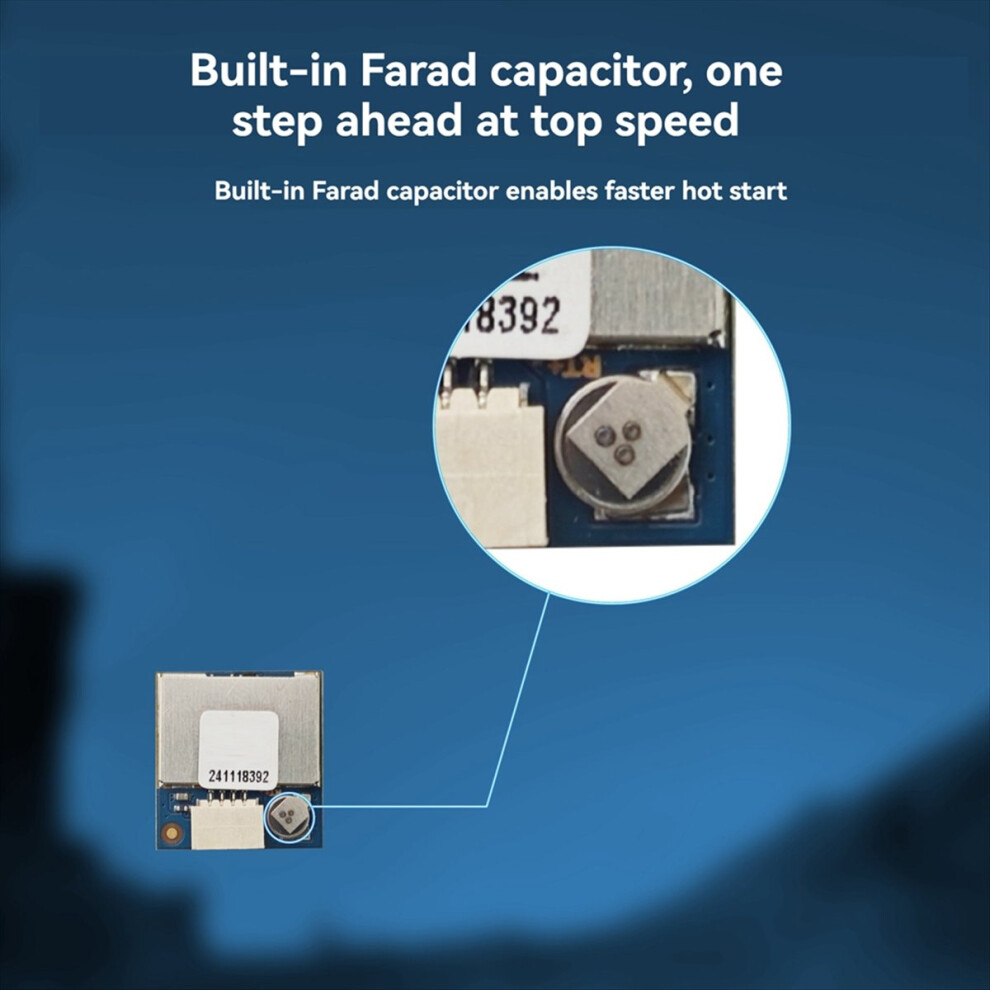

Built-in Flash chip and capacitor, can save configuration parameters and quickly hot start

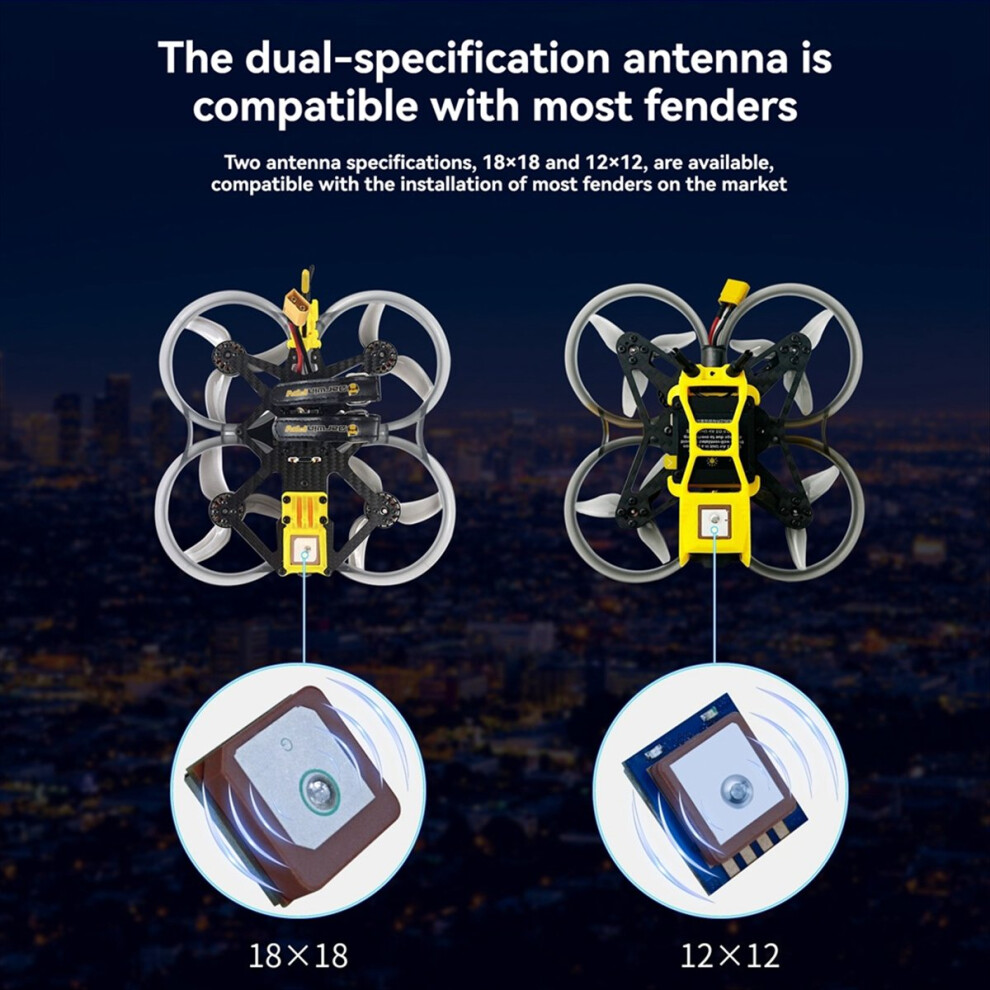

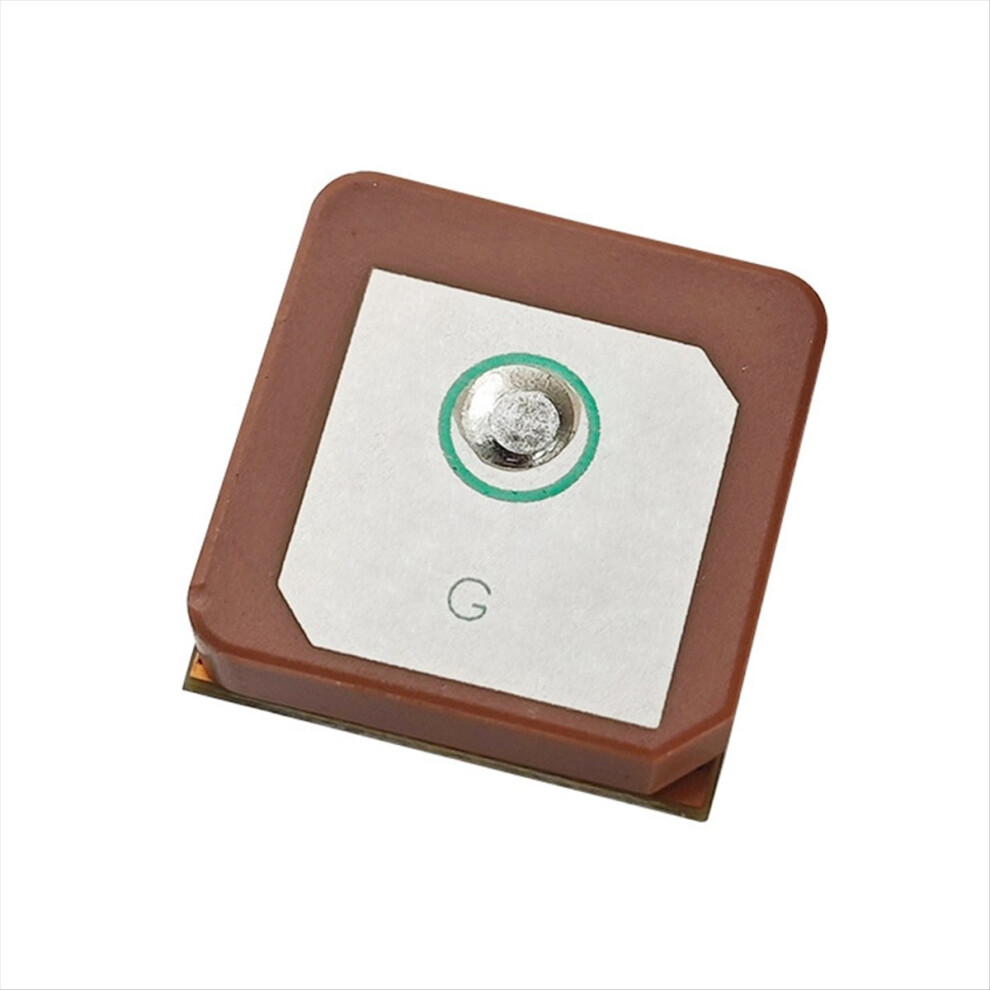

Using high-gain omnidirectional patch antenna, it can provide accurate positioning and stable signal stability even in harsh environments. It is very suitable for use with FPV -country drones, fixed-wing and other aircraft models

Number of GPS: 0-48
Communication protocol:
Baud rate: 115200dps
Update frequency: 10Hz
Supported satellite systems: GPS+BDS++QZSS+SBAS
Receive channel: 72 Searching Channel
Input voltage: DC 5V
Working current: 45mA
Cold start time: 35s
Hot start time: 2s
Receive sensitivity: Trace -167dBm; Capture-160dBm
Horizontal accuracy: 2D Acc1.5m(In Open )
Speed accuracy: 0.05 m/s
Maximum altitude: 50000m
Maximum speed: 500m/s
Maximum acceleration: 4G
Working temperature -40-+85
(The product printed words depending on the batch, but this does not affect use)
Color: As Shown
Material: PCB
style: M1018

Package Contents:
1 x GPS module
1 x SH1.0_4P cable
1 x Sticker

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
