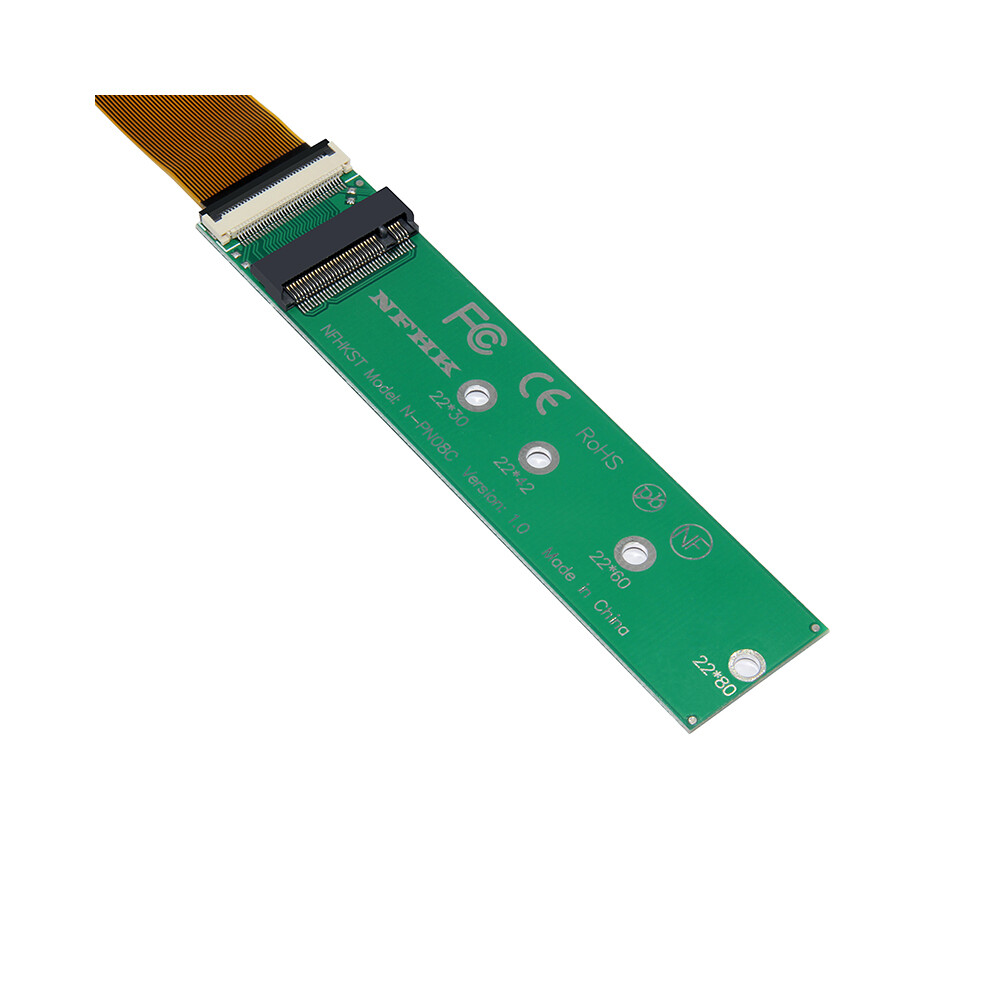

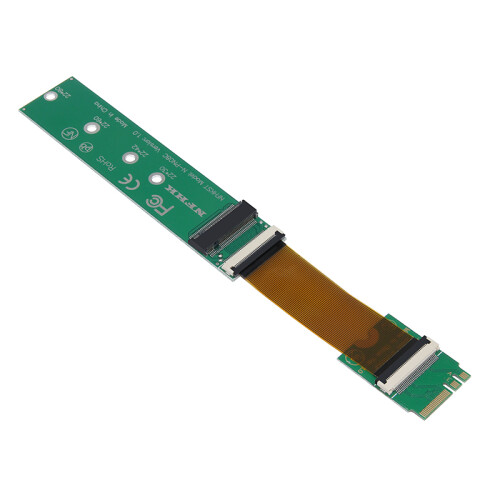

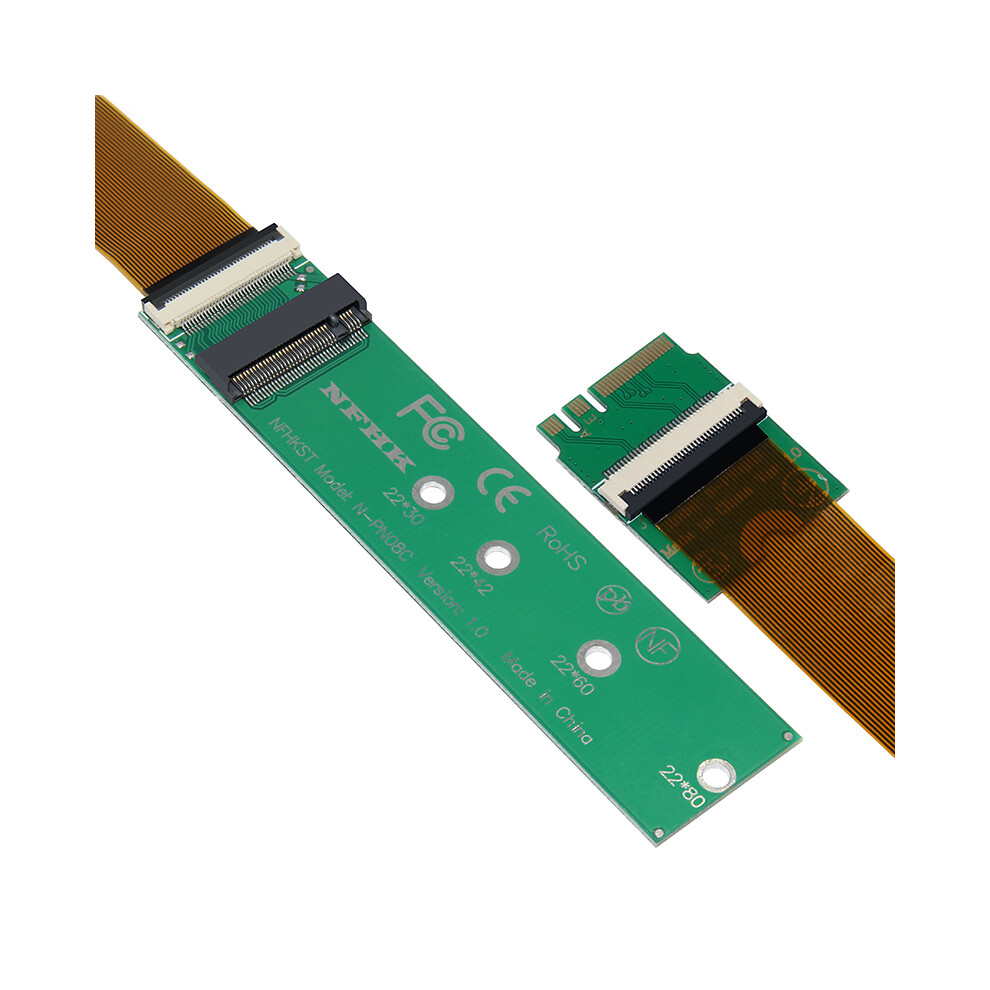

M.2 A+E +Key to NVME Expansion Slot Adapter Computer Accessory PCLE Protocol

M.2 A+E +Key to NVME Expansion Slot Adapter Computer Accessory PCLE Protocol Description

Description:

If your machine M.2 NGFF WIFI wireless card slot does not support CNVi protocol wireless card, you can not use this product, you must support PCIe protocol M.2 NGFF wireless card or PCIe and CNVi dual protocol M.2 NGFF wireless card slot to use!

Does not support PCIe 4.0, does not support large power consumption hard drive with rated current greater than 2A, the hard drive can only run in the PCIe x1 state, because the machine wireless network card interface is PCIe x1, so the speed is definitely slow!

This product supports NVMe protocol M.2 NGFF SSD into PCIE protocol M.2 NGFF WiFi NIC interface slot use, be sure to note that such use does not support the rated current in the more than 2 amps of large power consumption hard drive, because the M.2 wifi NIC interface is designed with a small power supply capacity (the manufacturer is not likely to give a low-power wireless NIC designed for a large capacity power supply).

Attention:

1.This product can only support installing NVMe M.2 SSD in the M.2 WiFi wireless card location for data reading or data backup of your original hard drive after installation. Because the wireless card slot is PCIe 2.0 x1, the speed can only be around 200M/S. This adapter card does not support long-term plug computer use, limited to emergency copy data use.

2. wireless card is a low-power device, M.2 hard drive is a high-power devices, rated current at least 2A to start, machine design wireless card slot if the current reserved is not enough to meet the requirements of the hard drive is unable to identify the work of the words, or identify the instability of this must be prepared for this, which is particularly prominent in the notebook (notebook M.2 WiFi interface current is generally 1A ~ 1.5A), this must be prepared for (Notebook M.2 WiFi interface current is generally 1A ~ 1.5A), the wireless card slot is not supported for long-term insertion in the computer, limited to emergency copying data. 1.5A), so be careful when buying a laptop!

3. If your M.2 WiFi wireless card slot only supports CNVI protocol M.2 wireless card, with this wireless card to install M.2 NVMe SSD, the machine can not recognise the hard drive! This is because M.2 NVMe SSDs actually take the PCIe channel. Please make sure the buyer confirms this issue for themselves before purchasing! As for what is CNVI what is PCIe, if you do not understand, please search online to learn.

4. This adapter FPC cable length of 60 mm, if you want to install the hard drive, please confirm the installation space.

5. The use of the hard drive in the heat is a normal phenomenon.

6. As it is in the machine M.2 WiFi interface to connect NVMe M.2 SSD, does not guarantee that all machines are compatible! Only some machines will work! Then M.2 WiFi interface is PCIe x1, the speed is very slow, and is not recommended for long-term access to use!

Package Included:

1pcs*Expansion Interface Adapter

Notes:

Please check the product interface information before purchase to ensure that the product interface is correct.

Package does not include installation instructions, please professional maintenance personnel to operate, thank you!
