M.2 A+E RTL8111F Gigabit Ethernet Adapter Full-Duplex/Half-Duplex for Win7/8

M.2 A+E RTL8111F Gigabit Ethernet Adapter Full-Duplex/Half-Duplex for Win7/8 Description

Features:

M.2 A/E RTL8111F Gigabit Ethernet Adapter, supporting 10/100/1000Mbps full-duplex/half-duplex auto-negotiation networking.

Supports transmission of Gigabit jumbo frames, delivering bidirectional data transfer rates up to 1000Mbps. Enables Gigabit networking at the desktop to enhance network performance.

Backwards compatible with 10/100BASE-T systems, enabling straightforward integration into most existing networks using CAT-5 cabling.

Specifications:

- Bus Type: M.2 A/E Key 2230

- Integrated 10/100/1000M transceiver

- High-performance 1000BASE-T Ethernet controller card

- Backwards compatible with 10/100BASE-T networks

- 10/100/1000Mbps data rate auto-negotiation operation

- Compatible with existing CAT-5 UTP cabling

- Fully compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab

- Supports half/full-duplex modes and 802.3x flow control

- Supports IEEE 802.1P Layer 2 priority encoding

- Supports IEEE 802.1Q VLAN tagging

- On-chip transmit/receive buffer support

- Supports 9K-byte jumbo frames

- Cross-check and auto-correction operation

- Supports power-down/link power-saving

- Support for LAN Wake-up and Remote Wake-up functions

- Support for standard and slim chassis

- 1 x RJ45 Gigabit LAN port

- Chipset: Realtek RTL8111F

It is suitable for multiple market segments and emerging applications, such as desktop computers, workstations, servers, communication platforms, and embedded applications.

System Requirements:

For DOS, Win 7/Win 8/Server 2008/Win 8.1/Server 2012/2016, Win 10 32-64bit, Linux

- One available M.2 A+E KEY slot on the motherboard.

Please note:

Due to logistical constraints, the packaging does not include the CD driver. Should you require the electronic version of the driver, please contact us. Thank you.

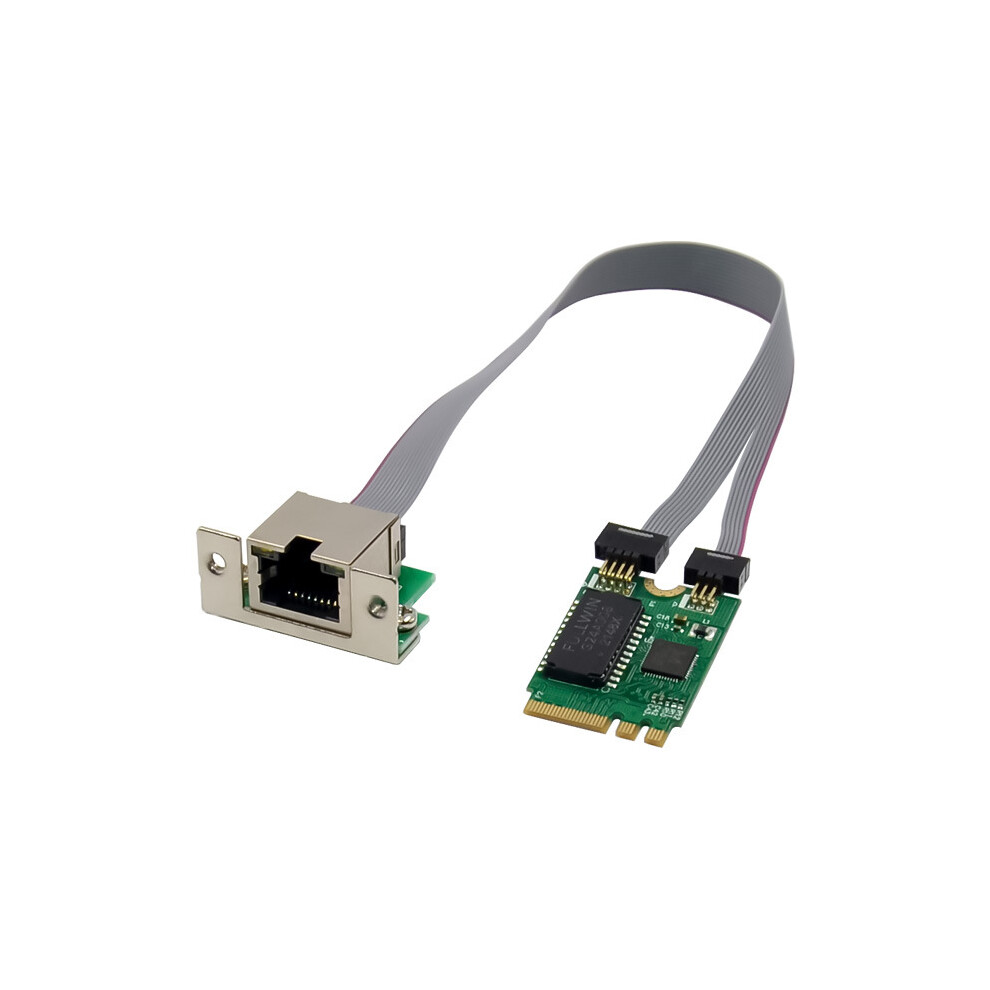

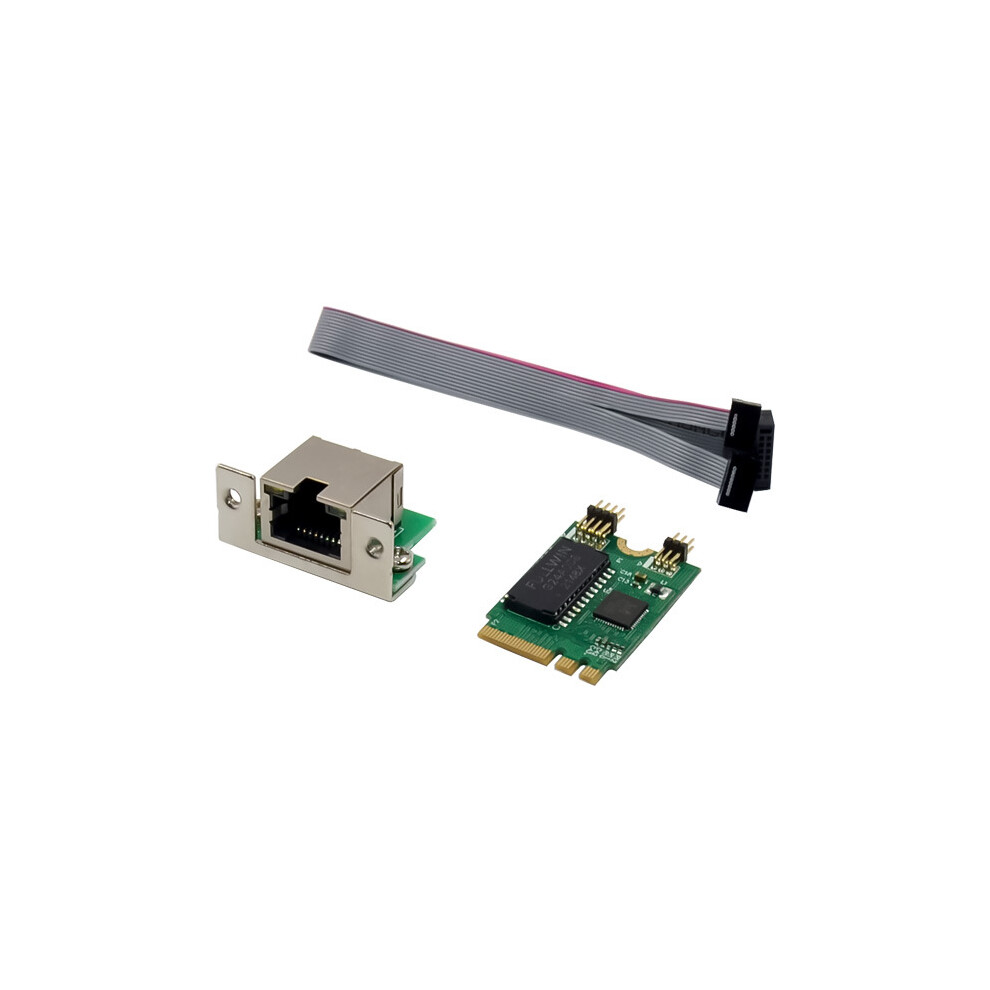

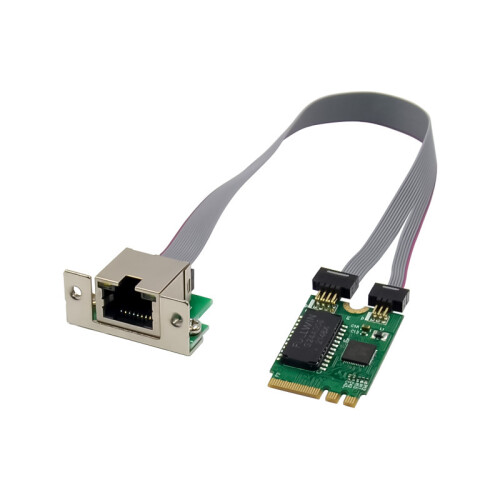

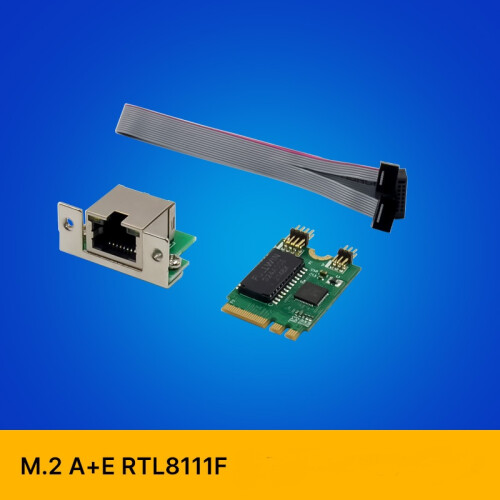

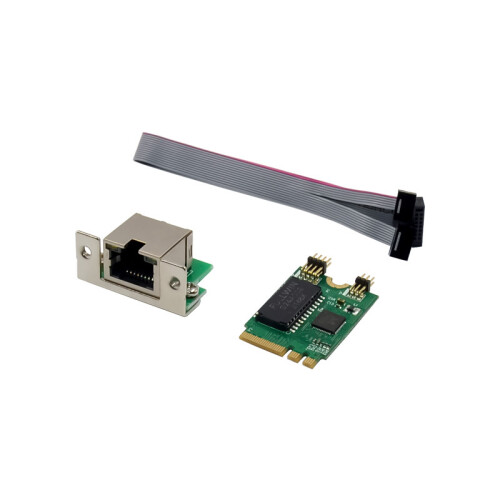

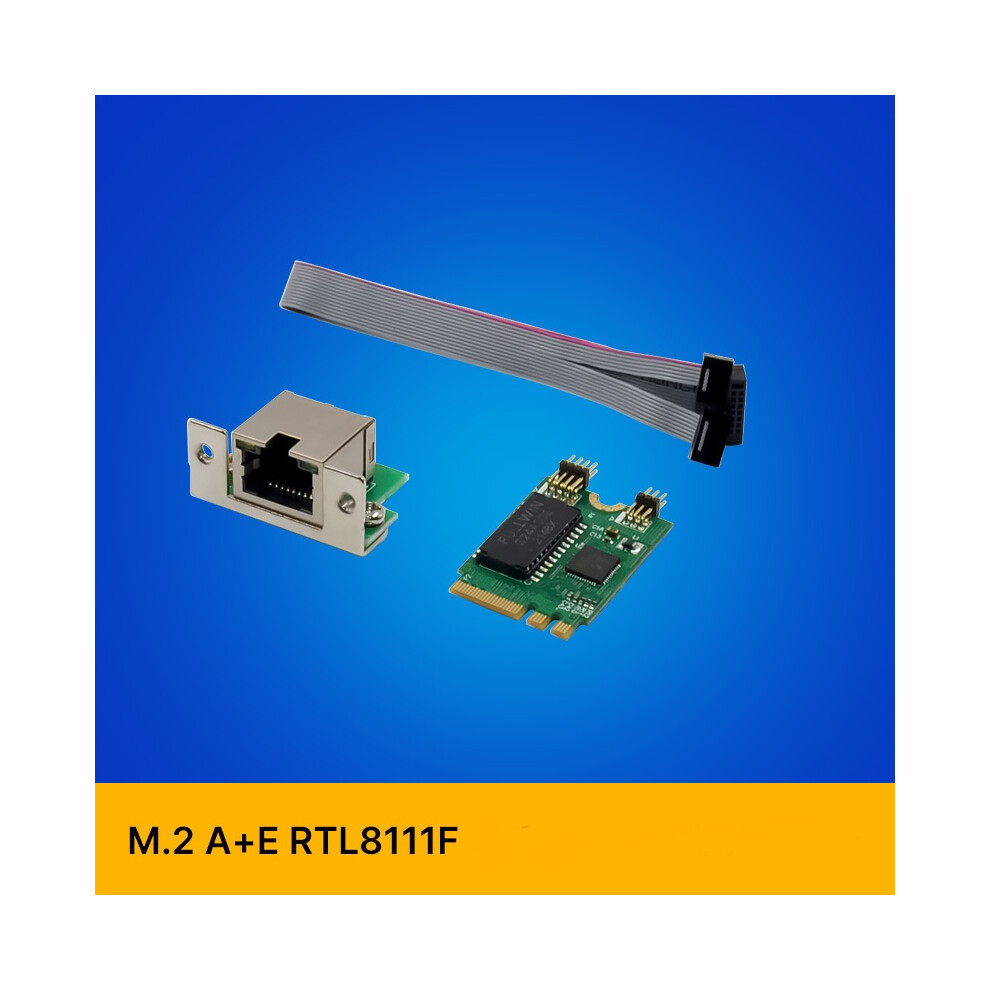

Packaging includes:

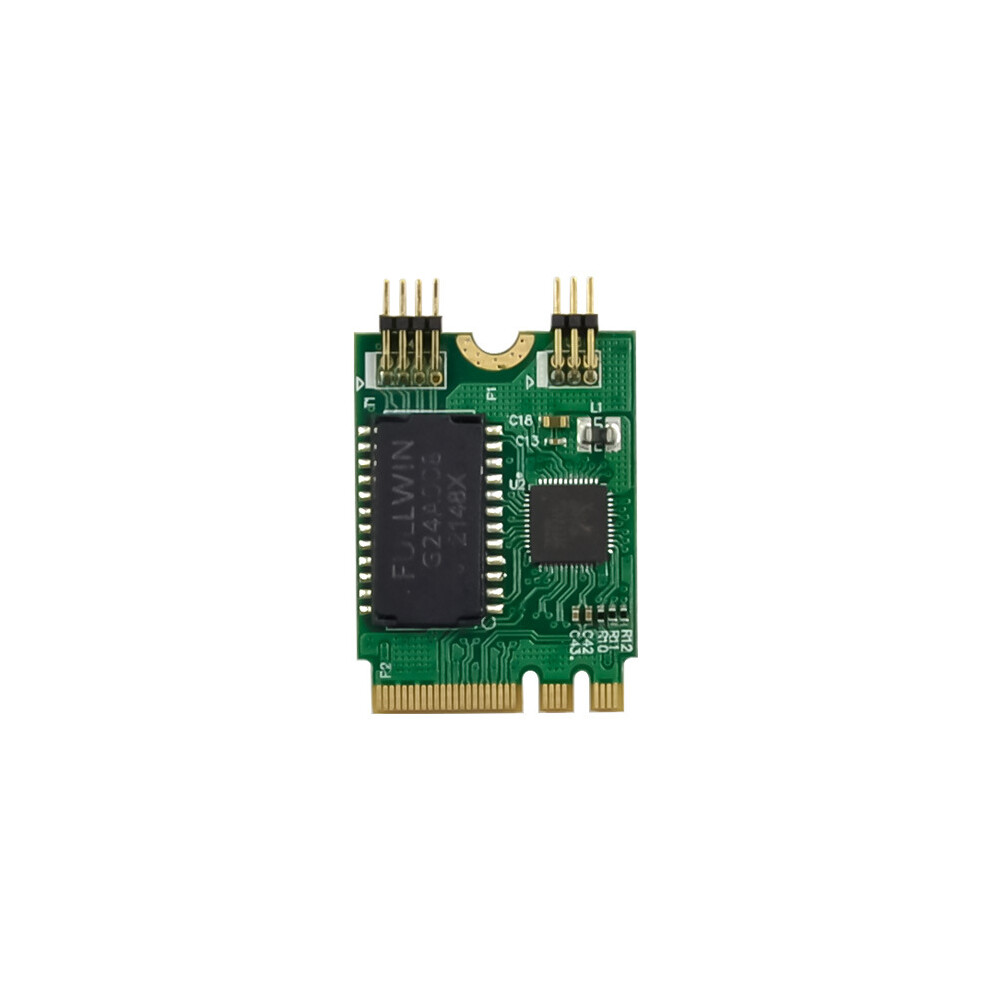

1 x M.2 A+E RTL8111F-Main Card

1 x RJ45 Terminal

1 x Network Terminal Cable
