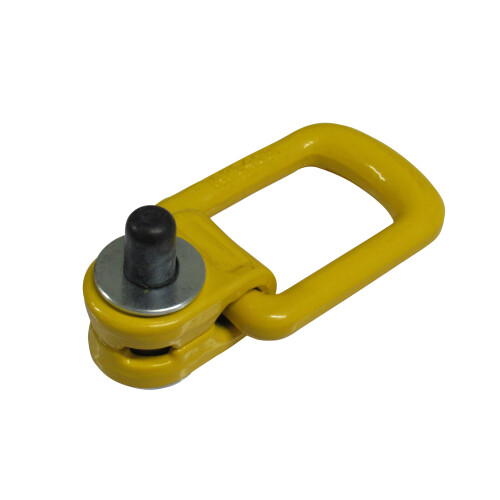

(M27 x 38) Swivel Lifting Rings Bolt On (Grade 80)

(M27 x 38) Swivel Lifting Rings Bolt On (Grade 80) Description

Grade 80 Bolt On Swivel Lifting Points M8 - M48

Material - Grade 80

Finish - Yellow (May Vary)

Factor Of Safety - 4:1

Conforms To: BS EN 1677

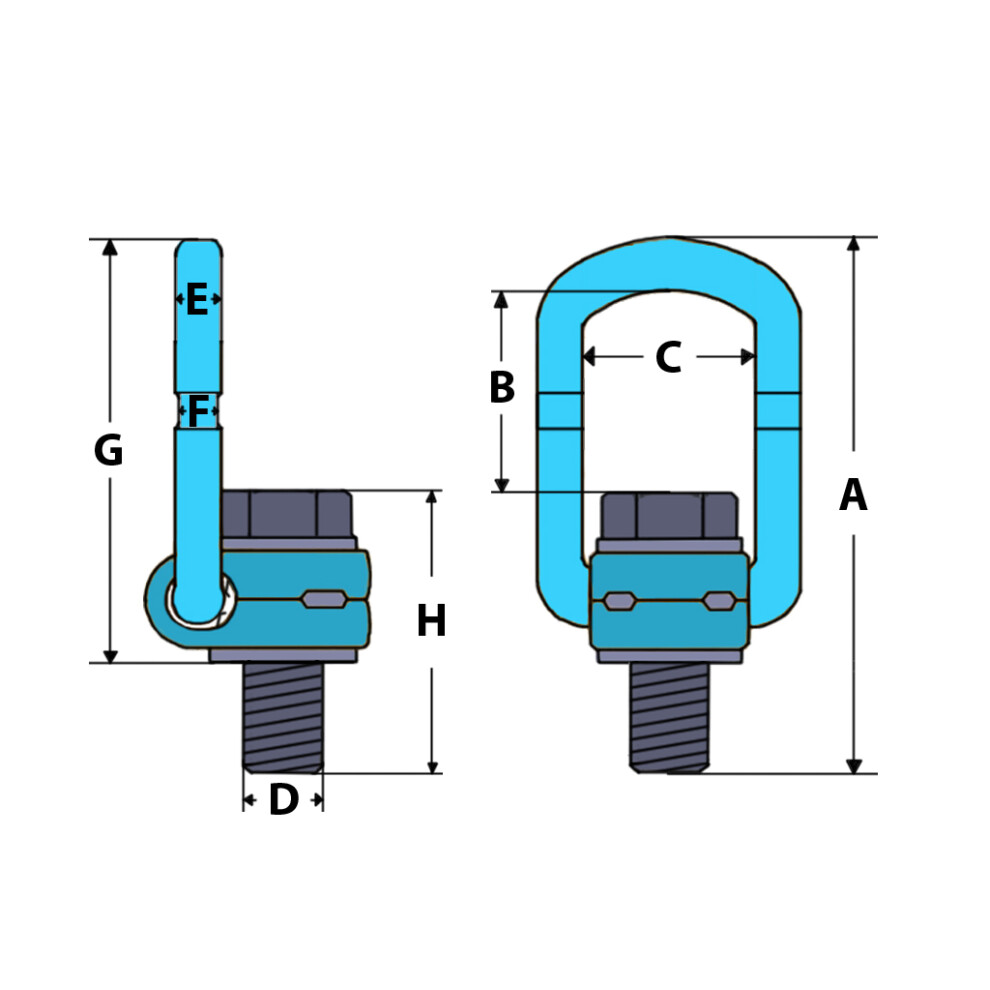

Dimensions

Size - M8 x 10 = SWL - 0.3 TON A - 100MM, B - 35MM, C - 34MM, D - 7.82MM, E - 11MM, F - 10MM, G - 85MM, H - 51MM

Size - M10 x 15 = SWL - 0.63 TON A - 105MM, B - 35MM, C - 35MM, D - 9.74MM, E - 11MM, F - 10MM, G - 85MM, H - 53MM

Size - M12 x 17.6 = SWL - 1 TON A - 123MM, B - 35MM, C - 39MM, D - 11.82MM, E - 15MM, F - 14MM, G - 99MM, H - 64MM

Size - M16  x 30 = SWL - 1.5 TON A - 123MM, B - 35MM, C - 39MM, D - 15.82MM, E - 15MM, F - 14MM, G - 99MM, H - 72MM

Size - M20 = SWL - 2.5 TON A - 153MM, B - 52MM, C - 53MM, D - 20MM, E - 15MM, F - 13MM, G - 122MM, H - 89MM

Size - M24 = SWL - 4 TON A - 175MM, B - 65MM, C - 53MM, D - 23.45MM, E - 15MM, F - 14MM, G - 140MM, H - 95MM

Size - M27 x 38 = SWL - 4 TON A - 215MM, B - 70MM, C - 73MM, D - 26.55MM, E - 24MM, F - 24MM, G - 215MM, H - 121MM

Size - M30 x 48 = SWL - 5 TON A - 225MM, B - 66MM, C - 73MM, D - 29.66MM, E - 25MM, F - 24MM, G - 225MM, H - 134MM

Size - M36 x 62 = SWL - 8 TON A - 290MM, B - 95MM, C - 93MM, D - 35.69MM, E - 28MM, F - 27MM, G - 230MM, H - 165MM

Size - M42 x 63 = SWL - 15 TON A - 330MM, B - 100MM, C - 105MM, D - 41.28MM, E - 36MM, F - 36MM, G - 260MM, H - 188MM

Size - M48 x 74 = SWL - 20 TON A - 340MM, B - 100MM, C - 105MM, D - 47.59MM, E - 36MM, F - 36MM, G - 270MM, H - 199MM

Here at SecureFix Direct we stock a huge range of high quality, yet competitively priced lifting equipment. Part of our extensive range are these fantastic Bolt On Swivel Lifting Points.

These are commonly used within the lifting industry for hoisting and lifting equpment when there are no obvious attachment points. Thanks to their bolt on design these can be secured to the object being lifted, and then removed once no longer needed.

These Lifting Attachment Points have been made from Grade 80 material for strength and durability and have safe working loads of up to an impressive 20 Ton. These also offer complete 360 degree rotation and a pivot up to 180 degrees.

As with all of the Lifting Equipment stocked here at SecureFix Direct, these Swivel Lifting Attachment Points conform to current safety standards and Test Certificates can be supplied by email.
