M328 Multi-Purpose Transistor Tester 1.8 Inch TFT LCD for Diode Resistor Capacitance Inductor Meter B

M328 Multi-Purpose Transistor Tester 1.8 Inch TFT LCD for Diode Resistor Capacitance Inductor Meter B Description

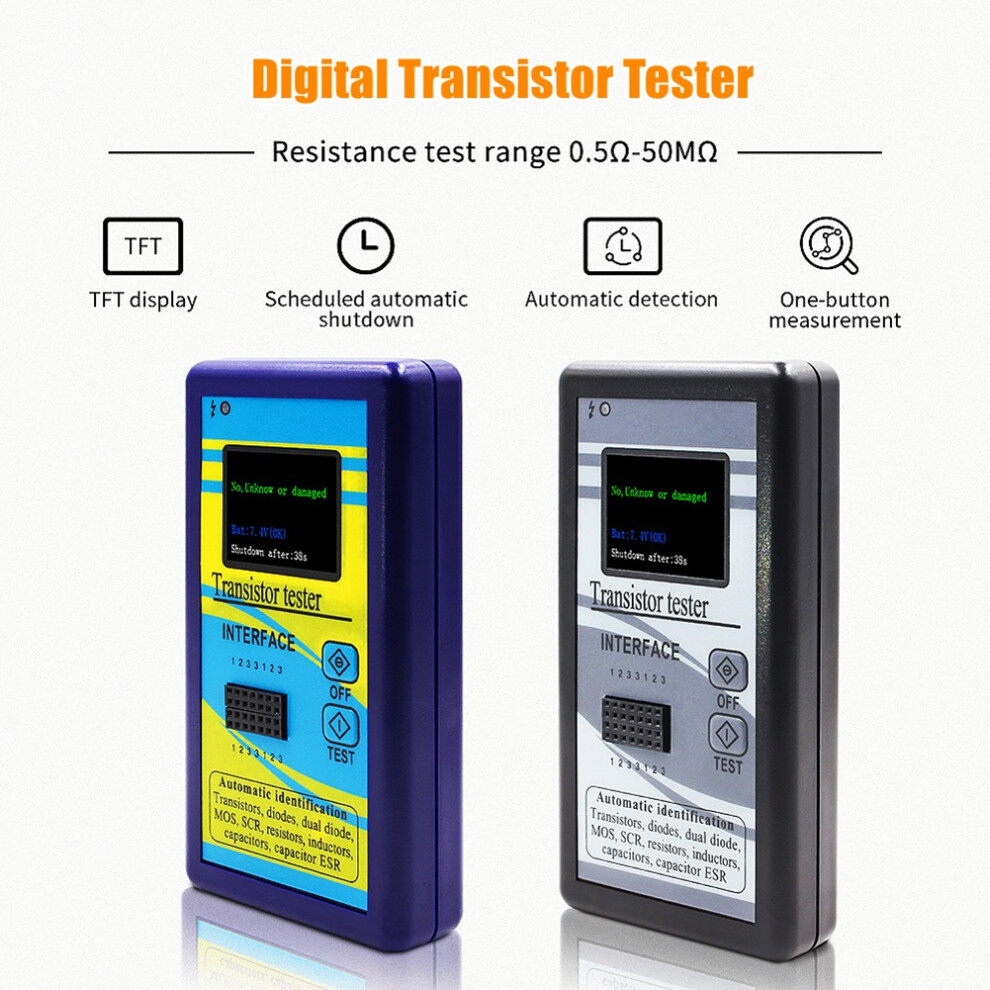

128x160 TFT color display.
New boot voltage detection.

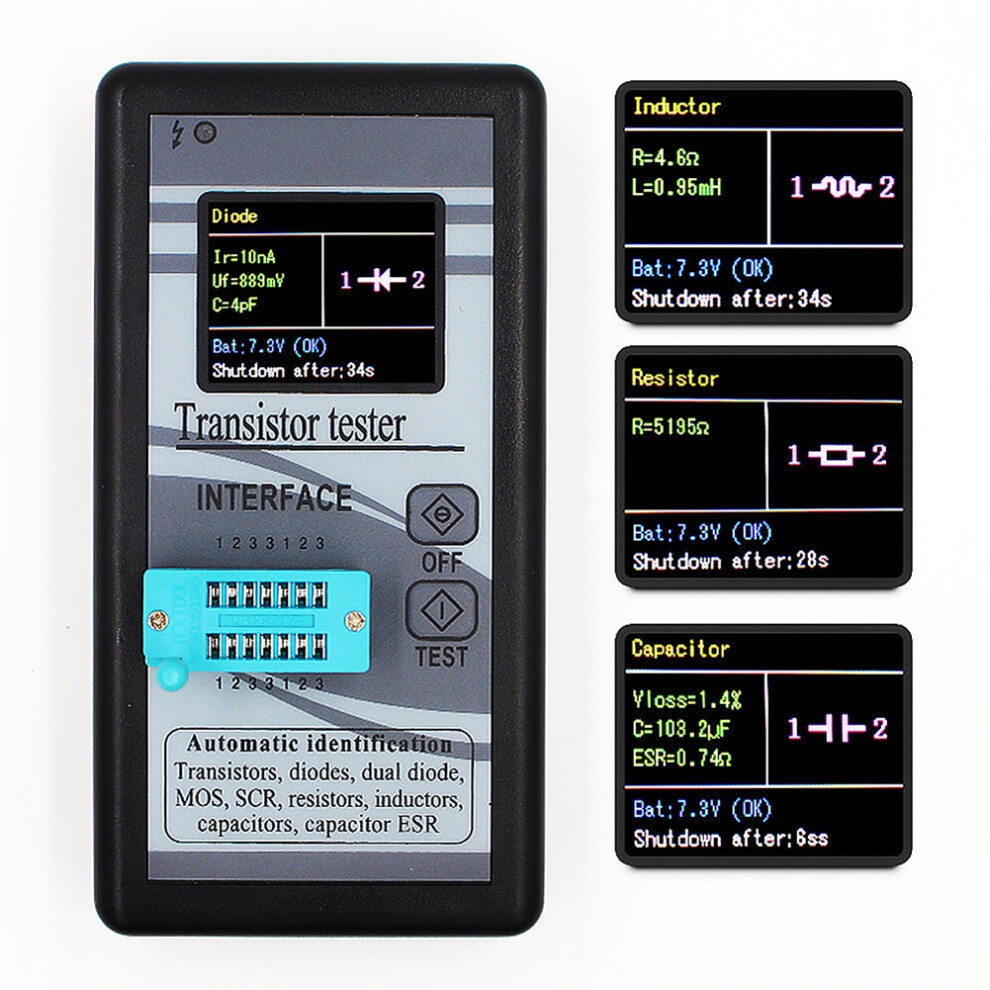

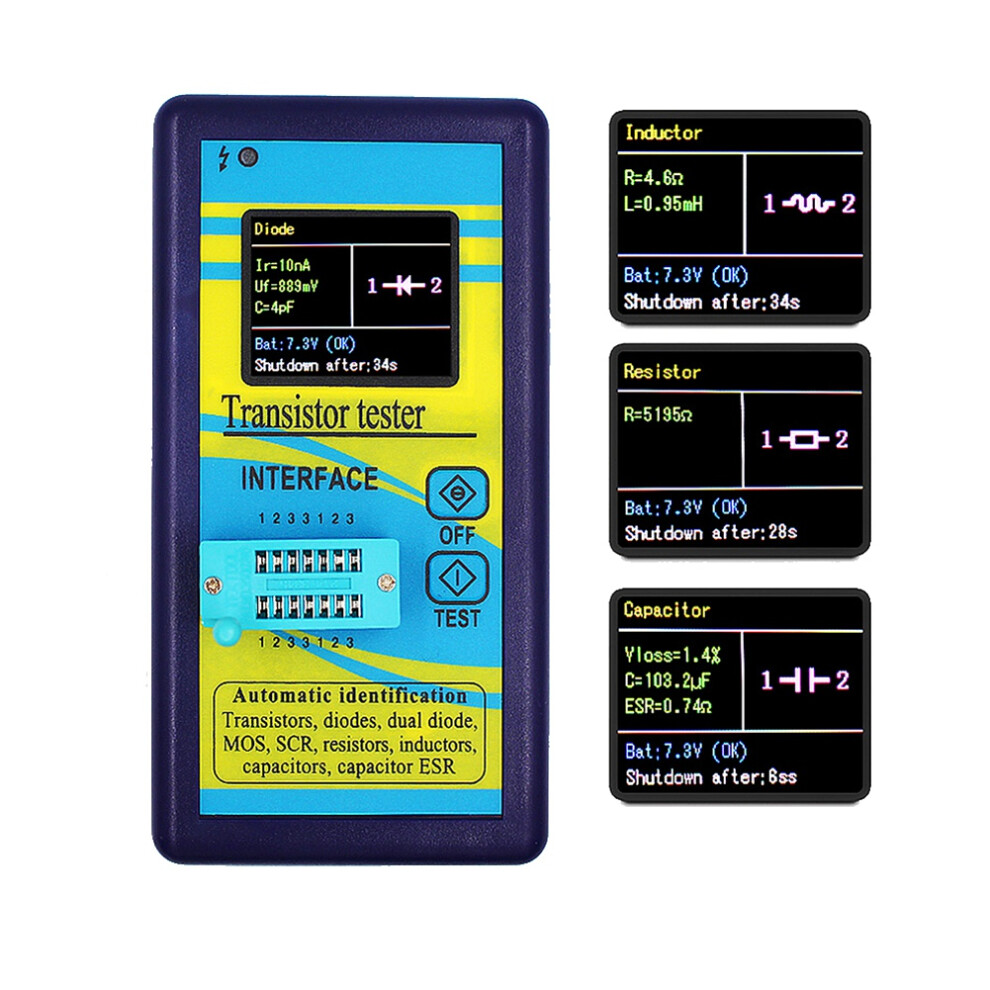

Automatically test a component's pins and display them on the LCD.
Measure MOSFET gate threshold voltage and gate capacitance.
Measure bipolar transistor current amplification factor and base-emitter threshold voltage.

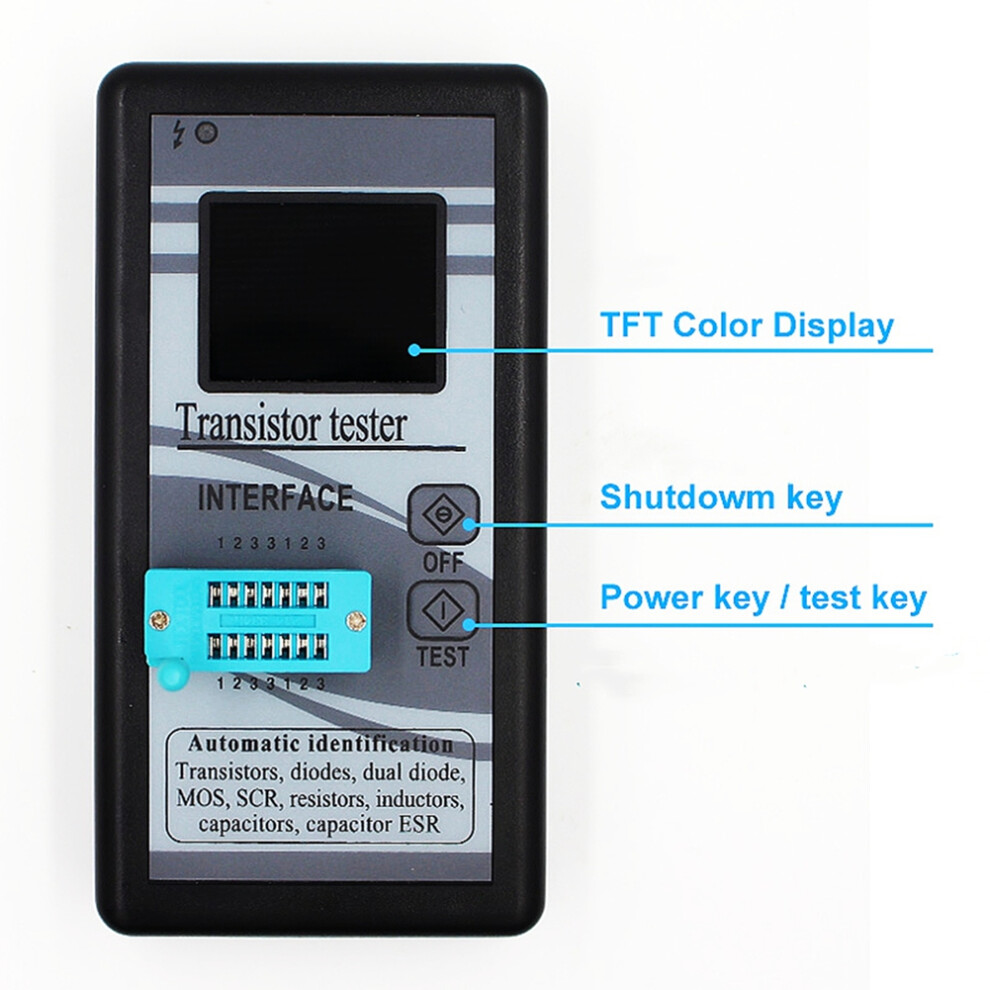

One-button operation, automatic shutoff to prevent unnecessary battery drain
Short detection time: only 1.7 seconds (it is normal to take 1 minute for bulk capacitor detection)
Reminder: Make sure the capacitors are fully discharged before testing.
Display: 128 x 160 TFT color display
Normal test speed: 1.7 seconds
Shutdown current: 20 nA
Resistance test range: 0.5 ohm - 50 M ohm
Inductor test range: 0.01 - 20 H
Capacitor test range: 25 pF - 100,000
Specification:B
Color: As Shown
Material: plastic

Package Contents:

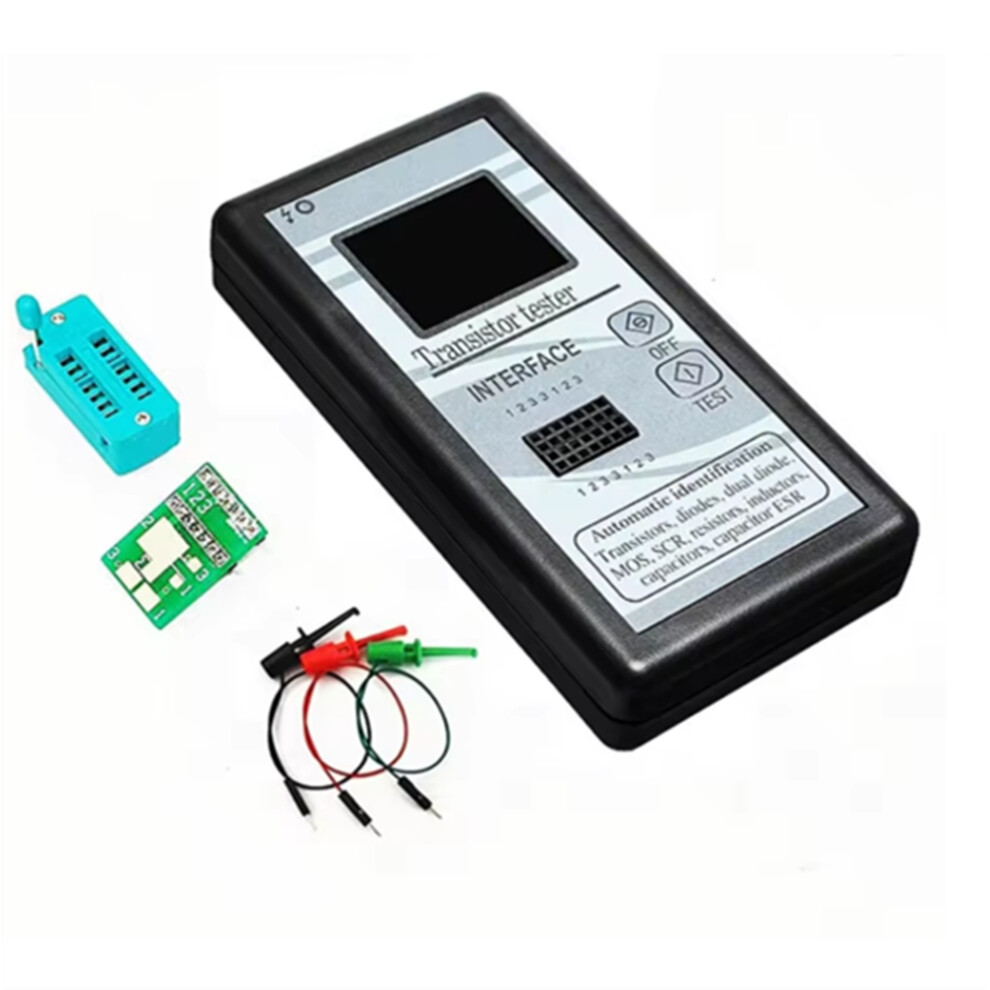

1 x M328 Multi-Purpose Transistor Tester Kit(Without 1 x 9V battery,You need to prepare yourself)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
