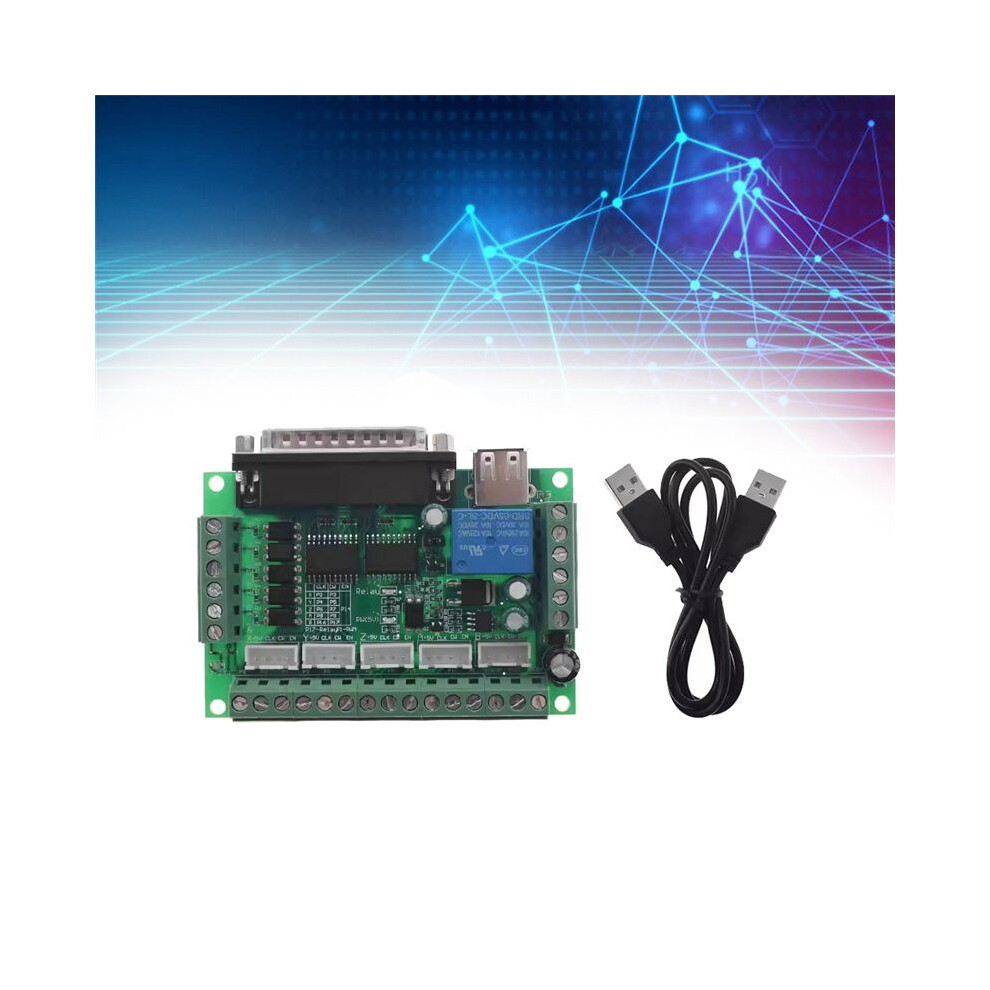

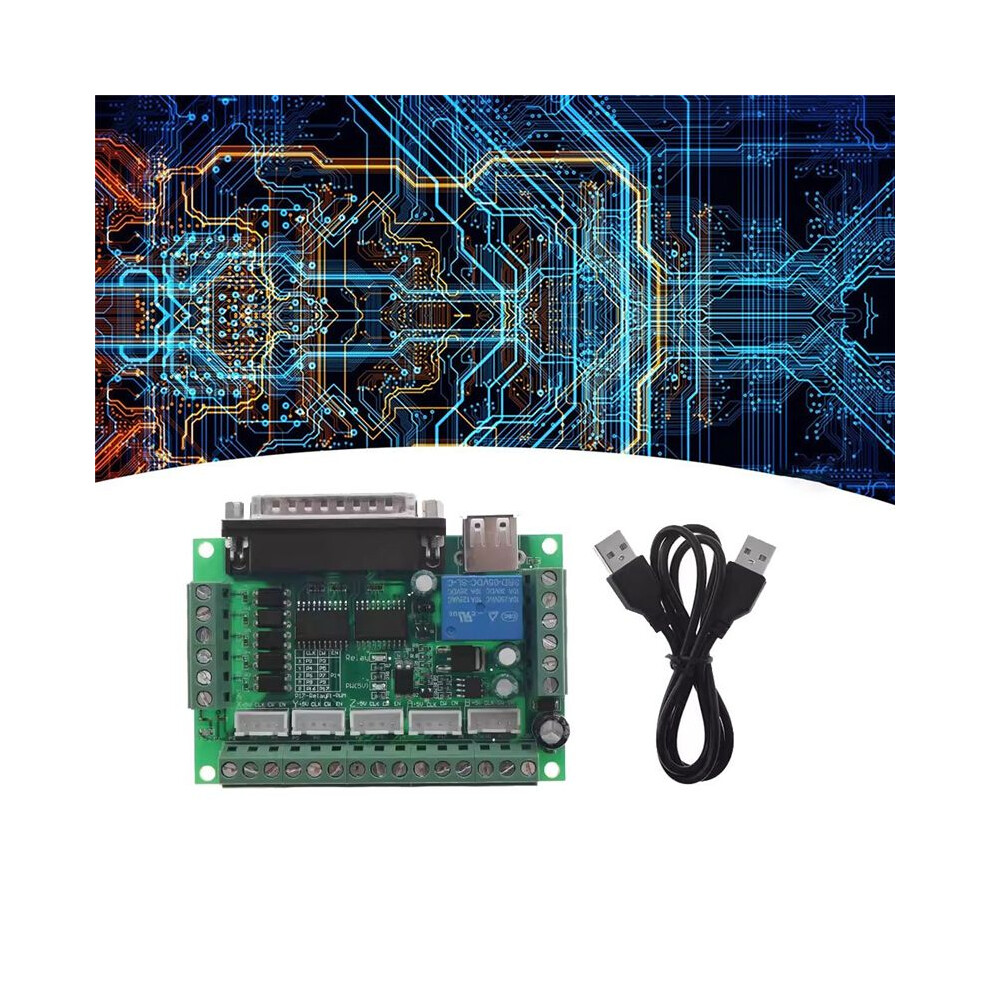

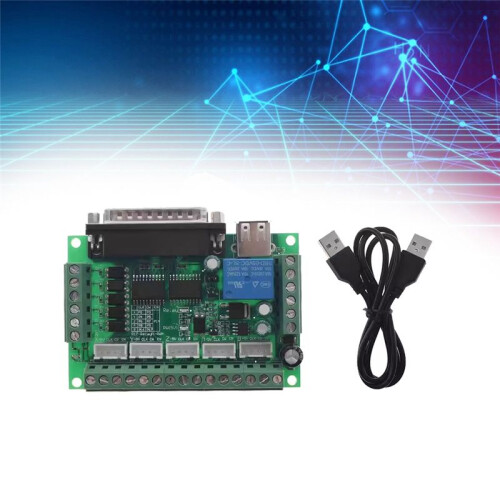

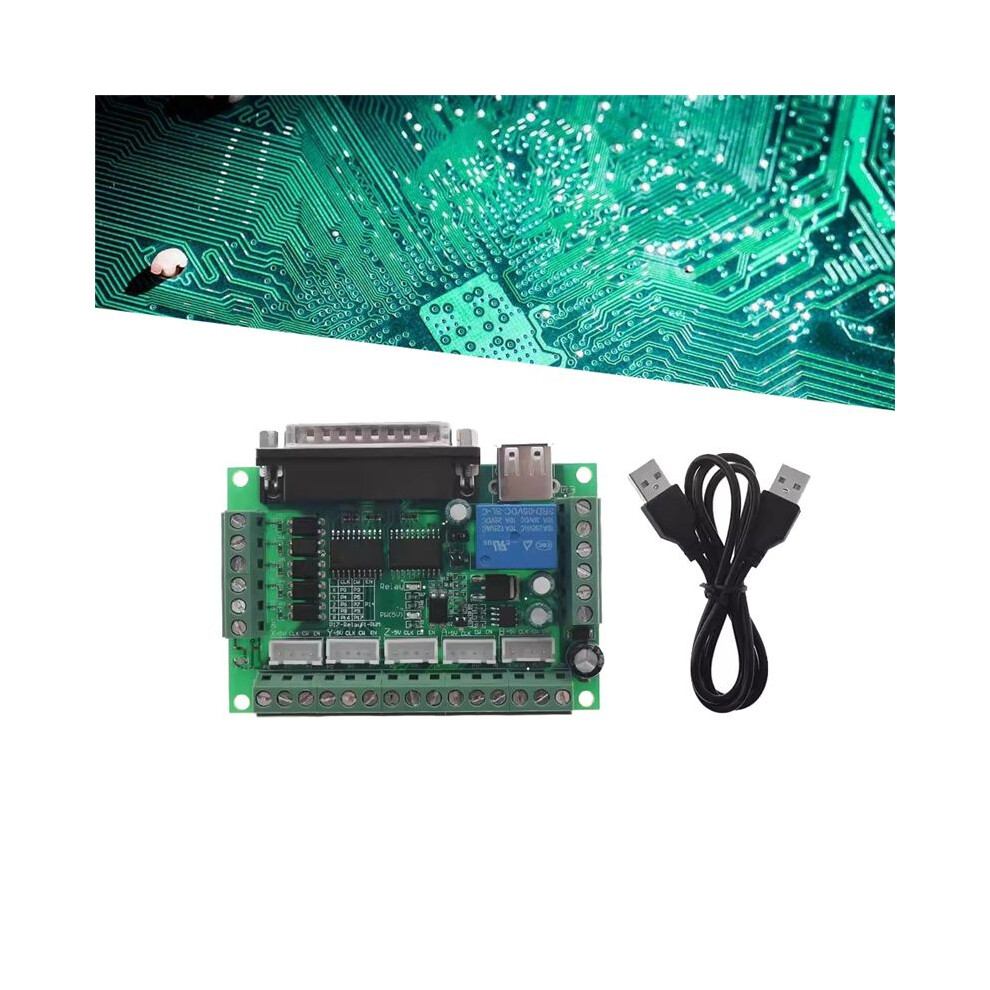

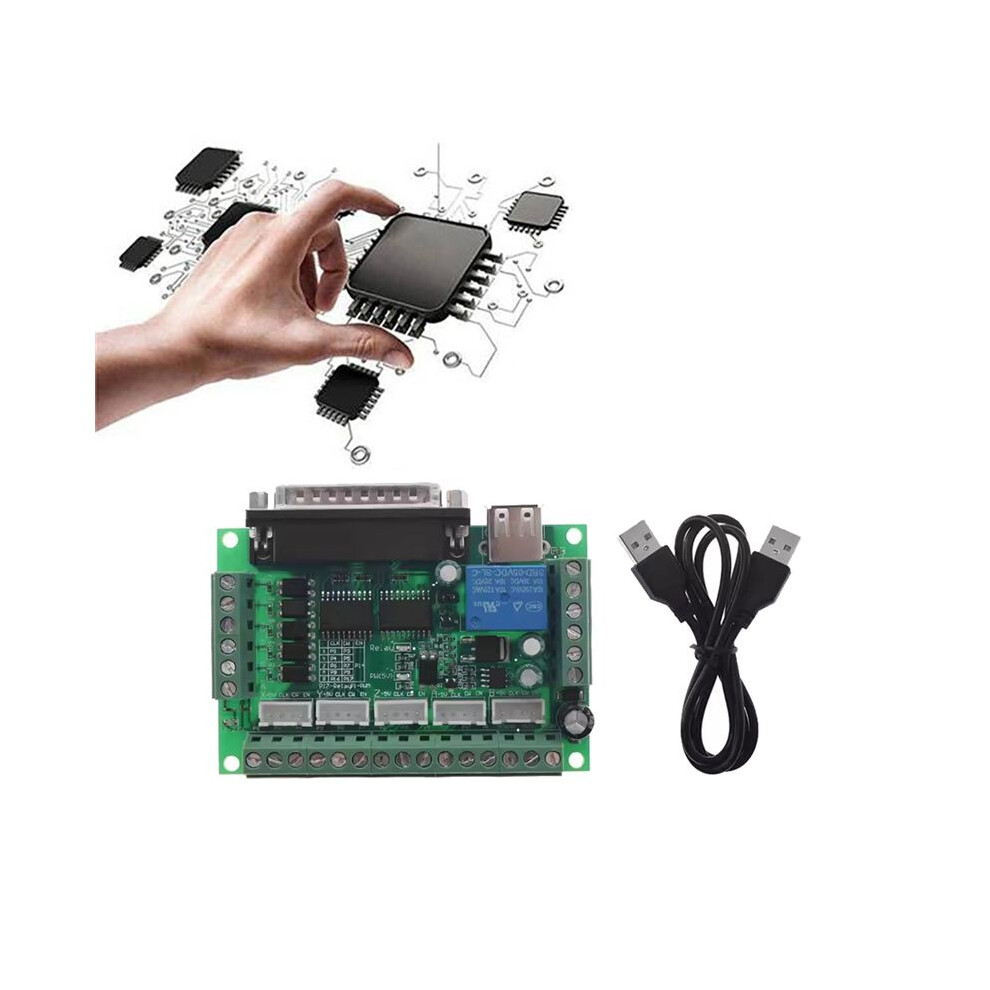

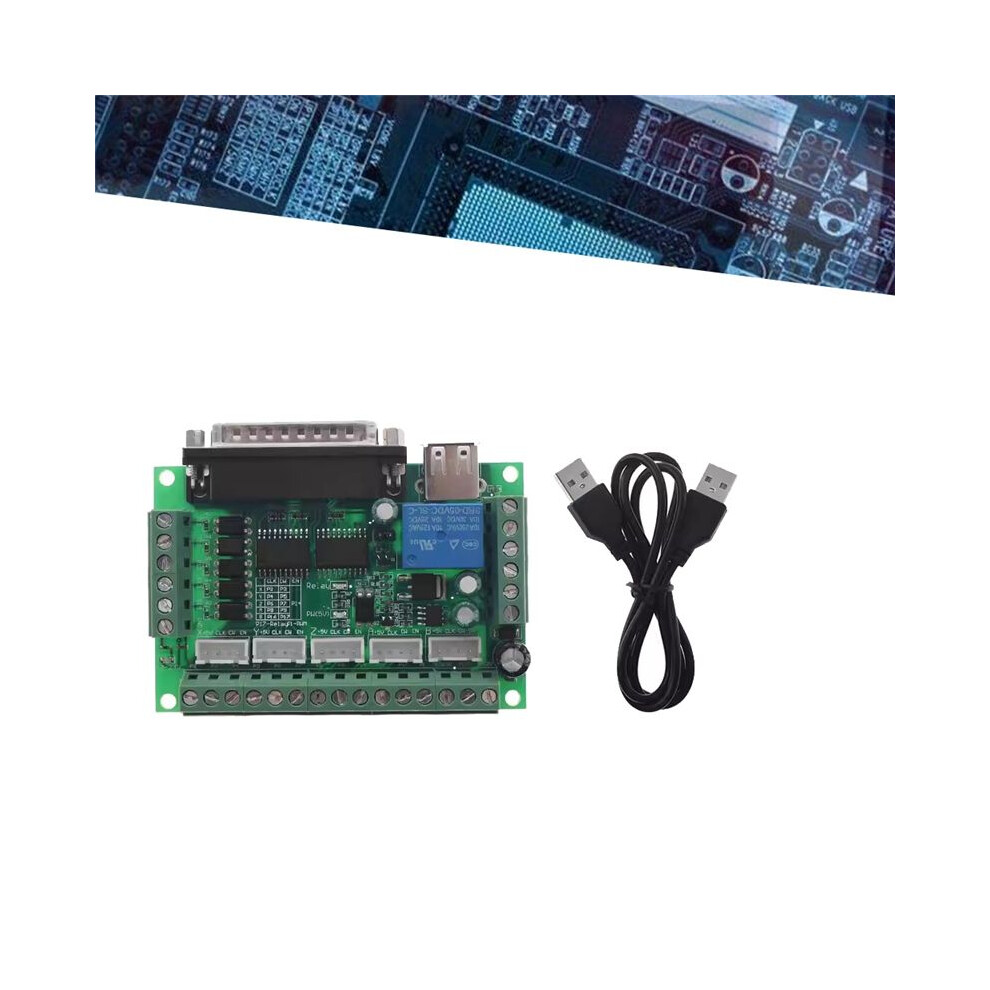

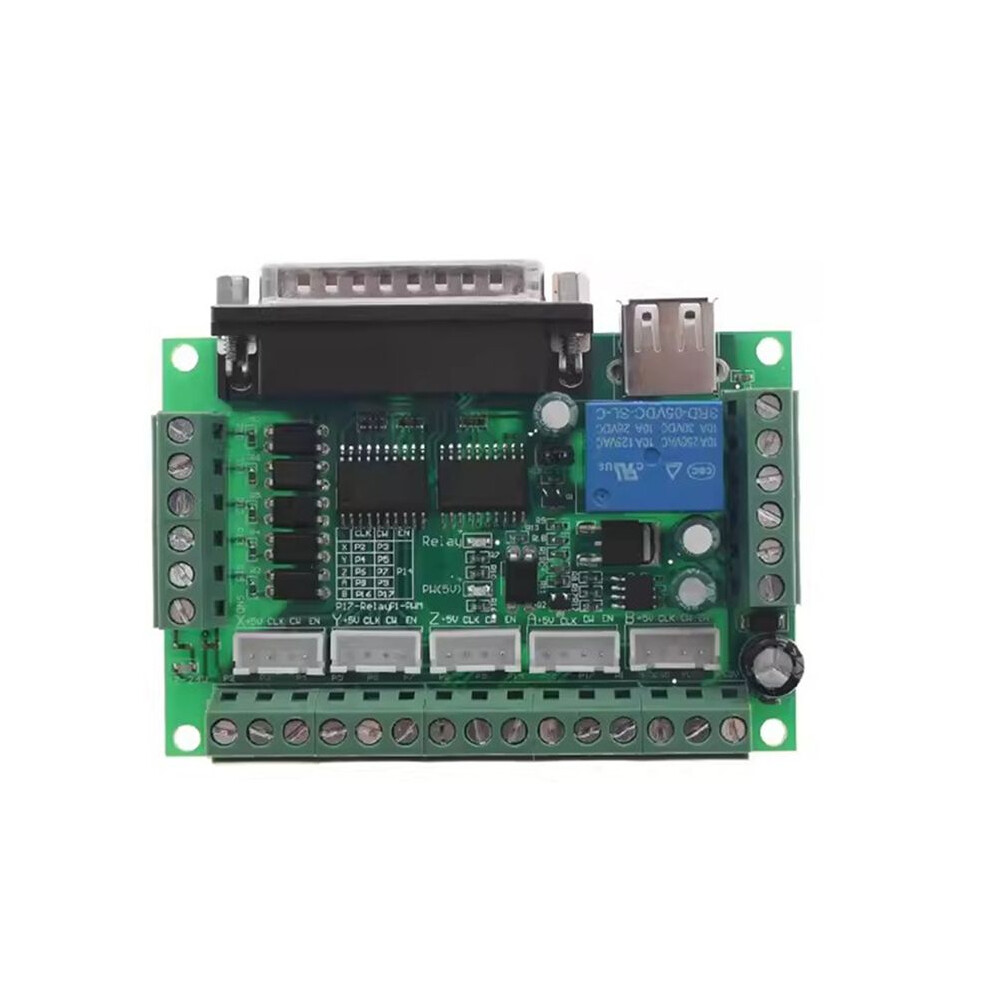

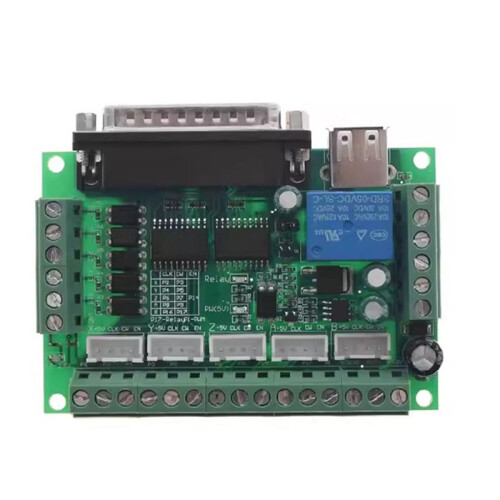

MACH3 Engraving Machine 5 Axis CNC Breakout Board with Optical Coupler for Stepper Motor Drive Controller
Brand Tlily
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£10.11
£14.94
32% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Fri 17th - Wed 22nd Jul
Sold by: CNNOTEPAD
Returns: 30 days
180-day payment protection
Most Popular in Engraving Tools
Description & Details
Summary
- External wide voltage input,12-24V,and anti-reverse function.
- Support various versions of MACH3 software and support the latest version.
- Support windows XP,WIN7,WIN8,WIN10,support for 64-bit systems,support laptops,support for tablet computers.
- All input signals are separated by light,and emergency stop,knife setting,limit,and zero return can be connected to ensure computer security.The input can be connected to a mechanical switch or a proximity switch (normally open with NPN).
- All the way through the optocoupler isolated 0-10V analog voltage output,you can control the 0-10V analog voltage input inverter,control the spindle speed.
MACH3 Engraving Machine 5 Axis CNC Breakout Board with Optical Coupler for Stepper Motor Drive Controller Description
External wide voltage input,12-24V,and anti-reverse function.
Support various versions of MACH3 software and support the latest version.
Support windows XP,WIN7,WIN8,WIN10,support for 64-bit systems,support laptops,support for tablet computers.
All input signals are separated by light,and emergency stop,knife setting,limit,and zero return can be connected to ensure computer security.The input can be connected to a mechanical or a proximity (normally open with NPN).
All the way through the optocoupler isolated 0-10V analog voltage output,you can control the 0-10V analog voltage input inverter,control the spindle speed.
Provide PWM output (5V level),can be connected to the spindle speed controller controlled by PWM.
Provide 4 output (5V level),can be connected with the optocoupler relay module,control water cooling, spray and so .
Maximum 100KHZ output per axis,can be connected to common anode or common cathode,input level is 5V,stepper or servo motor driver with optocoupler input (pulse + direction).
At the same provide 5-axis interface cable socket (XH2.54),easy to connect.
Due to different batches, the appearance, color and printed words of the product may vary, which will not affect the use.
Colour:green
Material:PCB
Package Contents:
1 x Breakout Board
1 x USB Cable
Details
| OPC | PRNBHK8 |
|---|---|
| Brand | Tlily |
| Codes | 6033906282465 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 8cm |
| Length | 11cm |
| Weight | 0.099kg |
| Colour | Green |
| Material | PCB |
