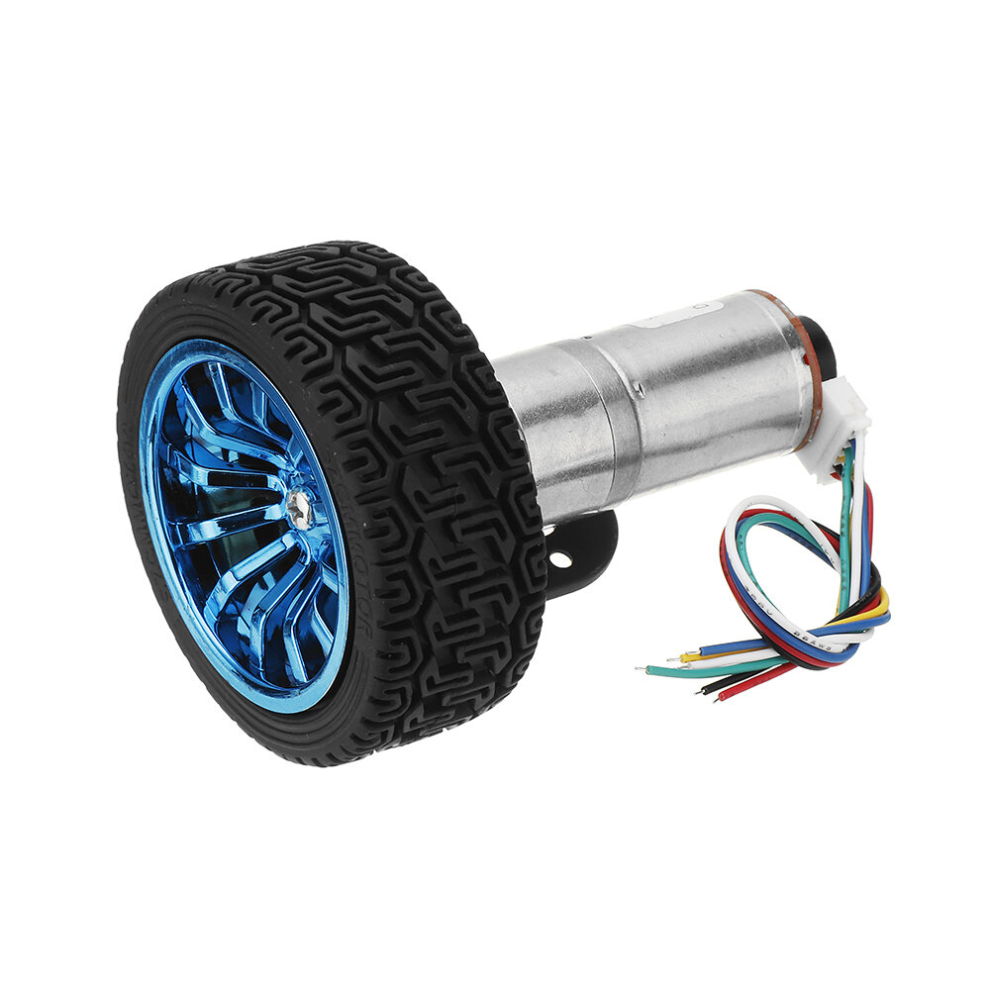

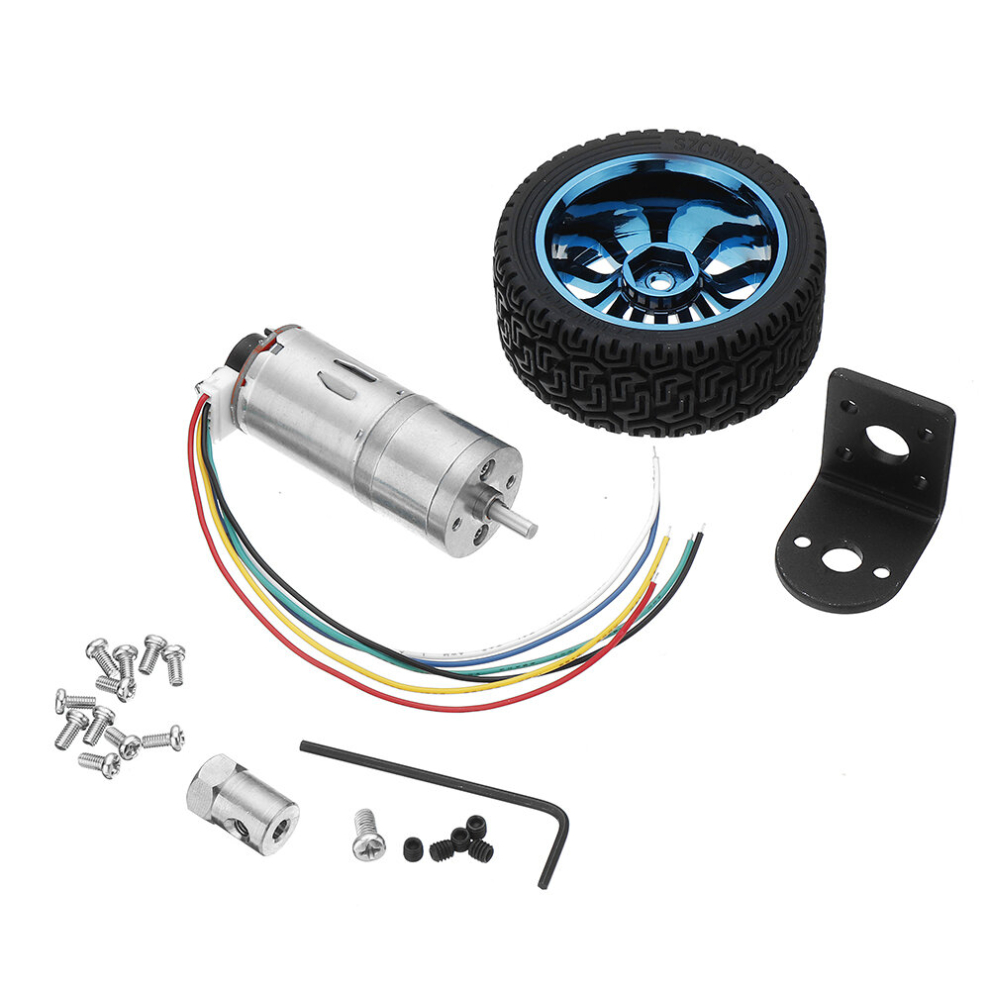

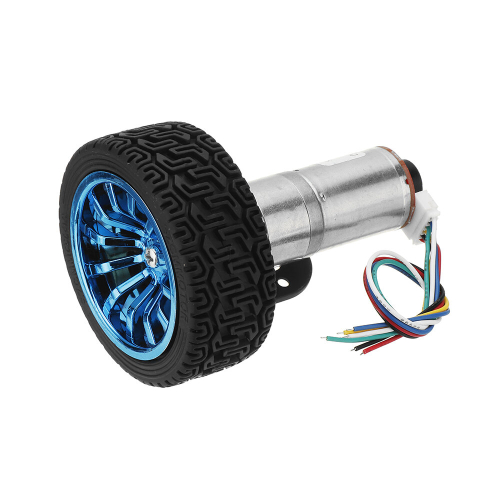

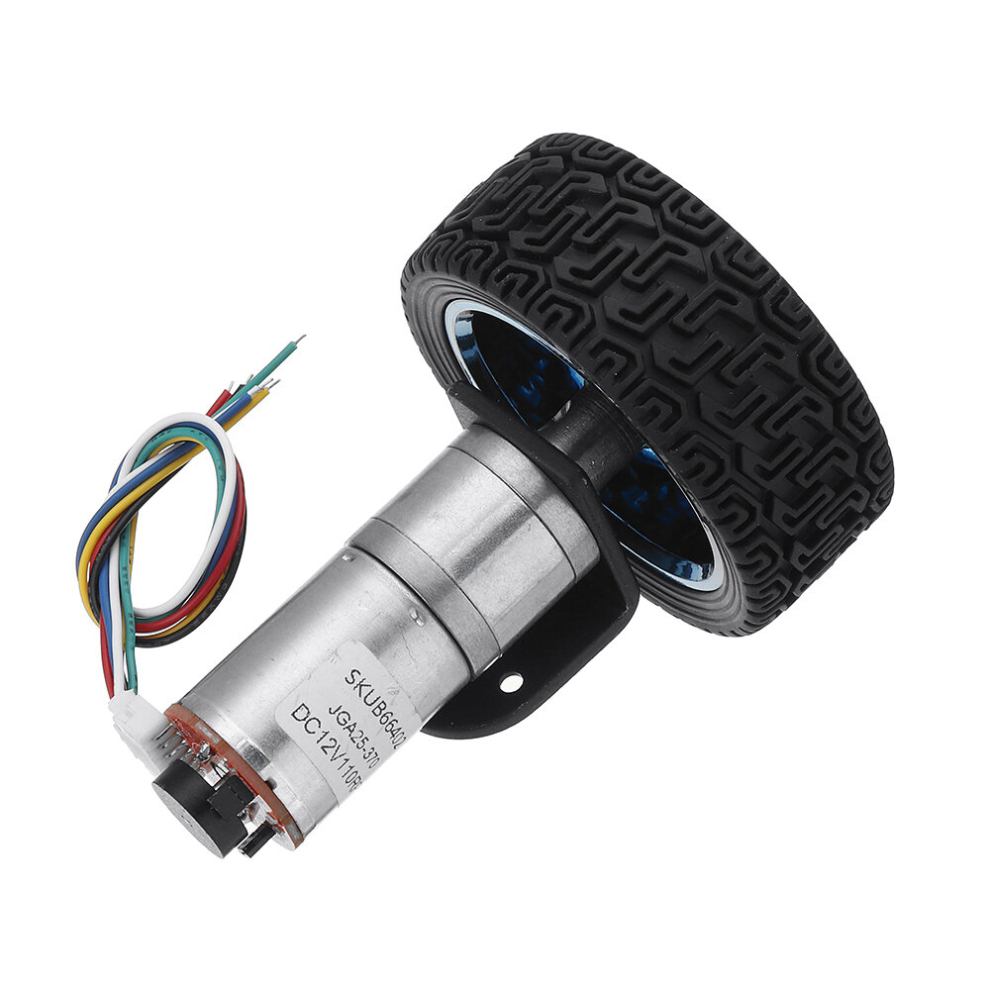

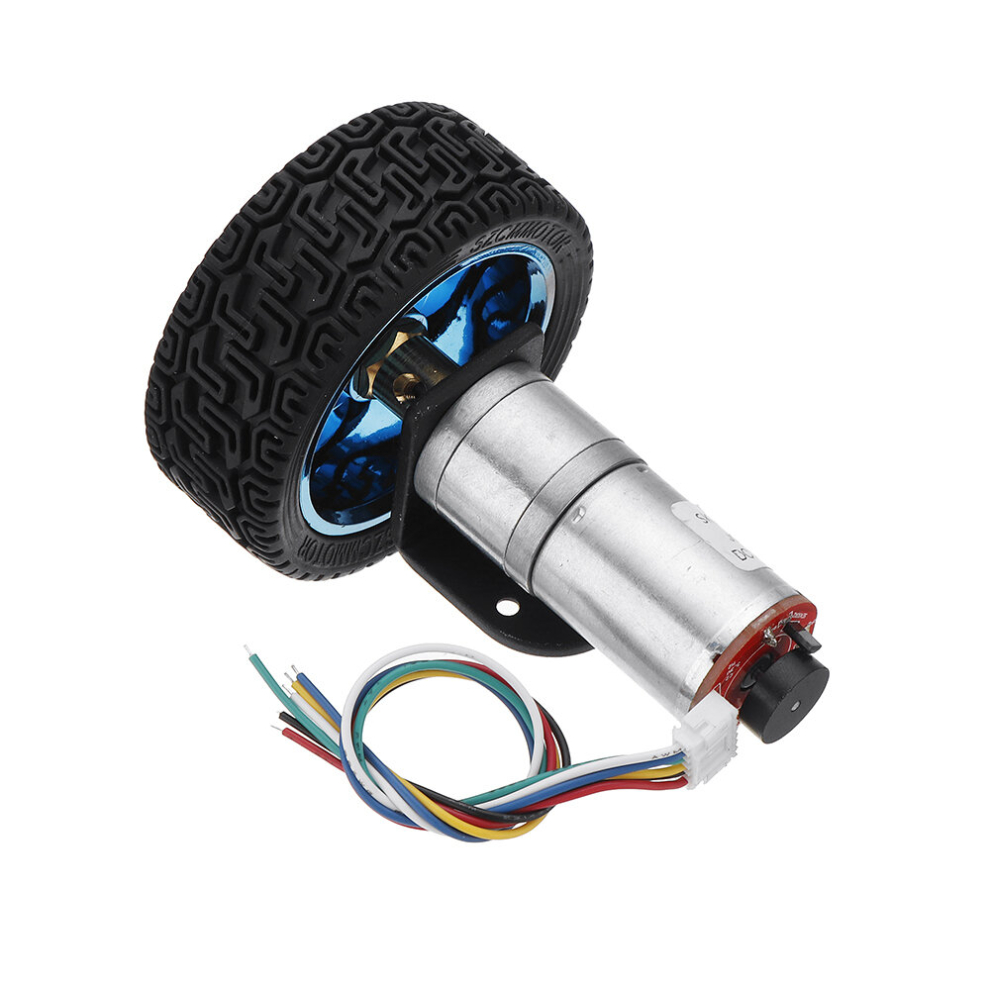

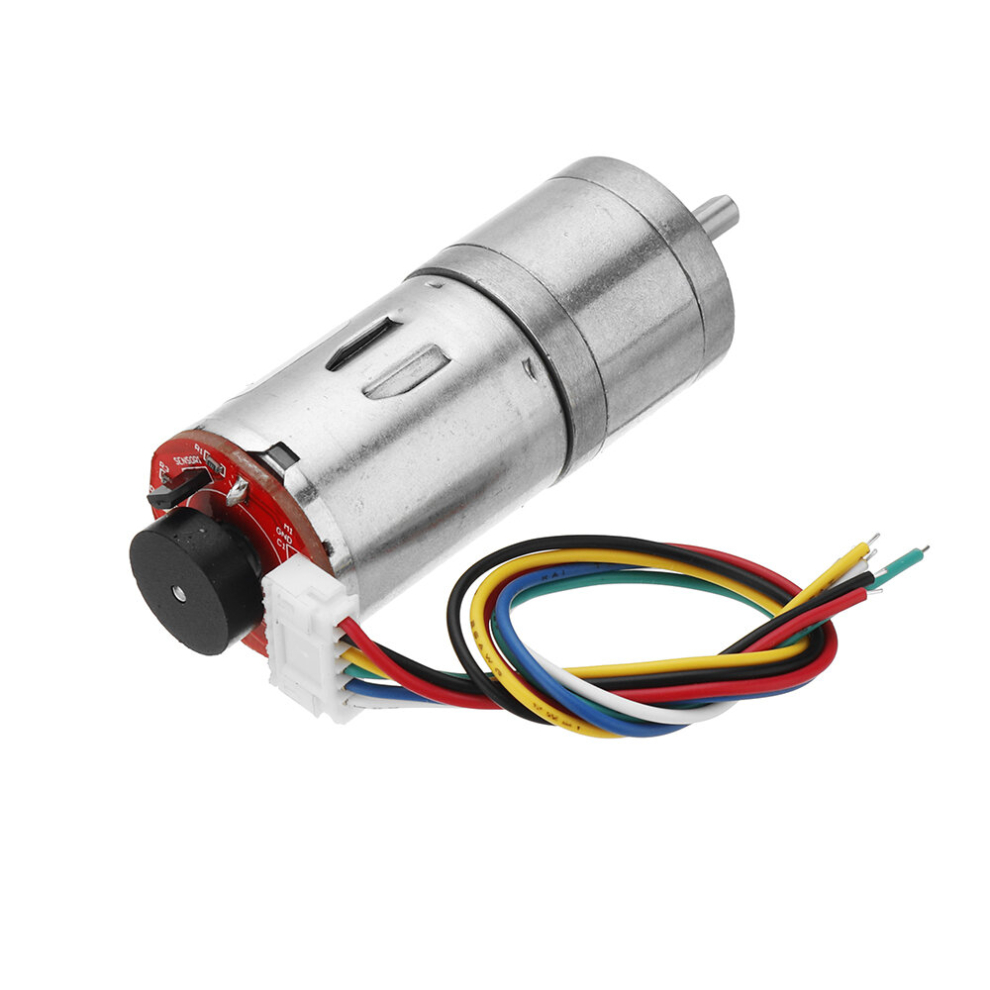

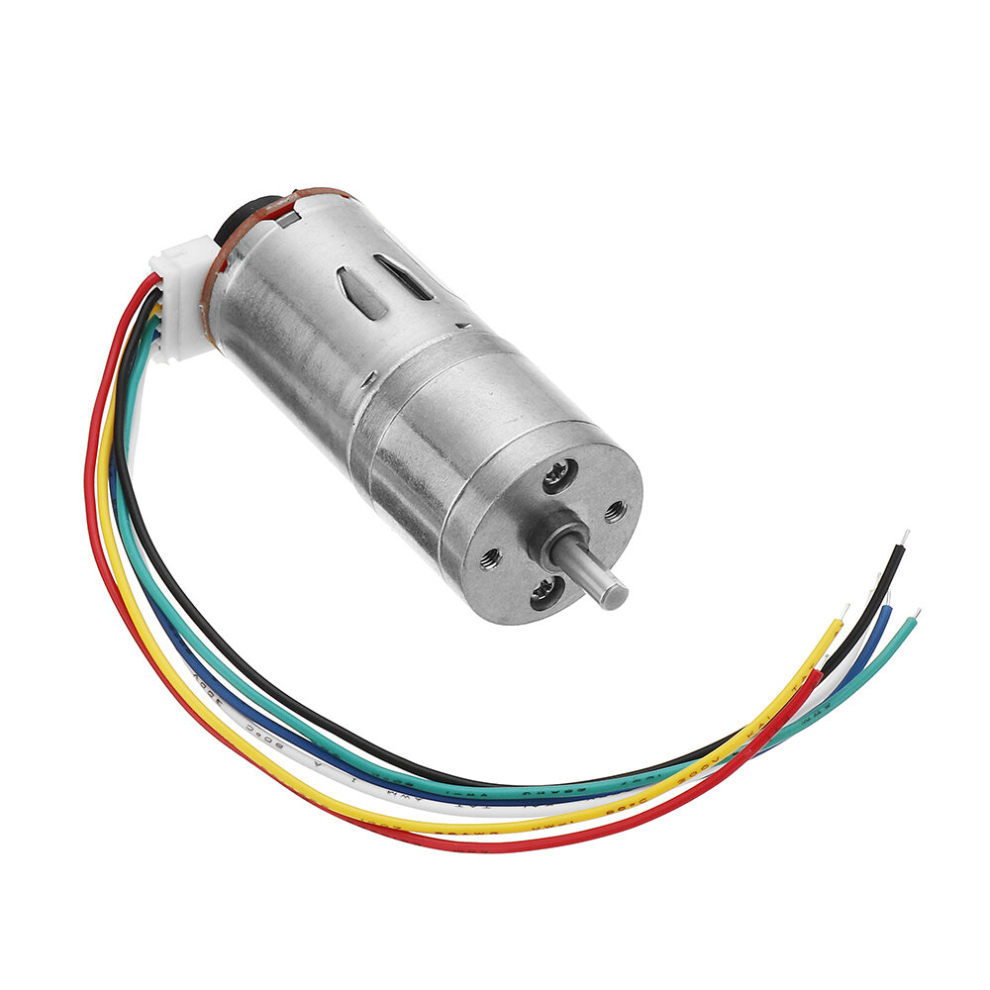

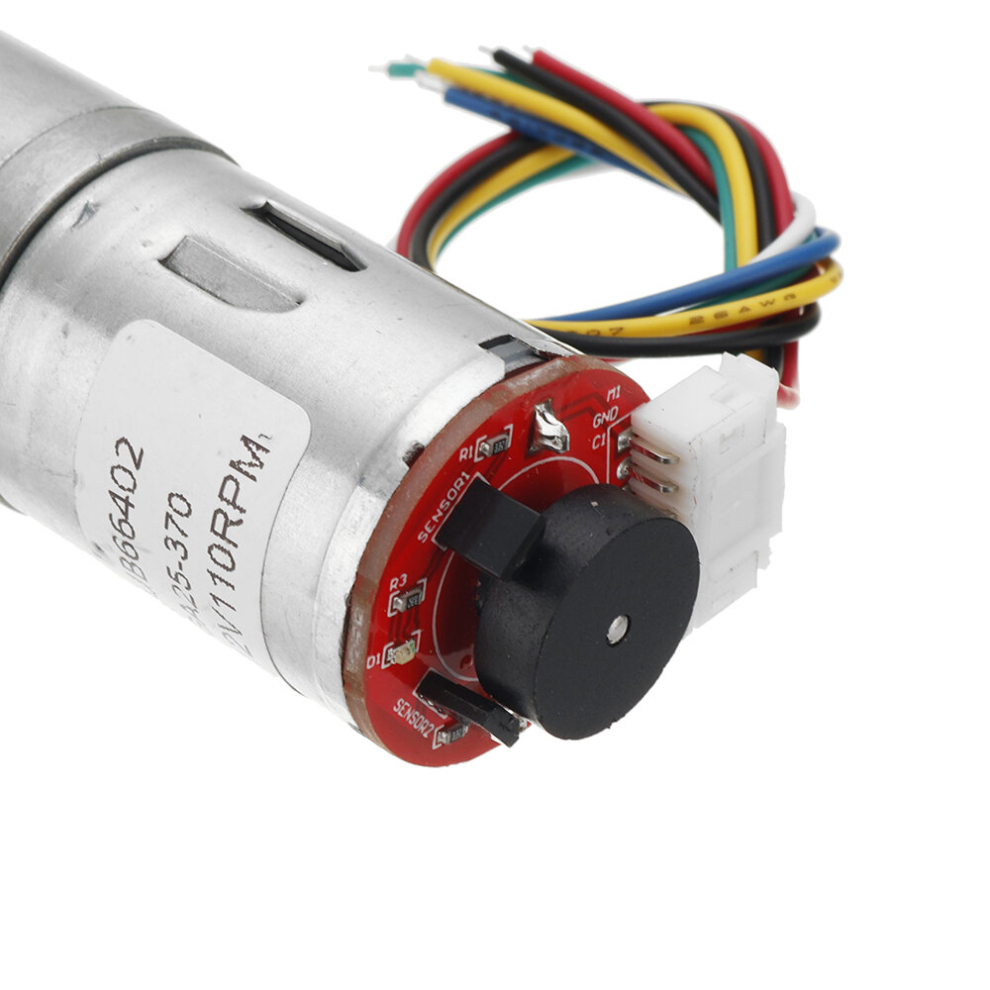

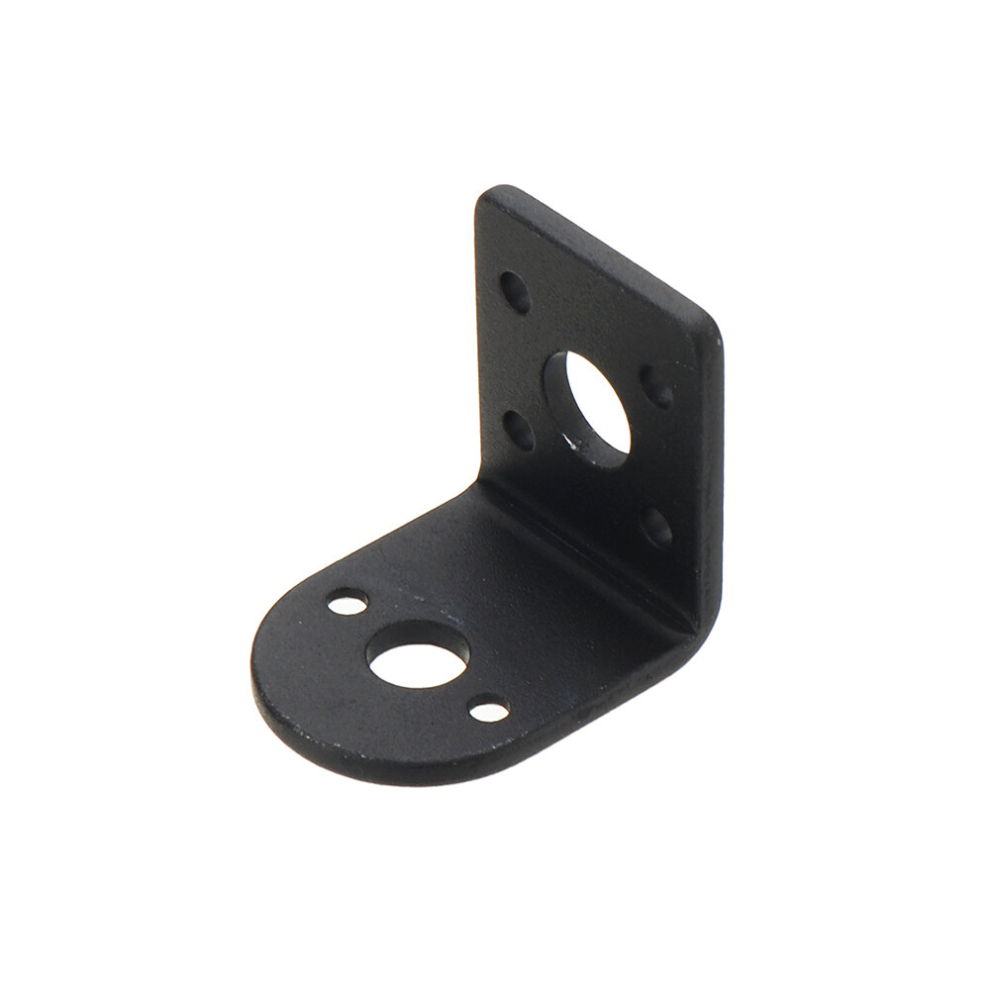

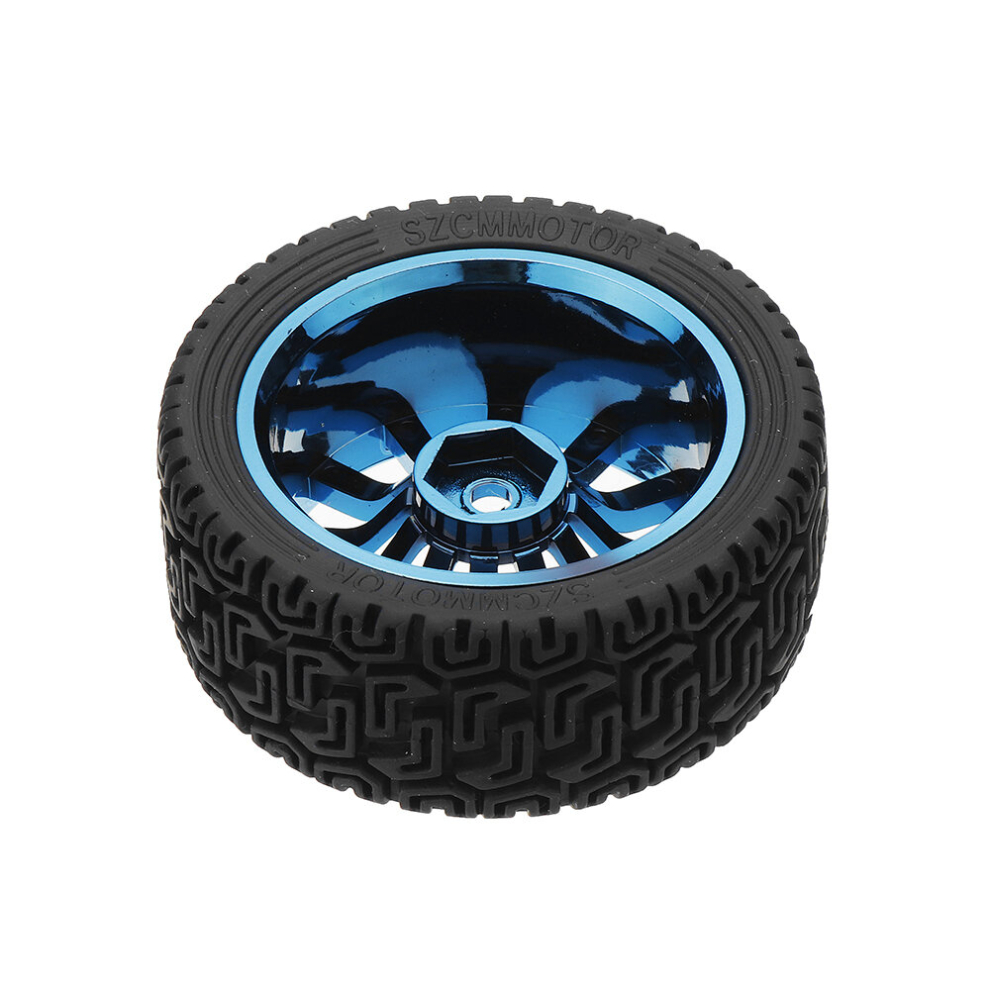

Machifit 25GA370 DC 12V Micro Gear Reduction Encoder Motor with Mounting Bracket and Wheel

Machifit 25GA370 DC 12V Micro Gear Reduction Encoder Motor with Mounting Bracket and Wheel Description

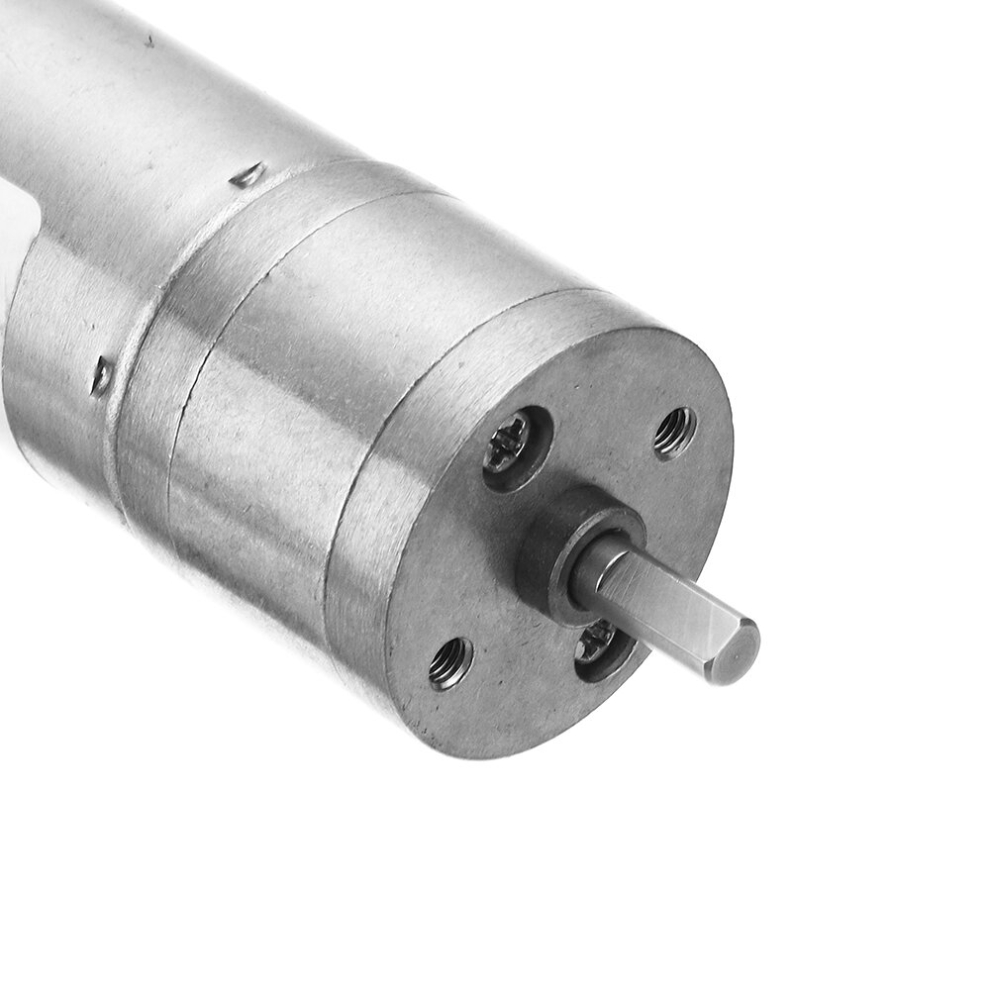

Descriptions: Machifit 25GA370 DC 12V Micro Gear Reduction Motor 25mm Extended Shaft with Mounting Bracket and Wheel Specifications: Material: Metal Voltage: DC 12V Size(approach): Output Shaft Dia.: 4mm Output Shaft Length: 12mm Applications: For intelligent self-balancing double-balanced two-wheeled vehicles, smart home appliances, robots, camera rocker electric paper-cutting paper machines, etc. Parameter: Voltage No-load Speed RATIO No-load Rated-load Stall Current (A) Speed(rpm) ±10%rpm Torque (kg.cm) Speed(rpm) ±10%rpm Current (A) Torque (kg.cm) Current (A) L Size DC 12.0V 110rpm 1:75 ≤0.15 110 8.0 65 ≤0.75 ≤9.0 1.8 23 DC 12.0V 190rpm 1:45 ≤0.15 190 5.0 100 ≤0.75 ≤9.0 1.8 21 Features: - All the gear of metal mechanism Wear resistance, strong resistance to torsion, smooth transmission, compact structure. - D-shaped double axis D-shaped double shaft, excellent thermal conductivity. - The terminal with red dot or + is connected to the positive side and the other side is connected to the negative pole, the motor rotates forward, and the positive and negative power supplies are reversed to reverse the motor. - Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life. Package Included: 1 x Gear Motor 1 x Mounting Bracket 1 x Wheel More Details:
