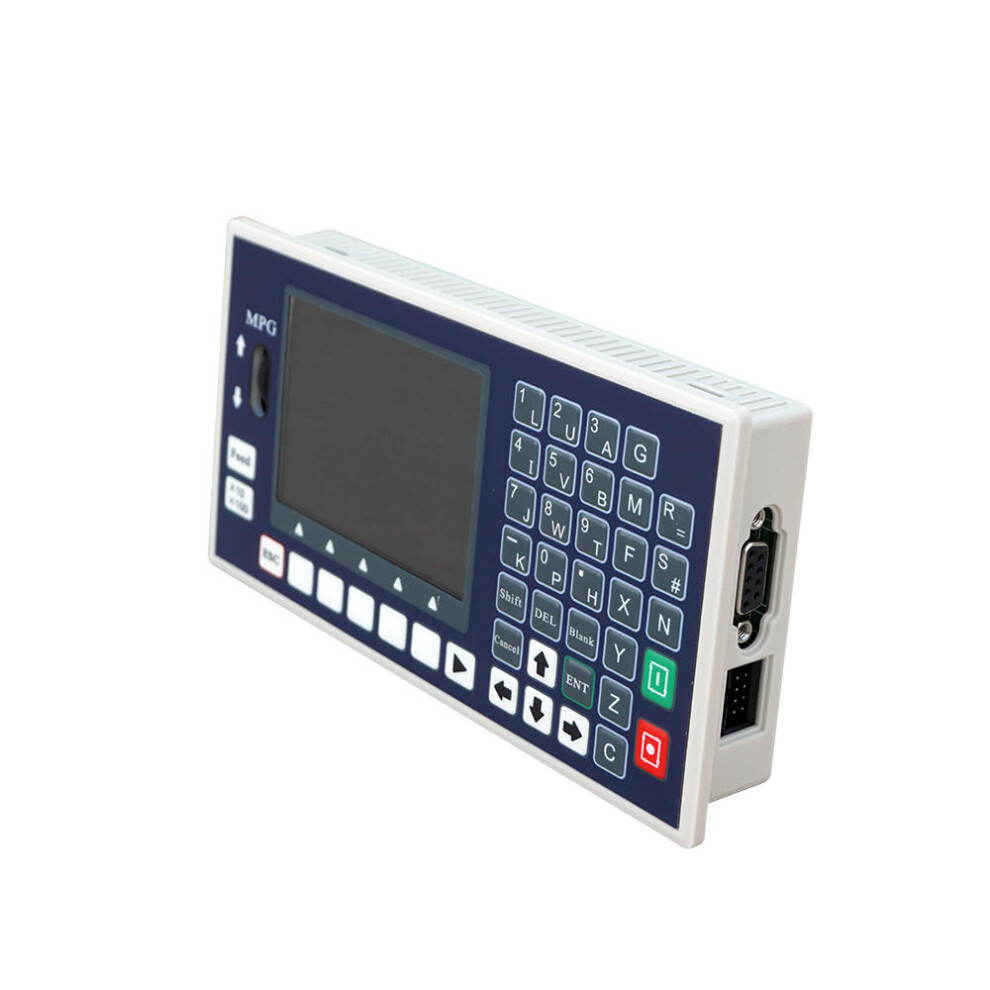

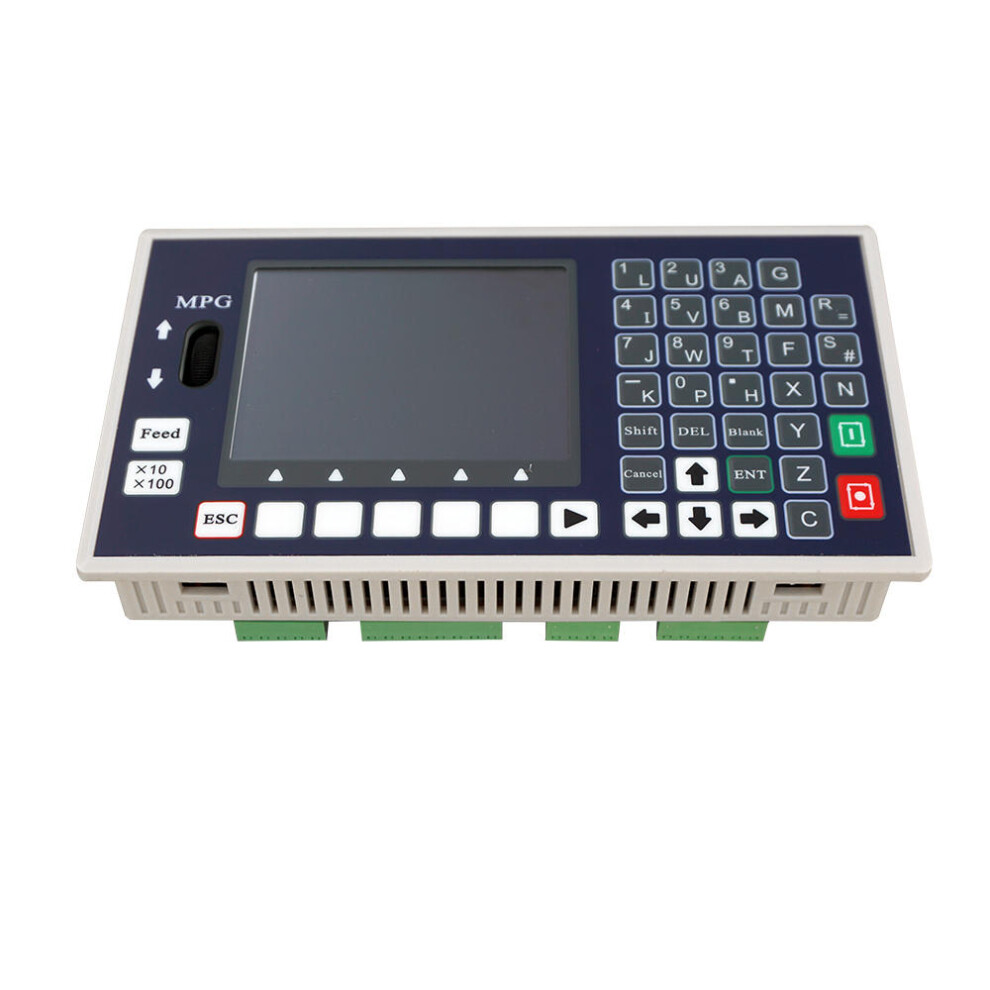

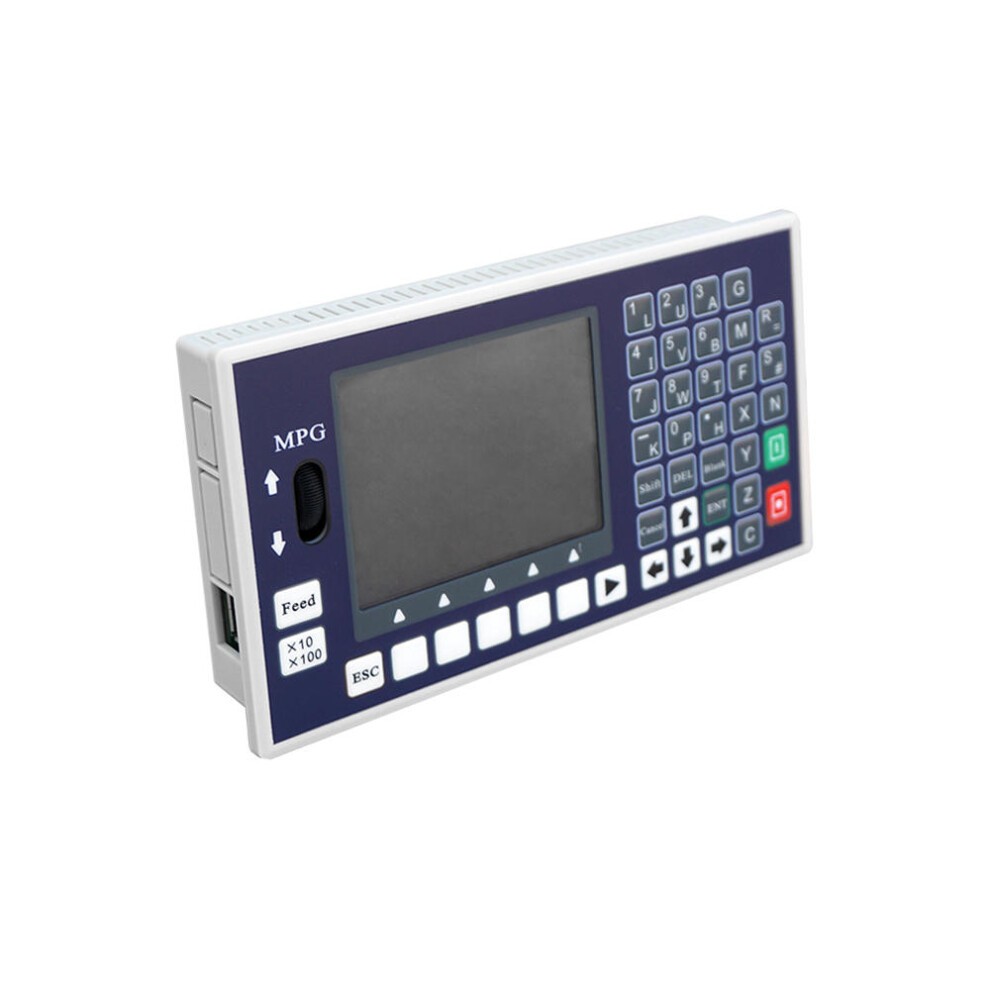

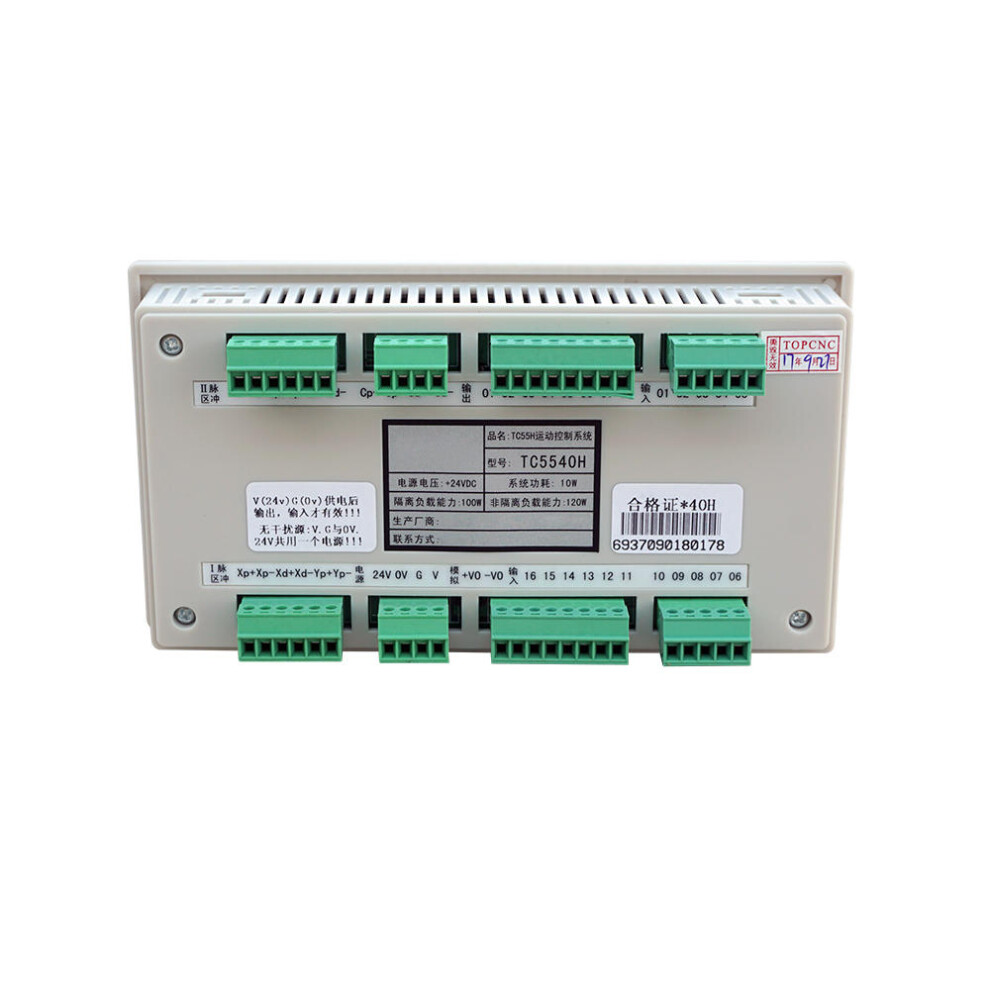

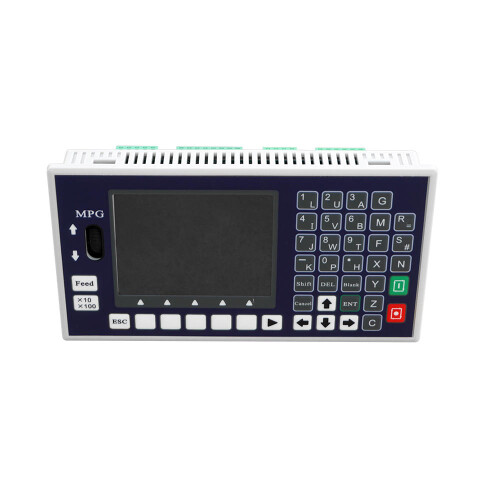

Machifit 4 Axis CNC Motion Controller TC55H Stand Alone Servo Stepper USB Spindle G Code MPG

Machifit 4 Axis CNC Motion Controller TC55H Stand Alone Servo Stepper USB Spindle G Code MPG Description

Specification: Minimum data unit 0.001 mm Maximum data size  99999.999mm Maximum Speed: 24m/min (pulse is 0.001mm) Maximum pulse output frequency 400KHz Axis: 1-4 (X,Y, Z,C) X,Y,Z,C axis can conduct linear interpolation, X,Y can do circular interpolation. Electric Gear: numerator :1-99999 denominator: 1-99999 USB: Importing program and boot picture Isolated I/O port Maximum Program Line: 1000 Maximum Program number: 99 RAM: 128M External Manual Operation: motor clockwise and counter clockwise spinning, start, pause, alert and stop G code and M code One panel MPG 3.5 inch color LCD, pixel 320*240 Analog Spindle Output: one 0-10v analog spindle Support both servo and stepper motor Support metric system, round, division, degree, inch etc. Introduction: Supports all versions of Mach3 and 3-axis linkage. Support system: Windows XP, 2000, Vista, 7. Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach3 working state, USB cable unplugs and then plugs in, but also the normal connection. Maximum step-pulse frequency is 400KHz, can connect servo driver and stepper driver. All IO port fully isolated, strong anti-interference, stable performance. Manual: click here Package Included: 1 x controller 1 x USB cable which you connect between computer and controller as power supply More Details:
