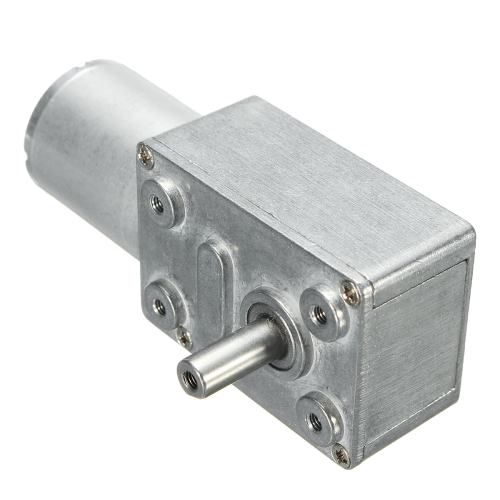

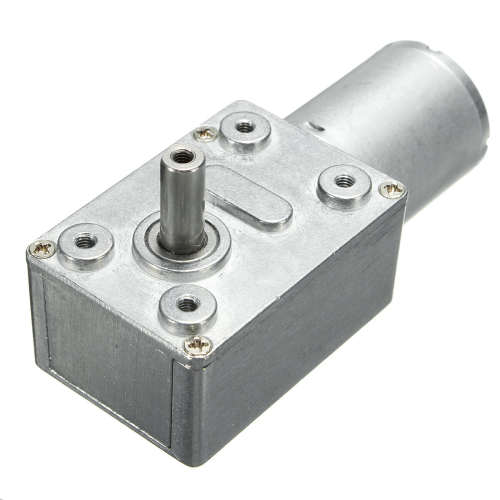

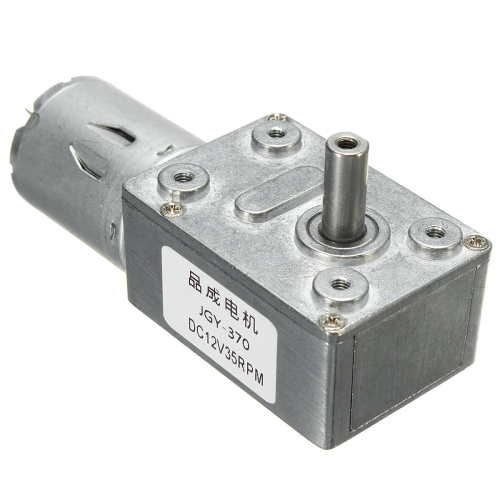

Machifit JGB370 DC12V Worm Gear Motor Hollow Shaft Micro DC Gear Motor

Machifit JGB370 DC12V Worm Gear Motor Hollow Shaft Micro DC Gear Motor Description

Description: MACHIFIT DC12V JGB370 Worm Gear Motor Hollow Shaft Micro DC Gear Motor Specifications: Product Name DC Worm Gear Motor Material Metal Rated Voltage DC 12V No-load Speed 6/10/18/23/30/40/90/150 RPM Shaft Shape Hollow shaft Quantity 1 Pcs DC12V Motor Parameters Reduction ratio (change ratio) 40 65 150 200 260 340 600 1000 No-load current (MA) â60 No-load speed (rpm) 150 90 40 30 23 18 10 6 Rated torque (Kg.cm) 1.2 2 4.5 6 8 12 17 25 Rated speed (rpm) 100 70 30 22 17 13 7 4 Rated current (A) â0.5 Maximum torque 2.5 4 9 12.5 16 21 35 35 Stop current (A) 1.3 Features: - This type is miniature worm gear DC motor, which can change shaft rotation direction while the wiring positive and negative be changed. - It is also have addition two characteristics: first, With self-locking, the output shaft can not rotation when switch off, that is self-locking. Second, Output shaft and motor shaft are come to be a rectangle. - It is widely used in various of ocns that require special install size. - Using high-precision metal gears, low noise, zinc alloy die-casting alloy pressure shell, stainless steel hardened. - Ball precision gears have better performance than ordinary metal gears. - They are resistant to blocking and do not hit gears. - Suitable for electronic locks, range hoods, display stands, robots, smart devices and barbecue machines. Package Included: 1Ã DC Worm Gear Motor More Details:
