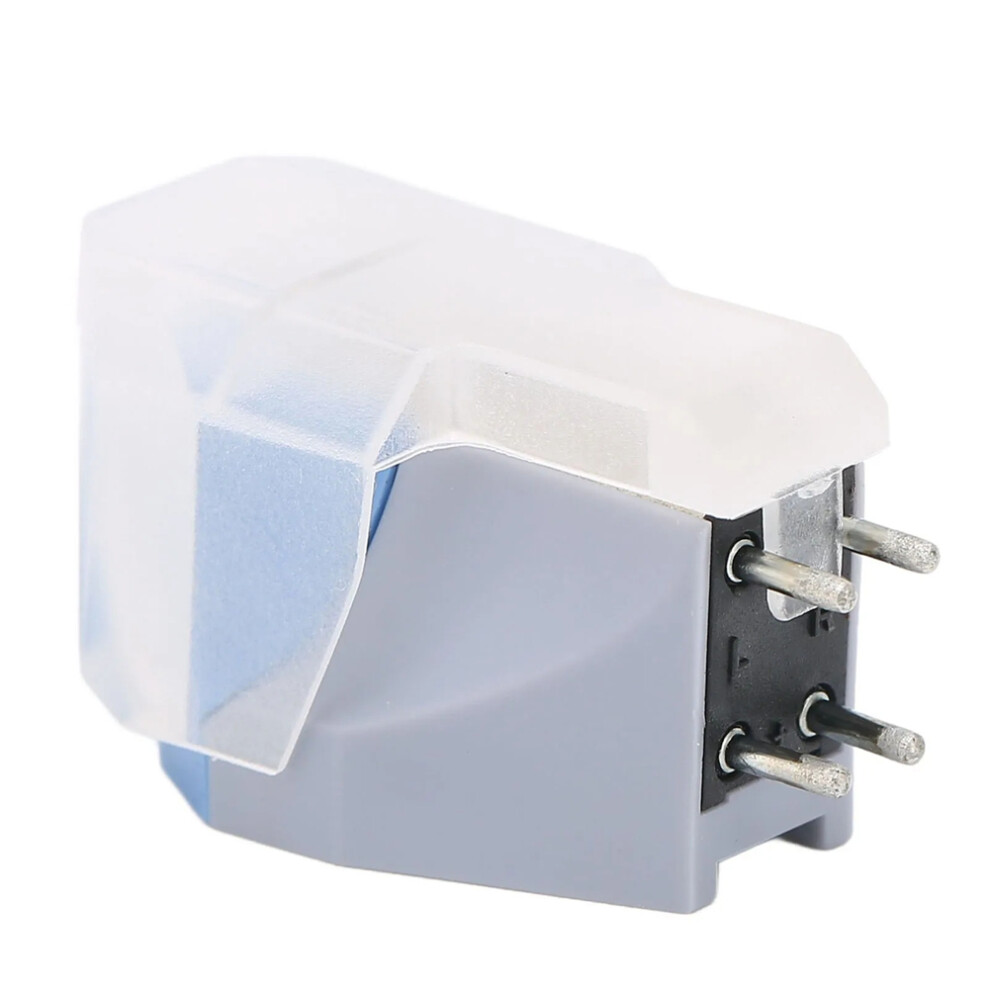

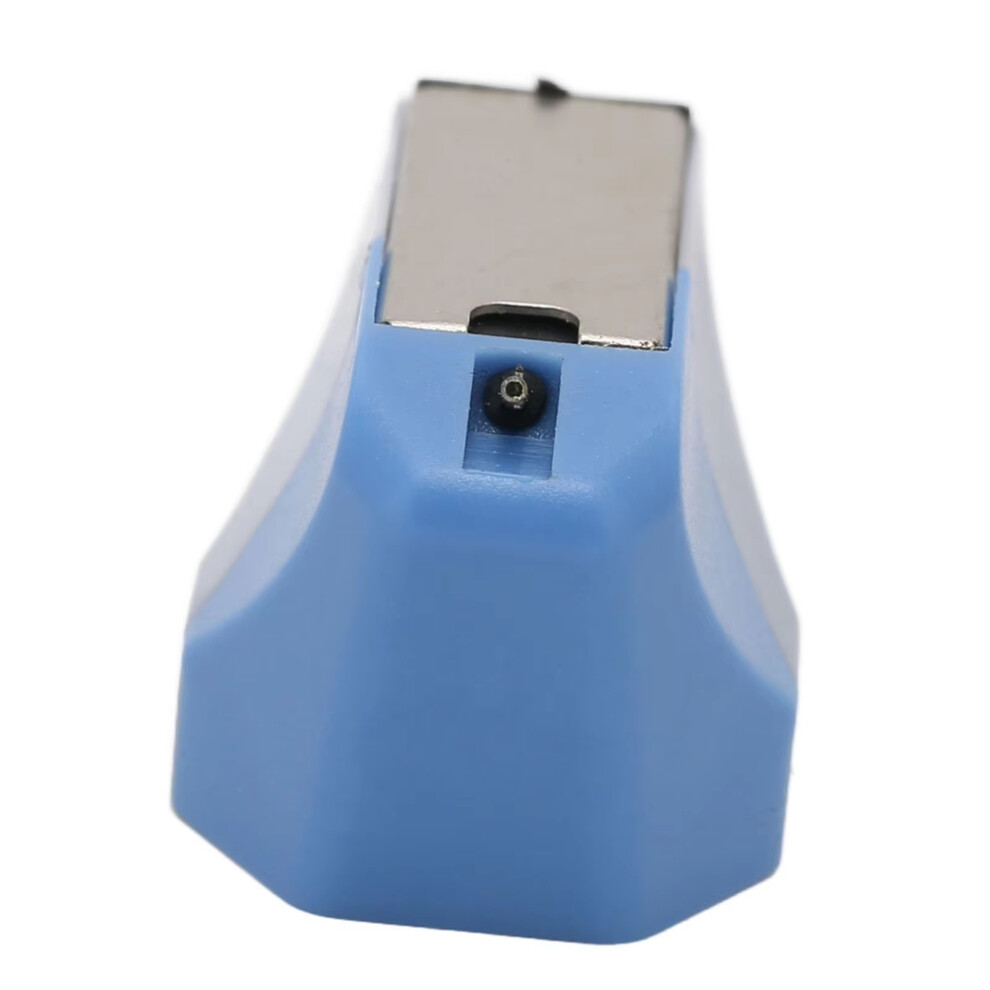

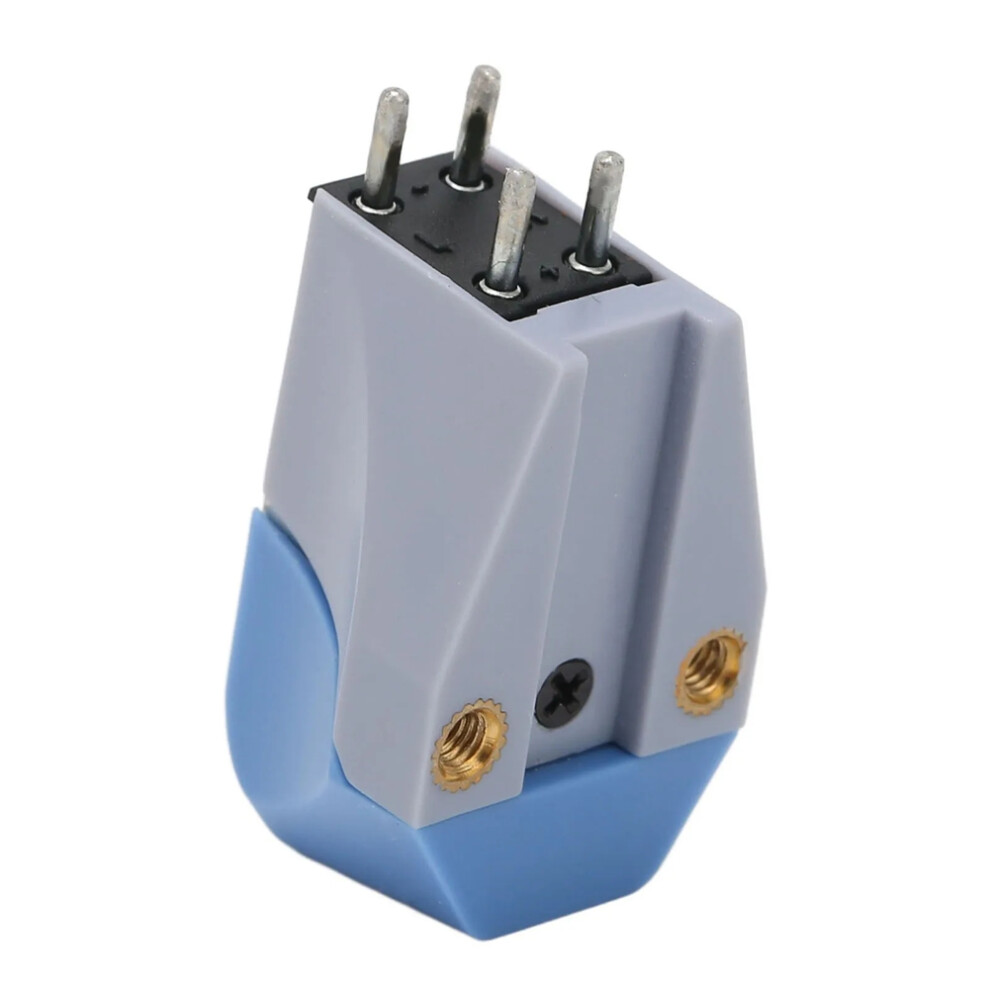

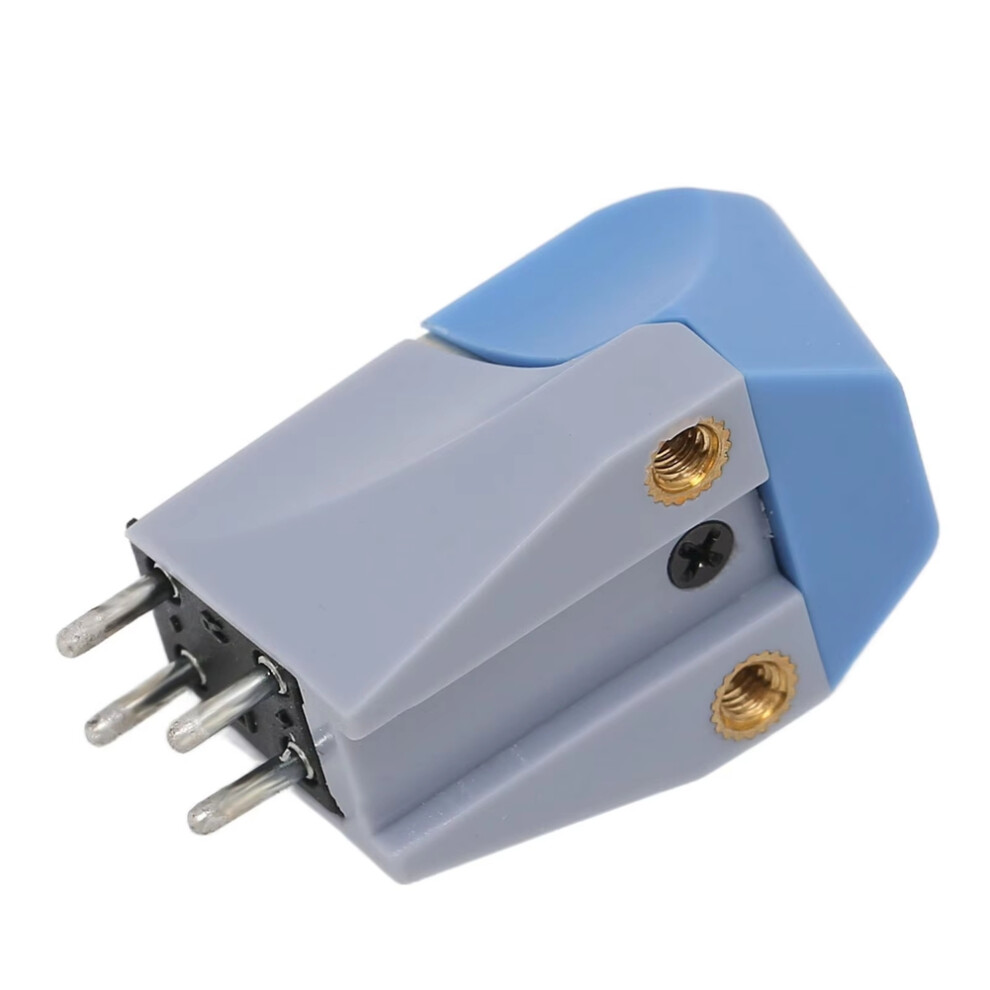

Magnetic Moving Magnet Phonograph

Magnetic Moving Magnet Phonograph Description

1. PROFESSIONAL: Standard MM moving magnet , with good and stable performance, providing excellent clarity and detail performance.
2. UPGRADE REPLACEMENT: Used to upgrade mid to high end vinyl record players, the adopts quality standards, high quality ABS shell, .
3. ACCURATE PICKUP: This adopts diamond shape needles, which can pick up record information with high accuracy for a long time and portray better sound.
4. UNIVERSAL: 13mm/0.5in hole pitch, commonly used in the of most vinyl record players, remove the old and replace it with a new one.
5. ADJUSTABLE NEEDLE PRESSURE: The adjustable needle pressure range of the moving magnet is 1.9-3.6g (recommended gauge pressure 3g).

Magnetic Replacement Accurate Phonograph Stylus with LP Vinyl Needle for Record Player
Item Type: Magnetic
Phono Type: MM Moving Magnet
Response Frequency: 10Hz~35kHz
Output Voltage: 3.5mV (1kHz, 33.3RPM.)
Channel Separation: 16dB (1kHz)
Output Balance: Needle Pressure: . 1.9g-3.6g / 0.06oz-0.12oz (3g/0.1oz Recommended)
Q Value: 2.75
Coil DC Resistance: 250Ω
Recommended Load Resistance: 47kΩ
Load Capacitance: 200pF
Coil Inductance: 200mH (1kHz)
Static Obedience: 19 x 10-6cm/Dyne
Dynamic Compliance: 6 x 10-6cm/Dyne(100Hz)
Tip Shape: Combined Diamond Tapered Tip
Needle Bar: Aluminum Alloy Tube
Vertical Tracking Angle: 22-24
Shape Size: Height: . 18mm/0.7in, Width: . 17.1mm/0.6in, Diameter: . 32.3mm/1.2in
Color: As Shown
Material: Plastic + Metal

Package Contents:
1 * Record player

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
