Marine Switch Panel with Circuit Breakers (4-Way)

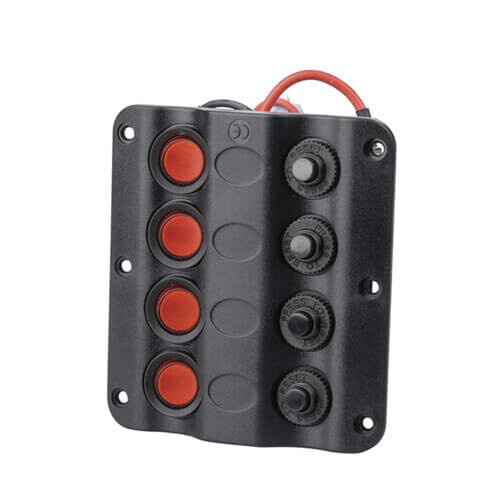

Marine Switch Panel with Circuit Breakers (4-Way) Description

There is a negative common bus to the switches which when connected, enables the actuator to glow red when 'on'.

Specifications:

DC current rating : 35A

DC Voltage : 12V

Nominal Voltage : 12V

Type : Incandescent

Illumination Colour : Red

Illumination Position : Top

Width : 100mm

Height : 110mm

Depth : 45mm

Mounting Method : Panel

Attachment / Securing Method : Screw Down

Square Mount Hole Width : 76mm

Square Mount Hole Height : 97mm

Packaged Volume : 0.22l

Packaged Weight : 0.17kg

Packaged Length : 3.8cm

Packaged Width : 11.6cm

Packaged Height : 5.1cm

Switch Type : Rocker

Pole Throw Type : SPST

Poles / Contacts : 1 pole

Throws / Positions : 1pos

Switch Function : Locking On/Off

Switch Connection : Spade Terminals

Mechanism Material : ABS Plastic (Acrylonitrile Butadiene Styrene)

Number of Switches

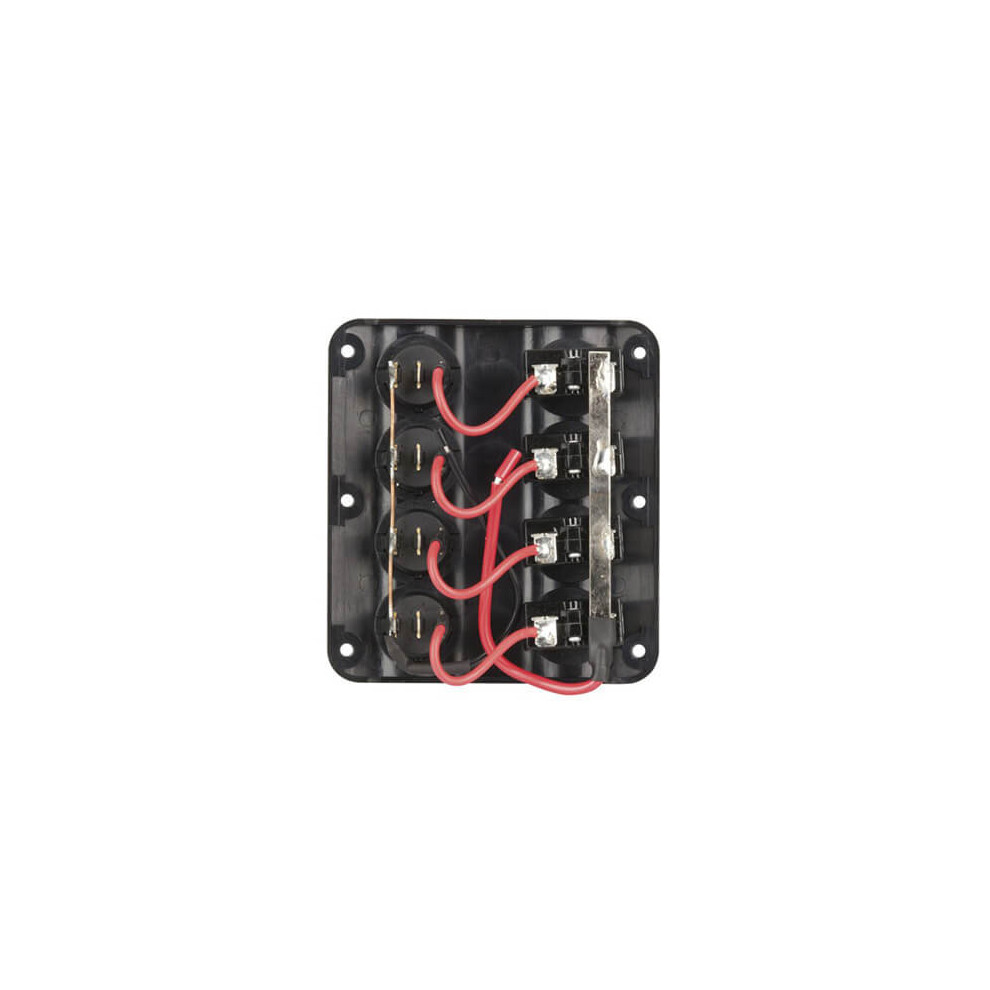

• This panel meausres 100 x 110 overall and can be mounted either vertically or horizontally.
• The circuit breakers are connected in common + by a soldered strip which accepts a 1/4 QC connector.
• They are then soldered to a 10A rated illuminated rocker switch.
• The rocker switches have 4.8 QC tabs and are single pole type.
• The circuit breakers are rated thus: 10A, 8A, 6A and 4A which is quite handy really.
