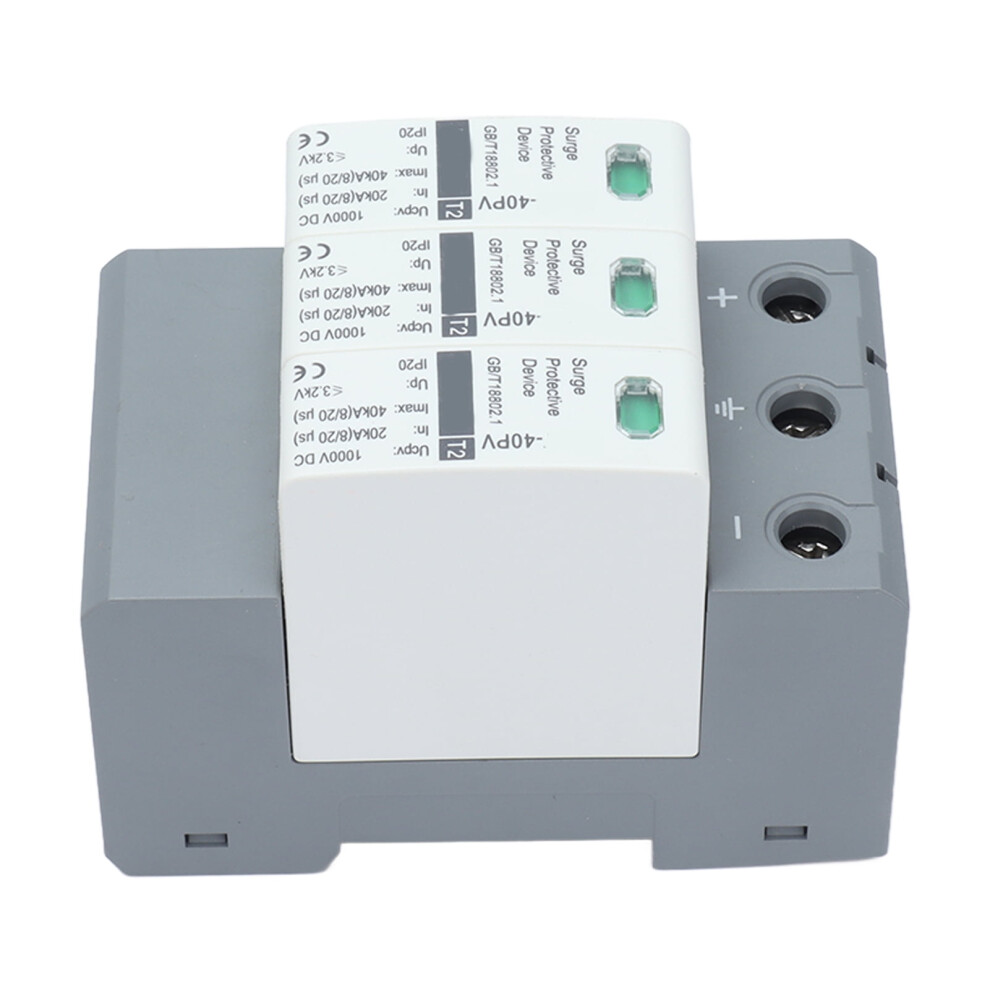

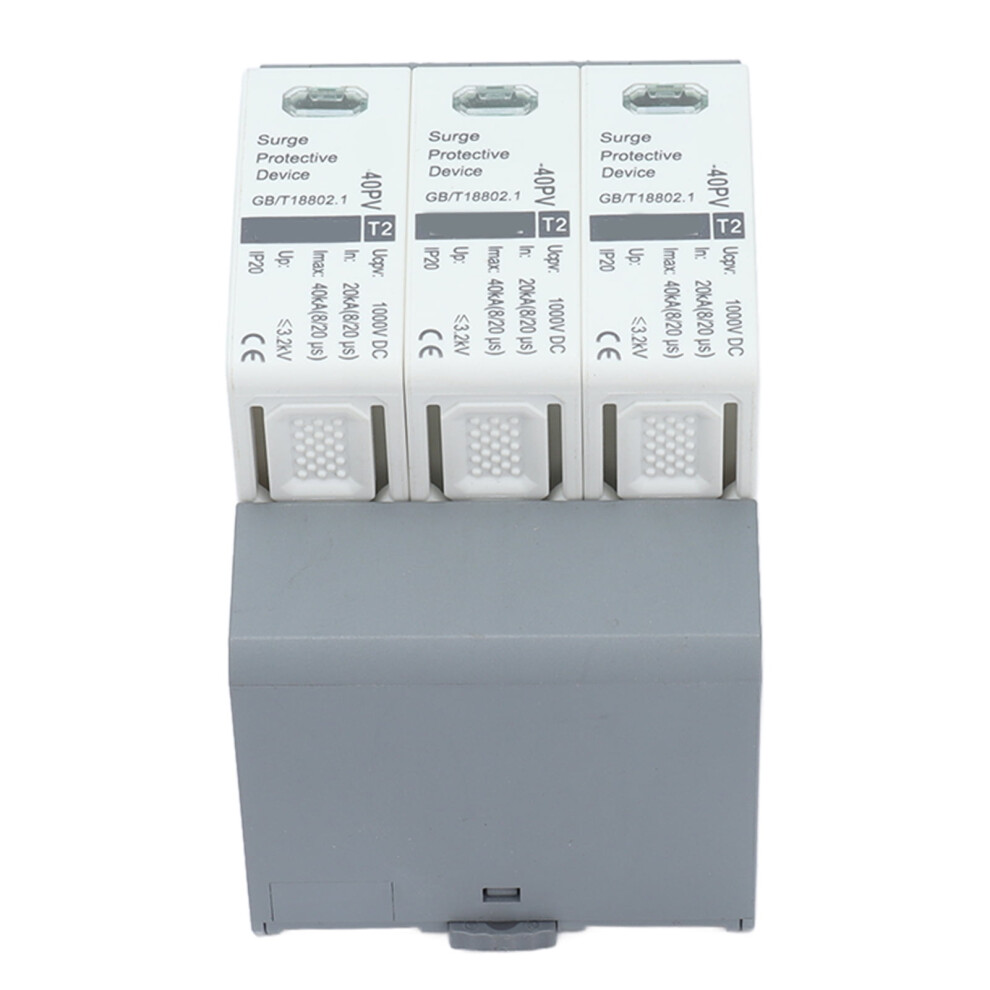

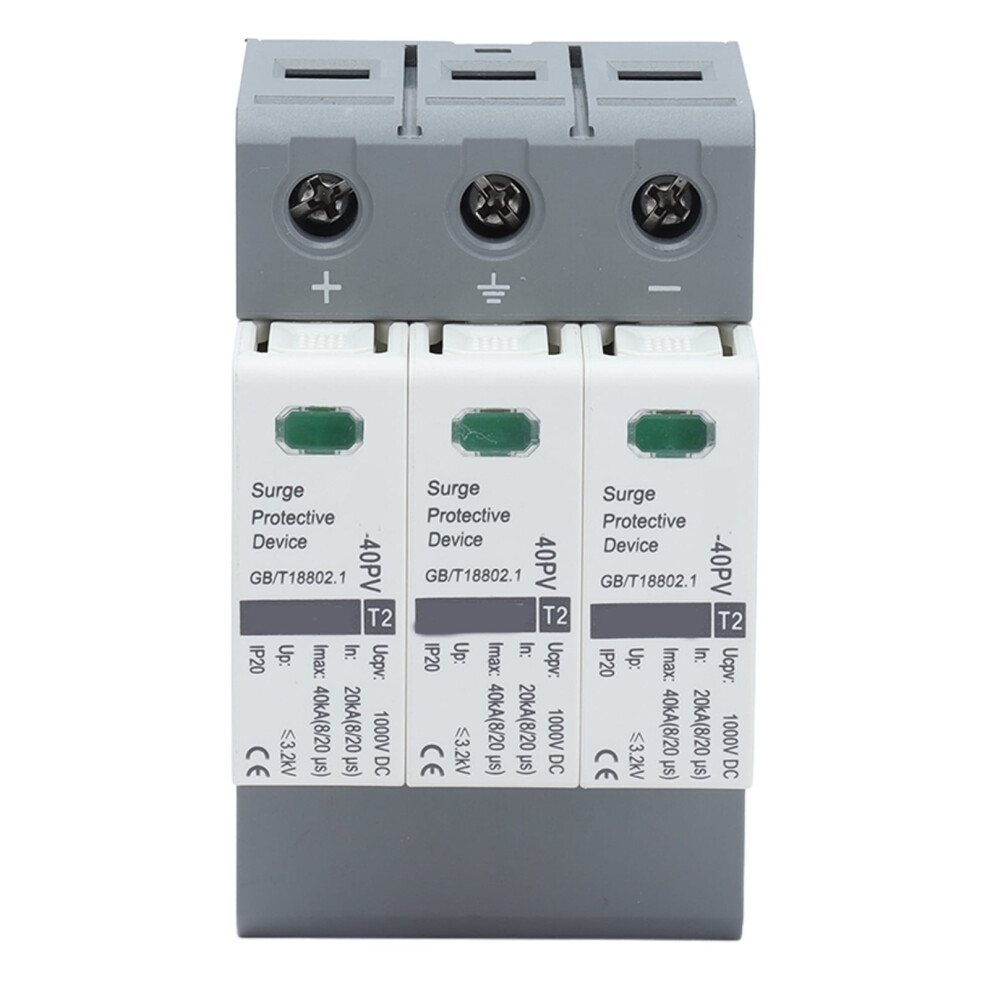

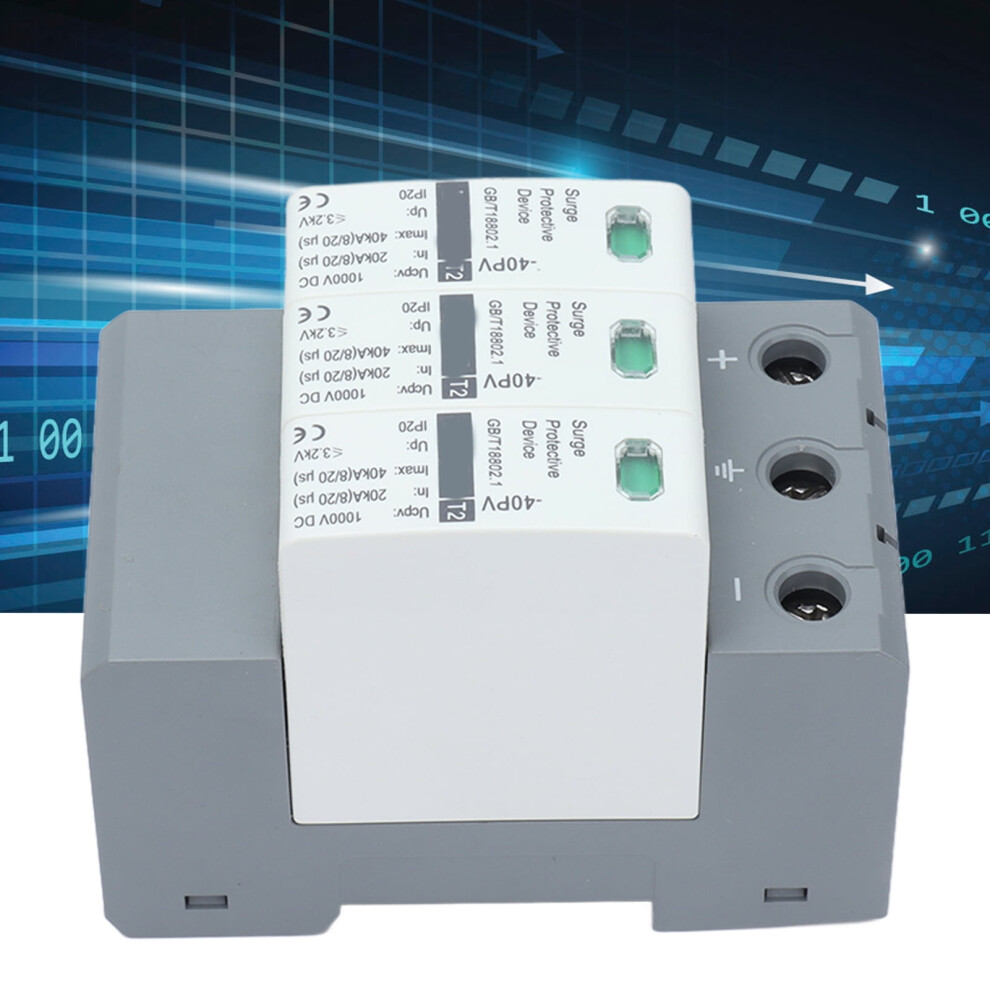

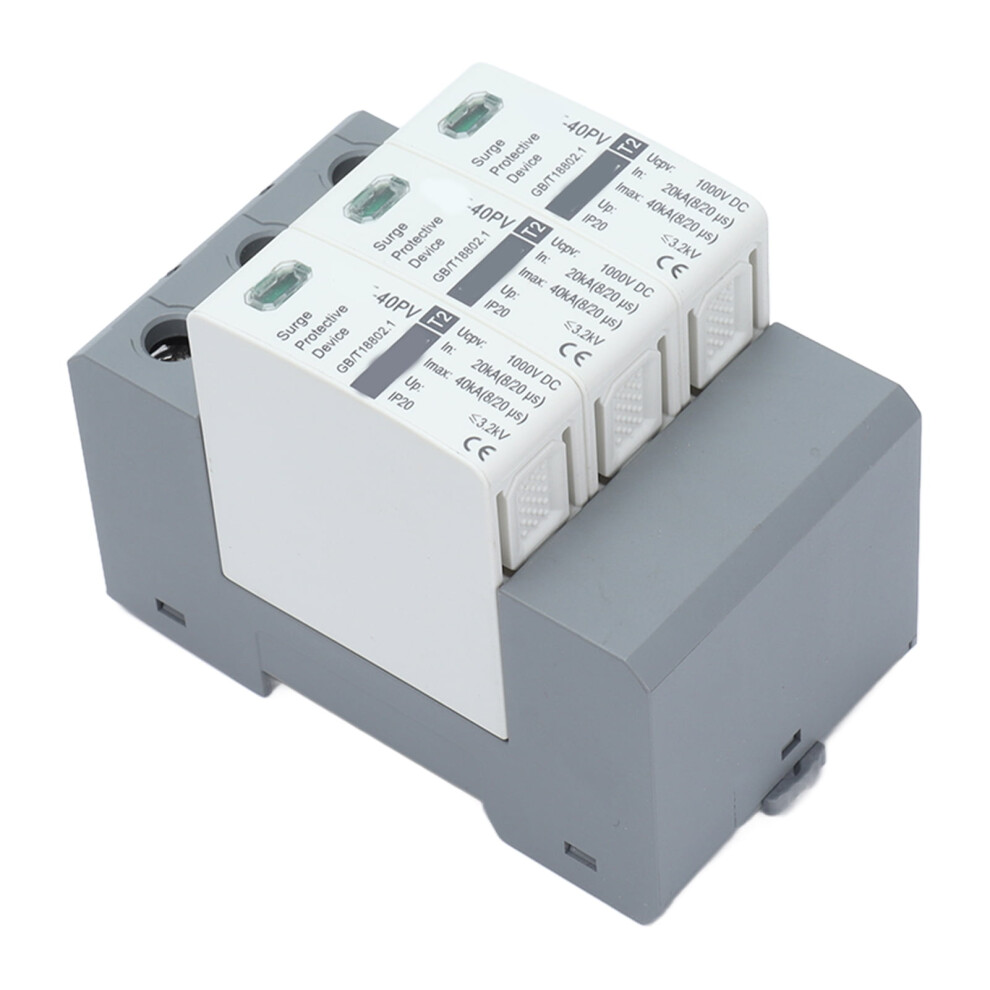

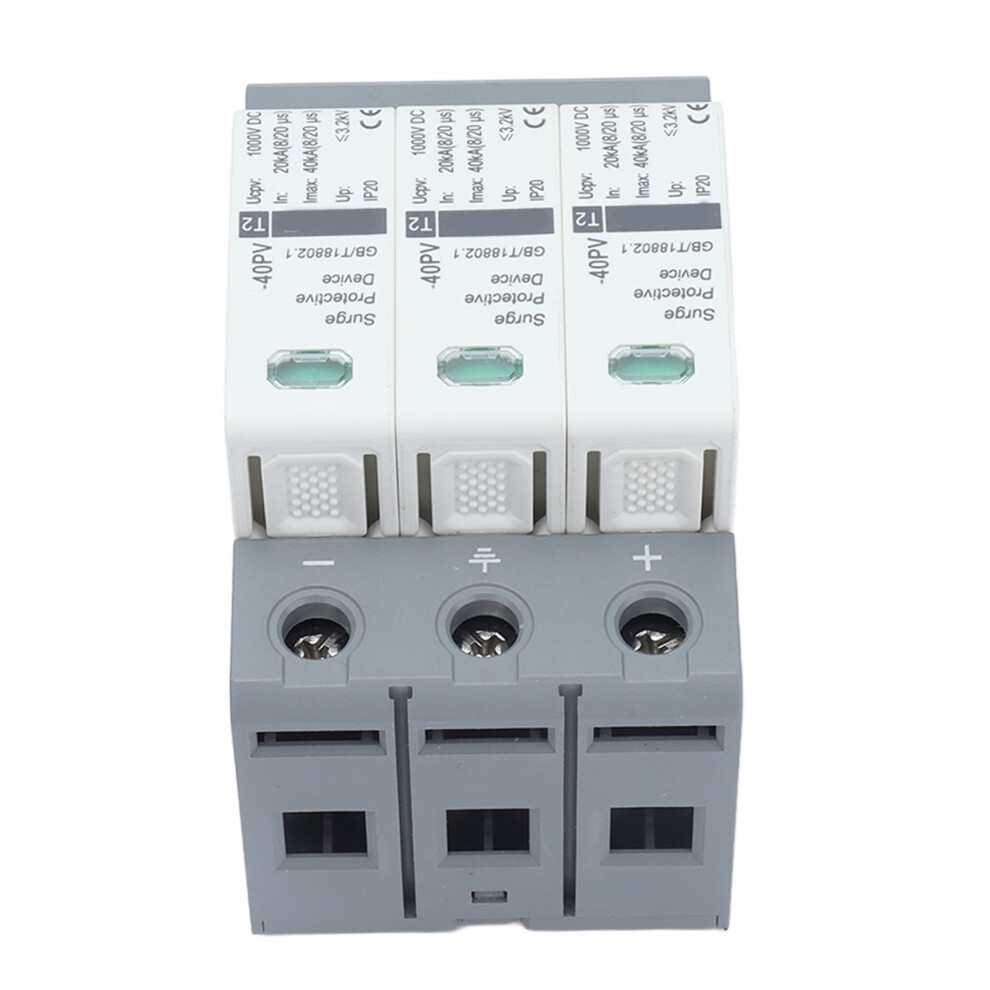

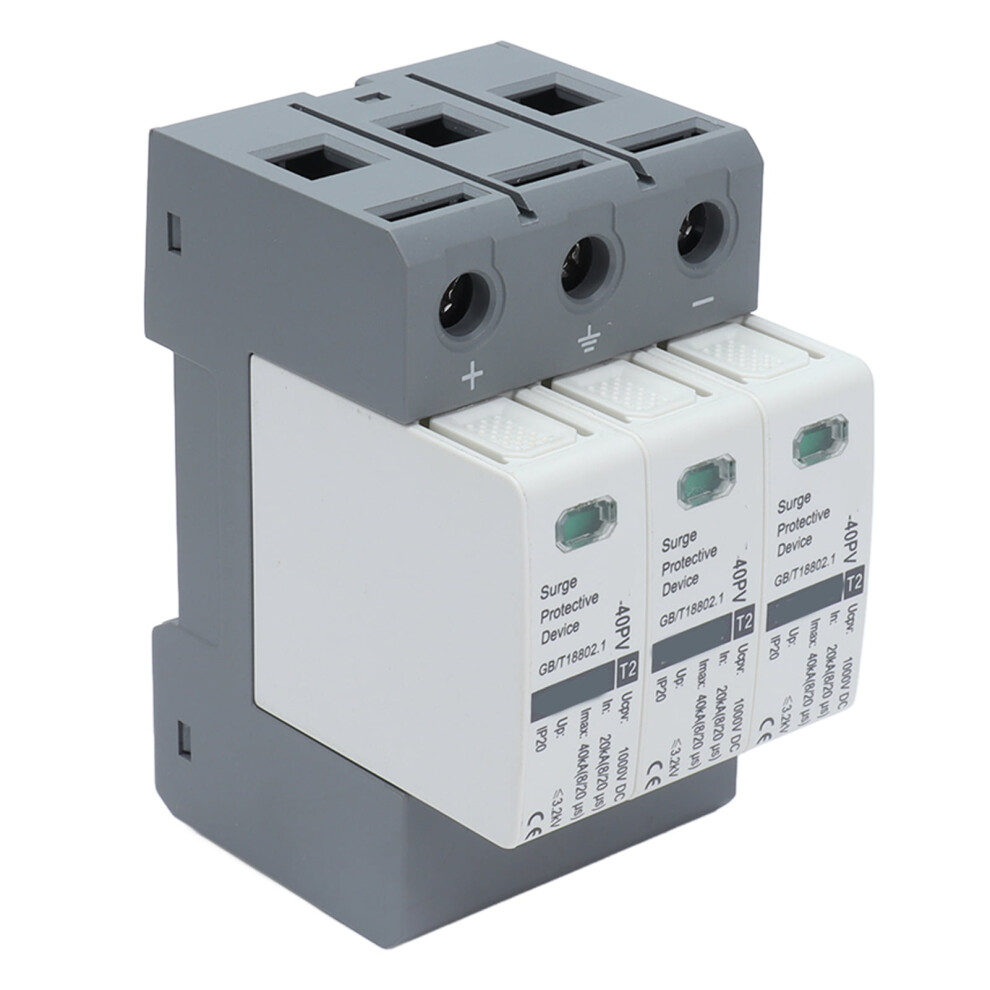

Mavis Laven House Protector Voltage Arrester 3P 20-40kA

Mavis Laven House Protector Voltage Arrester 3P 20-40kA Description

Feature: 1. Protect DC Power System: protectors can protect the DC power system from or overvoltage. 2. More Stable Performance: The protector has a longer service life and more stable performance, helping you to complete your work more effectively. 3. Safer Uses: protectors are safer to use, with good quality, excellent performance and very simple installation. 4. Easy to Use: This is a protector with modular design, easy to use and maintain. 5. Quick Response: This protector can respond quickly when a strike occurs, unload the voltage, and protect your home appliances and your safety. Specification: Item Type: Voltage Arrester Device Model: CHLT-40PV Maximum Continuous Working Voltage: 1000V DC Nominal Discharge Current: 20kA (8/20μs) Maximum Discharge Current: 40kA (8/20μs) Voltage Protection Level Up: 3.2KV Number of Poles: 3P Protection Level: IP20 Working Temperature: -40~80, Humidity: 90% (Average at 25) Package List: 1 x Protection Device 2 x Insert Note: 1. The power must be cut off before installation, and live operation is strictly prohibited; 2. When installing, please connect according to the installation diagram, where + is the positive wire and ‑ is the negative wire. Do not connect wrongly. After installation, close the automatic circuit breaker switch and check whether the working state is normal.
