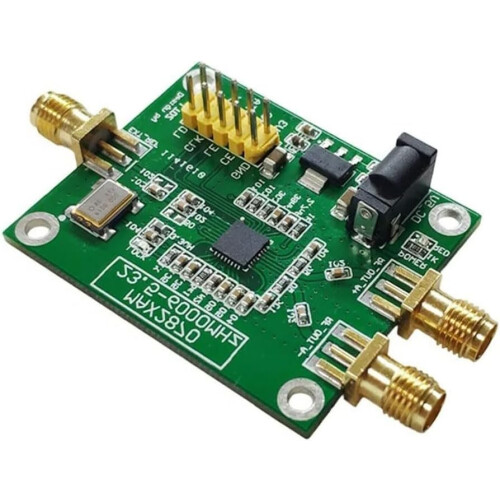

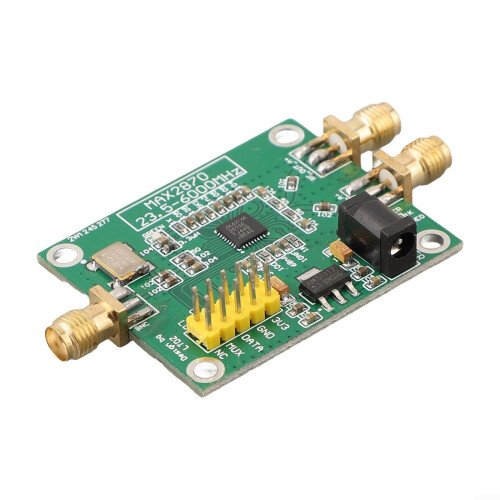

MAX2870 RF Signal Generator Module With PLL VCO Technology, STM32 Compatible, Compact Size

MAX2870 RF Signal Generator Module With PLL VCO Technology, STM32 Compatible, Compact Size Description

The MAX2870 5-6000MHz RF signal source module covers 23.5 MHz to 6.0 GHz, enabling signal output across a wide spectrum.
Built with robust materials, it uses an ultra-wideband phase-locked loop (PLL) and an integrated voltage-controlled oscillator (VCO) to deliver stable operation with low phase noise and minimal spurious signals.
Dual-channel differential output drivers provide flexible power, configurable from -4 dBm to +5 dBm per channel to suit different loads and applications.
Control is straightforward through an SPI interface with three-wire signaling, supporting easy setup and automation.
Use scenarios:
- Use in a research or design lab as a flexible RF source for testing amplifiers, mixers, and filters across 23.5 MHz to 6.0 GHz.
- Use in wireless development to provide a stable local oscillator/reference for transceivers and front-end prototyping.
- Use in test and calibration setups to benchmark spectrum analyzers and receivers with a clean, repeatable reference source.
