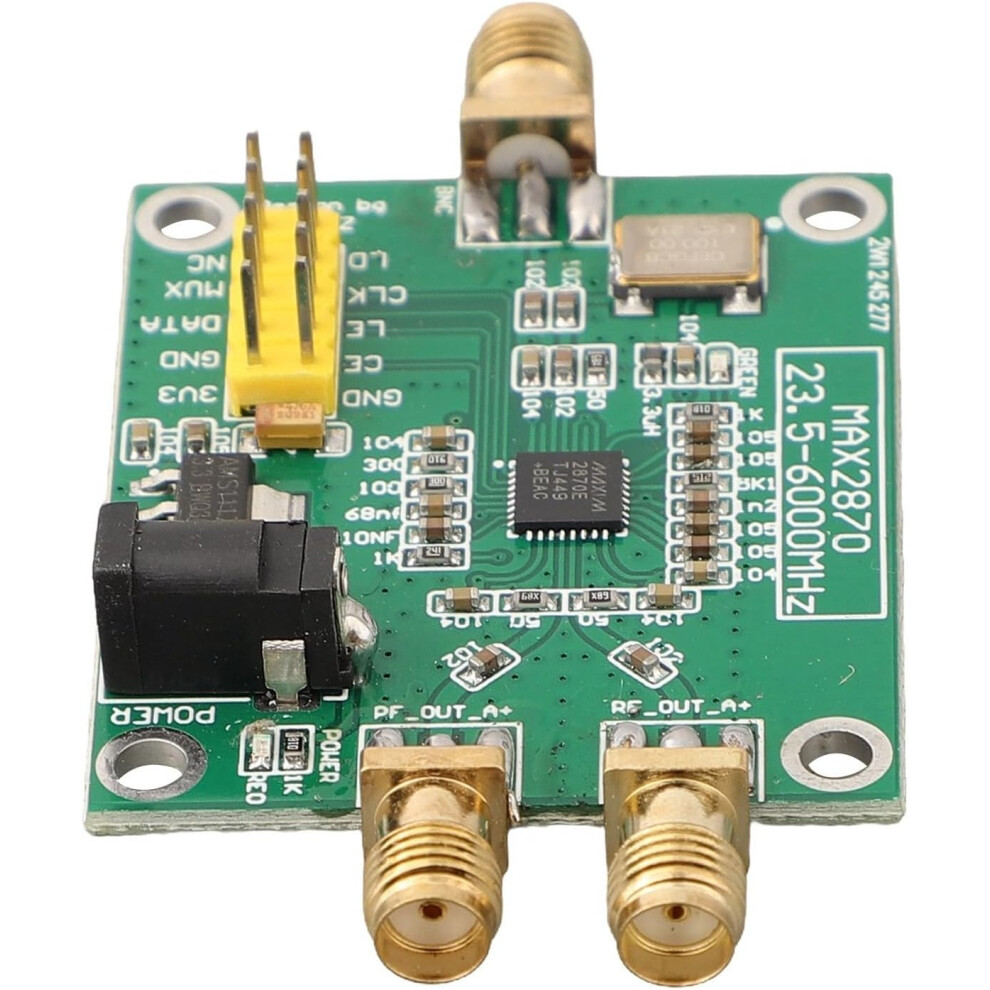

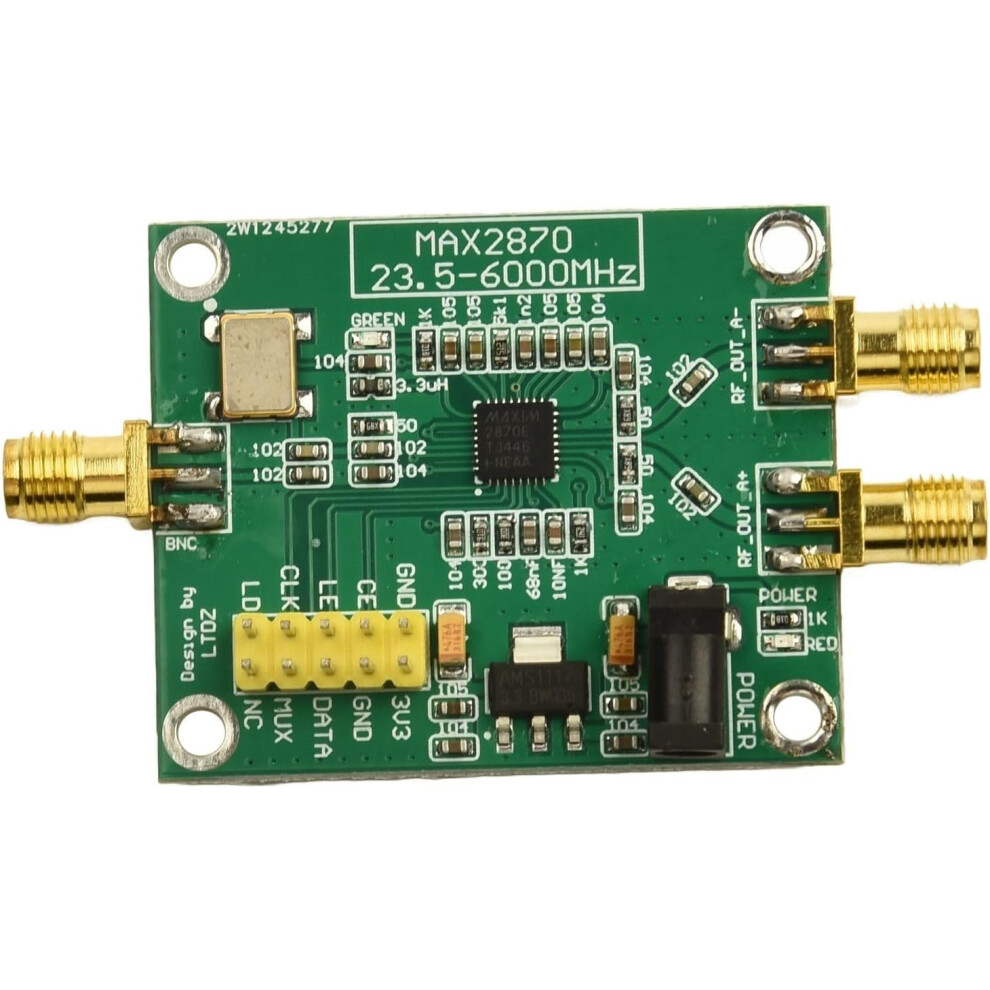

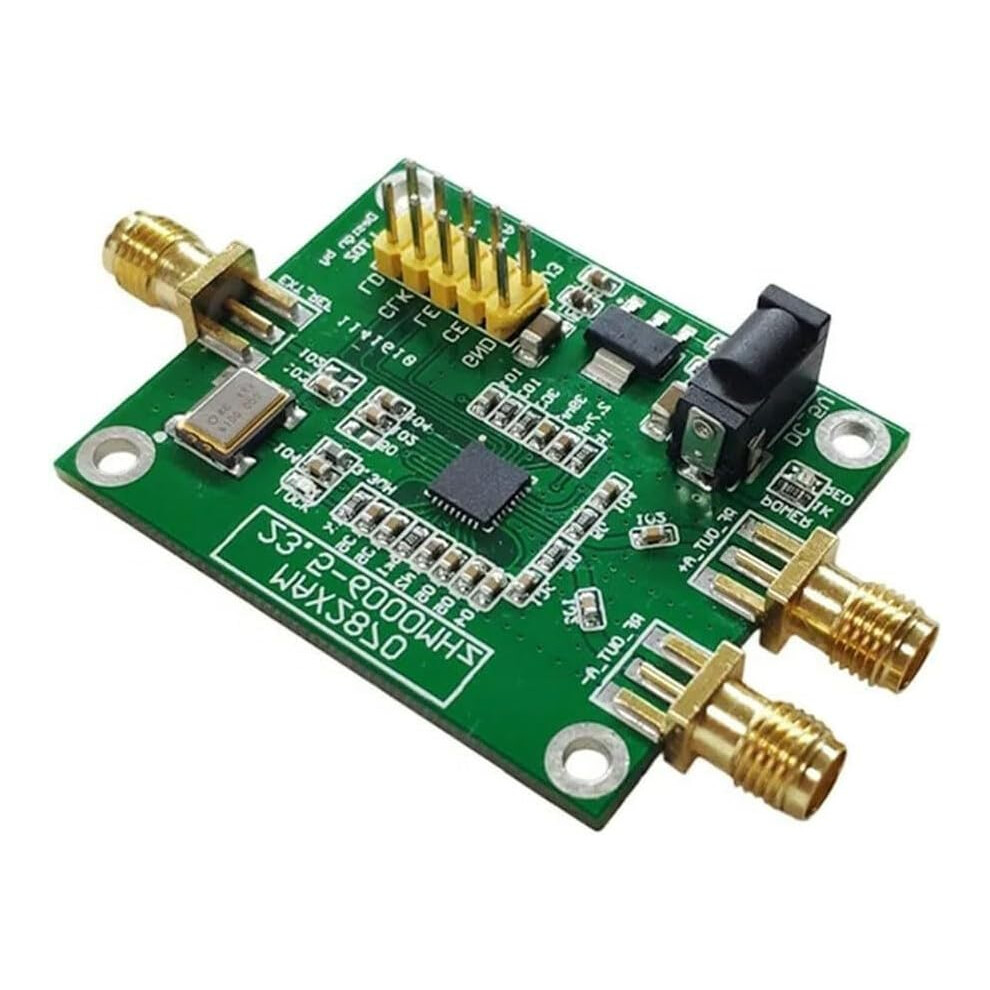

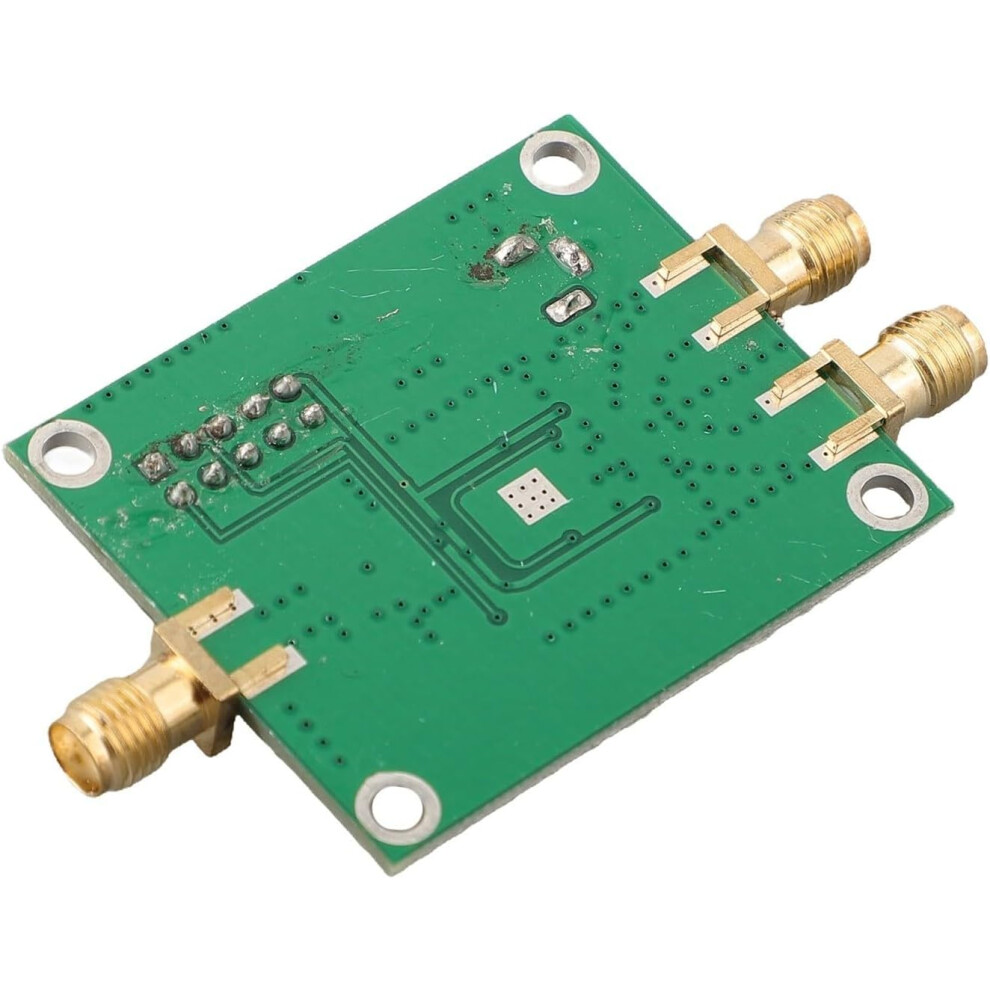

MAX2870 RF Source Module 23 56000MHz Frequency For Electronic Applications, Wideband RF Synthesizer

MAX2870 RF Source Module 23 56000MHz Frequency For Electronic Applications, Wideband RF Synthesizer Description

1. Extensive frequency coverage The MAX2870 RF signal source generates signals from 5 MHz up to 6.0 GHz, enabling a single device to cover a wide range of applications. This broad frequency range supports both amateur and professional use, reducing the need for multiple instruments and simplifying test setups. Why this helps Eliminates the need to switch between different signal sources for different bands. Enables quick experimentation and testing across a wide spectrum with a single, unified source. 2. Configurable output options Dual channel differential drivers allow independent configuration of output power from 4 dBm to 5 dBm. The adjustable drive levels make it easy to match different loads, impedances, and circuit requirements. Why this helps Tailors signal strength to diverse projects without external power amplifiers. Supports precise testing and calibration by providing controllable, repeatable output levels. 3. phase noise and spur performance Features an ultrawideband PLL and VCO designed to deliver low phase noise and minimal spurious content. Performance characteristics are suited for precision applications where signal cleanliness matters. Why this helps Improves measurement accuracy and signal integrity in RF testing, development, and calibration. Reduces interference in sensitive receivers and measurement chains. 4. Userfriendly SPI interface Simple threewire SPI control system for easy connectivity with microcontrollers and development boards. Designed to integrate smoothly into existing projects and workflows. Why this helps Enables straightforward control, automation, and remote operation within embedded systems. Shortens development time by providing a familiar interface for programmers. Applications and scenarios RF lab and benchmarking: use as a stable, tunable reference source for characterizing receivers, mixers, and RF chains across multiple bands. Amateur radio and experimentation: generate signals from low bands through frequency bands for testing antennas, filters, and transceivers. Embedded and device prototyping: integrate with microcontrollerbased projects via SPI for automated signal generation, sweeps, and calibration routines. Key attributes at a glance Function: wideband RF signal source with adjustable output power and easy microcontroller integration. Compatibility: compatible with microcontrollers through a threewire SPI interface for streamlined project development. Performance: low phase noise and reduced spurious content for precision RF work. Output range: 5 MHz to 6.0 GHz with 4 dBm to 5 dBm differential drive capability. Model: MAX2870 RF signal source.
