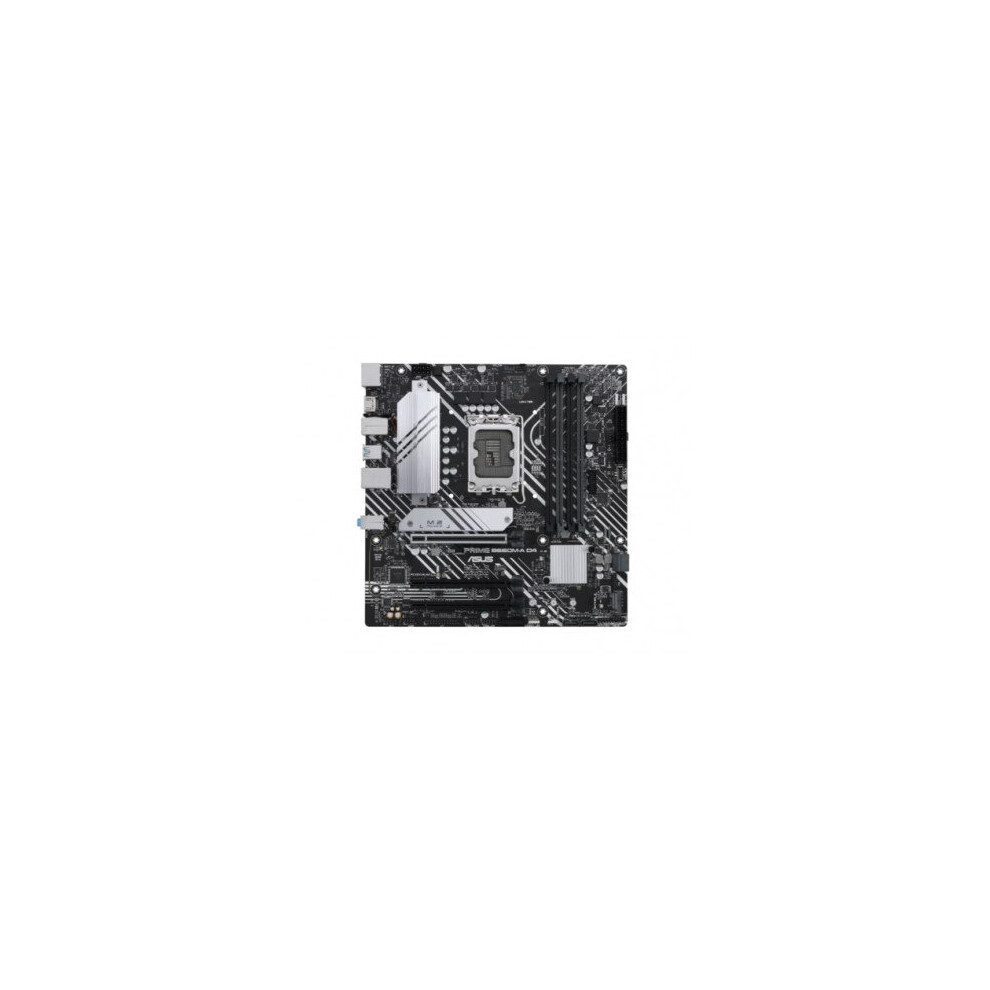

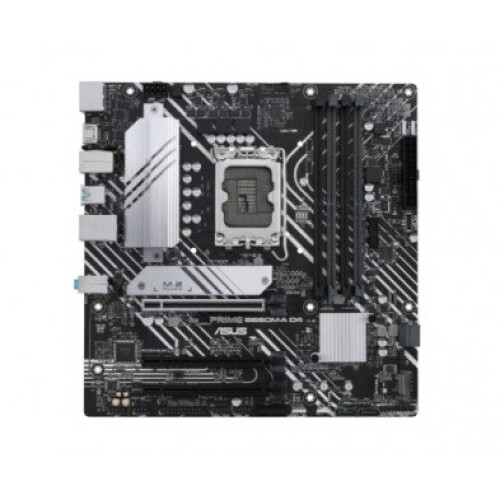

MB ASUS Intel 1700 PRIME B660M-A D4-CSM
Brand ASUS
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 131,000 Trustpilot reviews and an 'Excellent' rating
£254.92
FREE Delivery
1%
Earn £2.55 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 22nd - Fri 28th Aug
Returns: 30 days
180-day payment protection
You might also like
Description & Details
MB ASUS Intel 1700 PRIME B660M-A D4-CSM Description
MB ASUS Intel 1700 PRIME B660M-A D4-CSM
Details
| OPC | PBXSPZM |
|---|---|
| Brand | |
| Codes | 4711081508045 (EAN) |
| Links | ASUS Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Features
| Motherboard chipset | Intel B660 |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Motherboard chipset family | Intel |
| Component for | PC |
| Audio chip | Realtek ALC897 |
Processor
| Processor manufacturer | Intel |
|---|---|
| Maximum number of SMP processors | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
BIOS
| BIOS memory size | 128 Mbit |
|---|---|
| BIOS type | UEFI AMI |
Rear panel I/O ports
| PS/2 ports quantity | 1 |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
Memory
| Maximum internal memory | 128 GB |
|---|---|
| Non-ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 5333 MHz |
| ECC сompatibility | Non-ECC |
Storage controllers
| RAID levels | 0, 1, 5, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Weight & dimensions
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
Packaging content
| Cables included | SATA |
|---|
Internal I/O
| USB 2.0 connectors | 3 |
|---|---|
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| Power fan connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
Expansion slots
| PCI Express x16 (Gen 3.x) slots | 2 |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
