Sorry, this item is temporarily out of stock.

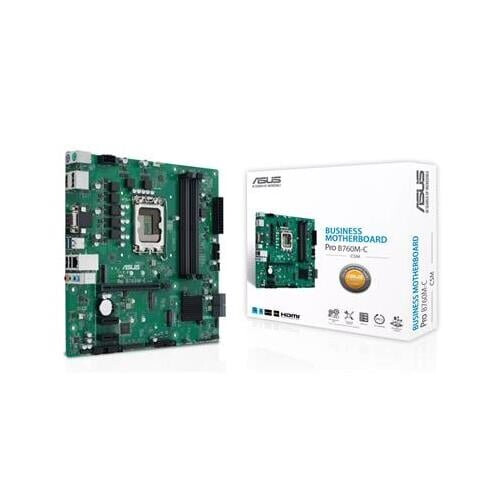

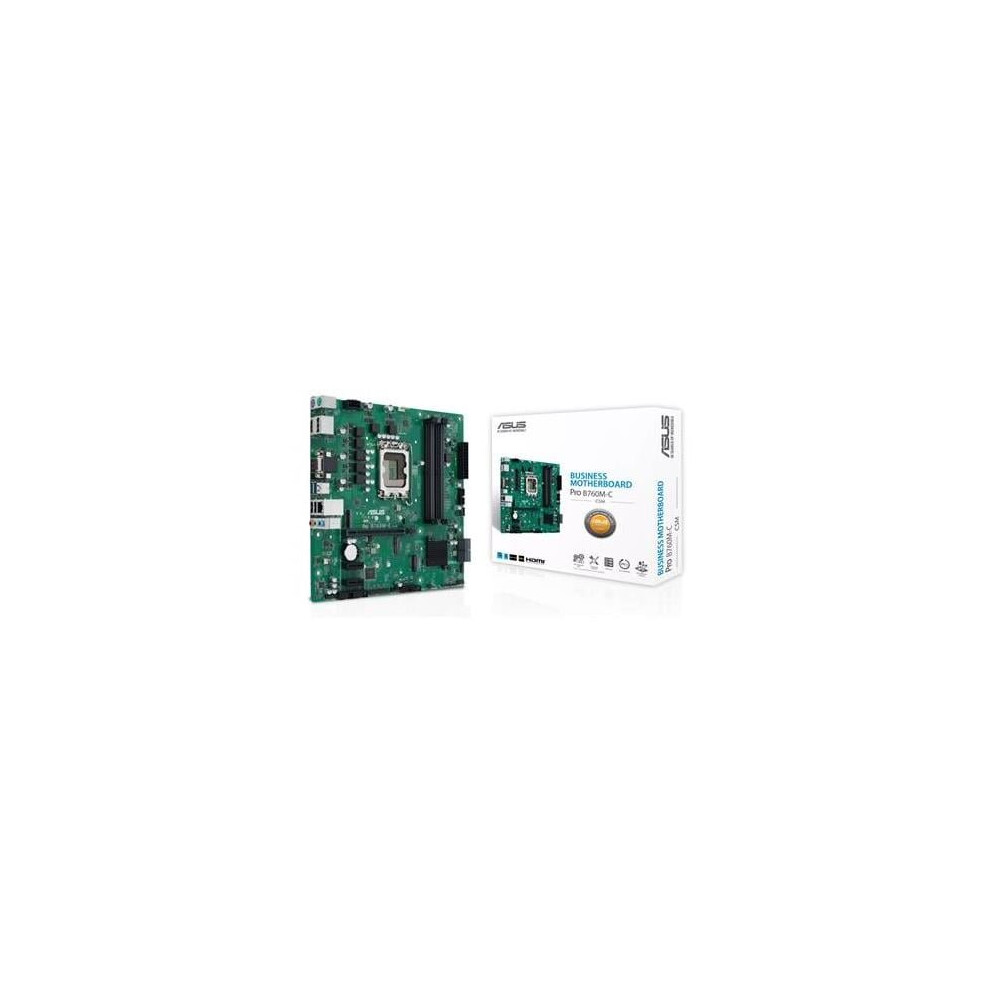

MB ASUS Intel 1700 PRO B760M-C-CSM
Brand ASUS
New
£257.38
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
MB ASUS Intel 1700 PRO B760M-C-CSM Description
MB ASUS Intel 1700 PRO B760M-C-CSM
ASUS
If you're looking for high-quality computer components and accessories, ASUS is the brand for you. Delivering top tech and electronics across the board, they're world-renowned as specialists in what they do. Browse our range here at OnBuy and see what they have to offer.
Details
| OPC | PBYMYXC |
|---|---|
| Brand | |
| Codes | 4711387014691 (EAN) |
| Links | ASUS Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Features
| Motherboard chipset | Intel B760 |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Component for | PC |
Processor
| Processor manufacturer | Intel |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
BIOS
| BIOS memory size | 128 Mbit |
|---|
Rear panel I/O ports
| PS/2 ports quantity | 2 |
|---|---|
| Line-in | Yes |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Network
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
Memory
| Maximum internal memory | 128 GB |
|---|---|
| Non-ECC | Yes |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 6200 MHz |
| ECC сompatibility | Non-ECC |
Storage controllers
| RAID levels | 0, 1, 5, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
Weight & dimensions
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
Packaging content
| Cables included | SATA |
|---|---|
| User guide | Yes |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| 12V power connector | Yes |
Graphics
| Parallel processing technology support | Not supported |
|---|
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 2 |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Other features
| Number of M.2 (E) slots | 1 |
|---|
