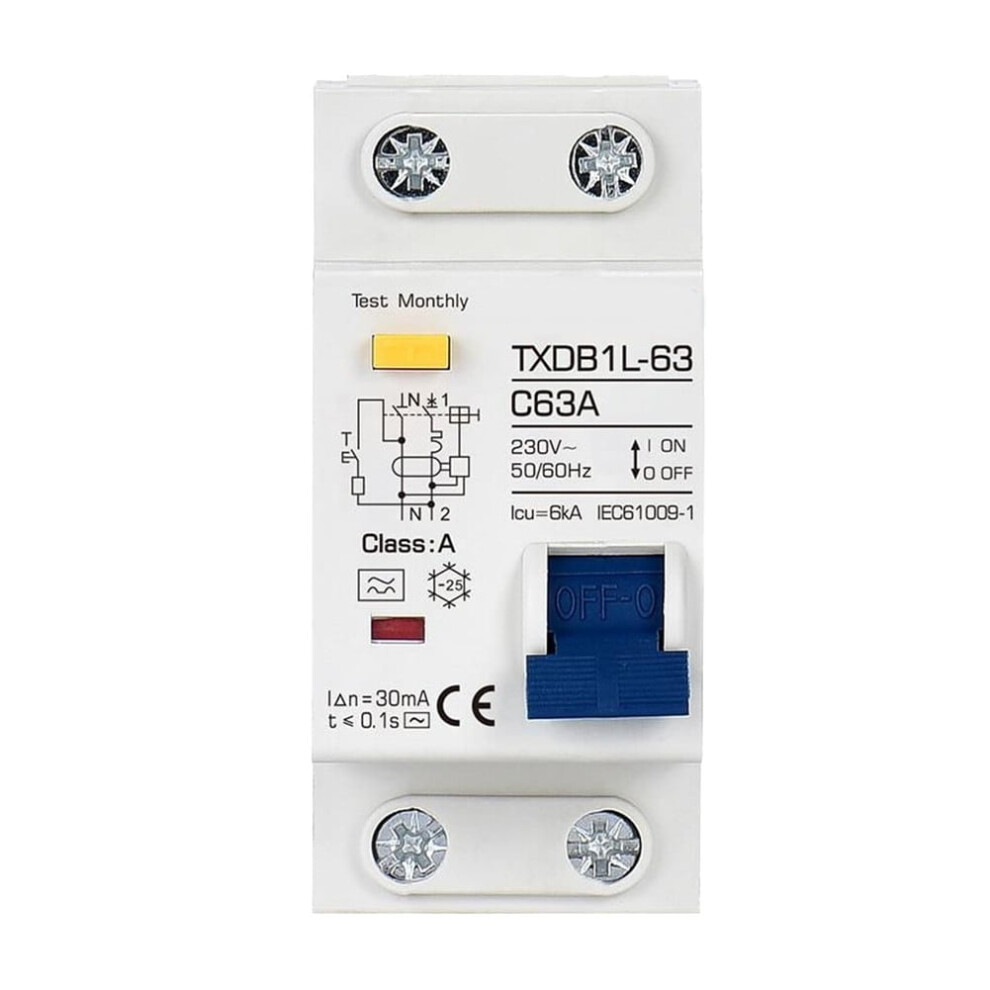

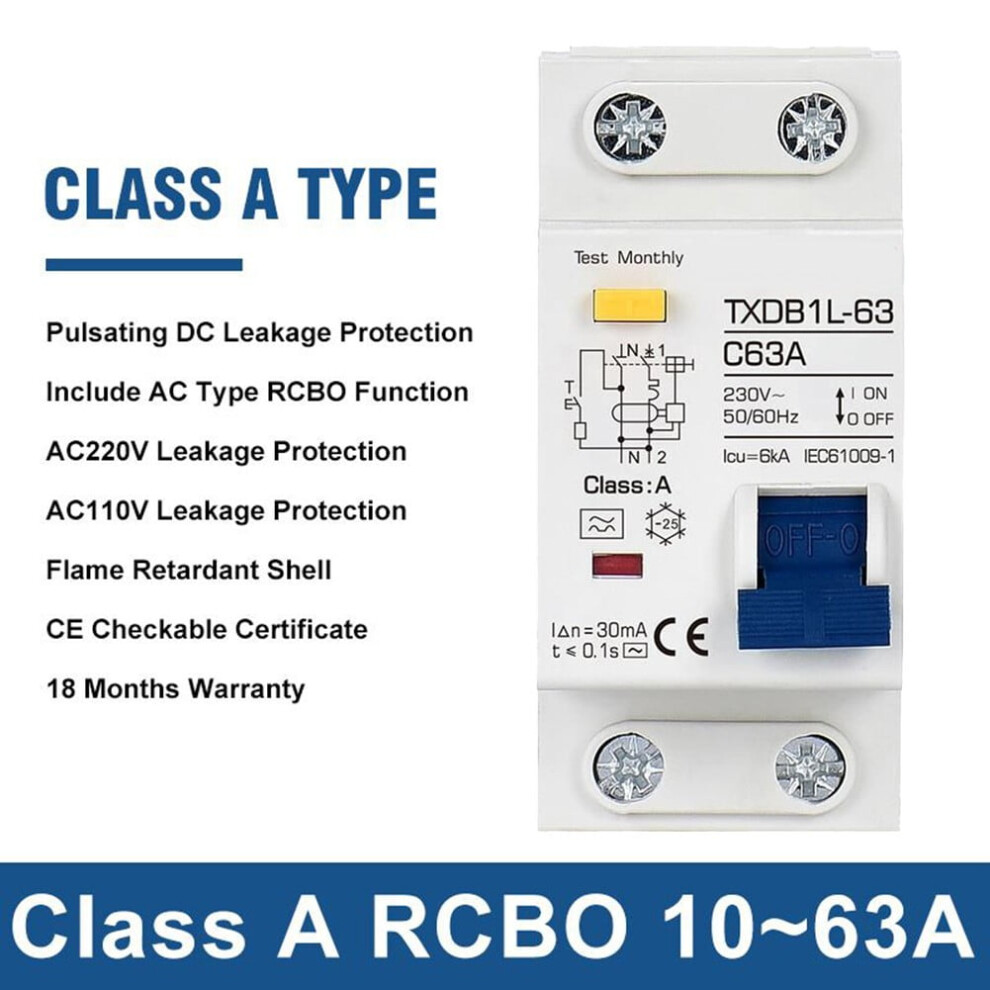

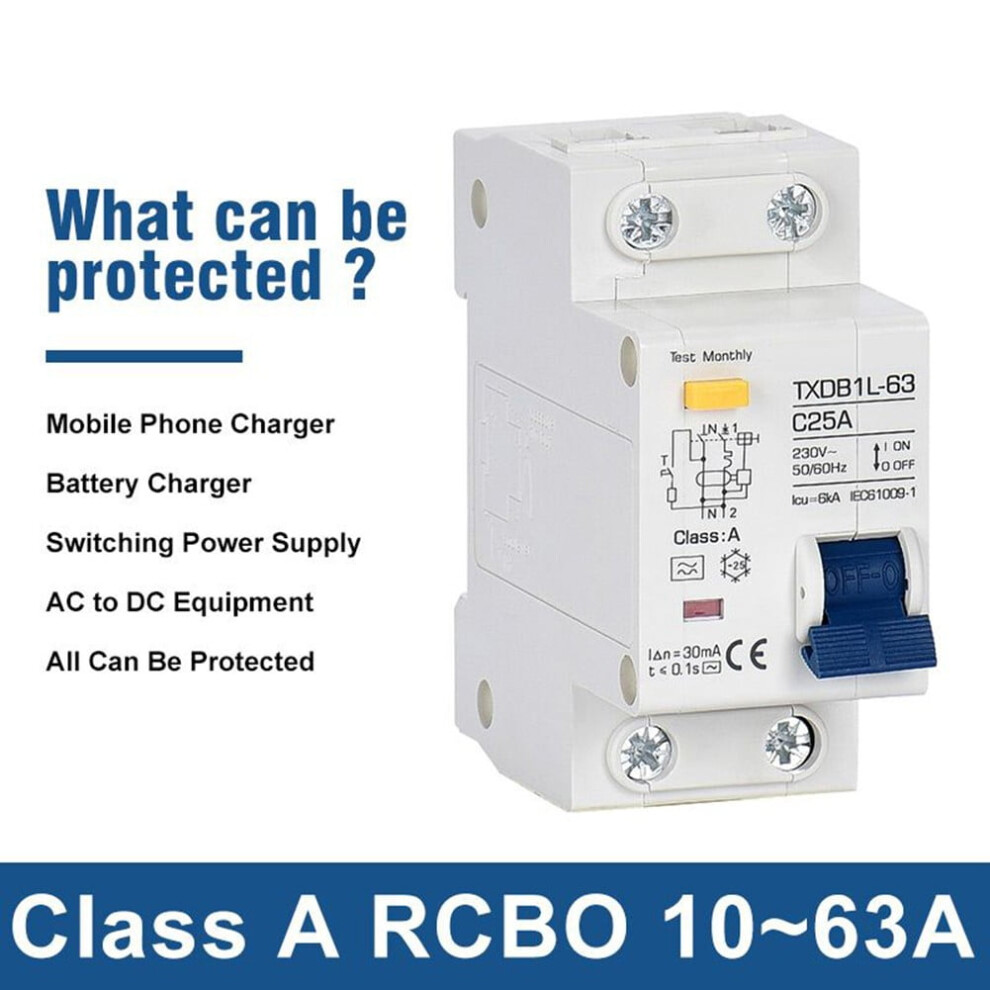

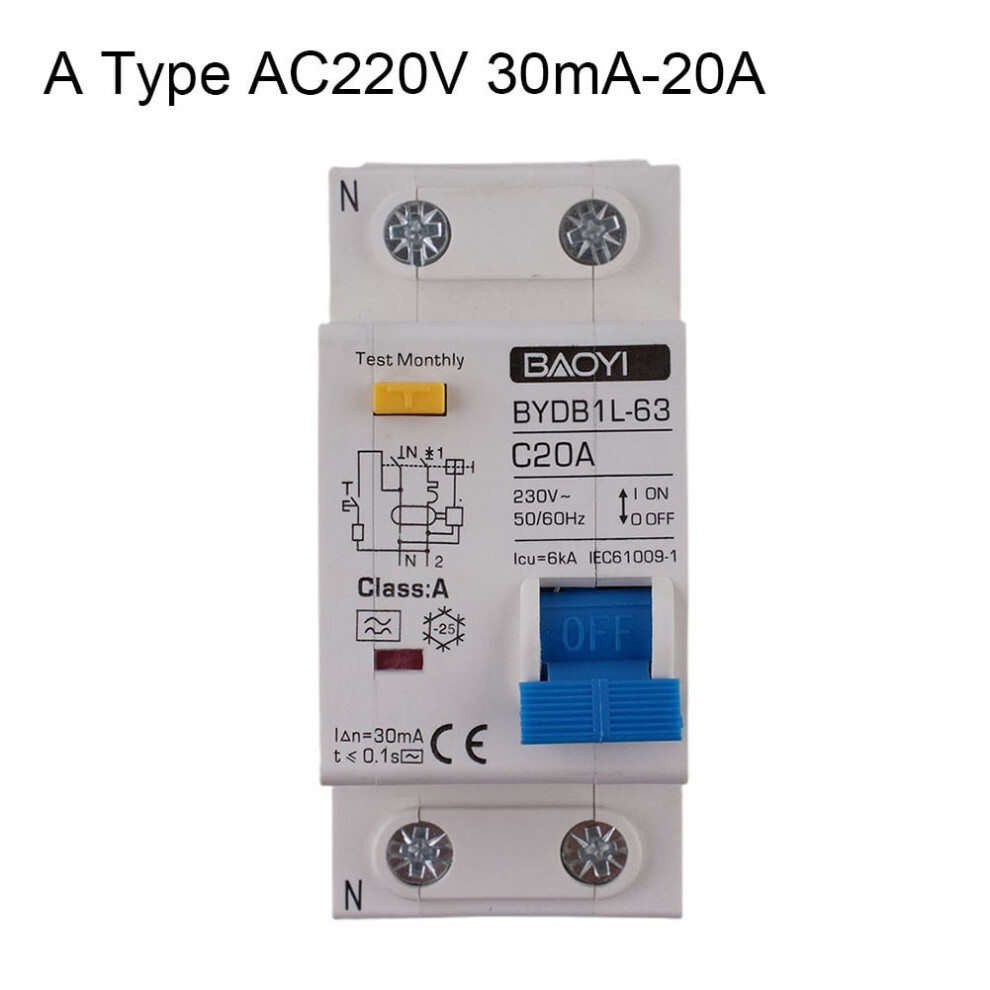

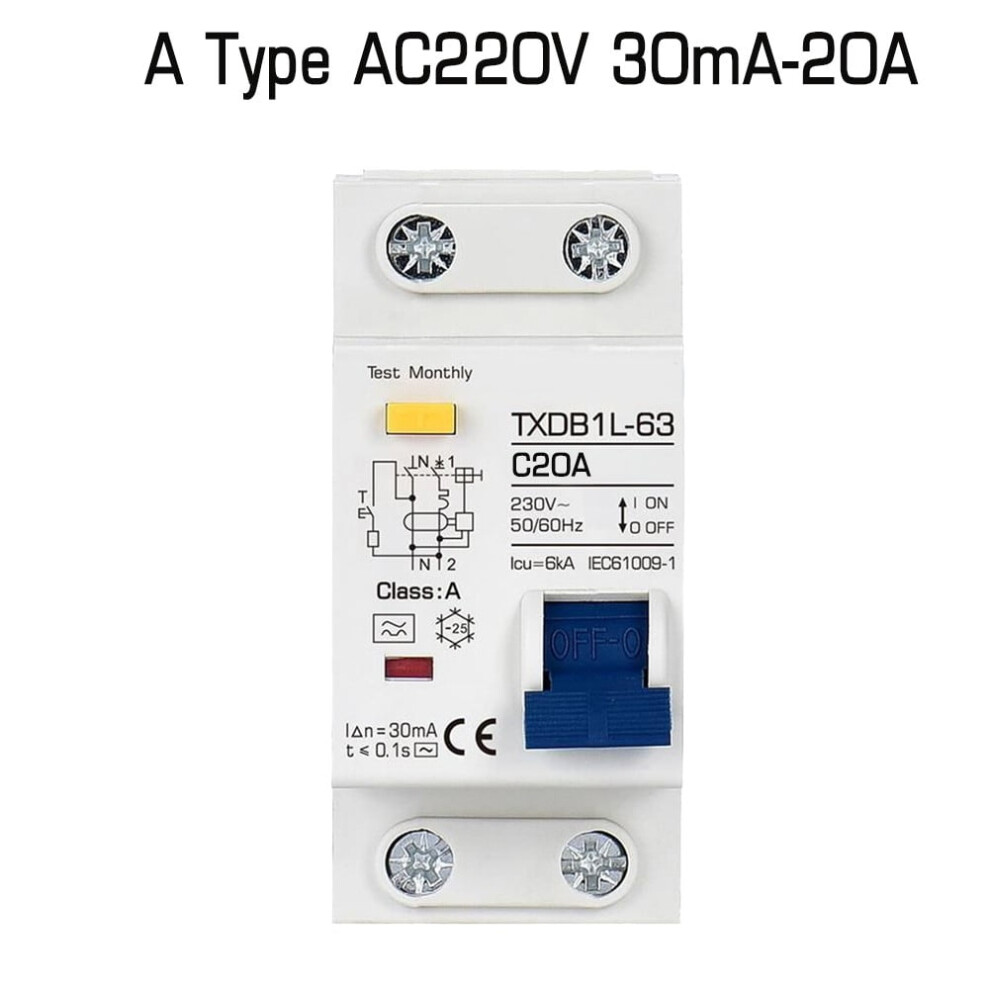

MCB RCCB RCD Type A/AC RCBO DPNL Residual Current Circuit Breaker

MCB RCCB RCD Type A/AC RCBO DPNL Residual Current Circuit Breaker Description

Specification Rated current: 10, 16, 20, 25, 32, 40, 50, 63A Rated working voltage: 220 AC Rated insulation voltage：500V Rated residual operating current: 30mA Breaking capacity: 4.5kA Trip indicator. TXDB1L earth leakage circuit breaker has residual current operation trip indication, when the leakage fault trips, the changes from colorless to red Mechanical life: 8000 times Electrical life: 2000 times Wiring. 6~80A, can connect 25mm2; and below wires Tripping characteristics. C-curve, protecting conventional load and distribution cables, instantaneous tripping range (5~10) In Features. AC220V Earth leakage protection Short circuit/overload protection Flame retardant housing Package includes. 1* circuit breaker MCB RCCB RCD Type A/AC RCBO DPNL Residual Current Circuit Breaker Easy to install and reliable to use. Solid and durable, long service life. Pls kindly check the decription before you order. Any other in need pls contact with us directly Brand new and high quality
