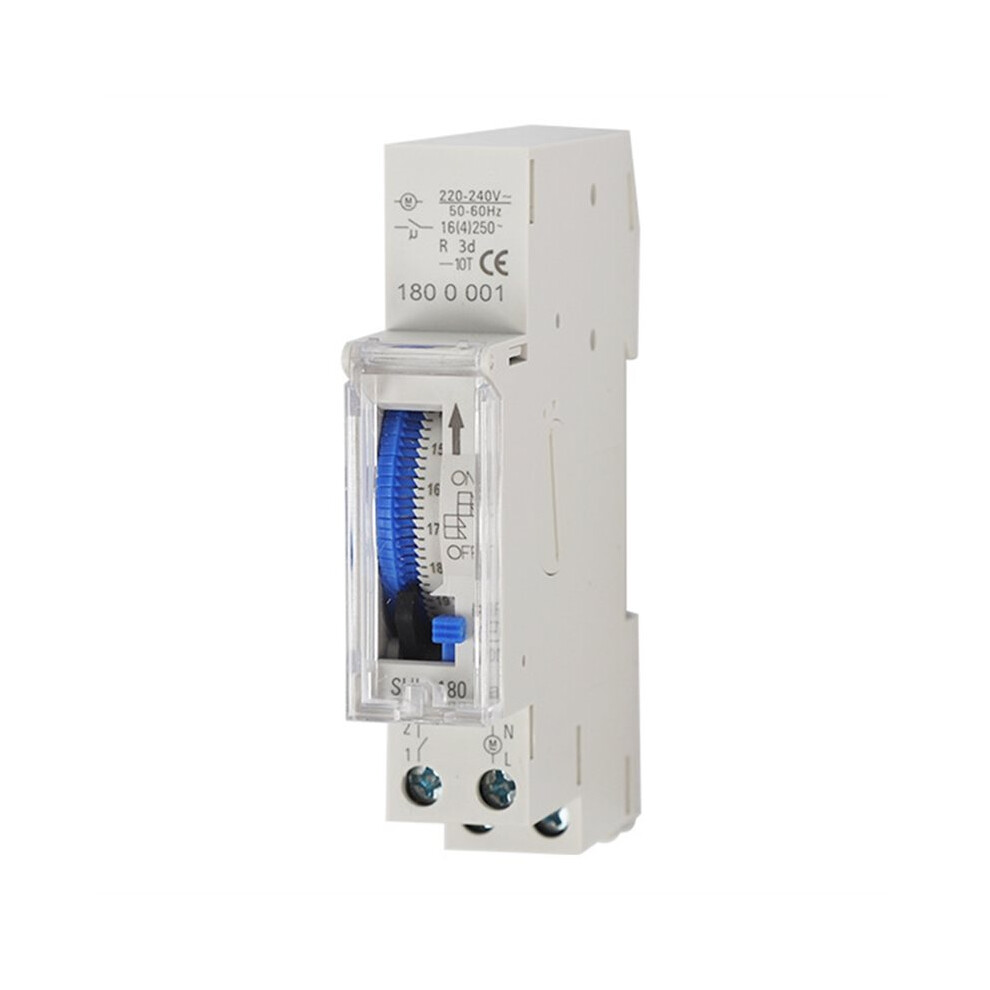

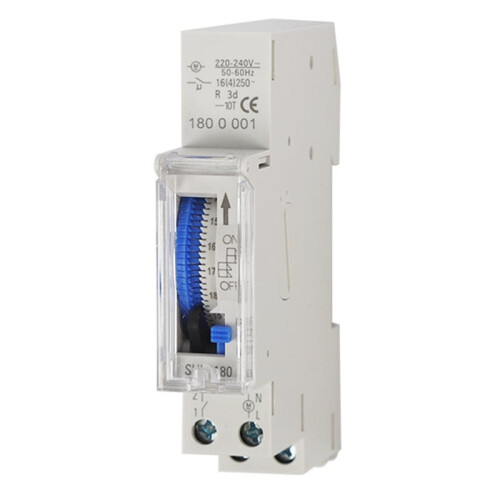

Mechanical Timer 110V SUL180a SYN161H Analog24 Hour Mechanical Programmable DIN Rail Timer

Mechanical Timer 110V SUL180a SYN161H Analog24 Hour Mechanical Programmable DIN Rail Timer Description

Application: This mechanical timer product can automatically and off various kindsof electric equipments according to the fixed . It is widely used in all electrical equipments and household appliances where needs to be controlled. Such as neon lights, advertisement board lights, production equipments, andTV equipments

Specifications:
Rated voltage:110V
Frequency:50/60Hz(common use)
Power consumption:1W
Drive method:Quartz controlled stepping motor
Cycle:24 hours
precision:3Sec/day at 22
Load:Circuit : Separate circuit(voltage is not applied to the load circuit)
construction : SPST
Manual /OFF : /AUTO/OFF
Capacity : Resistive load 16A
Incandescent lamp 10A
Inductive(cosφ=0.7) 12A
Motor(cosφ=0.7) 110VAC 750W,220VAC 1500W
Setting:Present setting:Turn the dial till the index is in the current
/OFF program setting:15 Minutes
Minimum unit:15 Minutes
Minimum interval:15Minutes
No.of /OFF operations:96 operations
Working reserve :72 hours
Ambient temperature :-10~+50
Ambient humidity:Max.85%
Analogue :
1 channel
Screw terminals
Manual with 3 positions:Permanent /AUTO/permanent OFF
Switching status display
Daily program
96 switching segments
Quartz controlled
Shortest switching : 15 minutes
Color: White
Material: plastic

Package Contents:
1* Mechanical Timer
