MESR-100 Auto Ranging ESR Meter Resistance Capacitance

MESR-100 Auto Ranging ESR Meter Resistance Capacitance Description

1、It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C). 2、 The impedance become small, and we can then measure the true series resistor value. 3、 Using this theory, we can measure the capacitor is bad/ damaged or good in condition. 4、 Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test. 5、 During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.
Features:

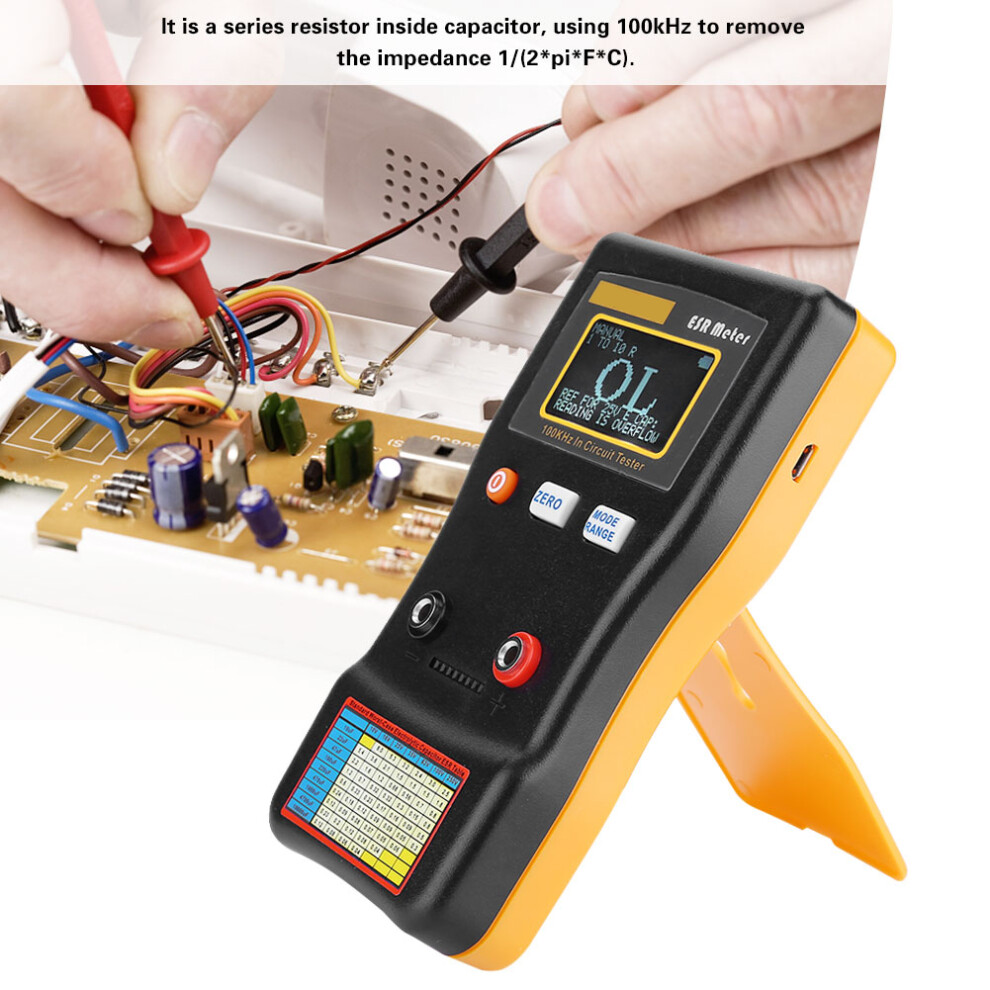

It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).
The impedance become small, and we can then measure the true series resistor value.
Using this theory, we can measure the capacitor is bad/ damaged or good in condition.
Our ESR meter only applies less than 15mV DC or peak to peak on a good
capacitor, as a result we can use it as in circuit test.

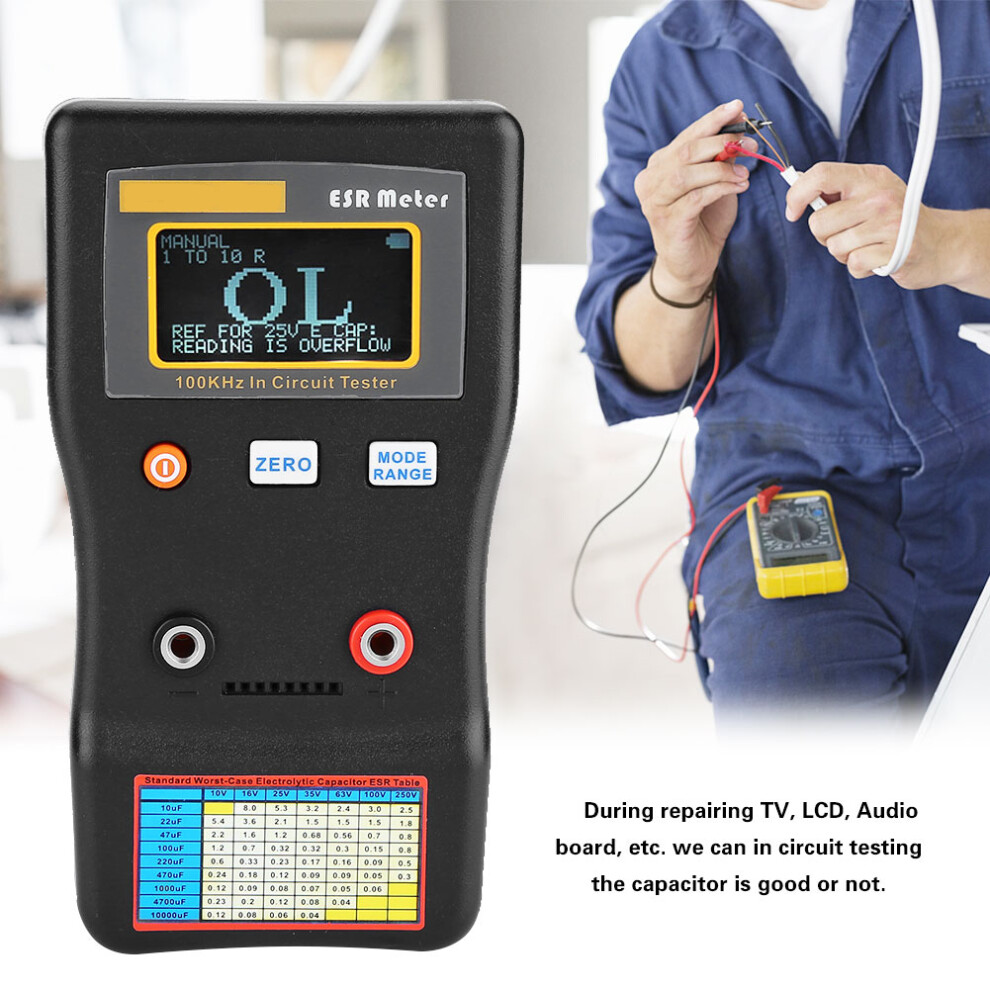

During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.
Dual terminal, for fast and easy inspect general capacitor or resistor, a printed ESR table for fast check.
Specifications:
Model
MESR-100
Range
Accuracy (After Zero, tested with 1,10,100R resistor)
Refresh Time (Manual Mode)
*Auto mode take 0 to 2s more time depend on value
0.000 to 1.000R
1%+2Digit
0.4s
1.000 to 10.00R
1%+1Digit
0.4s
10.00 to 100.0R
2%+1Digit
0.4s
Accuracy
Up
to 1% (detail on above table) Wide
Measurement Range: >1uF (for 0.1uF the error will be larger on
equation 1/(2*pi*F*C) @ 100Khz )
High Resolution
4 digit, or 0.001Ohm @ 1 Ohm range
Battery
2X AA 1.5V battery(not included)
External Power
5V micro USB
Battery Life time
>80 Hours
Operating current
0.02A
Size
14.4*8.1*3.1cm/5.7*3.2*1.2in
Weight
Approx.219g/7.7oz
Package List
1 * Capacitance Meter (battery not included)
2 * Test Clips
1 * User Manual
