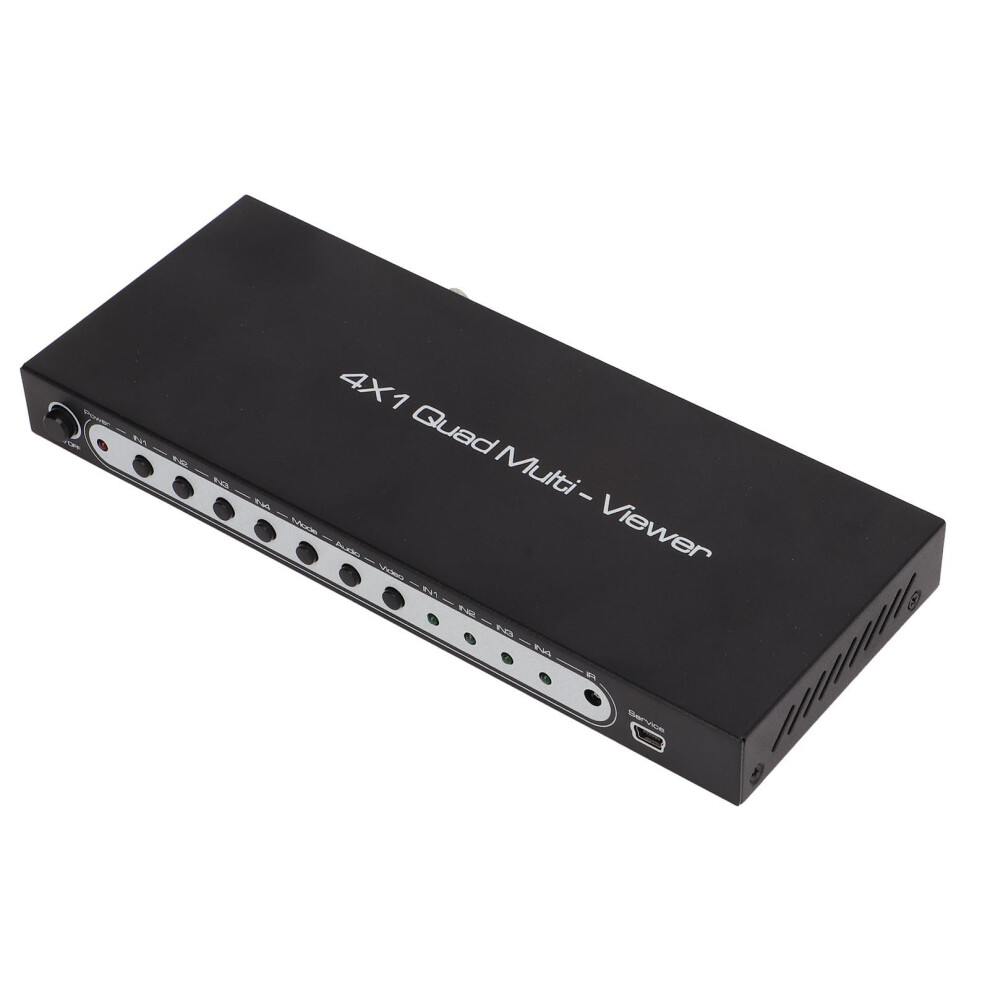

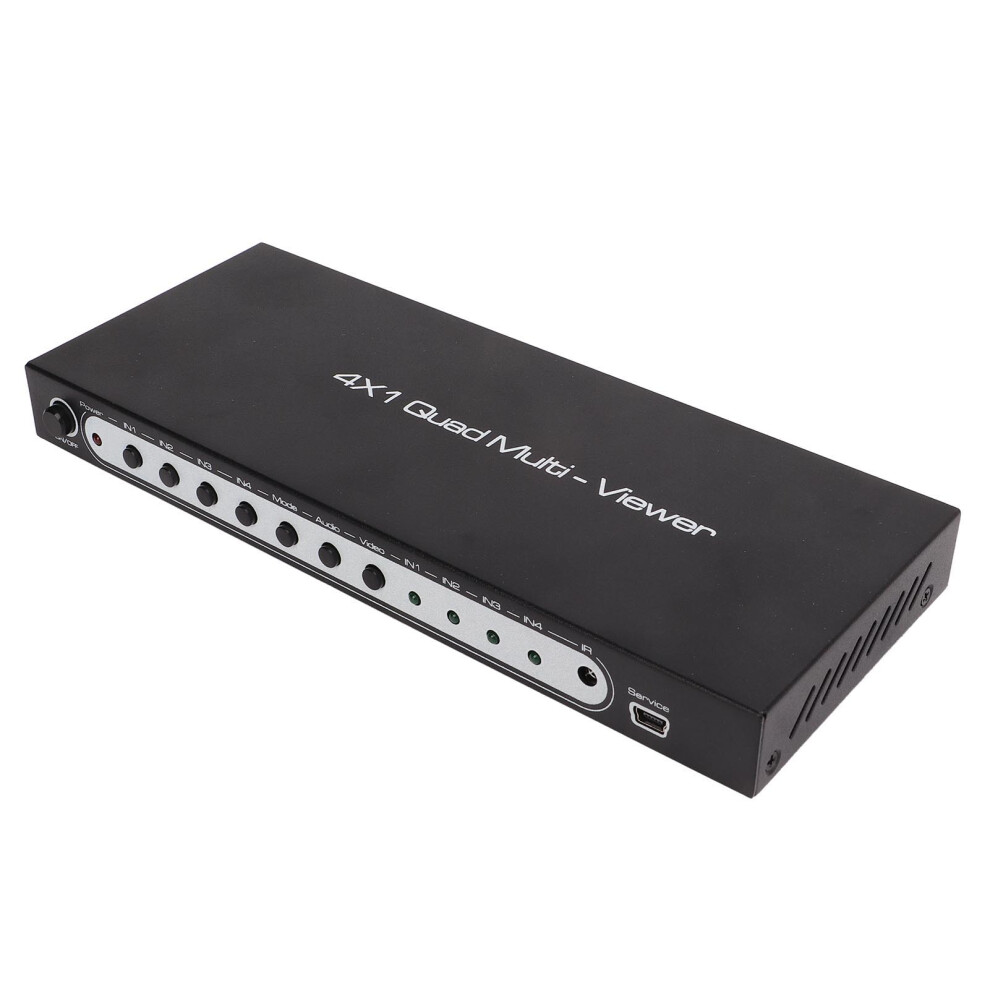

Metal Multi Viewer Switch 1080P Quad Screen Divider IR Remote

Metal Multi Viewer Switch 1080P Quad Screen Divider IR Remote Description

1、Applicability: The multi viewer can be arbitrarily switched to a display device that supports high definition multimedia interface input, and supports 4 way signal picture segmentation and seamless switching. 2、Performance: The multi viewer divider adopts SPDIF coaxial audio output format, supports for Dolby digital (AC3), DTS, supports 5.1 channels, and supports resolution up to 1080P 60HZ. 3、Communication Control: Through RS 232 communication control, the machine can be upgraded with software, and equipment operation can be controlled through a computer. 4、Easy to Operate: The multi viewer switch supports infrared remote control, and can also be controlled directly through the buttons on the machine, which is very convenient to use. 5、LED Indicator: When the signal source or signal terminal is in working state, the corresponding indicator light will turn on, so that the working state of the product can be seen at a glance.
Item Type: Multi viewer switch
Material: Metal
Weight: Approx. 740g/26.1oz
High Definition Multimedia Interface Resolution: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Maximum Transmission Bandwidth: 225MHz
Maximum Baud Rate: 6.75Gbps
Input Output TMDS Signal: 0.5-1.5Volts p p
Input Output DDC Signal: 5Volts p p(TTL)
Input Cable Length: 10m/393.7in AWG26 High definition multimedia interface standard wire
Output Cable Length: 10m AWG26 High definition multimedia interface standard wire
Maximum Working Current: 700mA
Remote Control Power Information: CR2025x1 button battery 170mAh(Shipped with built in battery)
Size: 220x87x23mm/8.7x3.4x0.9in
1 x Host
1 x Power Adapter
1 x Remote Control
1 x CD
1 x Instructions
