Description & Details

Summary

  • Double Diaphragm Coupling: This is a double section U shaped diaphragm coupling, which has an outer diameter 26mm.

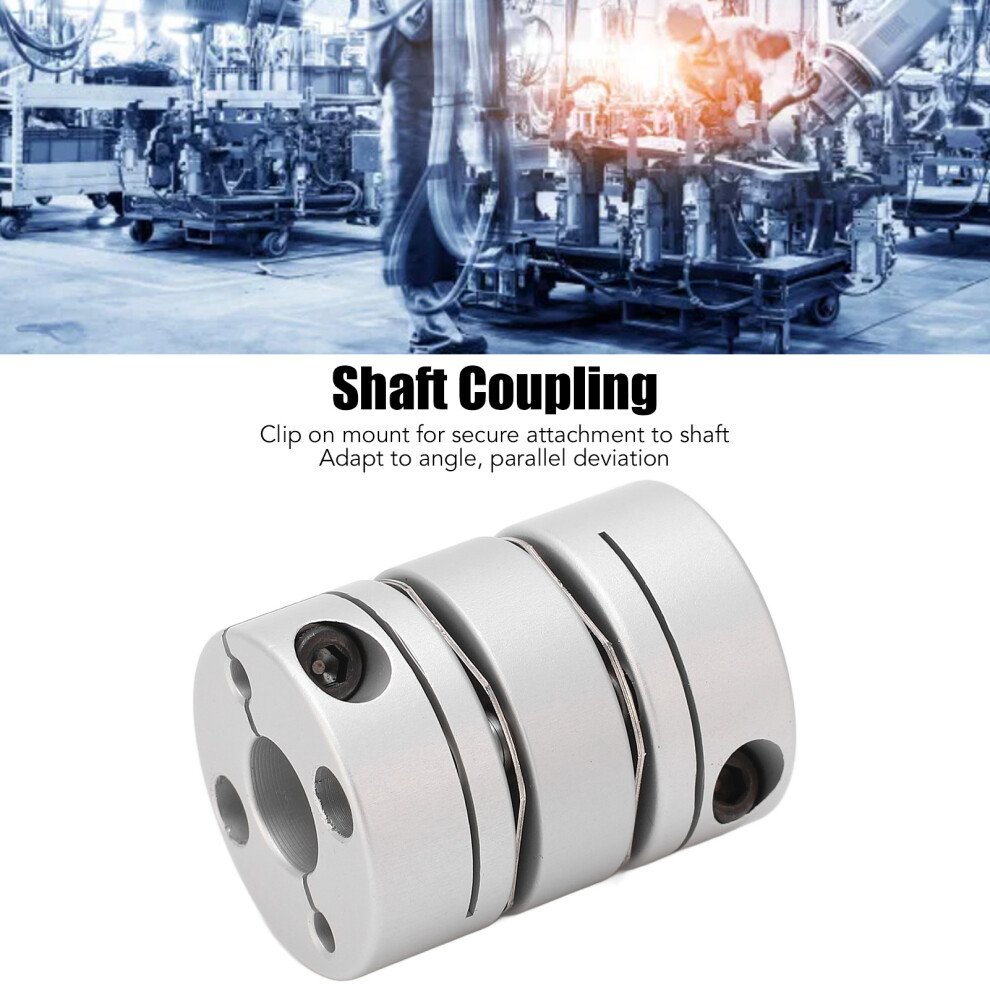

  • Clip Mount: This double coupler can be firmly attached to the shaft, accommodate angular, parallel deviations, greatly help your work.
  • Aluminum Alloy, Stainless Steel: Aluminum alloy wheels are lightweight and stainless steel discs are strong, giving the product a long life span.
  • Main Application: The coupler is manufactured by fine workmanship, professional and standard, which is an important accessory for screw rod.

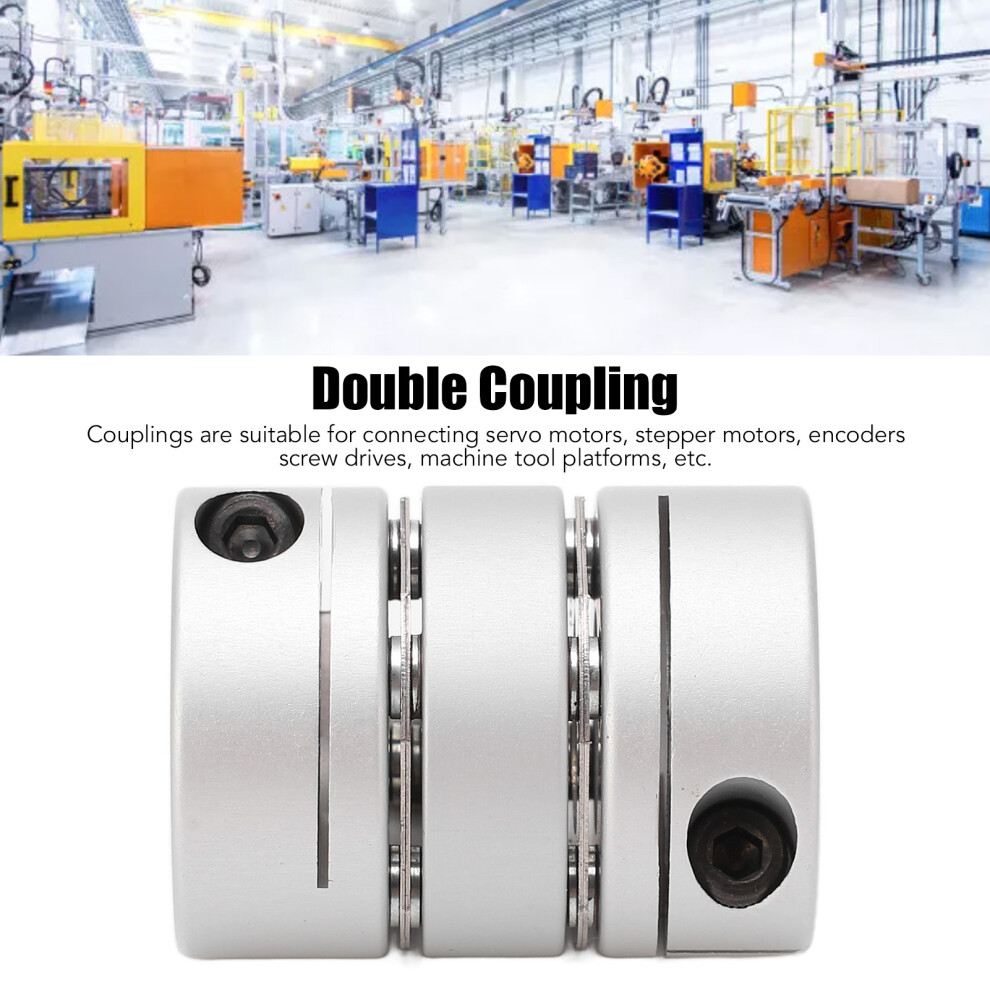

  • Wide Application: This double couplings are suitable for connecting servo motors, stepper motors, encoders, screw drives, machine tool platforms, etc.

Metal U Diaphragm Coupling 26mm OD Double Spring Module for Automation Projects Description

Screw Rod Double Diaphragm Coupling U Diaphragm Coupler OD 26mm Screw Rod Module Accessories
Item Type: Double Diaphragm Coupling Coupler
Material: Aluminum Alloy, Stainless Steel

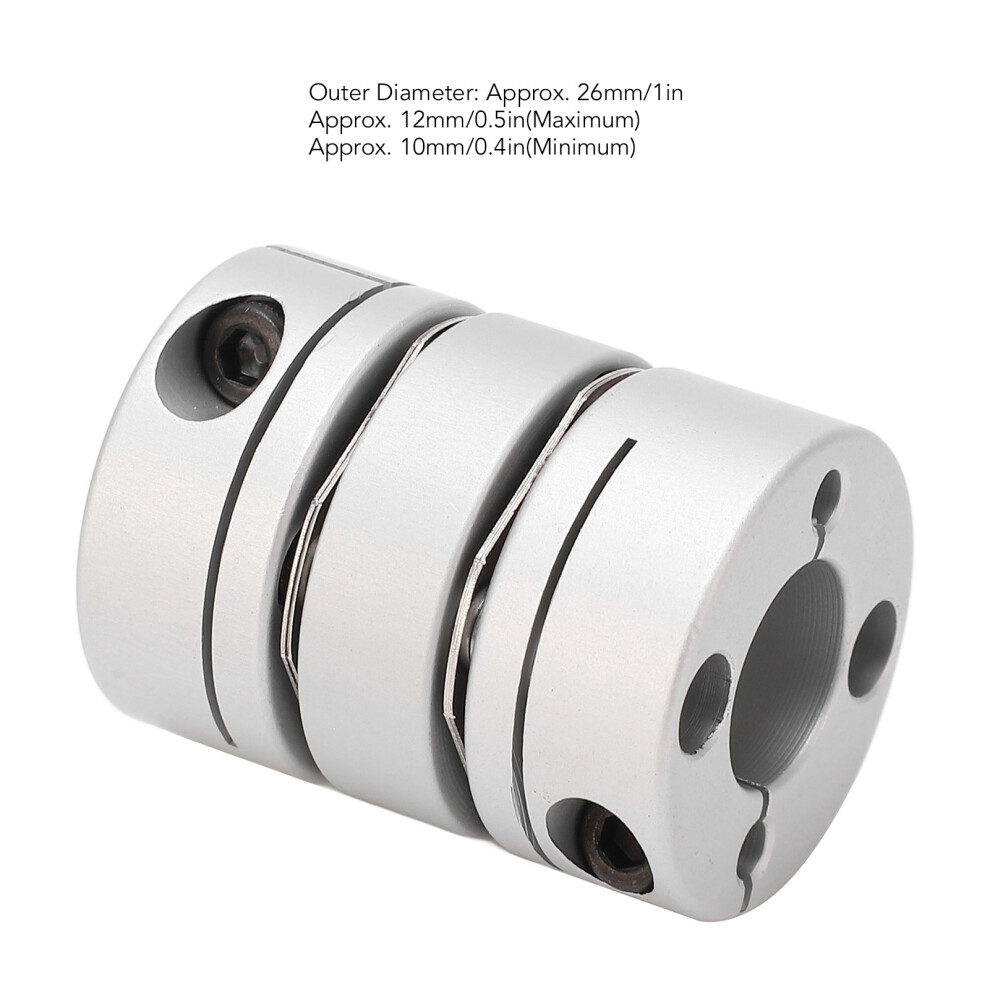

Outer Diameter: Approx. 26mm/1in
Shaft Diameter: Approx. 12mm/0.5in(Maximum) Approx. 10mm/0.4in(Minimum)
Axial Displacement: 0.33K²a
Eccentricity: 0.15Kr
Angular: 2.2a
Static: 960Nm/rad
Radial: 700Nm/rad
Rated Torsion: 2.2Nm
Maximum Torsion: 4.4Nm

Details

OPC PSPBD5B
Codes 6921390166357 (EAN)

Product Images

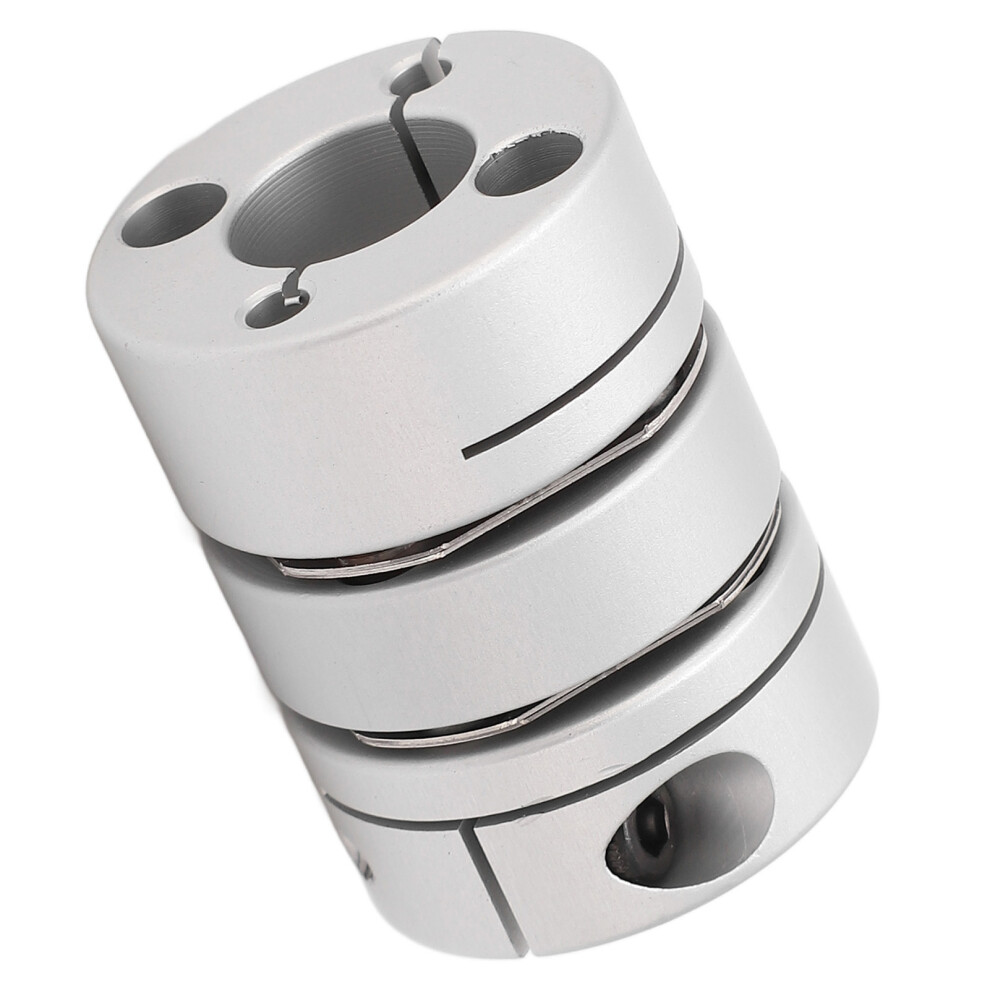

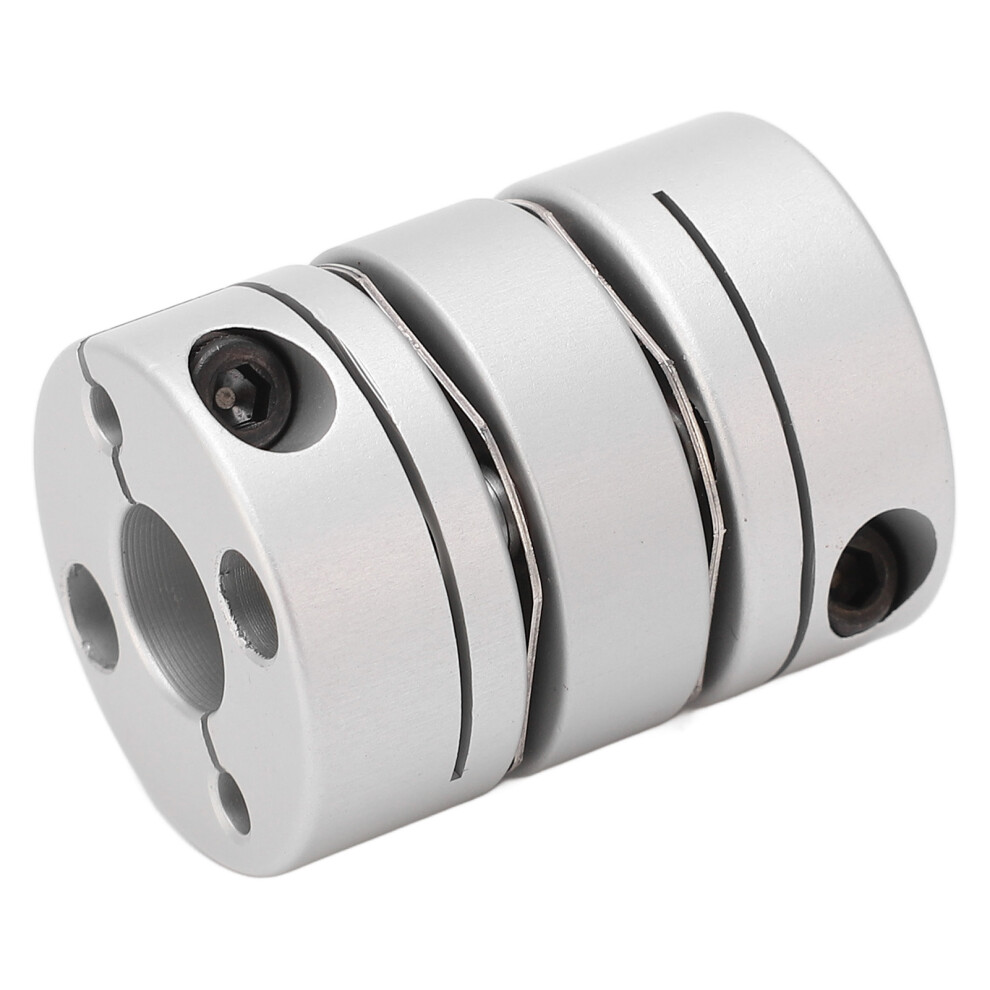

Metal U Diaphragm Coupling 26mm OD Double Spring Module for Automation Projects 1

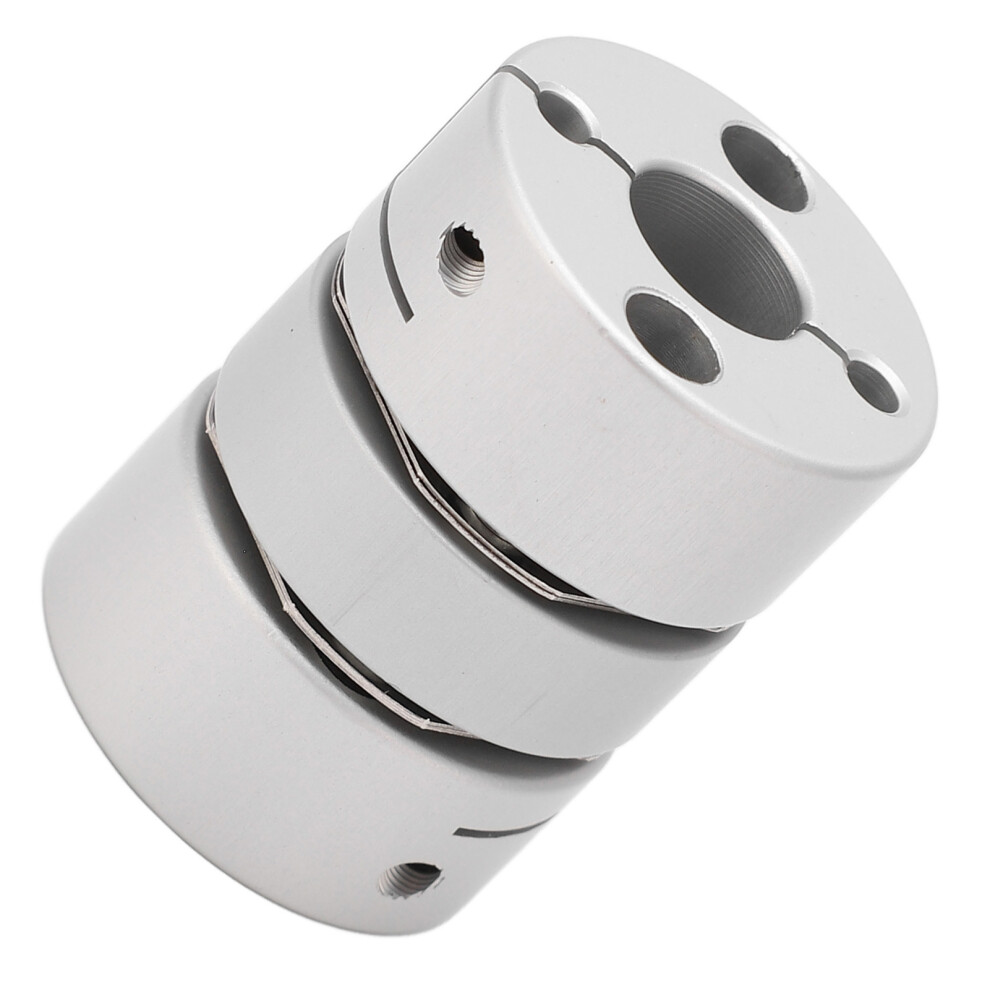

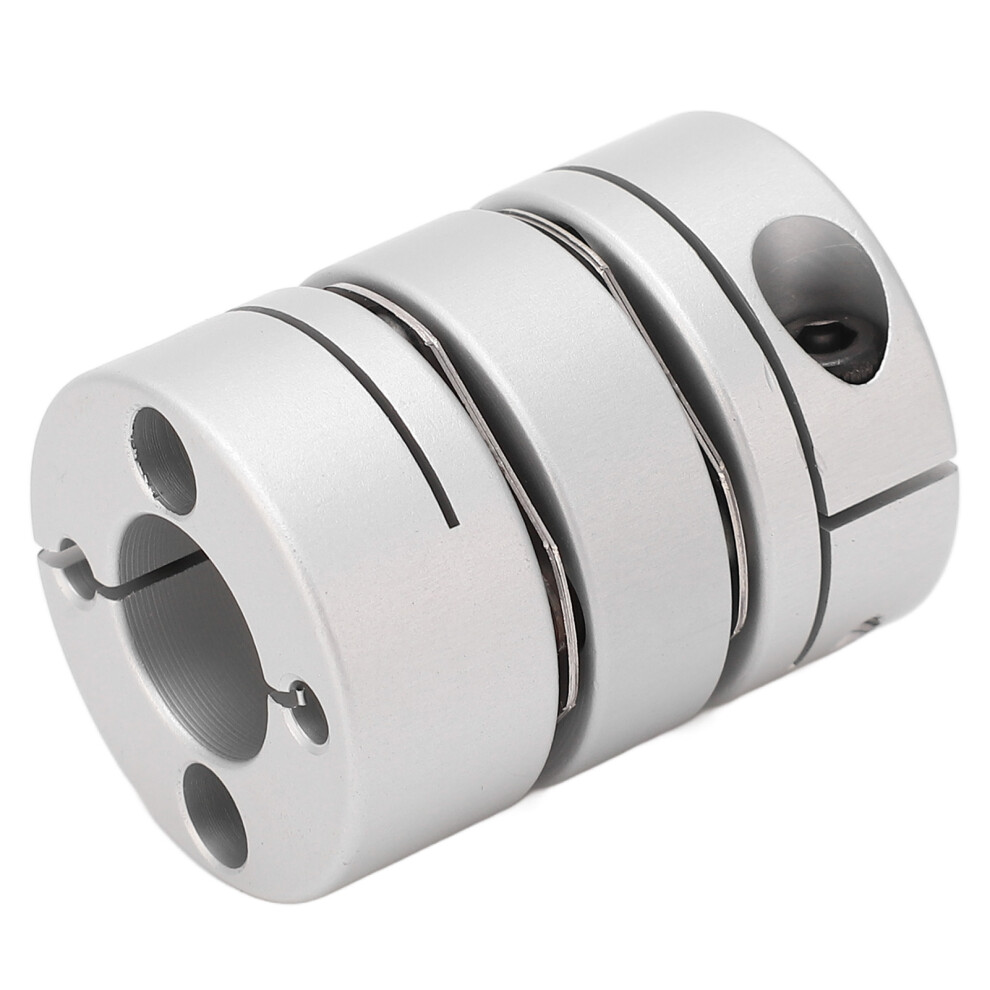

Metal U Diaphragm Coupling 26mm OD Double Spring Module for Automation Projects 2

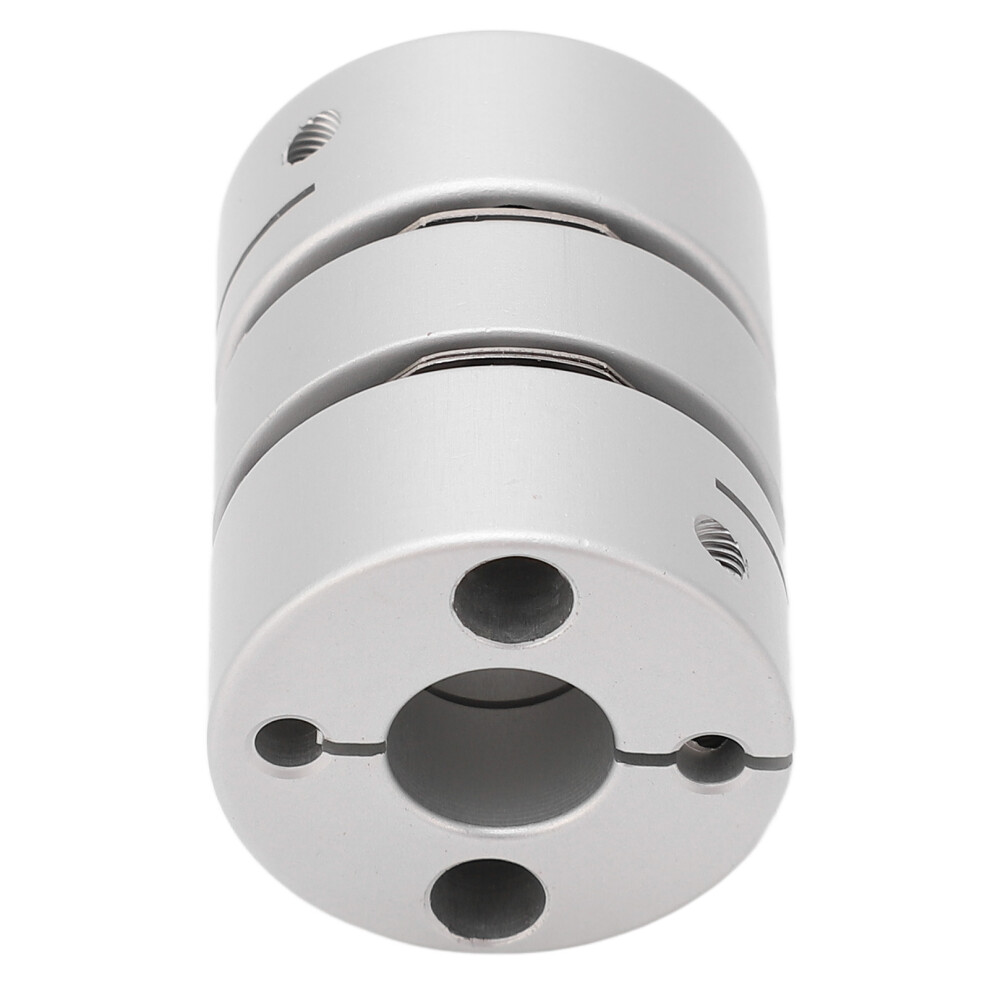

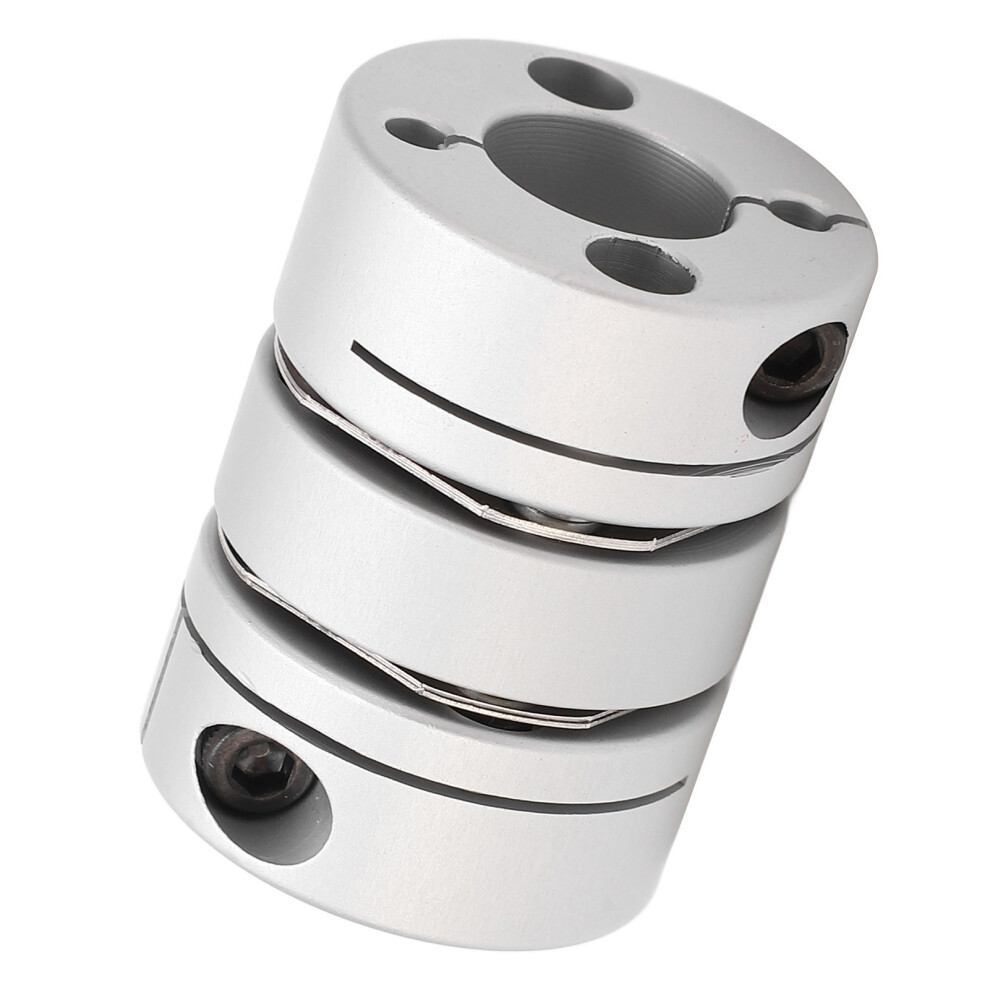

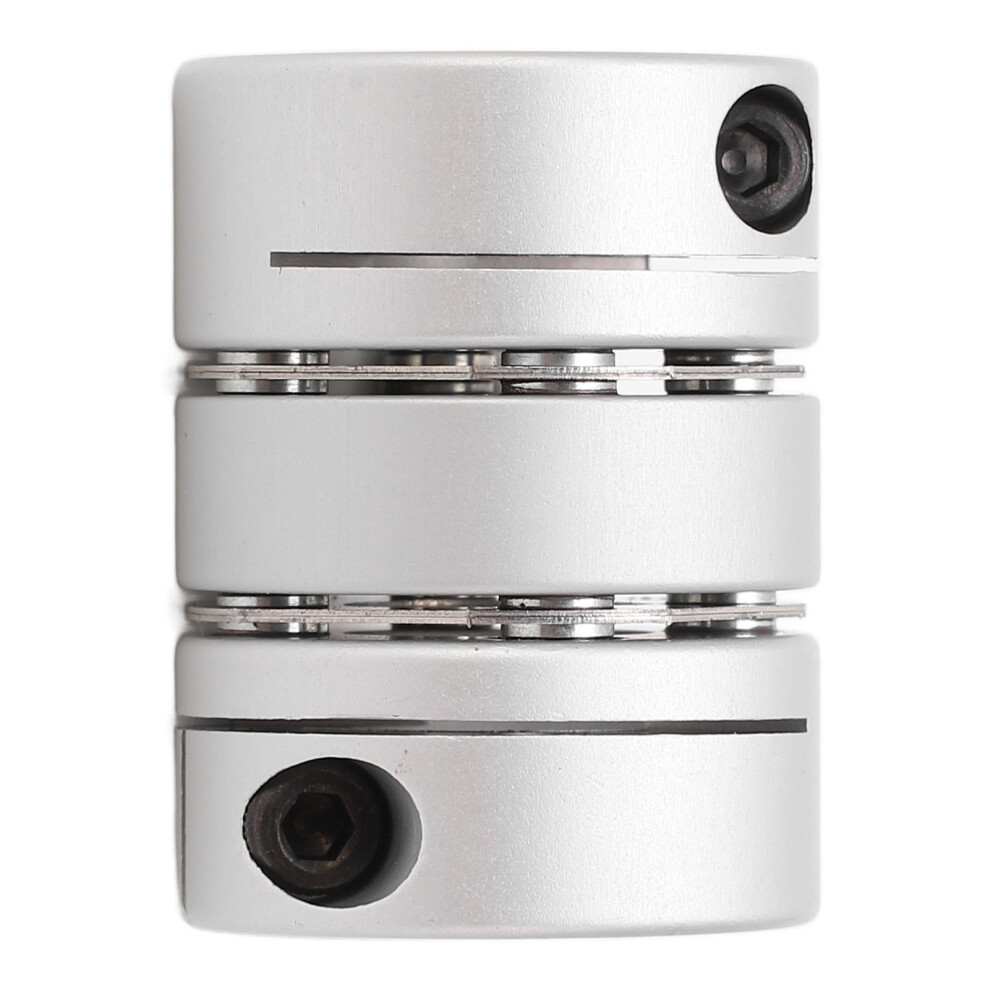

Metal U Diaphragm Coupling 26mm OD Double Spring Module for Automation Projects
