Mic Amplifier with Balanced Output 60dB Gain 3.5mm/6.5mm/XLR Inputs 48V Power

Mic Amplifier with Balanced Output 60dB Gain 3.5mm/6.5mm/XLR Inputs 48V Power Description

Microphone Preamp 3.5mm 6.5mm XLR Interface 60db Gain 48V Phantom Power Dynamic Condenser Mic Amplifier DC5-12V
Item Type: Microphone Preamp
Material: Aluminum Alloy
Amplification Gain: 60db
High Middle Low Tone Adjustment Range: 15db
Frequency Response: 20HZ-20KHZ
Power Consumption: About 0.6W

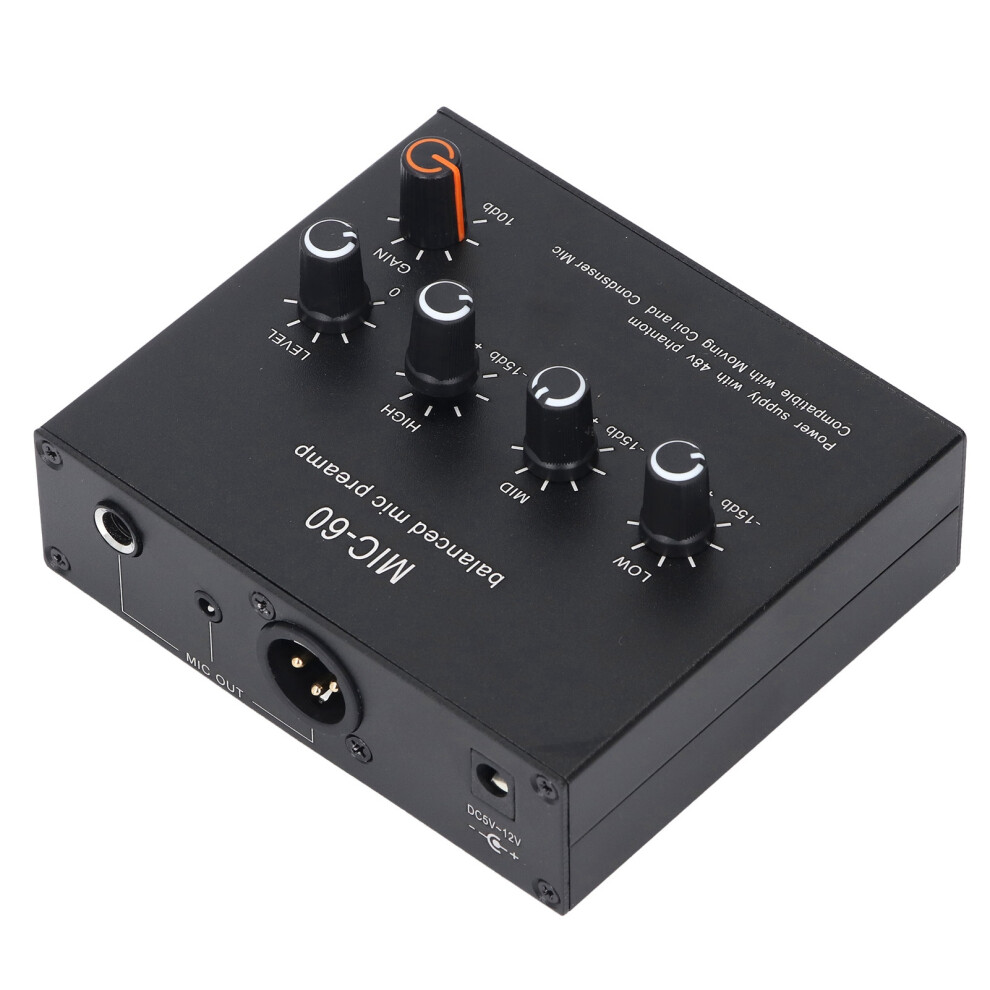

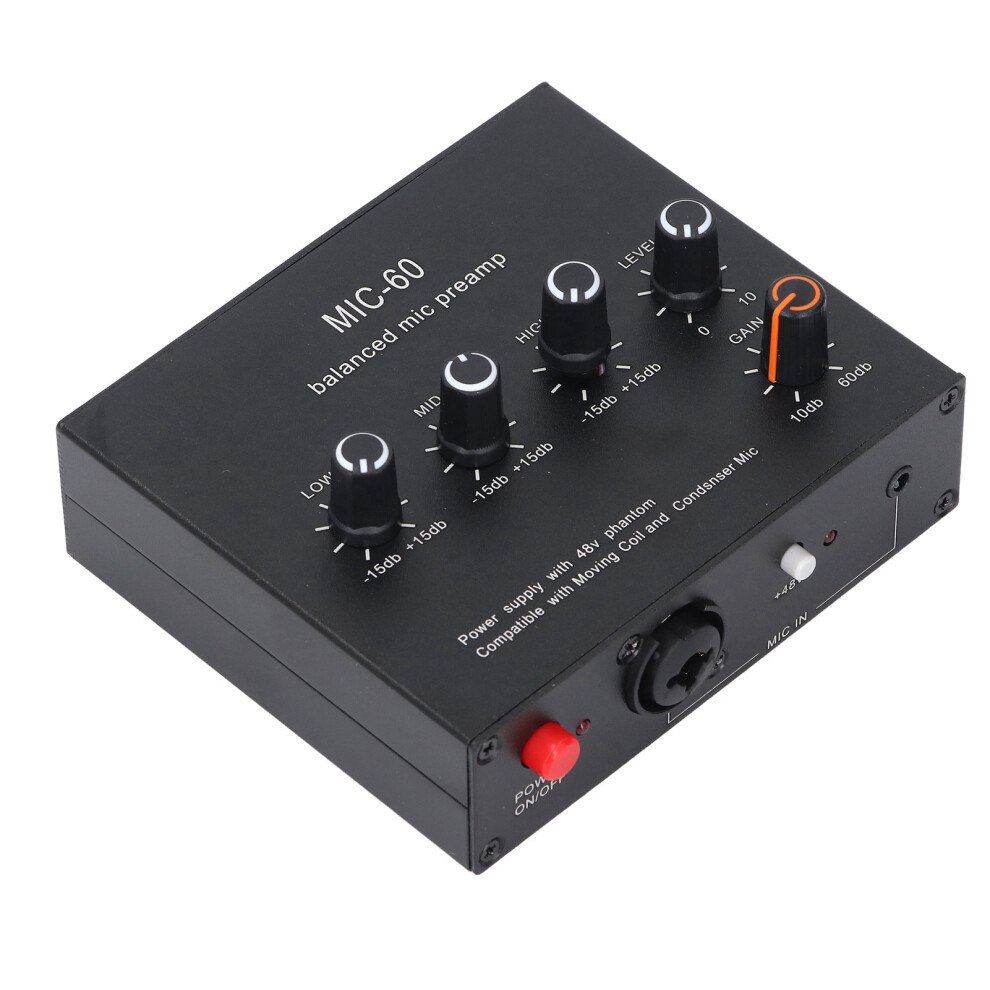

Interfaces and Knobs Description:

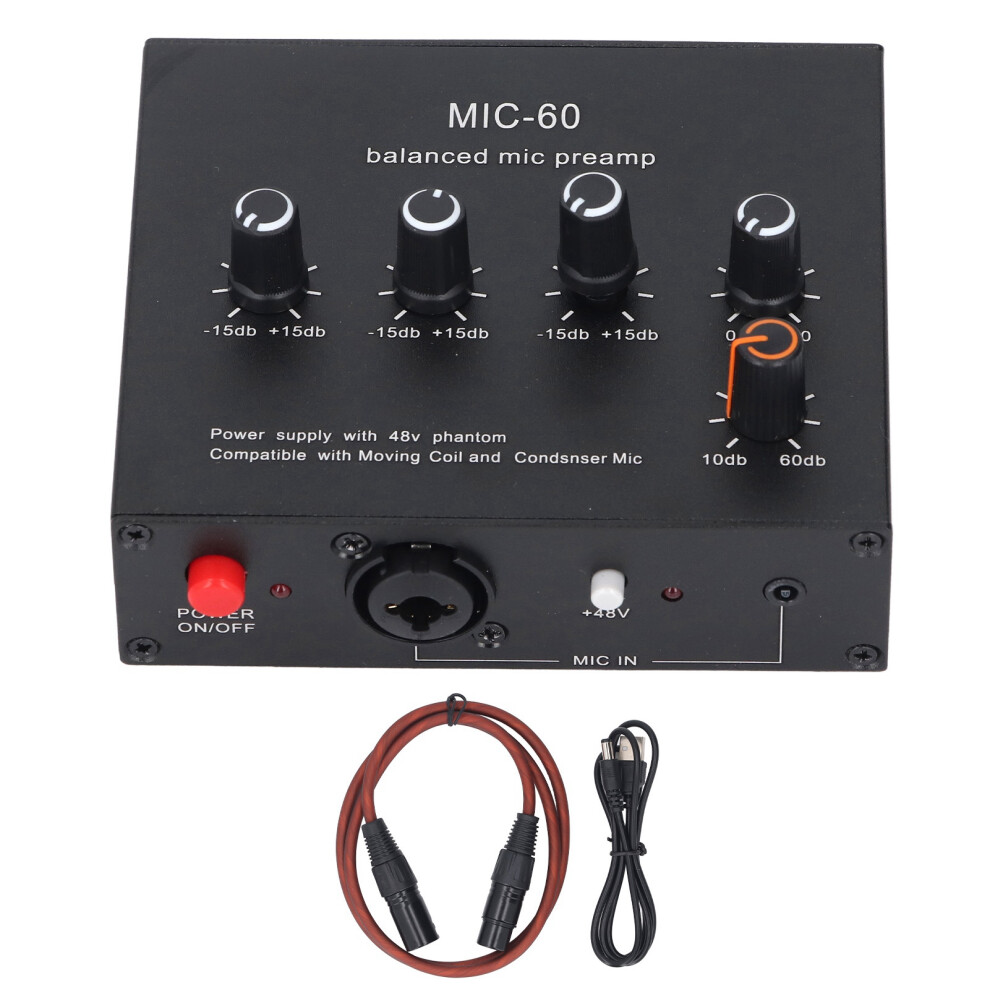

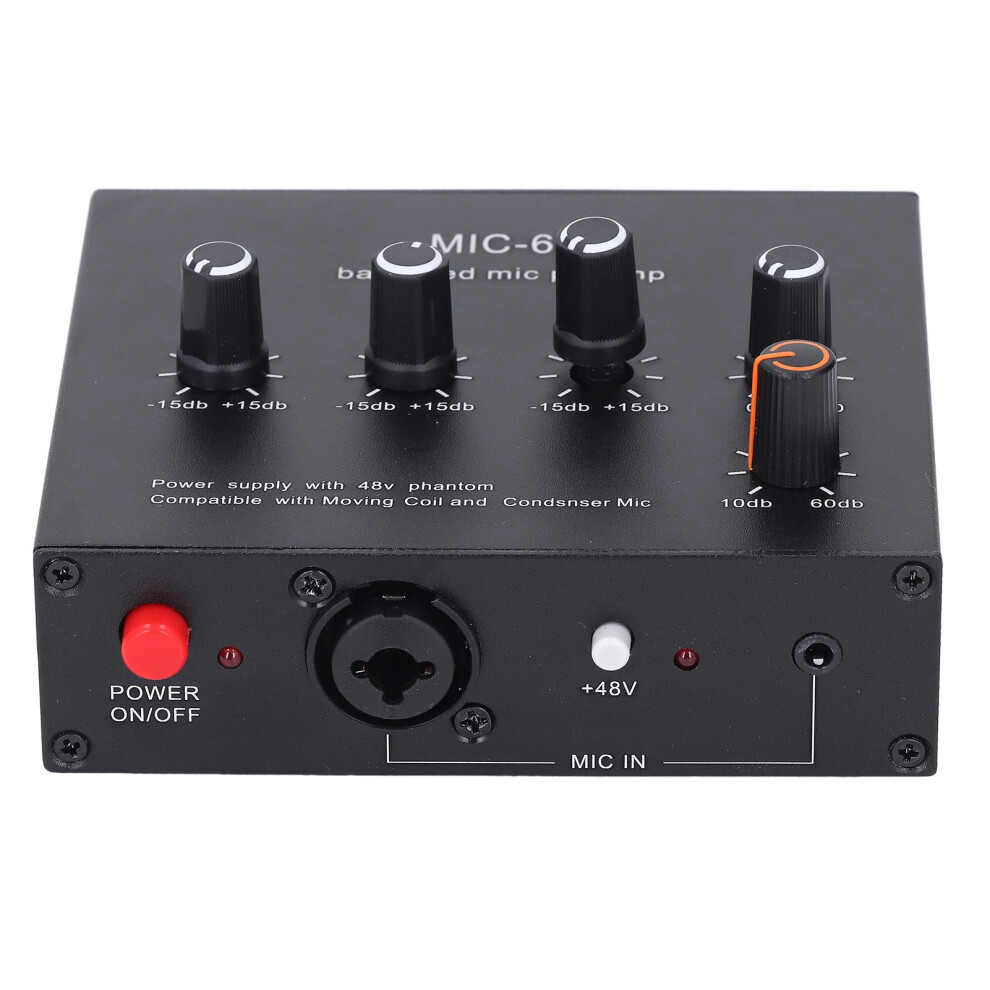

1. MIC IN microphone input interface, 3.5mm, 6.5mm, XLR interfaces;

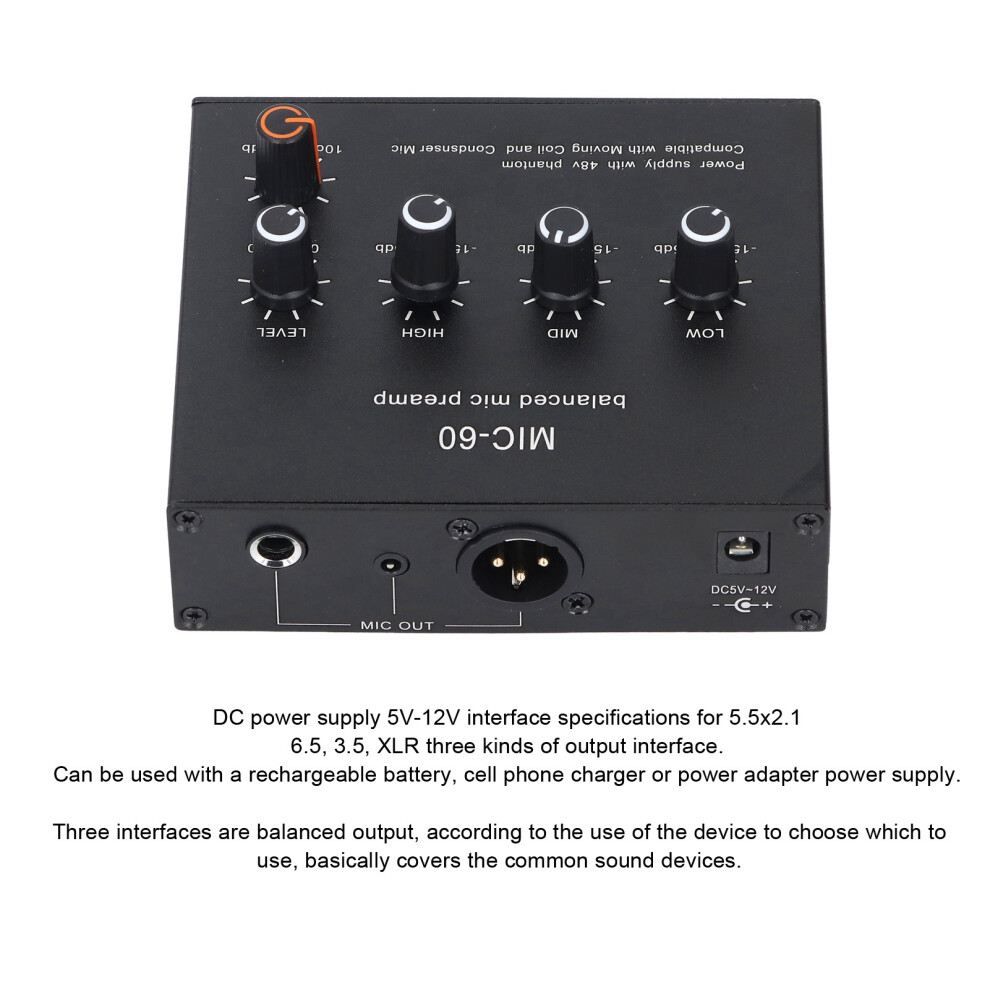

2. MIC OUT microphone output interface, 3.5mm, 6.5mm, XLR interfaces;
3. POWER power switch;

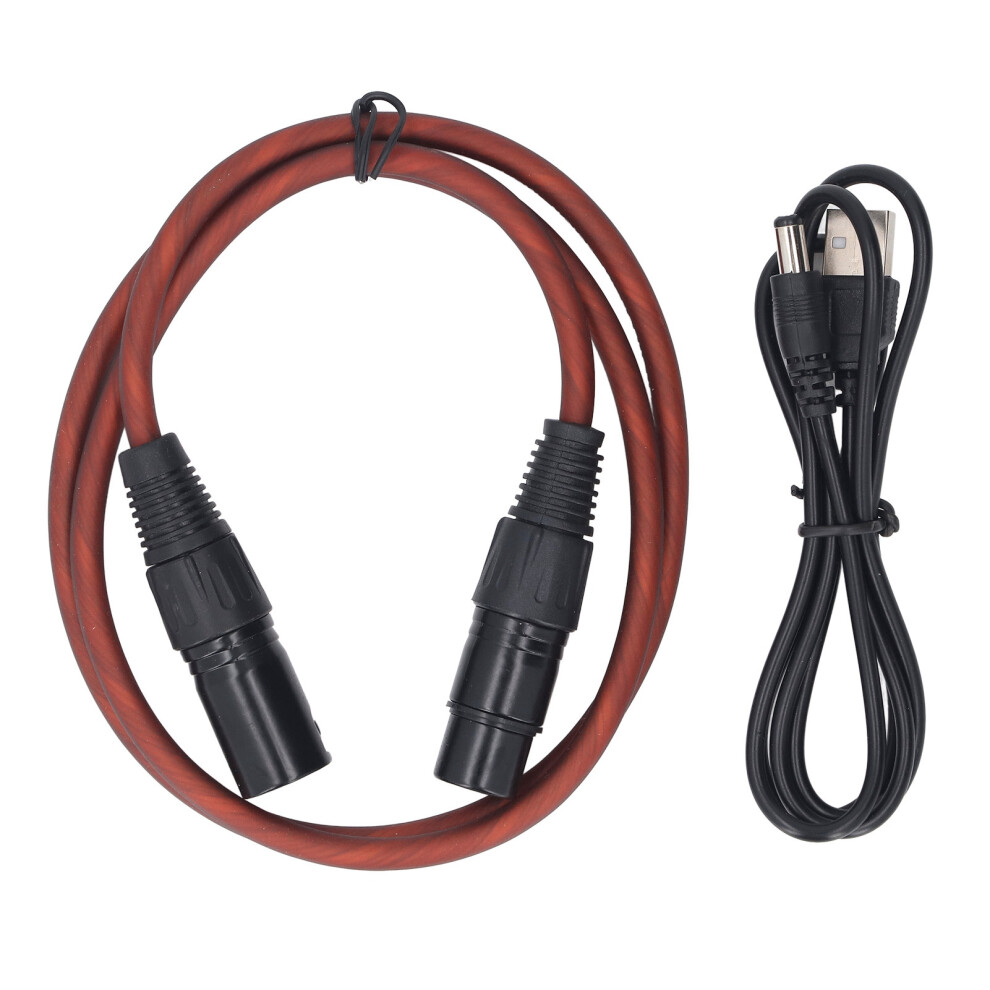

4. Power supply interface, DC 5V-12V, randomly equipped with USB to DC cable, can be powered by power bank or smartphone charger, please note that the power supply must be clean, poor power supply may result in AC noise;
5. 48V phantom power switch, note that only professional XLR interface capacitor microphones need to be turned on, dynamic and ordinary handheld capacitor microphones should not turn on the 48V switch;
6. LOW low tone, MID middle tone, HIGH high tone, adjustment knobs; Adjustment range 15db;
7. GAIN gain adjustment, adjust to the appropriate position according to the type of microphone;
8. LEVE output level volume adjustment, adjust to the suitable position based on the situation.
