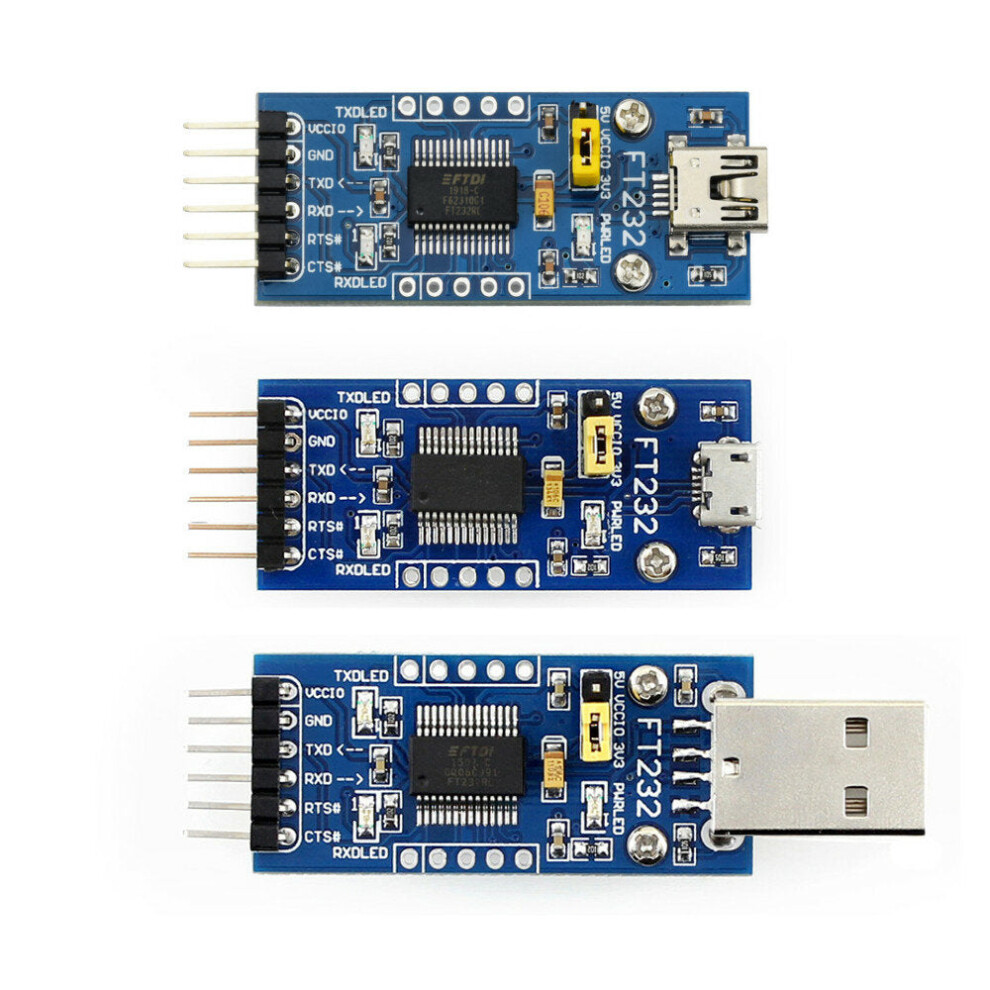

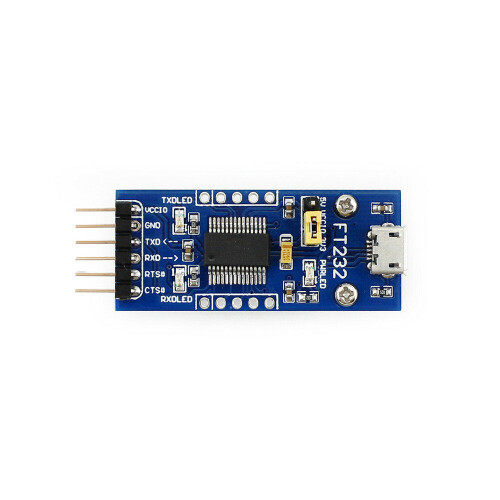

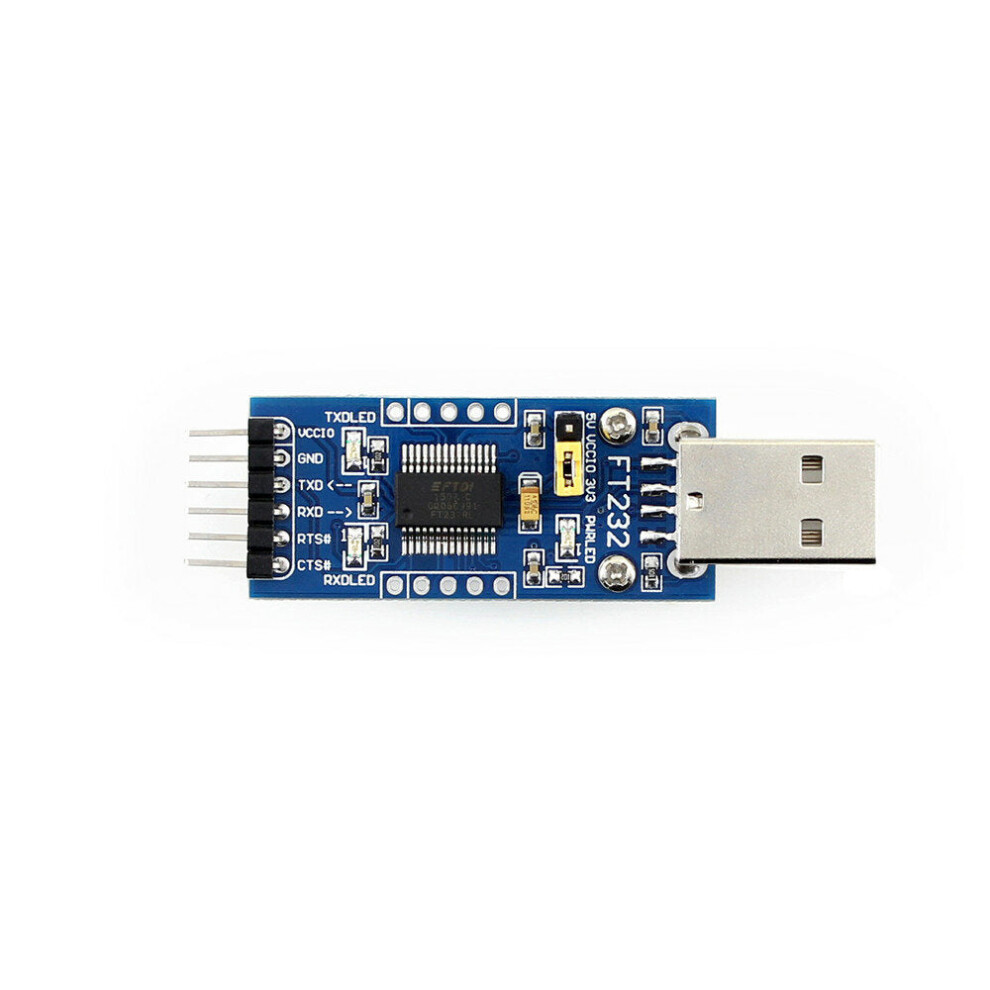

(Micro) USB to Serial USB to TTL FT232RL Communication Module Mini/Micro/Type-A Port Flashing Board

(Micro) USB to Serial USB to TTL FT232RL Communication Module Mini/Micro/Type-A Port Flashing Board Description

Features:
Use original FT232RL.
Support Mac, Linux, Android, WinCE, Windows 7/8/8.1/10.
Support 3 power supply modes: 5V external power supply; 3.3V external power supply; external power supply (requires 3.3V-5V)

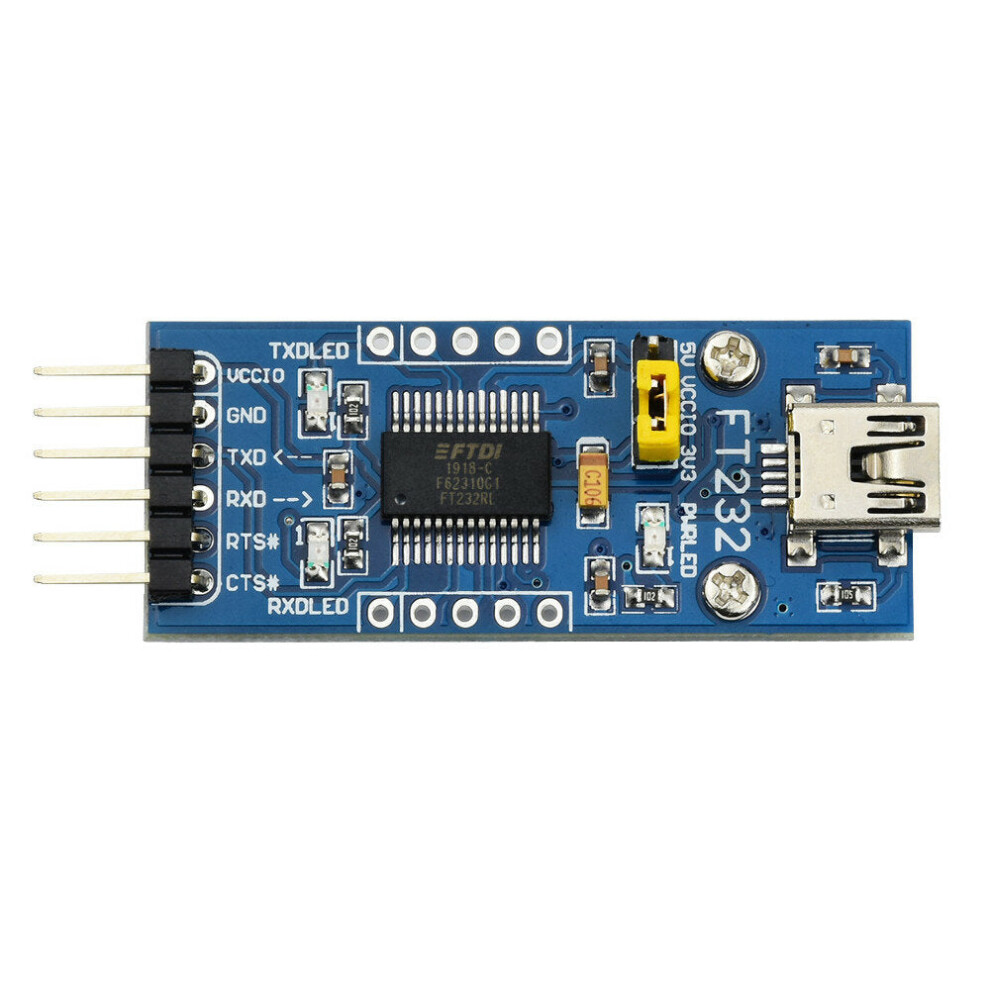

With 3 LEDs: TXD LED, RXD LED, POWER LED.

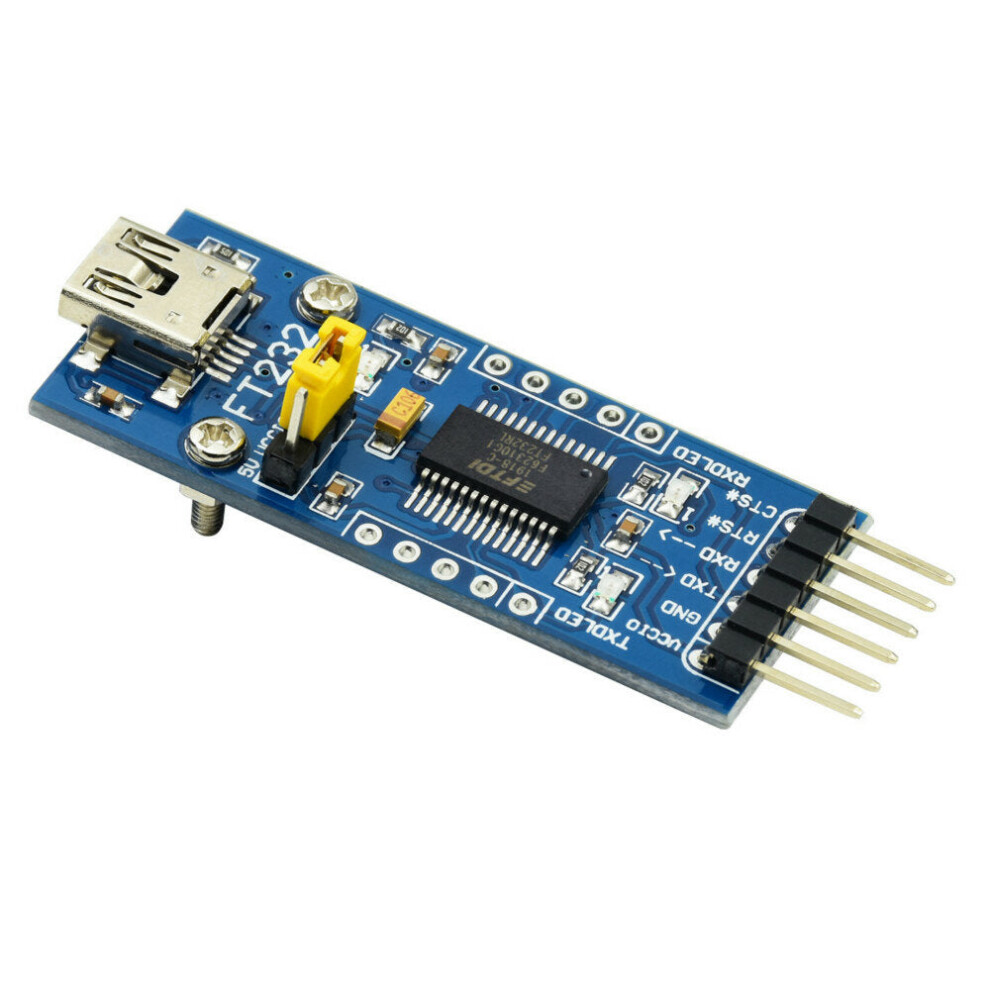

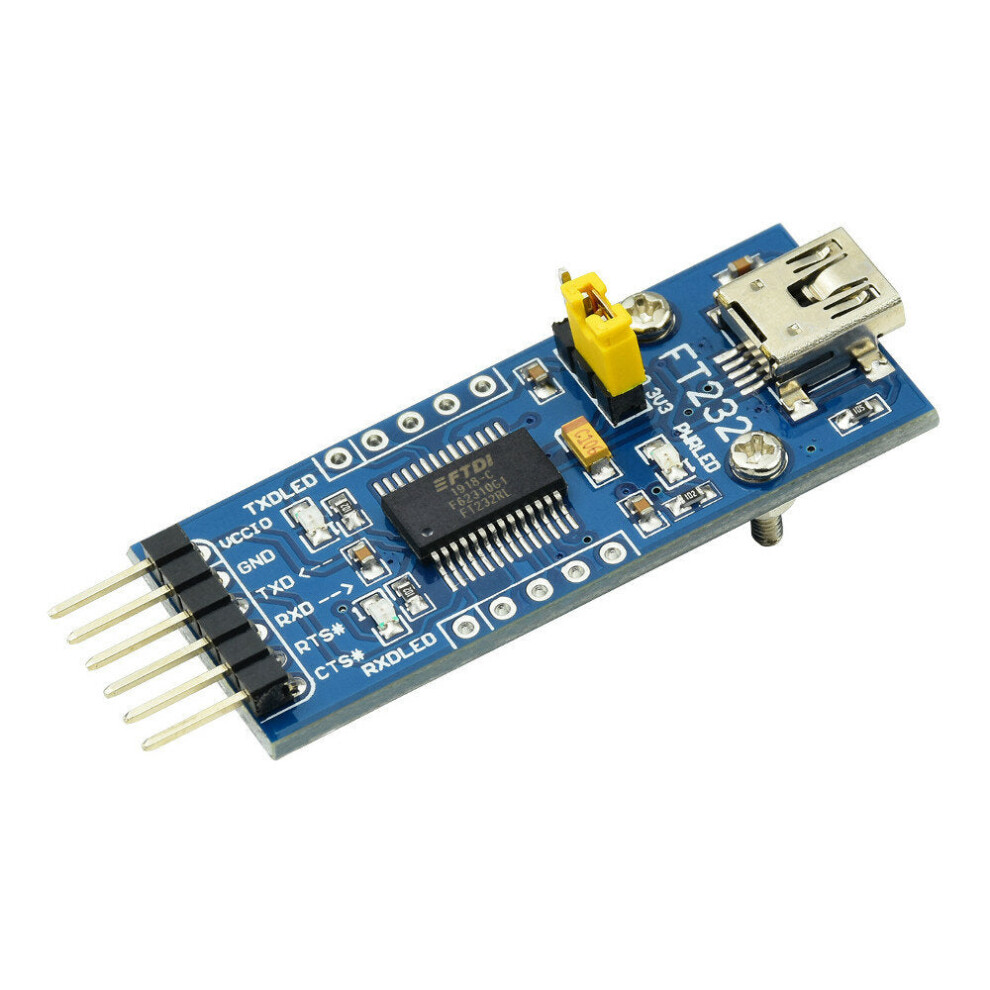

TXD, RXD, RTS#, CTS#: lead out with curved pin.

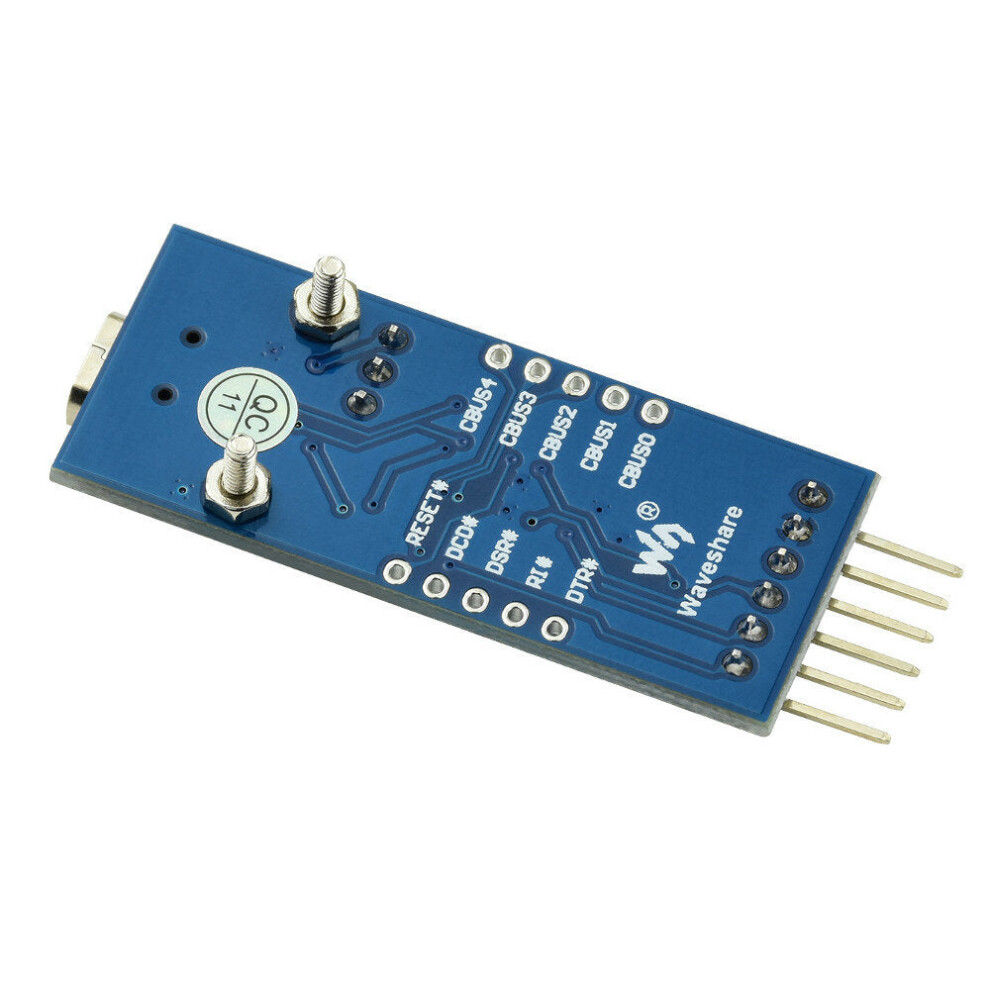

Other functions PIN: reserved pad. (distribution pin, row seat, can be plugged into or plugged into the user system; PIN spacing supports insertion into the universal board)

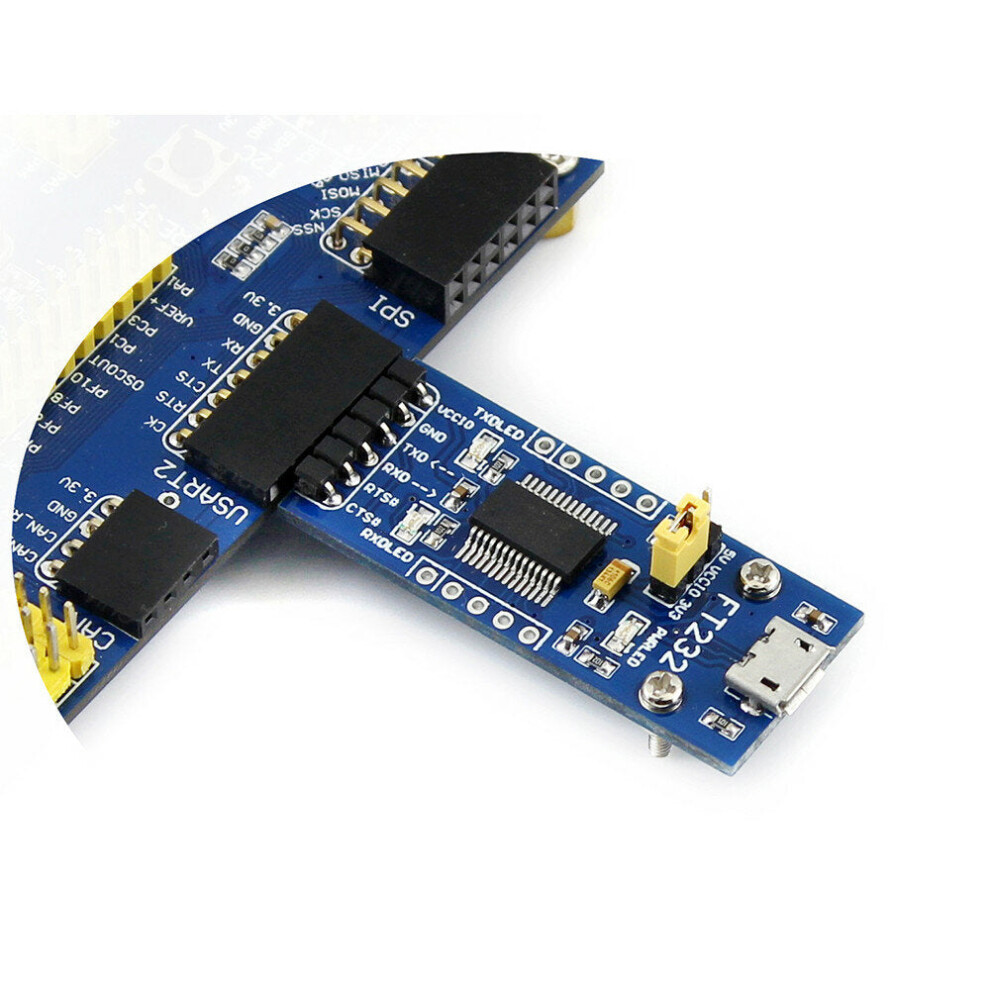

Instructions for use: (Take access to MCU as an example).
VCCIO: output 3.3V or 5V (module is powered by USB, jumper cap must be jumped to 3.3V or 5V).
GND: Connect to GND.
TXD: Connect to MCU.RX (Signal flow direction: MCU.RX << FT232 << PC.TX).
RXD: Connect to MCU.TX (Signal flow direction: MCU.TX >> FT232 >> PC.RX).
RTS: Connect to MCU.CTS (Signal flow direction: MCU.CTS << FT232 << PC.RTS).
CTS: Connect to MCU.RTS (Signal flow direction: MCU.RTS >> FT232 >> PC.CTS).

Note:
This module is USB to TTL level, do not directly connect to RS232 level, otherwise the module will be burned.

Package includes:
1 x FT232 USB UART Board.
2 x 5PIN header + 5PIN header.
1 x Dupont cable Bulk head 6PIN to custom.
