MIDI Shield Breakout Board for Arduino Digital R3

MIDI Shield Breakout Board for Arduino Digital R3 Description

MIDI Shield Breakout Board for Arduino Digital R3 AVI PIC Interface Adapter

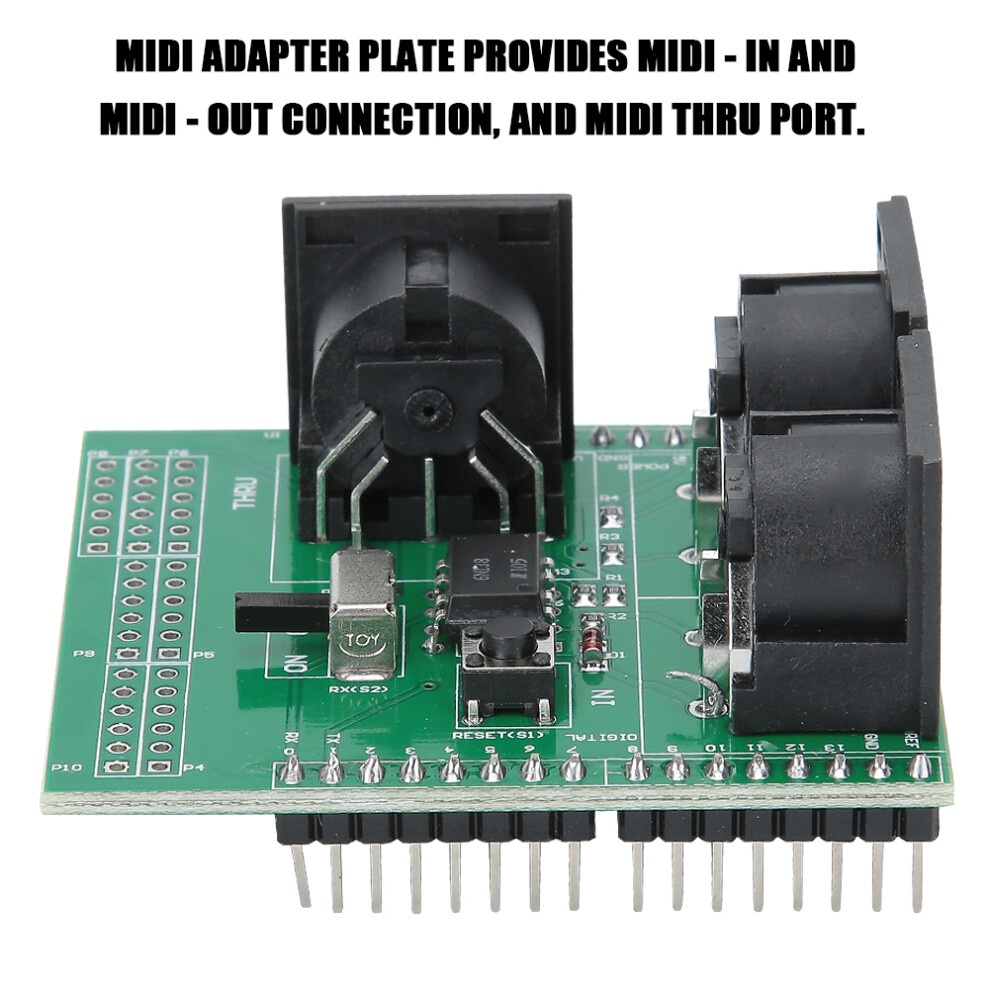

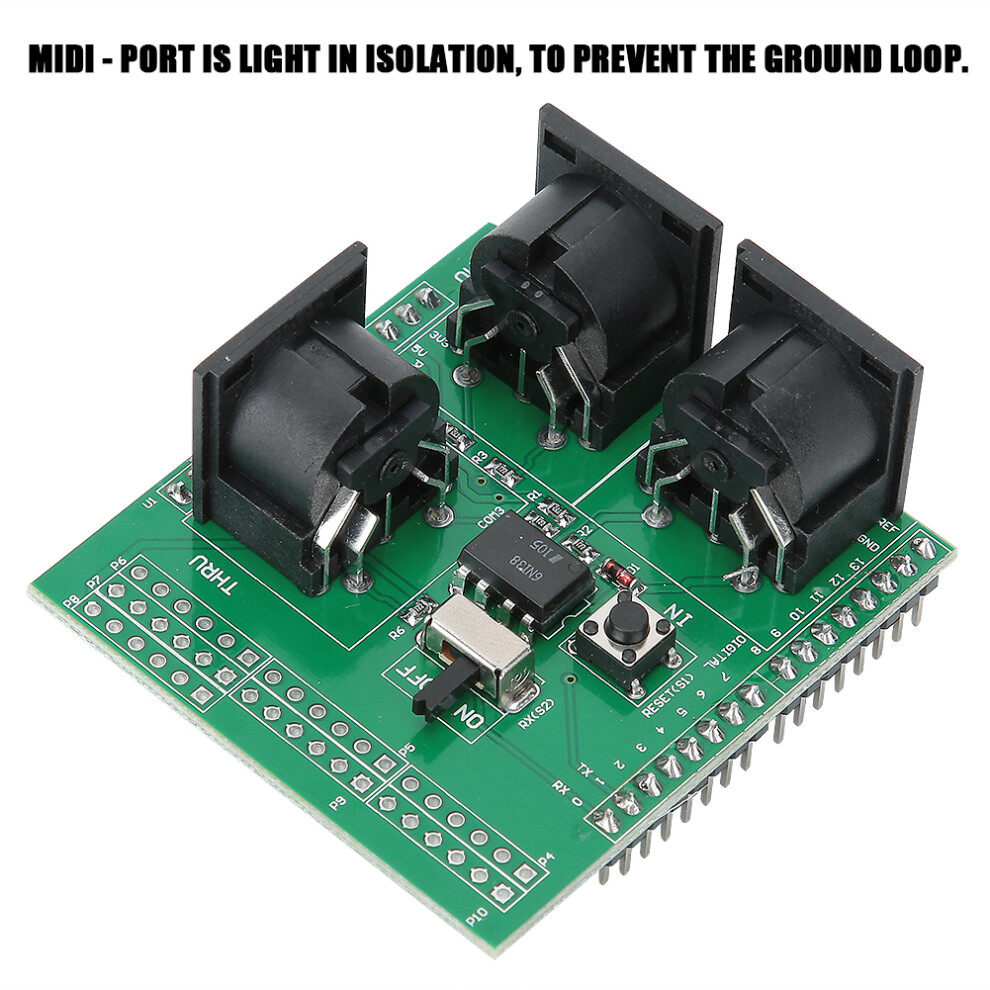

1、With the MIDI Adapter Board, for Arduino board or other microcontroller can access powerful MIDI communication protocols. 2、The MIDI protocol and the asynchronous serial interface have many similarities, so the user can send MIDI event information using the microcontroller UART pin. 3、The MIDI riser board provides MIDI-IN and MIDI-OUT connections as well as MIDI THRU ports. 4、MIDI - port is light IN isolation to prevent ground loops. 5、The MIDI adapter board can be mounted directly like the shield on the top for Arduino board: connect MIDI-IN / THRU for Arduino hardware RX pin and MIDI-OUT to the TX. 6、Its for Arduino data and analog pins, power bus and bus can be turned out. 7、The RUN/PGM switch can let users for Arduino board serial port programming, without having to remove the board.



Item Type: MIDI Adapter Board Size: Approx. 57.4 x 53.1mm / 2.3 x 2.1in Compatible: 100% fit for arduino PCB Board Color: green



1 x MIDI Adapter Board
