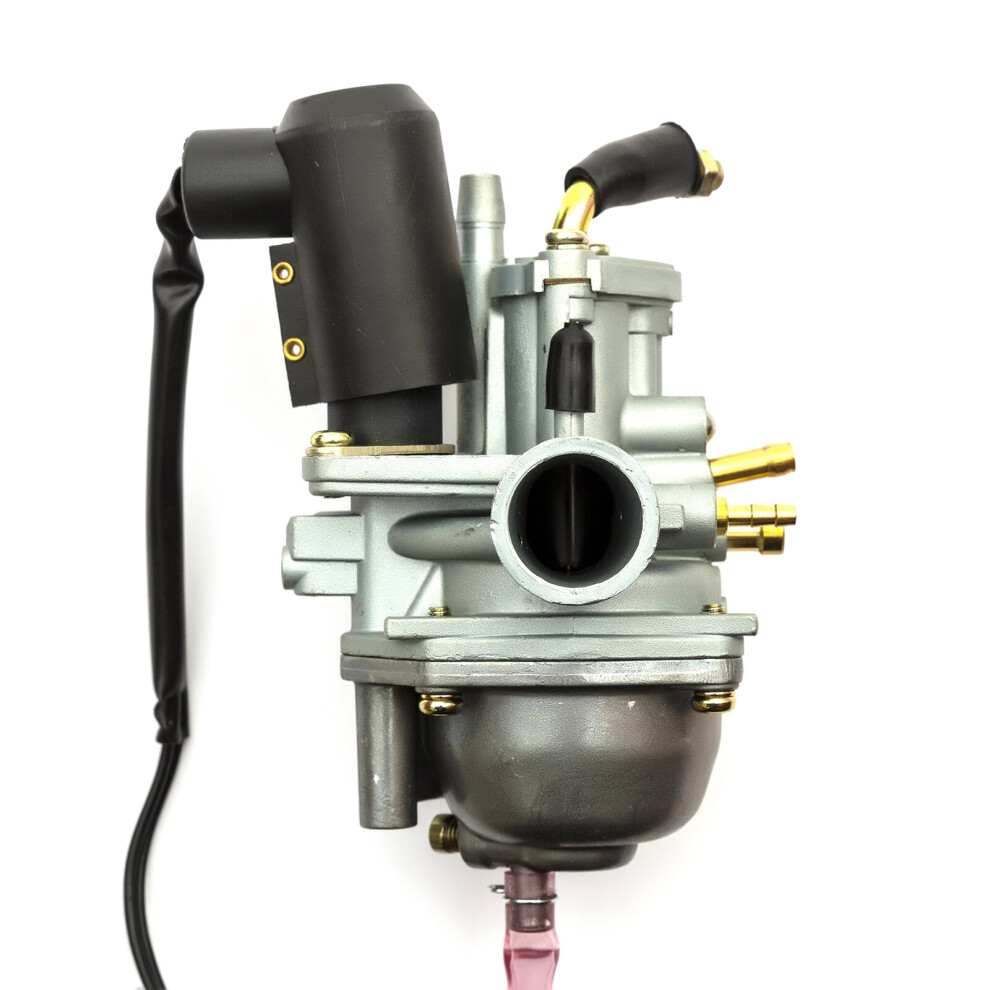

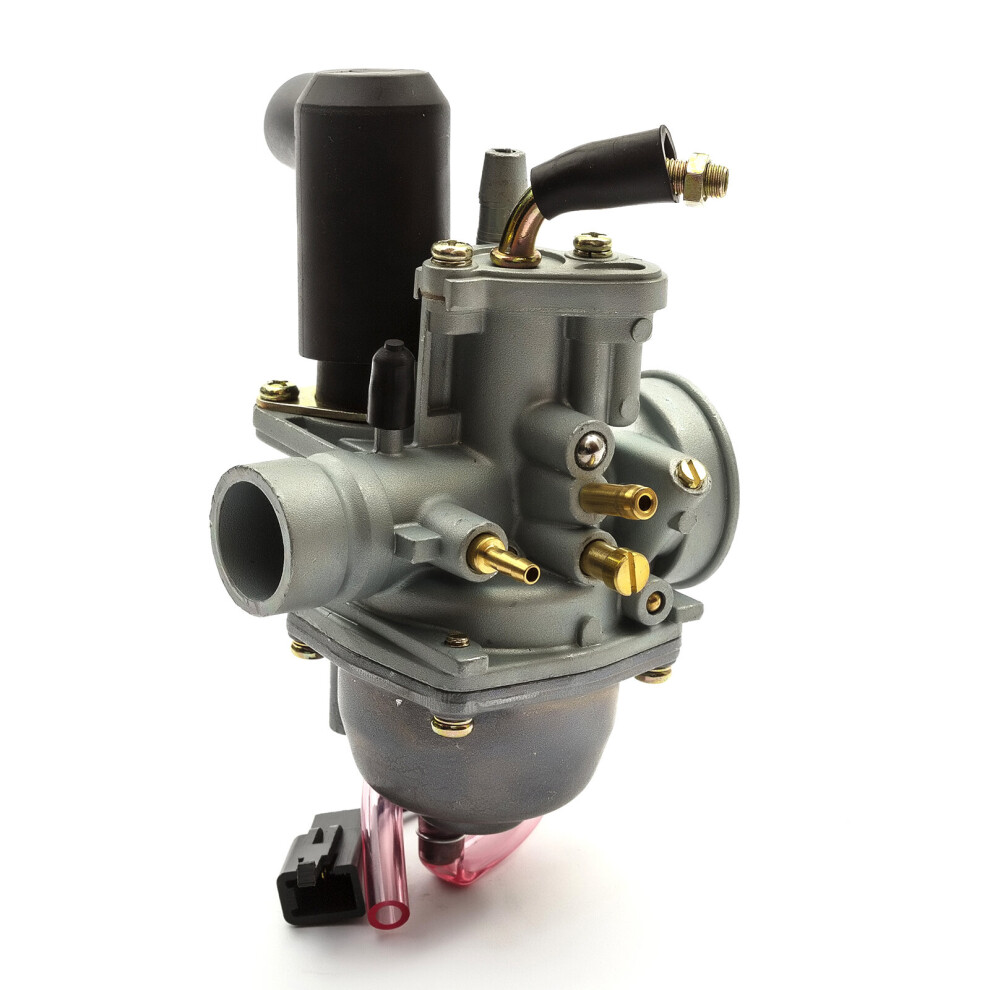

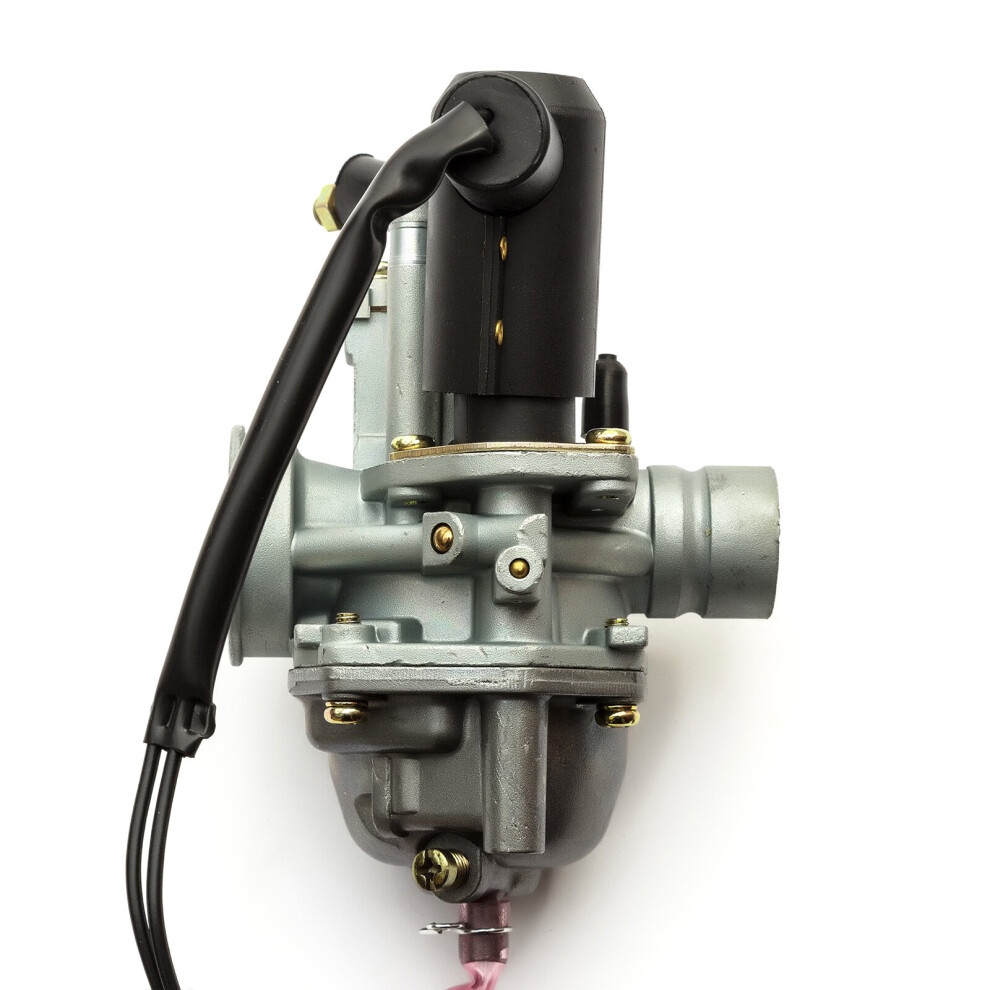

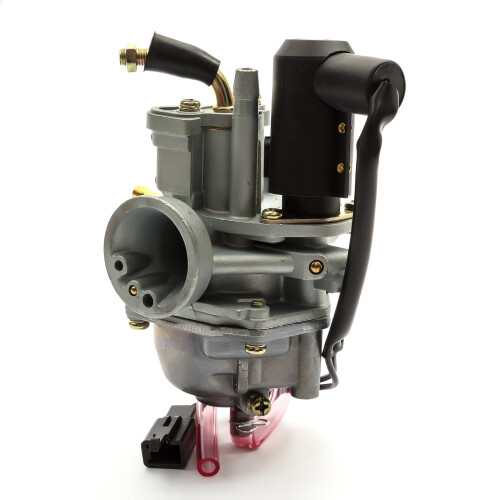

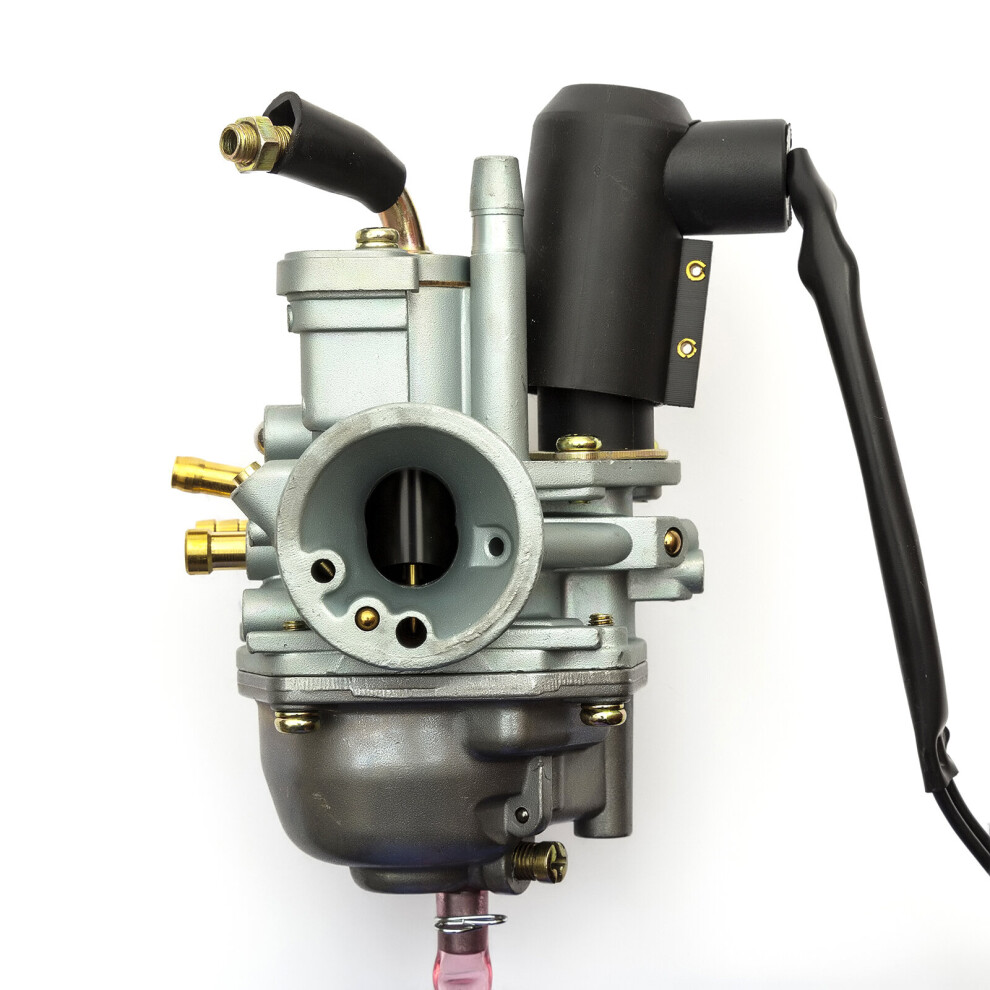

Mikuni-Style Carburettor Upgrade for Apache RLX 50/100/110 Quad Bikes (2-Stroke) - Fits 50cc/100cc/110cc, Code 14893

Mikuni-Style Carburettor Upgrade for Apache RLX 50/100/110 Quad Bikes (2-Stroke) - Fits 50cc/100cc/110cc, Code 14893 Description

Upgrade your Apache quad bike or Yamaha scooter with this Mikuni-style carburettor, engineered for 2-stroke engines and designed for a simple bolt-on installation. It's set up with an automatic choke for easy starts and reliable performance right out of the box.

Compatibility
Compatible with Apache 50cc and RLX 100cc 2-stroke quads (pre-2008) and Yamaha JOG scooters. It may also fit Aeon Cobra 100cc quads and some similar Quadzillas. A compatible part for any bike that uses a 1E40QMB engine. A Petrol-scooter manufactured and branded part.

Specifications
Height: 132 mm / 5.2 inches
Choke Mechanism: Automatic
Outer Diameter of Air Filter Connection Point (excluding lip): 35 mm / 1.38 inches
Internal Dimensions / Diameter of Fuel Chamber: 16 mm / 0.63 inches
Engine Type: 2-stroke
Inner Diameter of Outlet (greatest): 18.5 mm / 0.73 inches
Width (from inlet side to outlet side): 88.5 mm / 3.48 inches
Outer Diameter of Outlet: 24 mm / 0.94 inches
Includes Throttle Cable?: No
Inner diameter of air filter connection point: 19 mm / 0.75 inches
Includes Air Filter?: No
Includes Inlet Manifold?: No
Includes Fuel Tap?: No
Main Jet Size: 0.78 mm
Inner Diameter of Air Intake: 32 mm / 1.26 inches
Length (From Intake to Outlet): 85 mm / 3.35 inches
Outer Diameter of Intake Manifold Side: 24 mm / 0.94 inches
Colour: Silver
Includes Mixture Screw: No
Idle Speed Jet: 0.45 mm / 0.02 inches

Product Code: 14893

Features

• This is a Mikuni style carburettor for 2-stroke quad bikes, ATVs and scooters.
• These carburettors are the ideal bolt-on upgrade for increased power and performance.
• The carburettor comes set up and fitted with an automatic cold start choke mechanism.
• It is compatible with Apache 50cc and RLX 100cc 2-stroke quads (pre-2008) and Yamaha JOG scooters. It may well fit Aeon Cobra 100cc quads and some similar Quadzillas.
• A compatible part for any bike that uses a 1E40QMB engine. Petrol-scooter manufactured and branded part.
