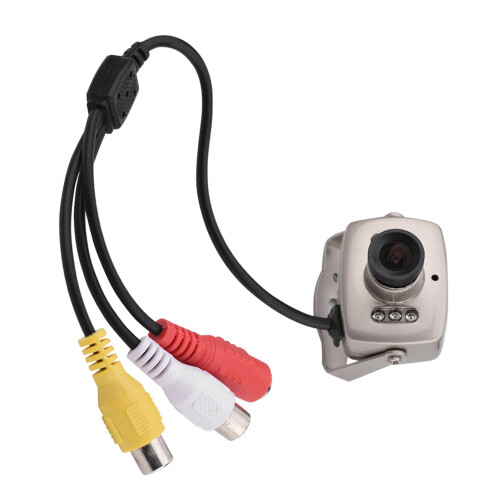

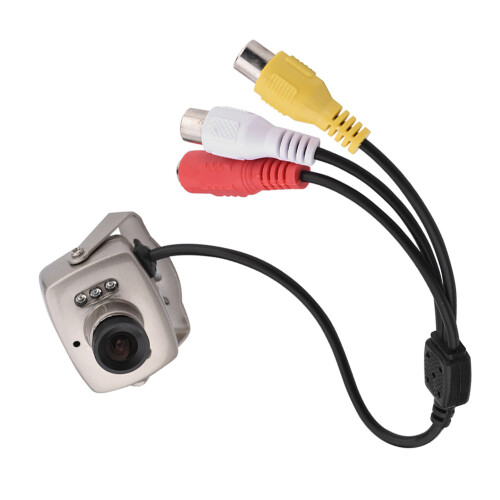

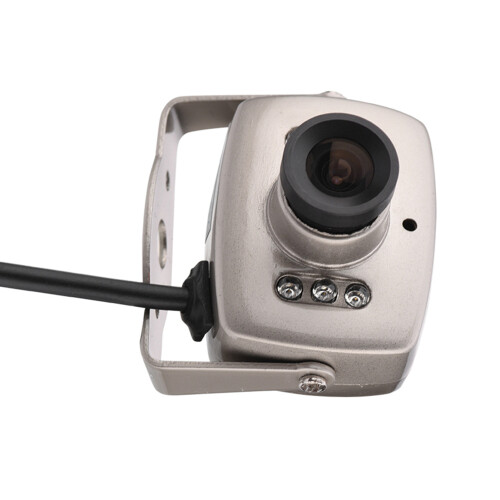

Mini 6LED Wired CMOS CCTV Security Camera Night Vision PAL 36x28x36mm

Mini 6LED Wired CMOS CCTV Security Camera Night Vision PAL 36x28x36mm Description

Mini 6LED Wired CMOS CCTV Security Camera Night Vision Digital Video Camera PAL

Description:
This
miniature camera is a fully functional audio/video surveillance camera equipped
with a removable mounting bracket and a lens cap. The camera has optional
choice between NTSC and PAL. It can view the objects without outside light
source, lowe power consumption, high sensitivity. Easy to operate, install and
hide.

Features:
High
sensitivity and definition. Provides a brighter and clearer image quality.
3.6mm
Mini camera and removable mount and lens cap, make it more humane.
Provides
audio function, support  audio/video
output capabilities.
Adopts
analog modulation technology, high frequency electromagnetic radiation and
strong anti-interference ability.
Perfect
for residential community, home, hotel, parking lot, warehouse, factory,
railway station, supermarket, etc.

Specifications:




Imaging
Equipment




OV7030






Resolution




700
TV Line






Signal
format (Optional)




PAL/NEST






Pixels


768X492 pixels






Scanning frequency




horizontal  15.625KHz






vertical  60Hz






Lens




3.6mm






Electronic
shutter




1/50-1/15000sec






Signal
to noise ratio




>72dB






Minimum
illumination




3.0
Lux/F1.2






White
balance




automatic






Video
output




1.0vp-75
0hms






Size




36*28*36mm/1.42*1.10*1.42inch






Placement
environment




(-)30C
TO (+)60C






Operating
environment




(-)10C
TO (+)50C





Package
List:
1
* Mini Camera
Note:1, access to the equipment needs to support analog signals, the product access to the equipment signal source should be consistent with the equipment side of the output signal source. 2, the surrounding light is bright when the camera displays color, the surrounding light is darker when the camera automatically starts the night vision mode to display black and white images.
