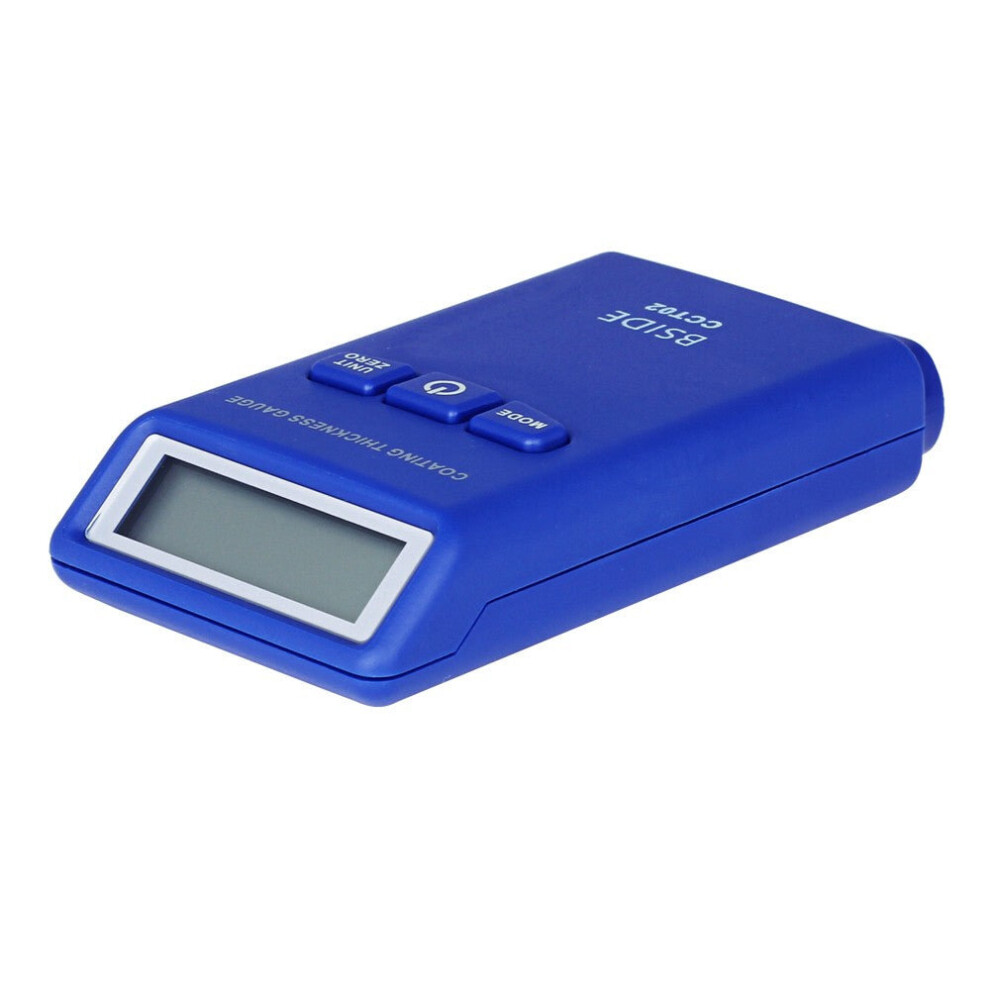

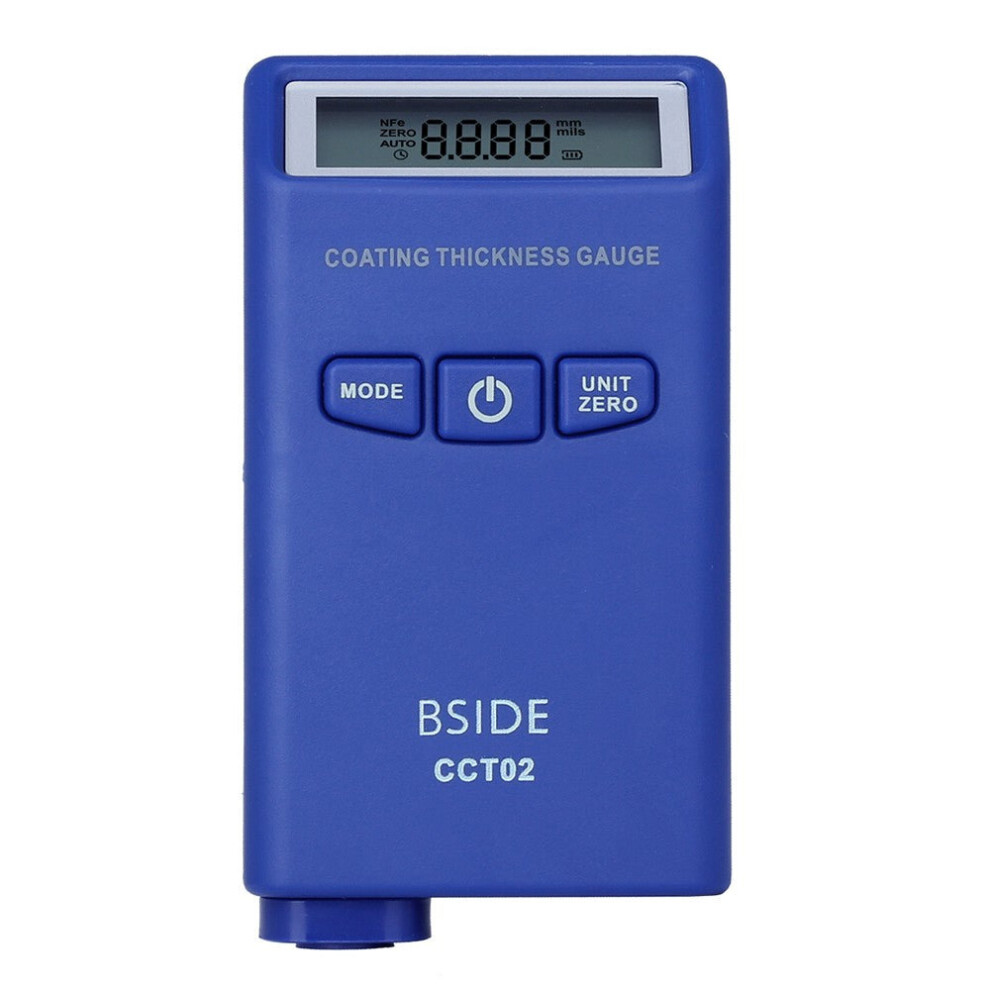

Mini LCD Digital Coating Thickness Gauge Painting Tester Meter

Mini LCD Digital Coating Thickness Gauge Painting Tester Meter Description

This gauge is ultra low cost coating thickness gauge and can mainly be used to measure car's paint coating thickness. It's used for non-destructive coating thickness measurement of non-magnetic coatings on steel and insulating coatings on non-ferrous metals.

Features:
Mini size and 3 buttons only, easy to operate and carry.
LCD display to read data clearly.

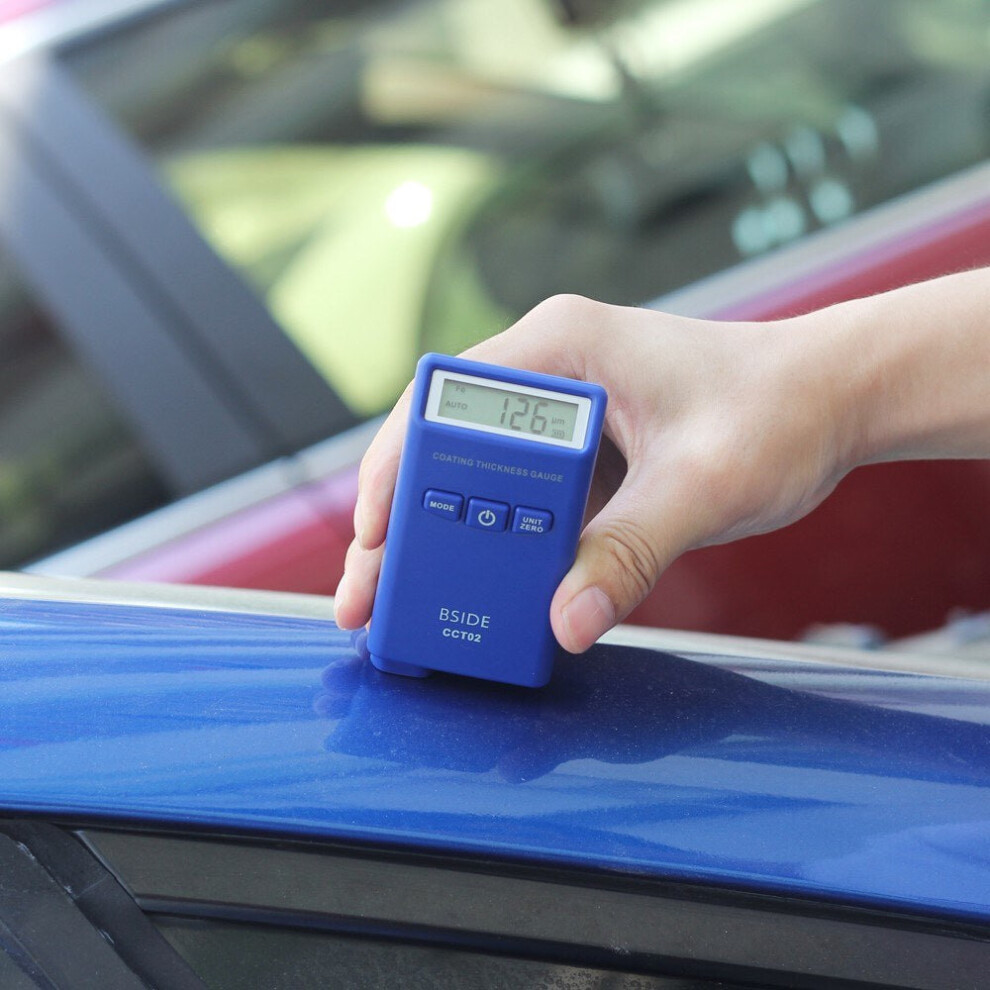

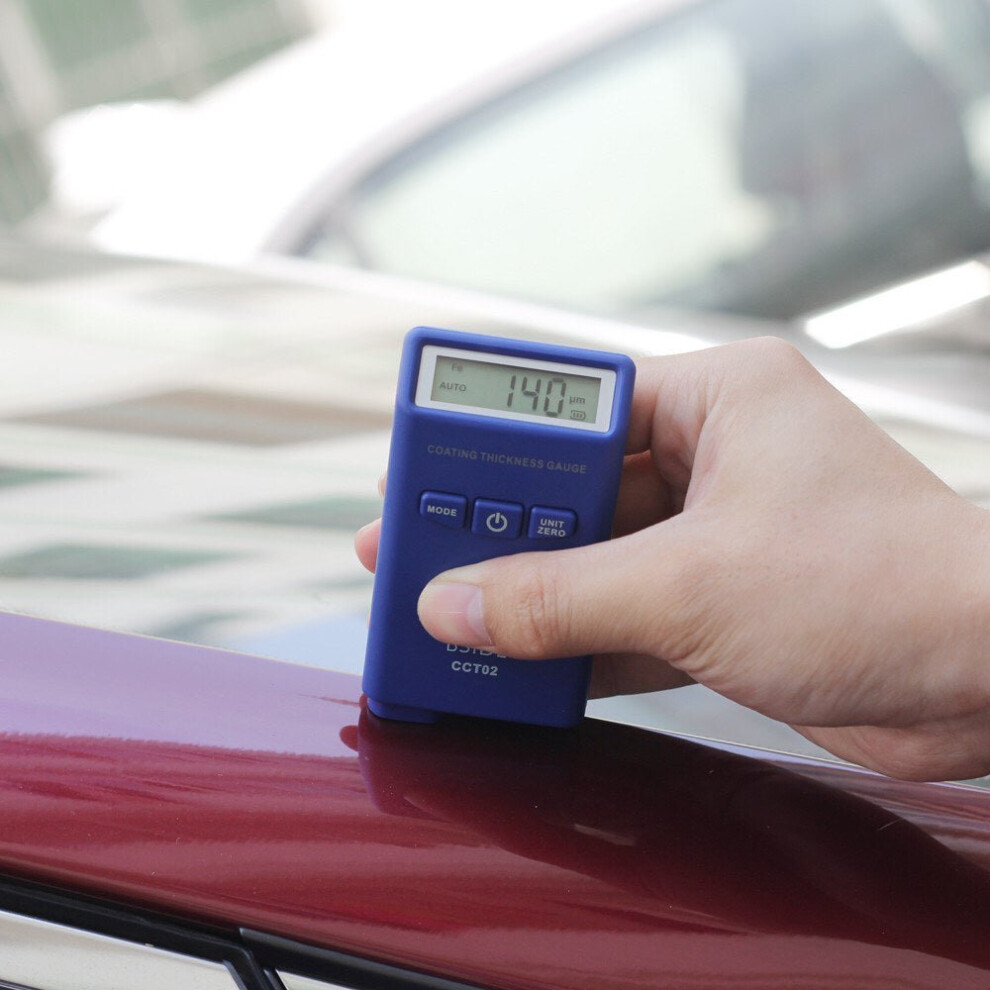

Can measure car's paint coating thickness automatically.
With 3 units: um, mm, mils; 3 Modes: AUTO, Fe, NFe.
Includes auto power off, low battery indication and zero calibration function.
Used for non-destructive coating thickness measurement of non-magnetic coatings on steel and insulating coatings on non-ferrous metals.

Specifications:
Color: Blue;
Material: ABS;
Measuring Principle: Eddy current (F+N);
Measuring Range: 0~2mm;
Accuracy: (2%+0.02mm);
Resolution: 0~500(1um); 501um~2000um(0.01mm);
Units: um, mm, mils;
Auto Power Off: within 2mins;

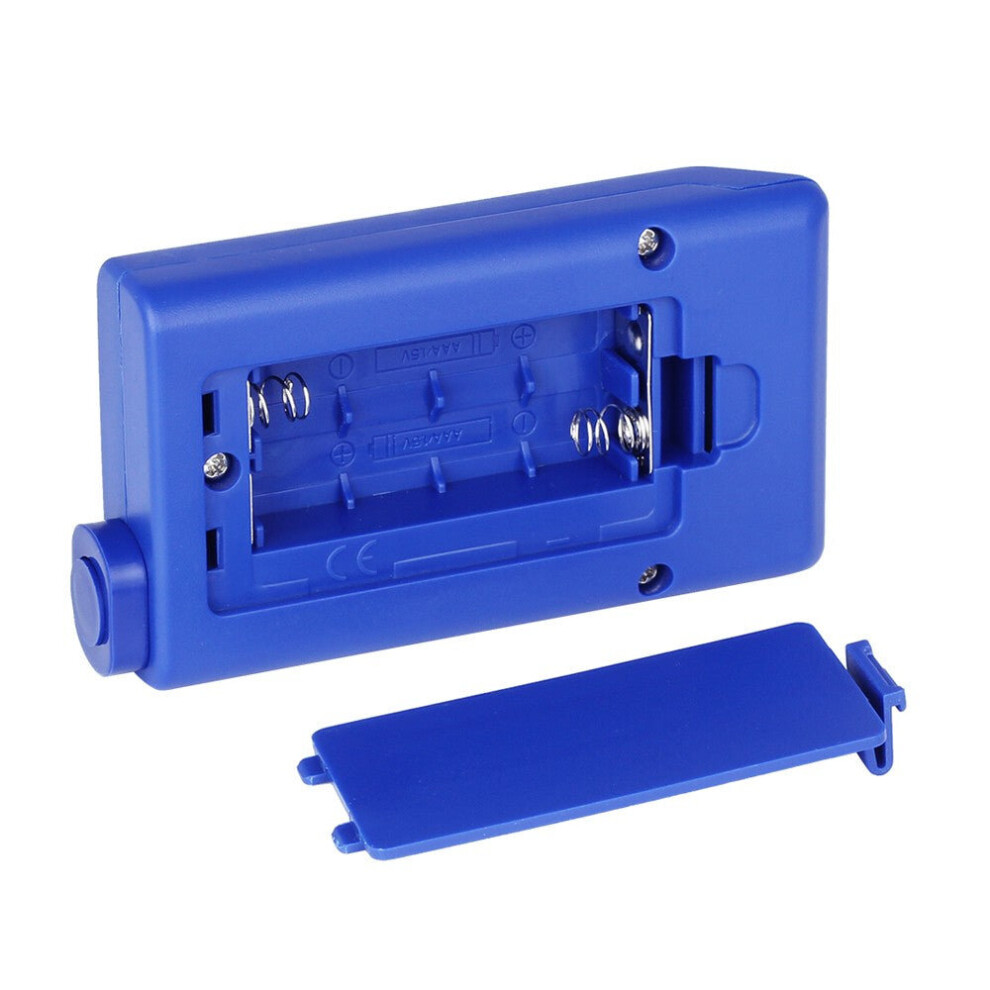

Power Supply: 2 * 1.5V AAA Batteries (Not Included);
Storage Temperature: -10~60C, 20%~90%RH;
Operating Temperature: 0~50C, 20%~90%RH;

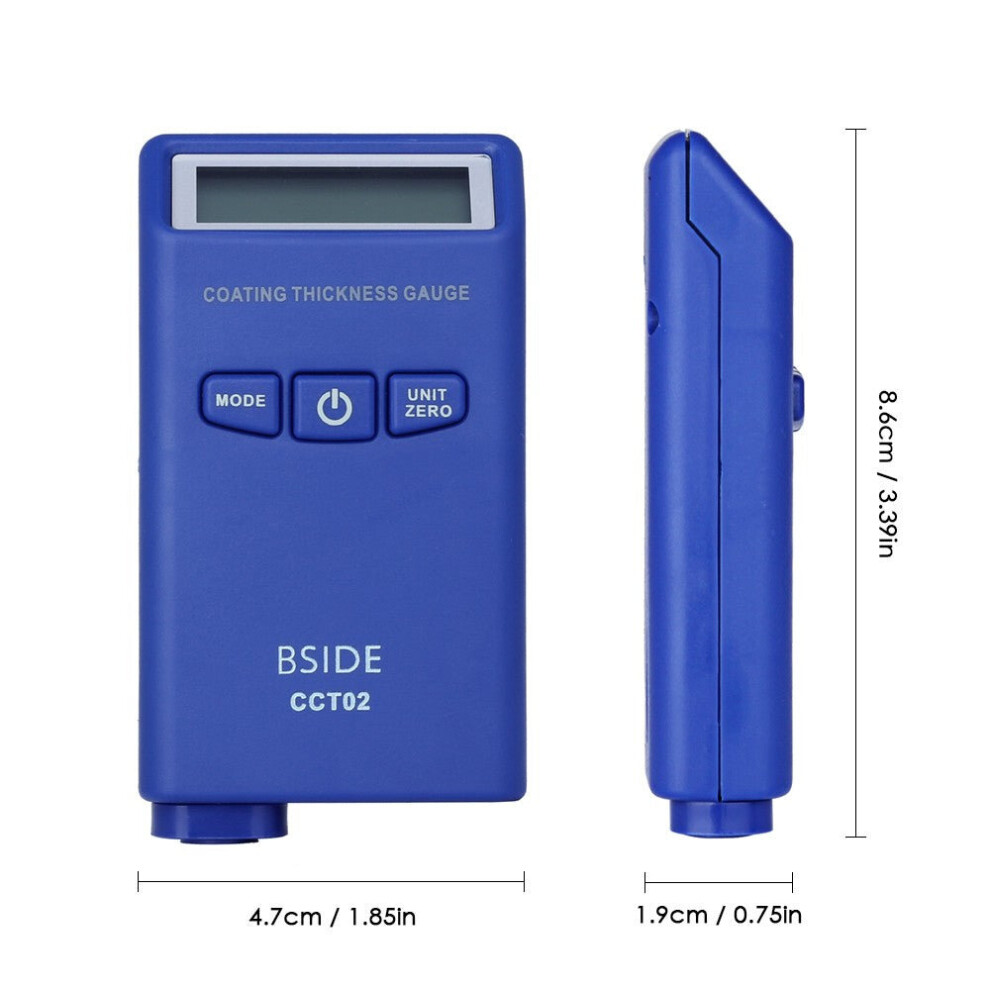

Item Size: Approx. 8.6 * 4.7 * 1.9cm / 3.39 * 1.85 * 0.75in;
Item Weight: Approx. 42g / 1.48oz(Without Battery);
Package Size: Approx. 13 * 9.2 * 3.7cm / 5.12 * 3.62 * 1.46in;
Package Weight: Approx. 98g / 3.46oz;

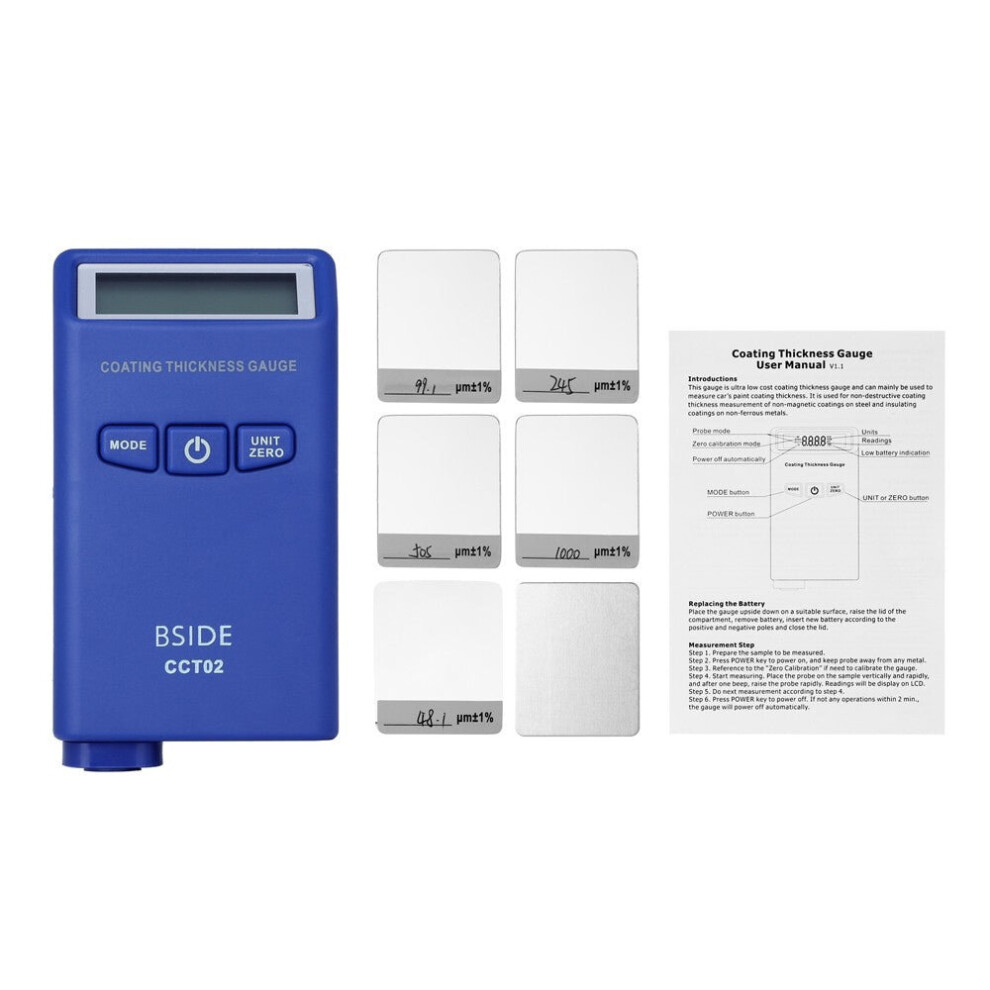

Package List:
1 * Coating Thickness Gauge;
1 * Aluminum Substrate;
5 * Standard Films;
1 * User ManualManual
