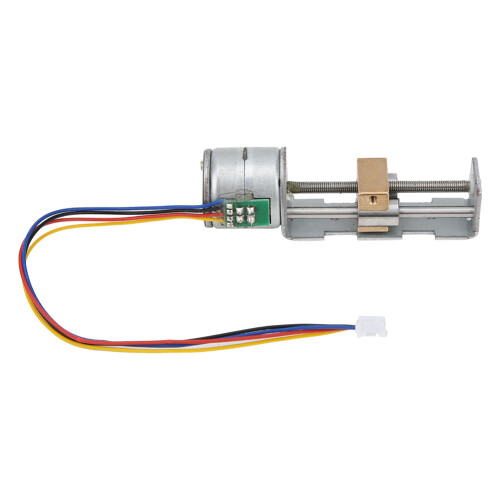

Mini Linear Lead Screw Nut Slider for 20mm 2‑Phase 4‑Wire Stepper Motor DIY
New
£39.72
Similar Products we think you'll like
![Bandai HG 1/144 RX-78-2 Gundam [Beyond Global] Plastic Model Kit](https://cdn.onbuy.com/product/65adc540f1a83/500-500/p79hss6.jpg)
Would you like us to let you know when it's back?
Description & Details
Summary
- Can be used in DIY small sliders, projects, measuring equipment, laser printers.
- This product is miniature 2‑phase 4‑wire stepper motor with planetary gearbox reducer.
- Planetary gearbox reducer adopts all metal structure, strong and durable, has a long service life.
- Drive accurate diagonal lines to move the metal slider up and down, and the bracket is basically made of metal structure.
- The driving voltage of the motor is 5‑9V/200‑600mA, the higher the voltage, the greater the force and the greater the heat.
Mini Linear Lead Screw Nut Slider for 20mm 2‑Phase 4‑Wire Stepper Motor DIY Description
Stepper Motor Mini Linear Lead Screw Nut Slider 2‑Phase 4‑Wire for DIY Small Sliders 20mm
Item Type: Stepper MotorMotor Type: 2-phase 4-wire system
Drive Voltage: 5-9V/200-600mA (the higher the voltage, the greater the force, the greater the heat)
Screw Length: Approx. 45mm / 1.8in
Slider Stroke: Approx. 34mm / 1.3in
Motor Diameter: Approx. 20mm / 0.8in
Screw Diameter: Approx. 3mm / 0.1in
Screw Pitch: Approx. 0.5mm / 0.02in (moving 0.025mm in one step, subdivision drive can be used if smaller)
Step Angle: 18
Phase Resistance: 21Ω
Blue A+Black B+Red B-Yellow A-
Details
| OPC | PMYNWVZ |
|---|---|
| Codes | 8461360994873 (EAN) |
