Mini Version Dual Duplex Hotspot Board with 2 Antennas

Mini Version Dual Duplex Hotspot Board with 2 Antennas Description

Duplex version MMDVM_HS_Hat
This PCB uses MMDVM_HS. It integrates two ADF7021 chips and supports dual-slot duplex operation in DMR mode.
The default bit error rate is less than 5% and the default frequency deviation is 0. If the bit error rate is higher than 5%, it can be corrected by adjusting the frequency deviation as long as the signal can be received.
Fully tested. Supports DMR, P-25, D-Star and System Fusion (Fusion) protocols. Onboard LED indicators show status (Tx, Rx, PTT button, Mode). output power up to 10mW. SMA antenna interface, antenna included

Mounts neatly on all current models of for (for ), including Pi Zero
Firmware is preloaded and can be easily updated via software
Frequency range:
UHF: 430-450 MHz, 433 MHz and 900 MHz
VHF: 144 MHz, 220 MHz operating frequencies
Architecture
The top SMA interface is the TX (transmit) port.
The bottom SMA interface is the RX (receive) antenna port.
Support UHF + VHF bands
SMA antenna interface (antenna included)
Modem selection: STM32_HS_GPIO
Core advantages
Supports dual timing of UHF and VHF bands
Signals can be sent and received simultaneously in full-duplex mode
Supports mobile power supply, worry-free outdoor operation
Flagship technical
2U+2V antenna interface (a total of 4 SMA ports) to zero signal interference
Dual-screen compatible design
Adaptable to 0.96-inch OLED screen and LCD screen
Dual-color indicator light displays the working status in real time
Application scenarios
Applicable to:
DMR/C4FM/D-STAR and other digital intercom systems
Mobile emergency communication base station
-band repeater station integration solution
Color: As Shown
Material: PCB

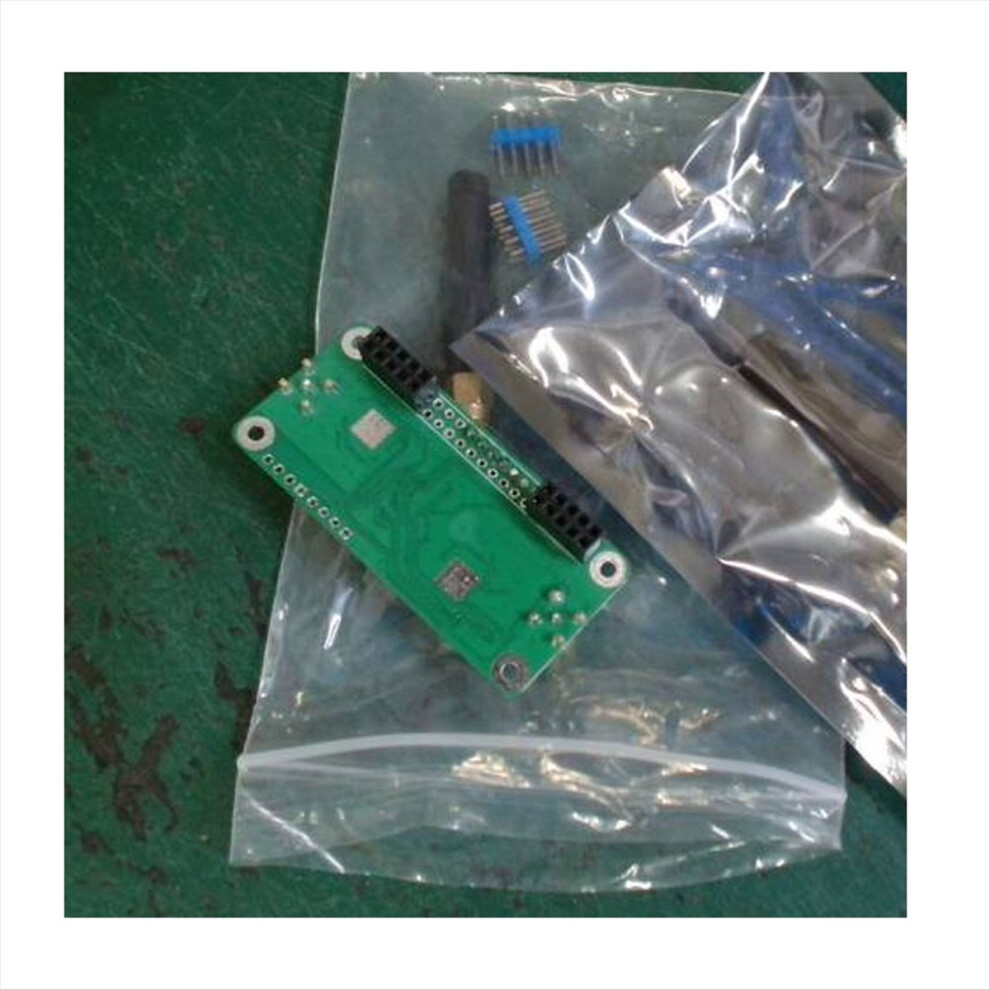

Package Contents:

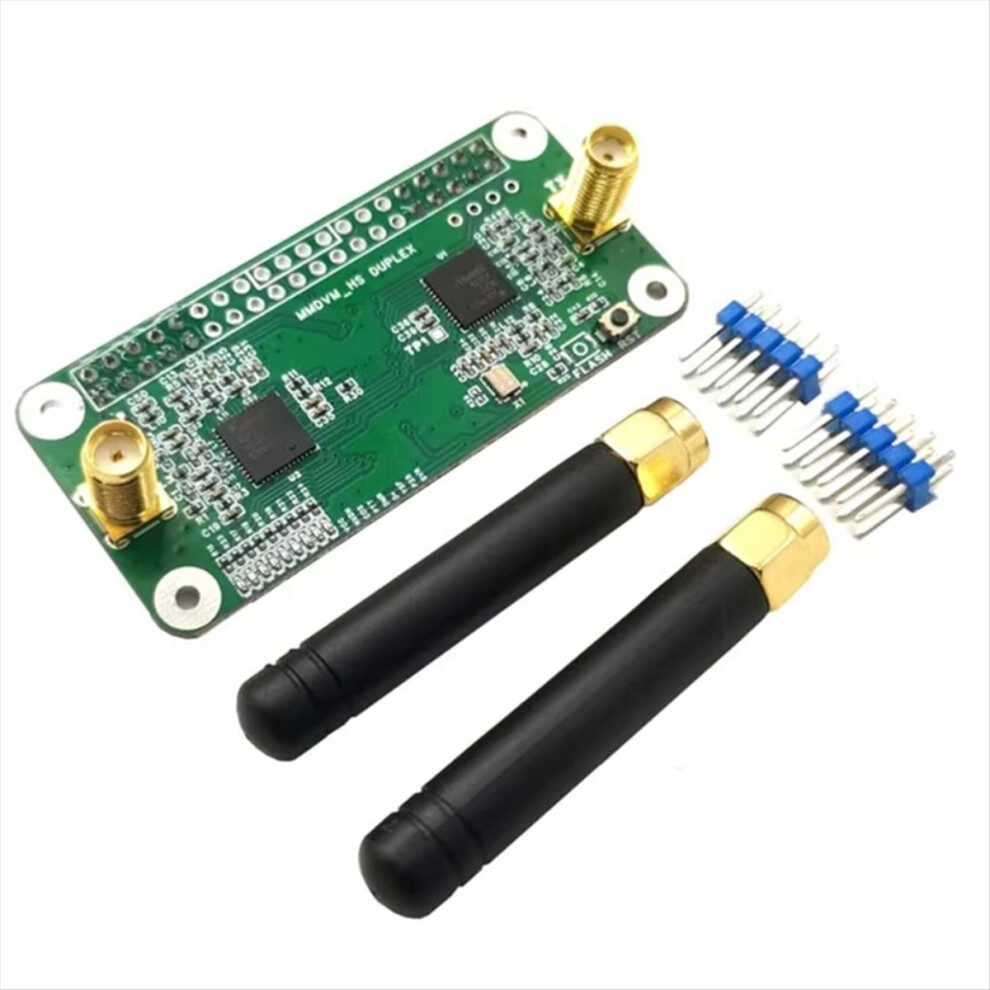

1 * Duplex digital hotspot board with antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
