Miniature DC Hydroelectric Power Micro hydro Piped

Miniature DC Hydroelectric Power Micro hydro Piped Description

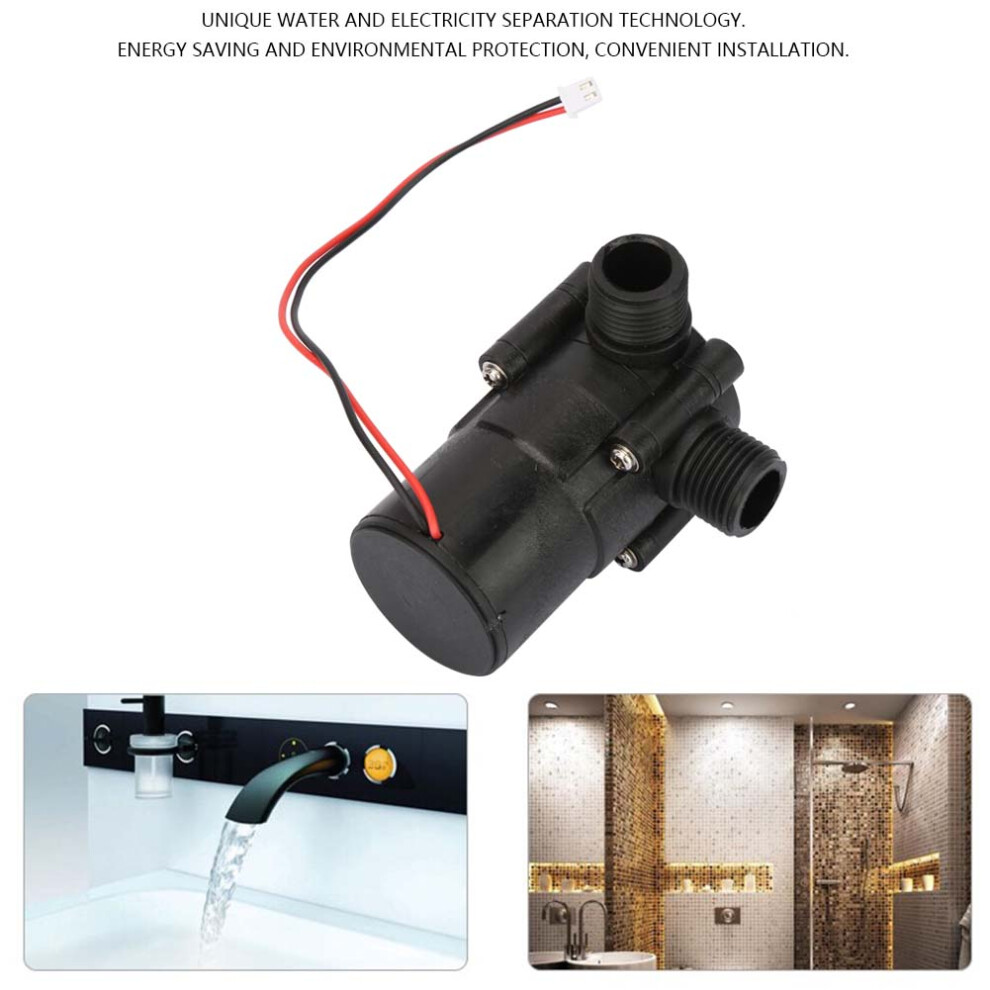

Miniature DC Hydroelectric Power Micro hydro Piped Water Pipeline Generator



1、Unique water and electricity separation technology, dual magnetic coupling clutch, small size, large output power. 2、Scientific and exquisite structure arrangement, the inlet and outlet pipes can be selected according to the requirements, with one word or L-shaped right Angle assembly. 3、Efficient and long-life watercourse design, ultra-low flow loss, ultra-low water pressure (0.05mpa) start. When the load is short circuit, it can start smoothly. 4、After diode isolation, it can be directly supplied to the rechargeable battery below 3000MAH or to the farad capacitor below 5F for charging and power supply. It is the best partner of the intelligent faucet and the induction faucet. 5、Widely used, suitable for all kinds of intelligent faucets, induction faucets, lighting and sound systems in shower rooms, gas water heaters, solar automatic water supply controllers and other electrical products that need to be supported by hydroelectri



Features: Unique water and electricity separation technology, dual magnetic coupling clutch, small size, large output power. Scientific and exquisite structure arrangement, the inlet and outlet pipes can be selected according to the requirements, with one word or L-shaped right Angle assembly. Efficient and long-life watercourse design, ultra-low flow loss, ultra-low water pressure (0.05mpa) start. When the load is short circuit, it can start smoothly. After diode isolation, it can be directly supplied to the rechargeable battery below 3000MAH or to the farad capacitor below 5F for charging and power supply. It is the best partner of the intelligent faucet and the induction faucet. Widely used, suitable for all kinds of intelligent faucets, induction faucets, lighting and sound systems in shower rooms, gas water heaters, solar automatic water supply controllers and other electrical products that need to be supported by hydroelectric power. Specification: Condition: 100% brand new Weight: 130g/4.6oz Operating water pressure: 0.05-0.5mpa Maximum operating water pressure: 0.55mpa Maximum pressure: 1.6Mpa Flow loss: 3.6% (0.25 MP) Operating temperature range: 5 ~ 85 Output current: 128~260 MA/ 0.1K load. Dimension: Dia.85.4 * 42.5 * 81.4mm Test exit: open Output power: 3.5W Inlet and outlet pipe Angle: 90, 180, 270 Installation: install according to the direction of arrow (1/2inch water pipe) Outer diameter: 20mm/0.8inch Inner diameter: 13mm/0.5inch Package List: 1 x Micro Generator
