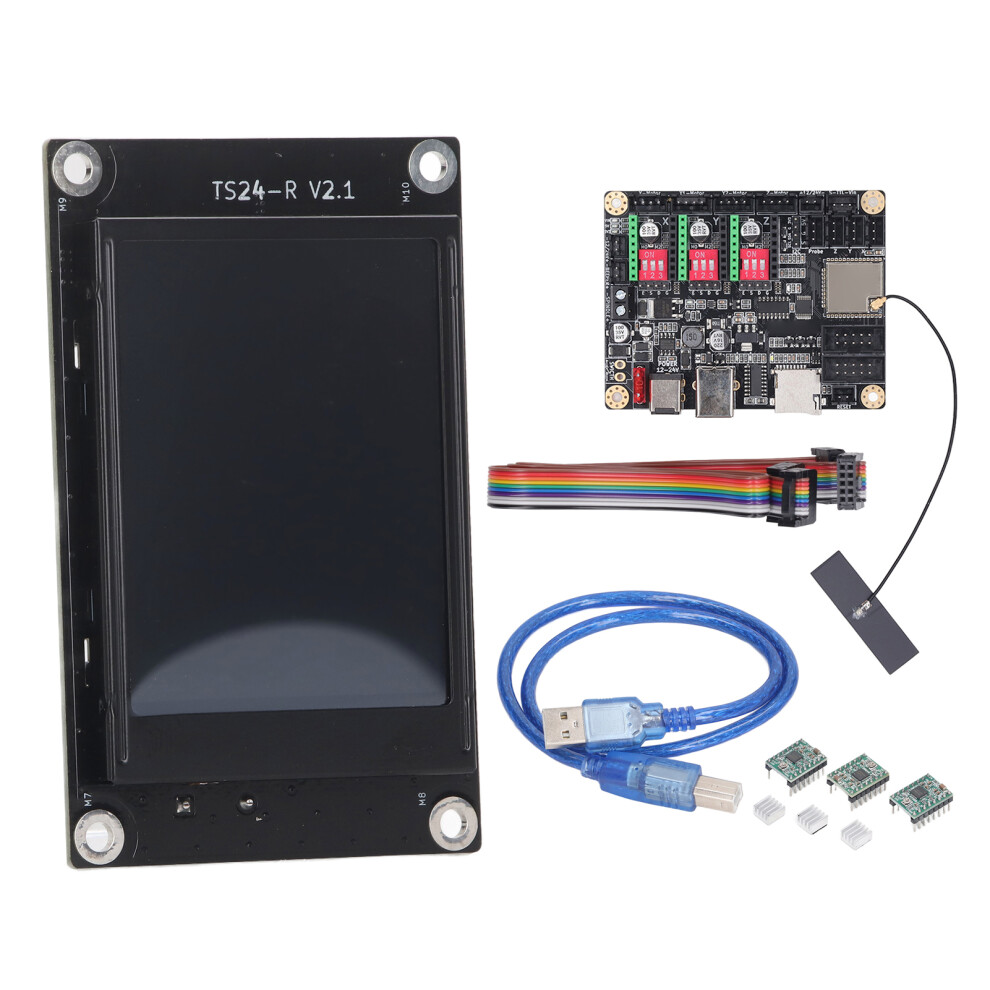

MKS DLC32 V2.1 Engraving Control Board 32 Bit Expandable WIFI

MKS DLC32 V2.1 Engraving Control Board 32 Bit Expandable WIFI Description

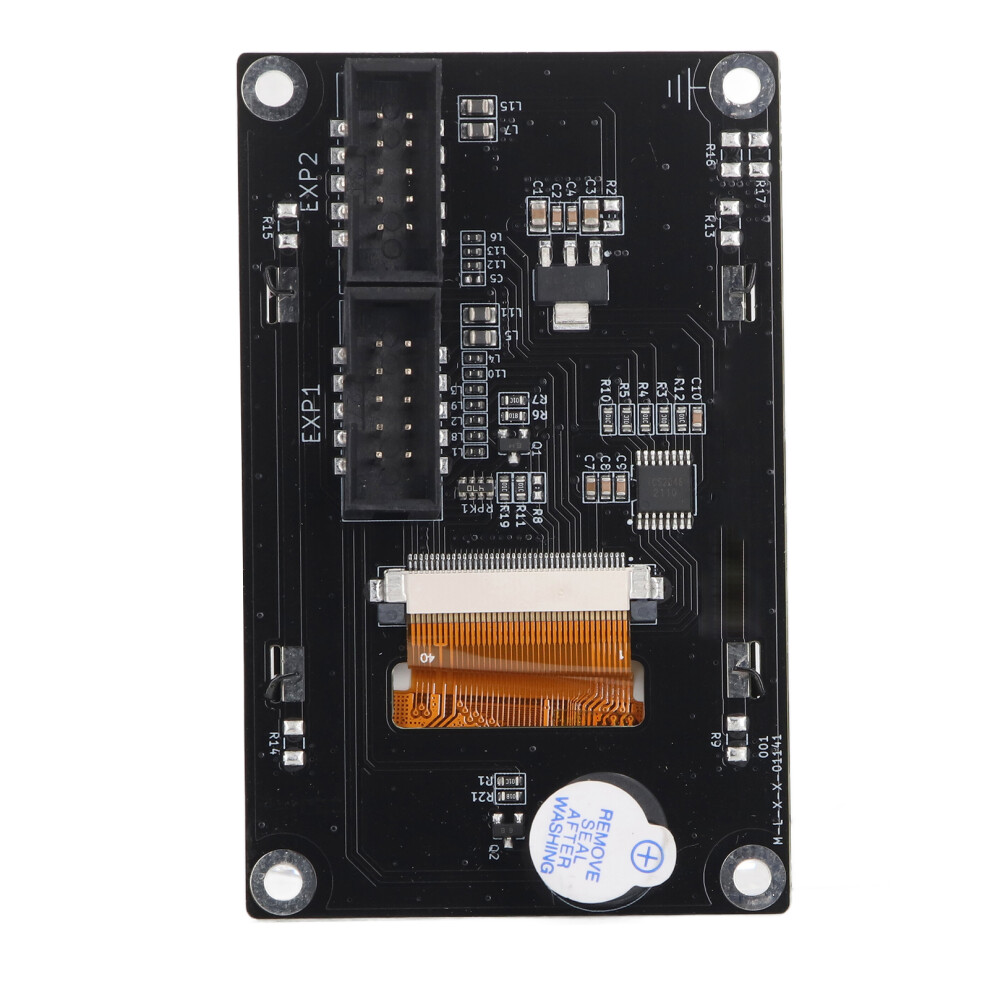

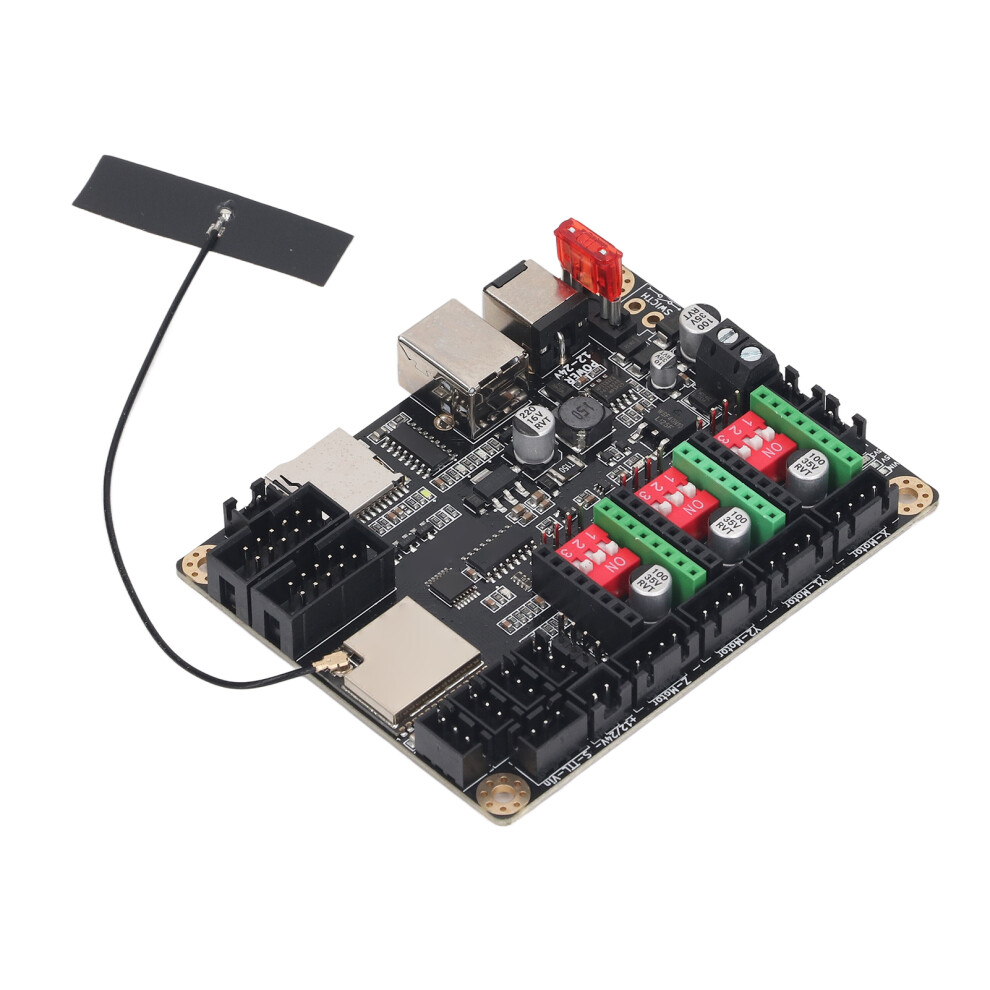

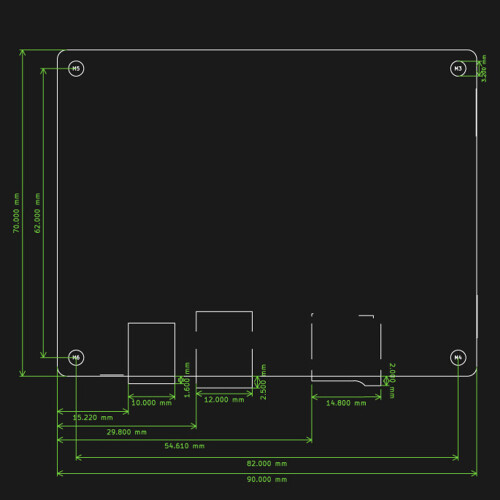

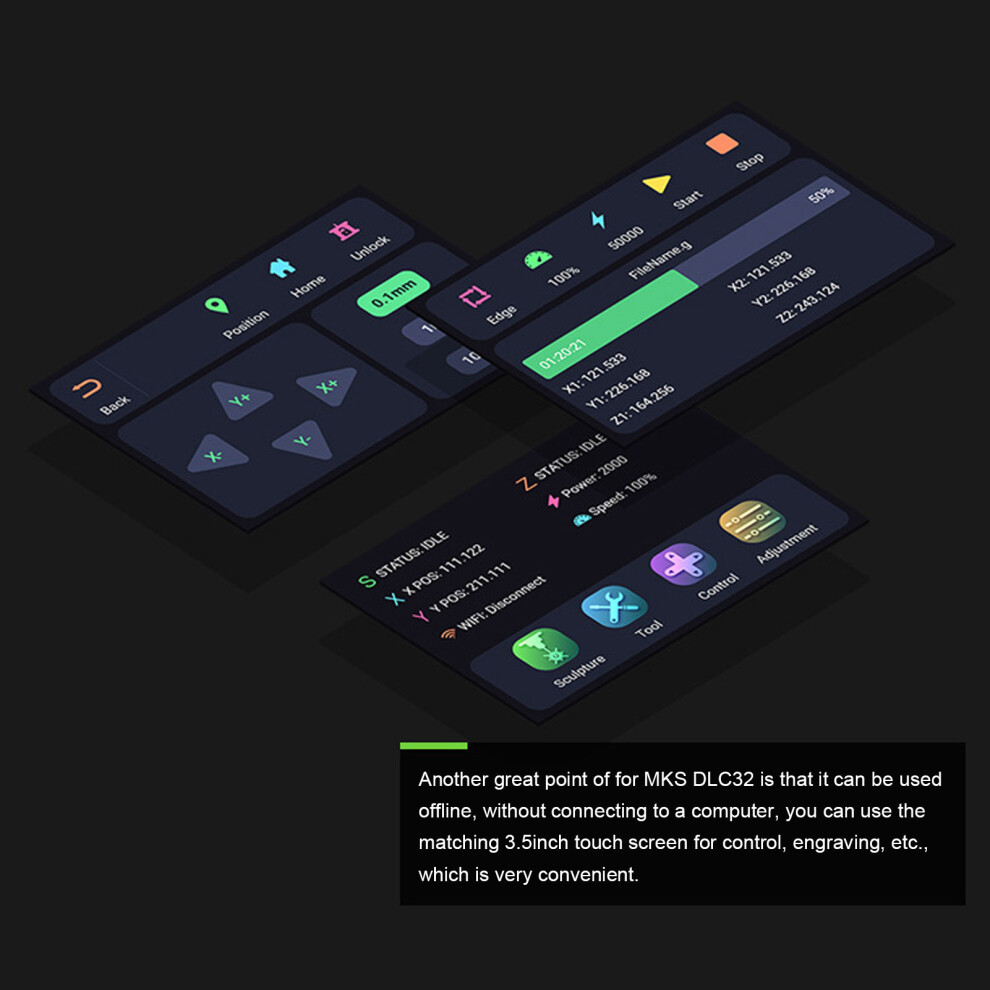

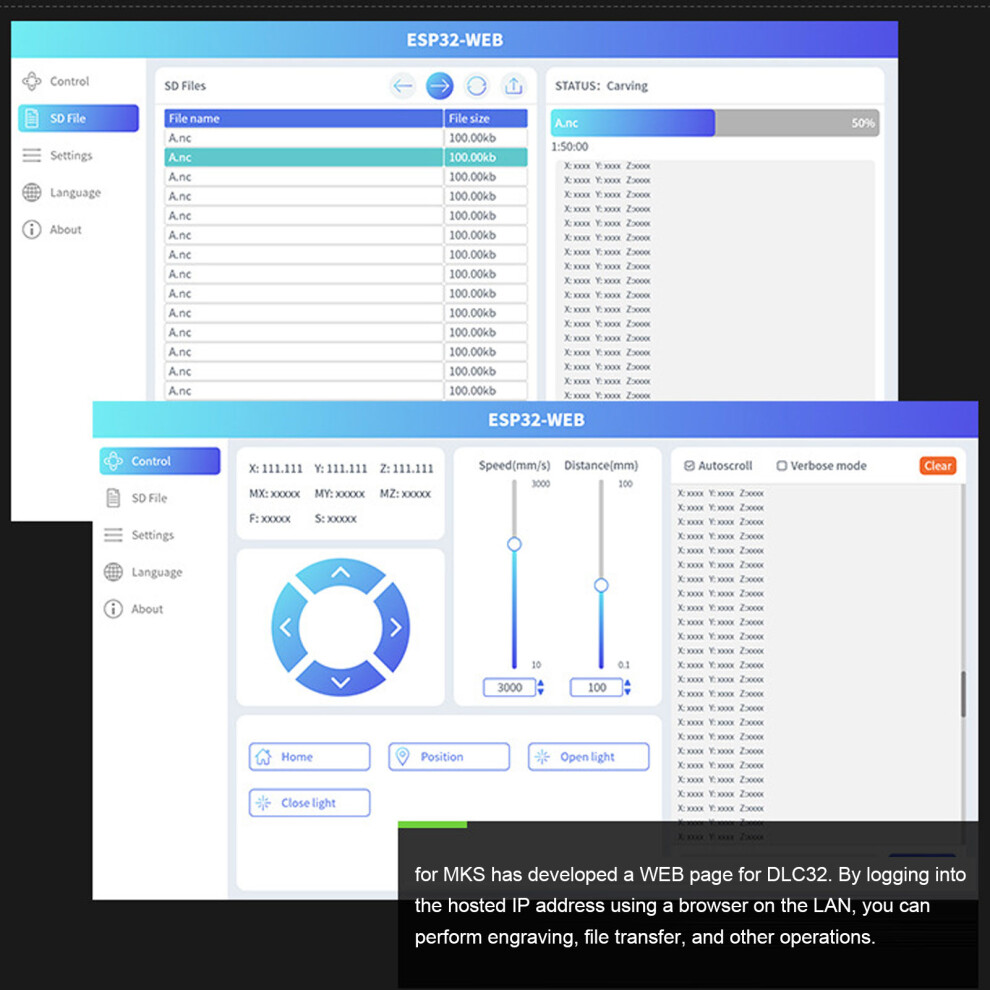

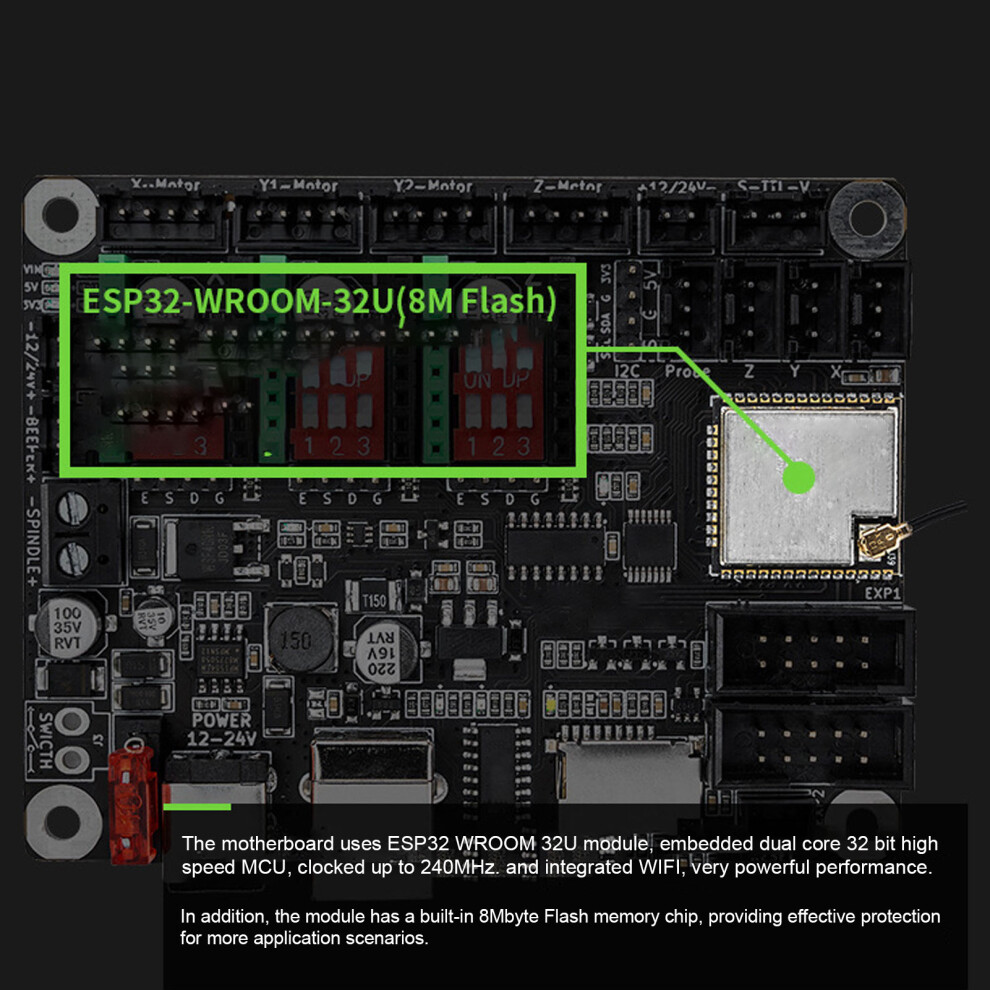

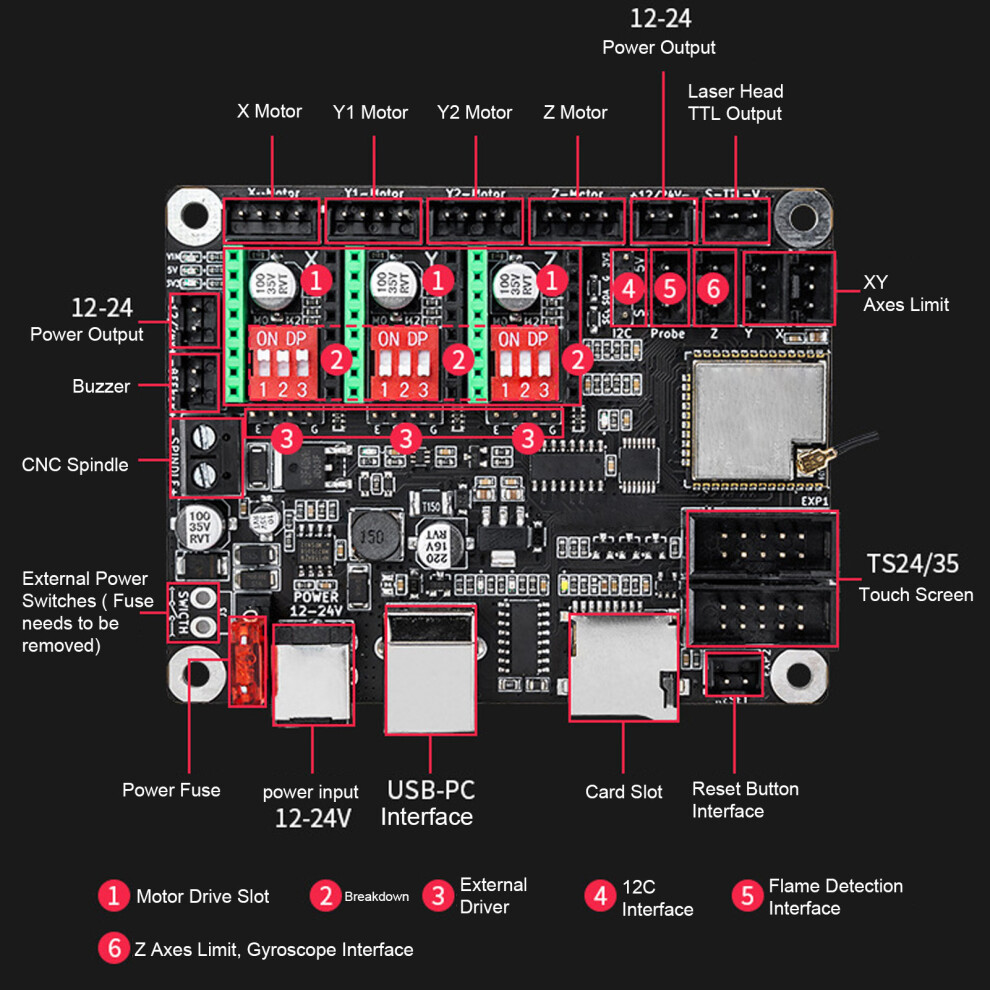

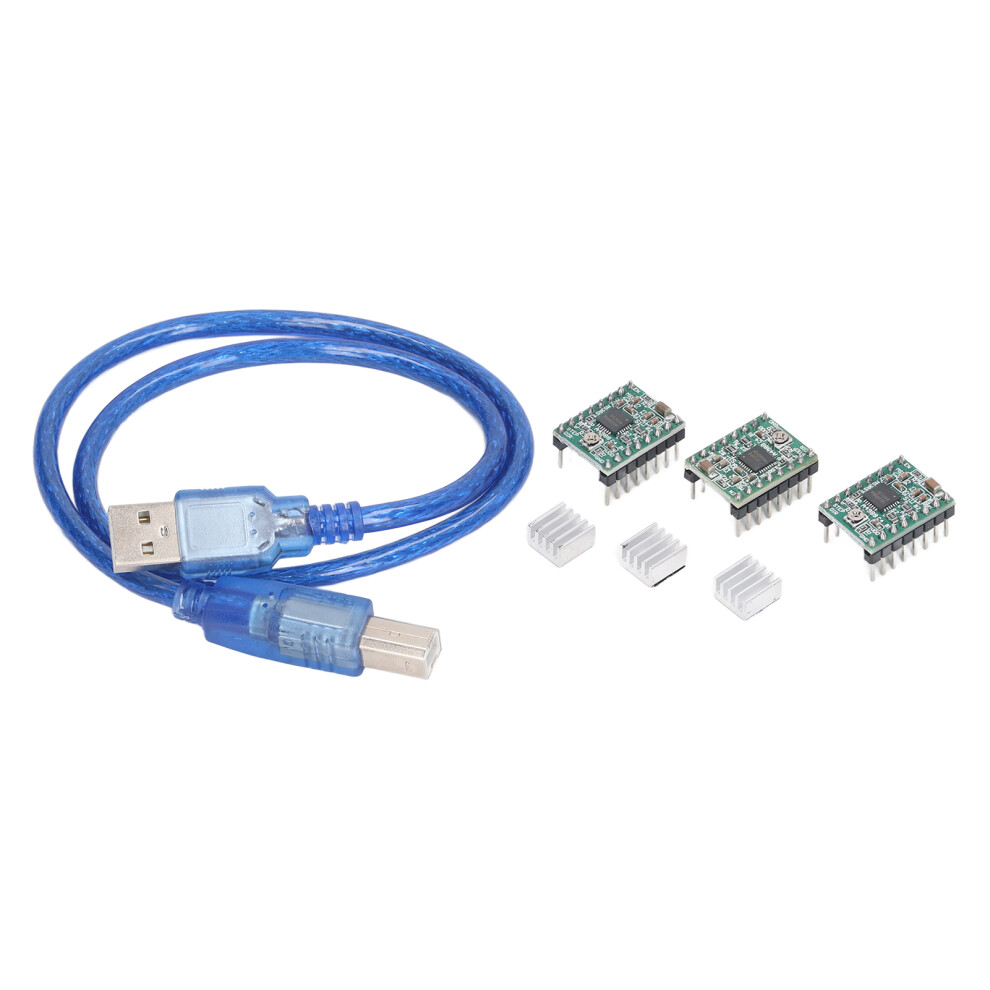

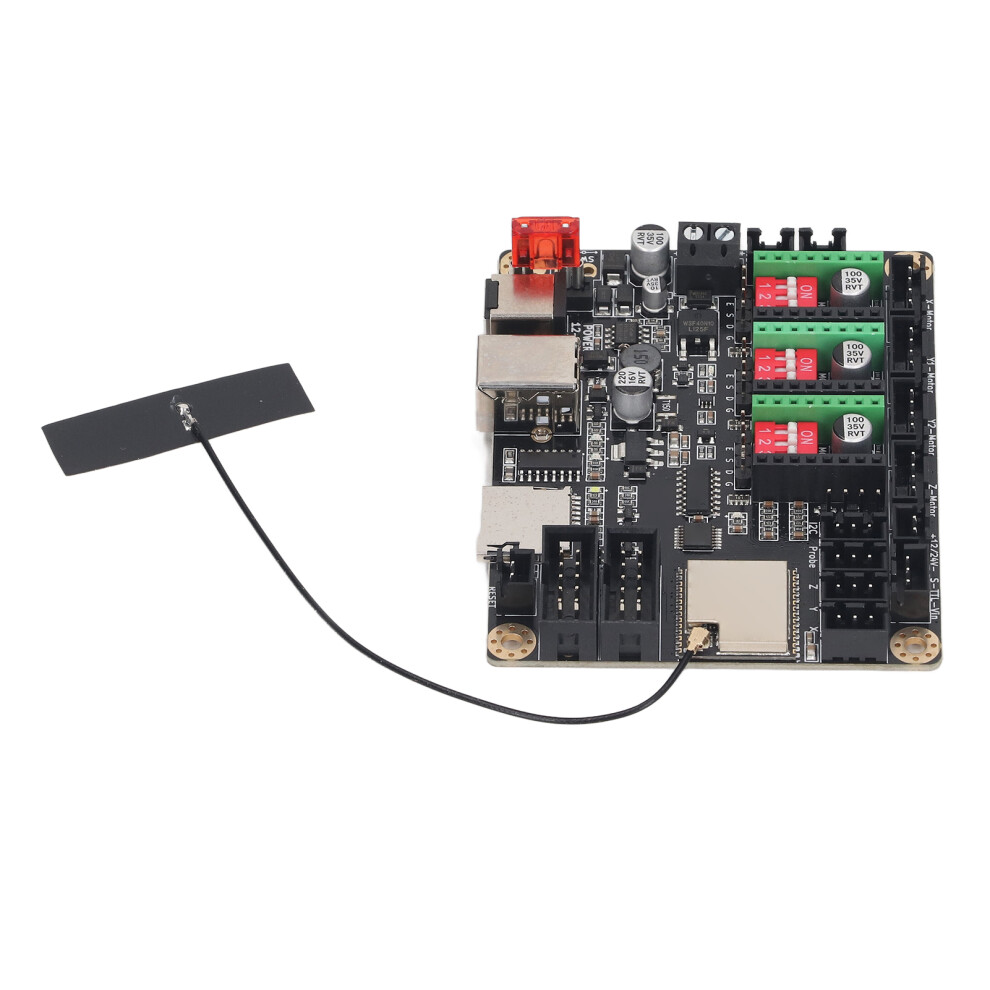

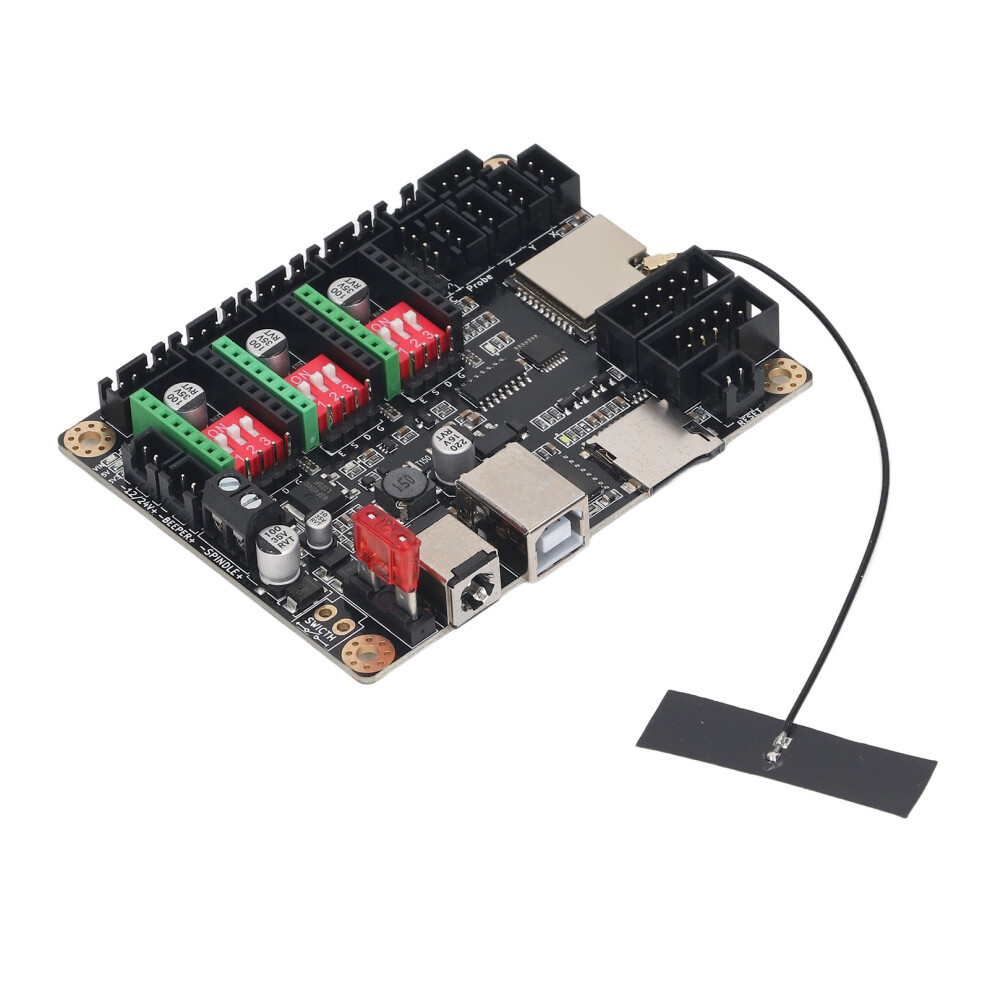

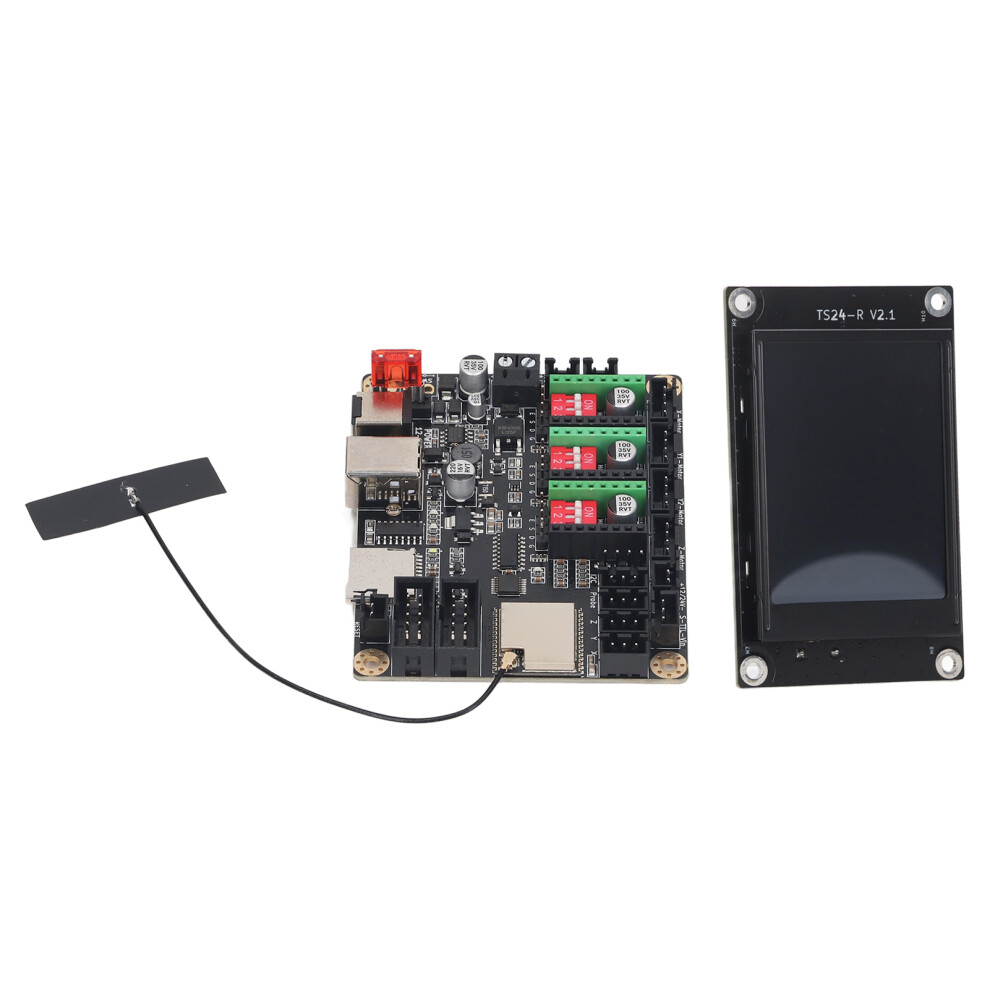

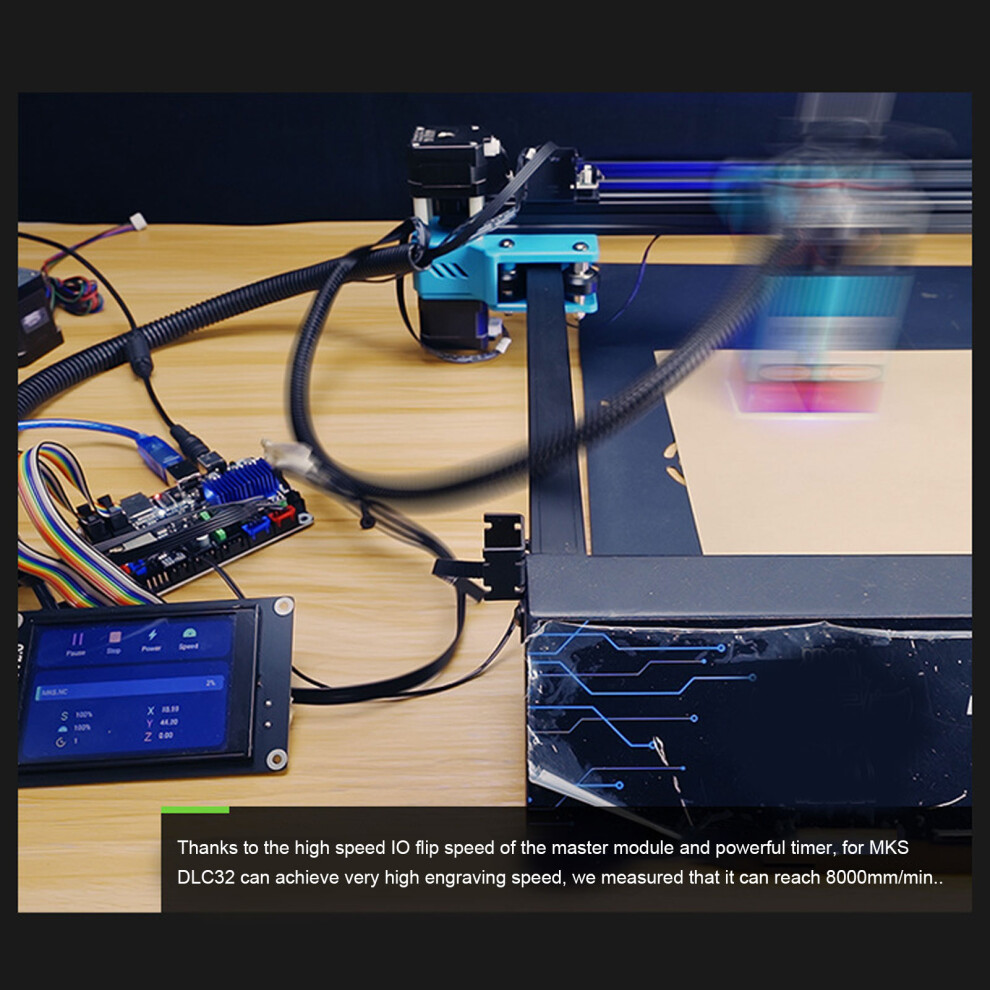

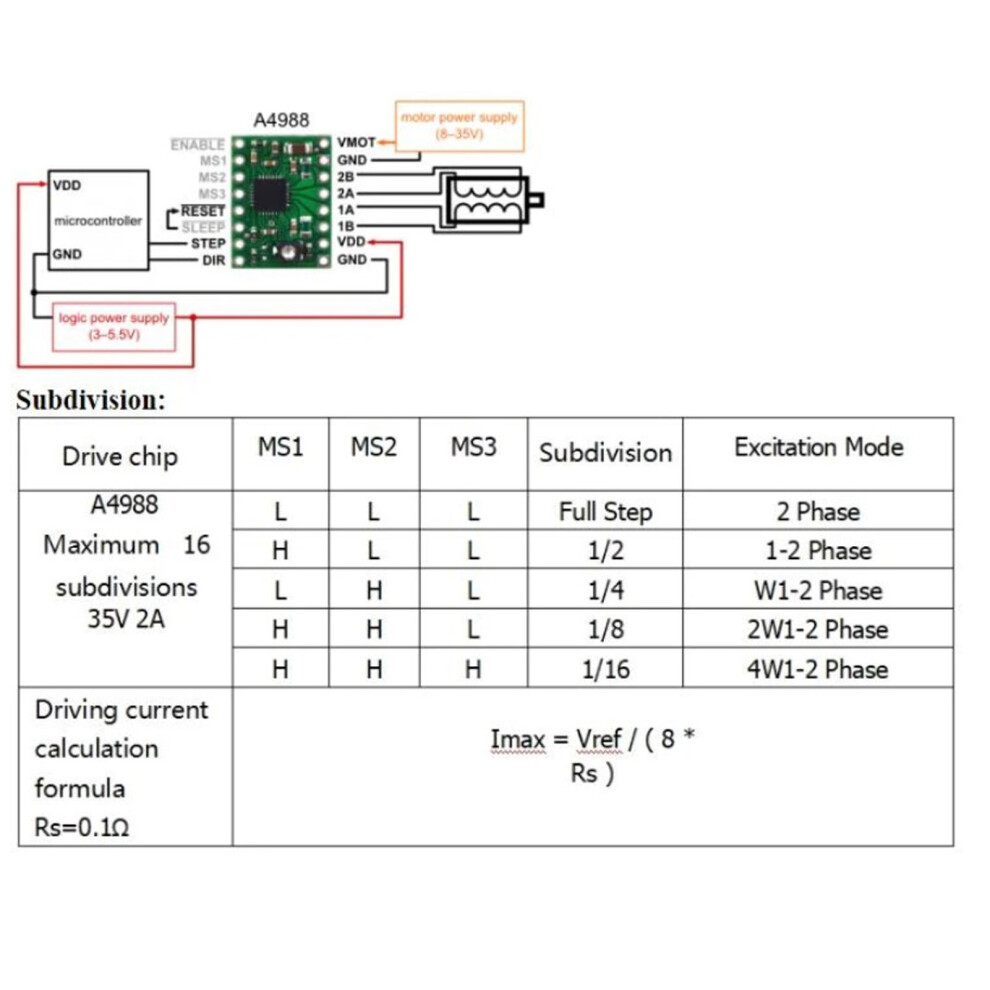

Laser Engraving Machine Main Board 32 Bit for MKS DLC32 V2.1 Control Board with WIFI 2.4 Inch Touch Screen 12 to 24VDC Item Type: 3D Printer Motherboard Kit Material: PCB Main Board Parameters: Model: for MKSDLC32 Voltage: 12-24V DC (<10A) MCU: ESP32 WROOM 32U (32 Bit) MCU Frequency: 240MHz Flash Memory: 8192K Bytes Memory: 520K Bytes Laser Speed: 8000mm/min Offline Display: for MKS TS24 R, TS35 R Firmware: for GRBL Serial Port Driver: USB Axes WIFI Onboard: 4(X, Y1, Y2, Z) Web Site: Support APP: Support Storage Card: Support MKS Laser Tool: Support Available Machine: CNC Laser Engraving Machine Stepper Driver: A4988, DRV8825, TMC2208, 2209, 2225(for Nema17 Motor) Additional Driver: TB6600, TMC2160(for Nema23 motor) Laser: Less Than 20W (>20W, External Power Supply) Compatible Software: for LaserGrbl, for Xloader, for GrblController, for Benbox, for MDraw, for LightBurn Main Board Introduction: for MKS DLC32 motherboard is a special desktop engraving machine developed for offline engraving main control board. The hardware is equipped with 32 bit high speed ESP32 module, integrated WIFI function, directly drive 2.4 or 3.5 inch touch color screen and can achieve fast engraving and web control, cell phone APP control, etc. for MKS DLC32 mounting holes and board size is compatible with for MKS DLC, and can also be used with for GRBLaser and for LightBurn PC software. Display Parameters: Model: TS24 R V2.1 External Size: Approx. 80 x 50mm/3.15 x 1.97in Color Touch Screen: 2.4 Inch Touch Screen Microprocessor: 32 Bit STM32 Processor Update Method: SD File Update Support Storage System: Storage Card Support File Format: Gcode Expandable Modules: WIFI Module, Power Failure Relay Module, Material Break Detection Switches, External Card Slot. A4988 Driver Introduction: A4988 is a complete micro stepper motor driver with built in converter for easy operation. It can run bipolar stepper motors in full, half, 1/4, 1/8 and 1/16 step modes with output drive capability up to 35 V and 2 A. The A4988 includes a fixed off time current regulator, which is in slow or mixed decay mode. The A4988 converter is the key to easy implementation. The "stepper" input drives the motor one microstep forward with a single pulse input. There are no phase sequencing tables, high frequency control lines or complex programming interfaces. The A4988 interface is ideal for situations where complex microprocessors are unavailable or overburdened. A4988 Driver Features And Advantages: Low RDS (On) Output Automatic Current Decay Mode Detection or Selection Mixed With Slow Current Decay Mode Synchronous Rectification For Low Power Consumption Internal Under Voltage Lockout Cross Current Protection 3.3 And 5 V Compatible Logic Supplies Thermal Shut Down Circuitry Ground Fault Protection Load Short Circuit Protection Five Selectable Stepping Modes: Full Step, 1/2, 1/4, 1/8, and 1/16
