MKS SERVO28D 485 MT Closed Loop Stepper Motor Driver CNC 3D Printer fo

MKS SERVO28D 485 MT Closed Loop Stepper Motor Driver CNC 3D Printer fo Description

MKS SERVO28D closed-loop stepper motor has pulse interface, 485 interface, built-in efficient FOC vector algorithm, and uses high-precision encoder to effectively prevent motor step loss through position feedback.
Suitable for small robotic arms, 3D printers, engraving machines, writers, automation products, and e-sports applications.
High-speed performance is stable, running smoothly, no jitter, and can be stopped in an emergency

Features:
1. Support 6 working modes: pulse interface (open loop, closed loop, FOC mode), serial interface (open loop, closed loop, FOC mode)
2. Support MODBUS-RTU communication protocol (RS485 version)
3. High-performance FOC vector control algorithm, torque, speed, position three-loop control
4. Support curve acceleration and deceleration, motor start and stop are smoother
5. Support single-turn unlimited position function
6. Support multi-turn limited position and left and right limit functions
7. Support direct setting of zero point function
8. Support relative position and absolute position control mode
9. Support 1-256 arbitrary subdivision steps
10. Built-in 256-step subdivision interpolation algorithm, the motor runs super quiet and ultra-low vibration
11. Maximum input pulse frequency 160KHz, maximum speed 3000RPM+
12. Real-time update of motor angle information (motor enabled or disabled)
13. Onboard industrial-grade high-precision 16384-line magnetic encoder
14. Onboard 4 high-power MOSFETs, 40V/20A

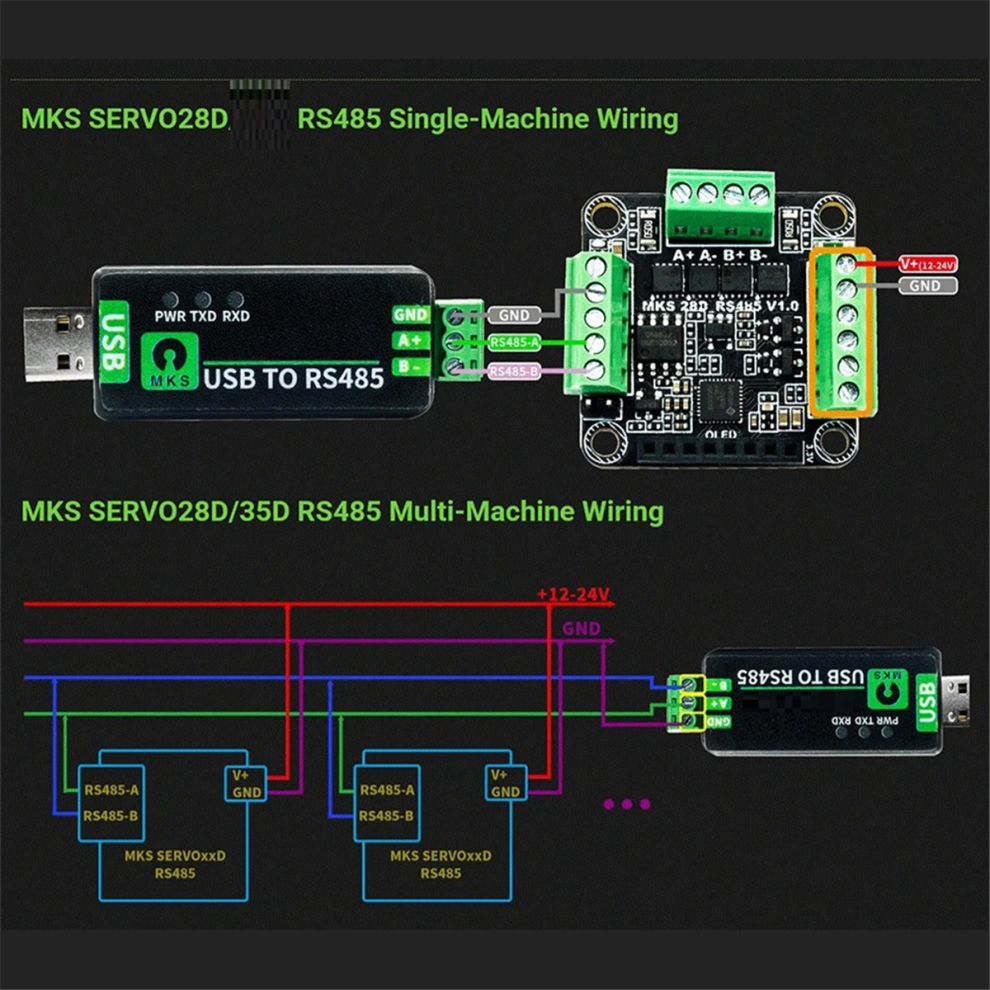

15. Built-in -485 interface, 256 slave addresses, support group address (RS485 version)
16. Maximum operating current 3.0A, MOSFET continuous operating current 20A (25)
Color:Black
Material:Plastic+Metal

Package Contents:
1 * SERVO28D 485 MT

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
