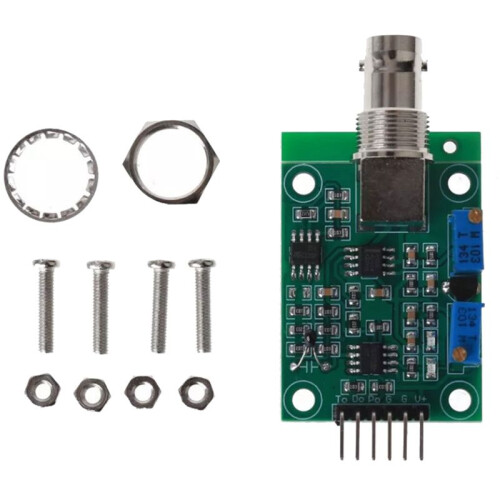

Monitor PH Detection Regulator Ph0-14 PH Module PH Regulator PH Value Detection Sensor

Monitor PH Detection Regulator Ph0-14 PH Module PH Regulator PH Value Detection Sensor Description

The PH electrode detector is accurate and reliable, providing almost instantaneous readings.
Working voltage:50.2V (AC/)
Working current: 5-10mA
Detectable concentration range: PH0-14
Detection temperature range: 0-80

Response : less than equal 5S
Settlement : less than equal 60S
Component power: less than equal 0.5W.
Working temperature:-10 - 50 (nominal temperature 20)
Humidity: 95% relative humidity (nominal humidity 65% relative humidity)
Size of PH test module: 42mm x 32mm x 20mm
Output: Analog voltage signal output.
PH range:0-14pH.
Temperature range:0-80
Alkaline to 15 mV or less
Theoretical percentage: 98%
Internal resistance:less than equal 250mΩ
Response :less than equal 1 minute
Working temperature:0-60
Terminal:BNC connector
BNC connectors are suitable for most PH meters and controllers.
Note:Due to different factory batches, the appearance will be slightly different, but it will not affect its normal use.
Color:As Shown
Material:PCB

Package Contents:
1set * pH test sensors
