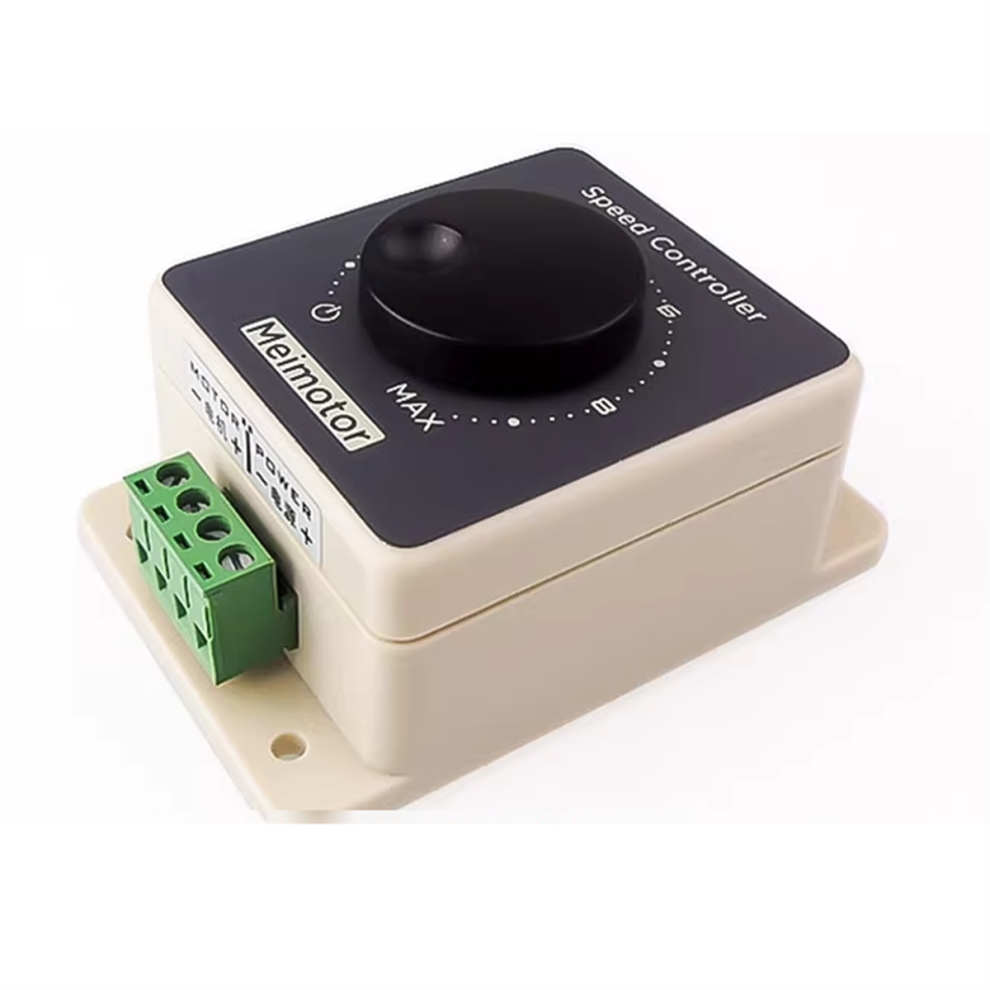

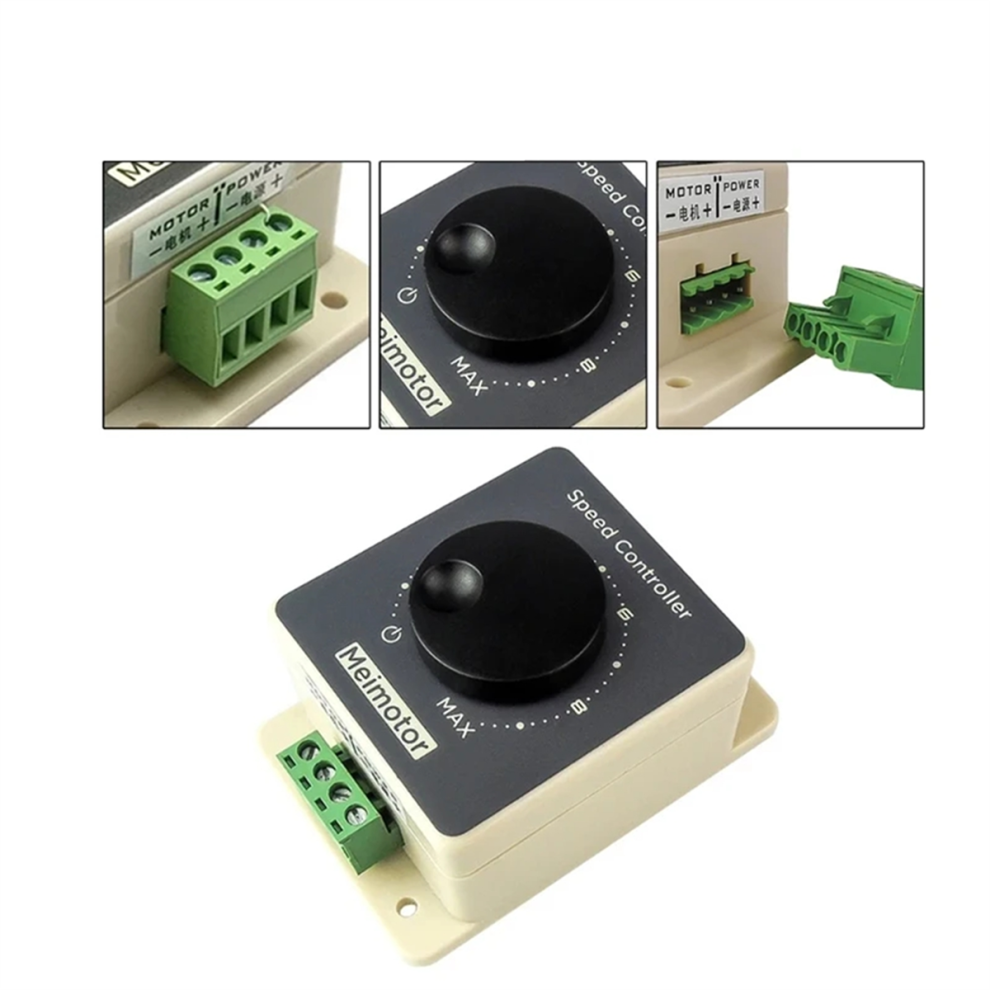

Motor Speed Controller Regulator Adjustable Switch 12V 24V 48V 20A DC

Motor Speed Controller Regulator Adjustable Switch 12V 24V 48V 20A DC Description

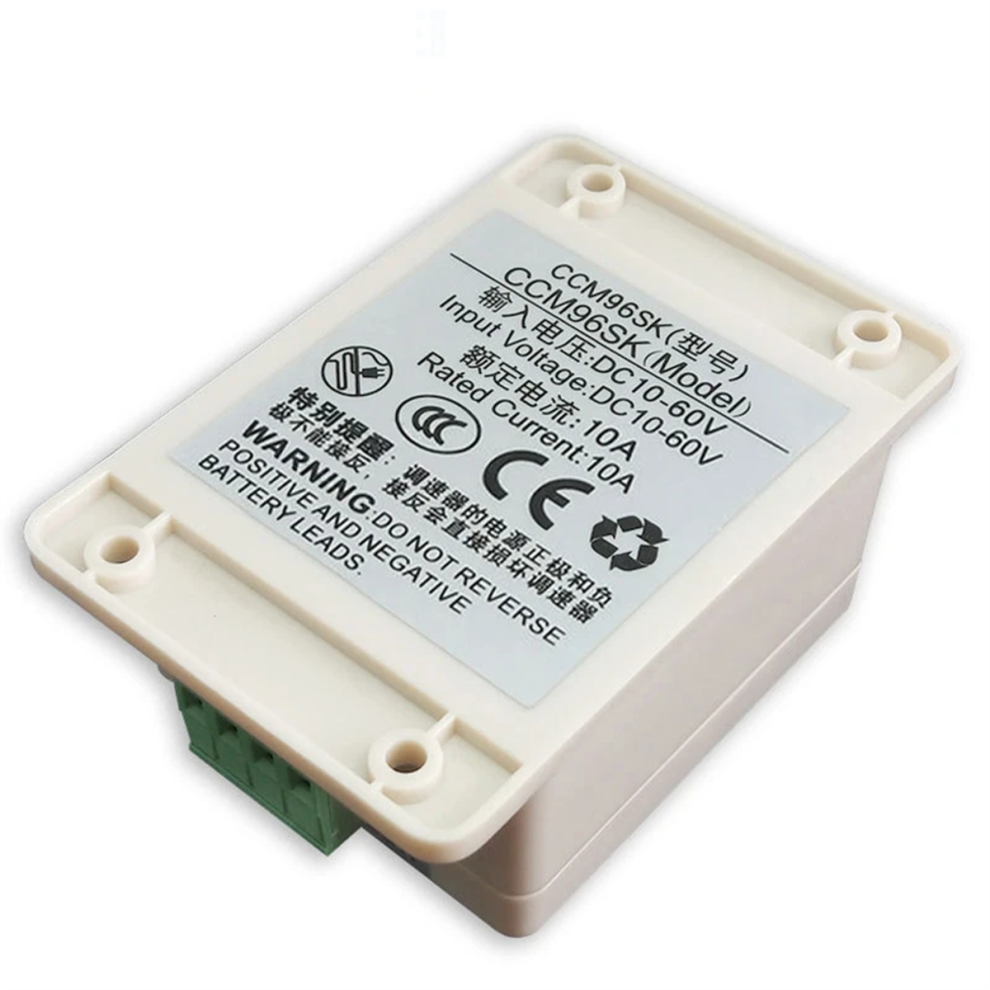

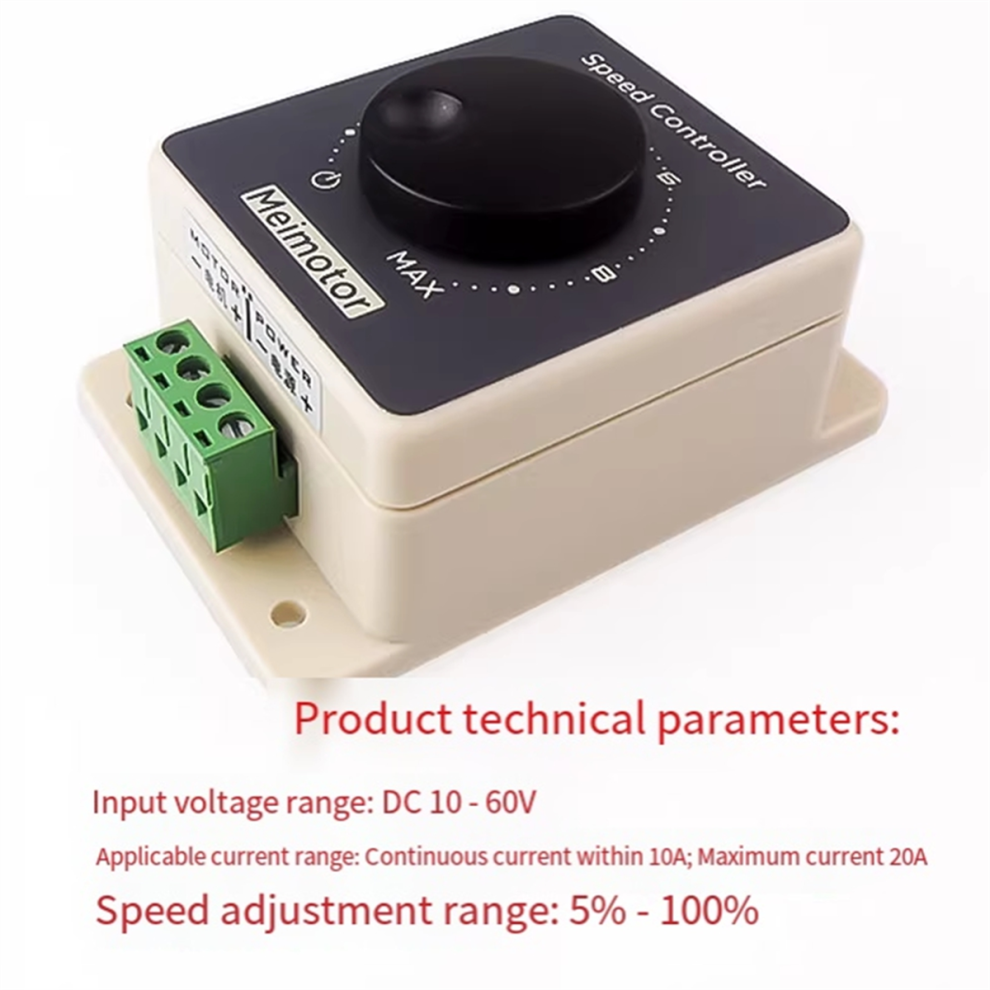

Input voltage range: dc10-60v
Applicable current range: continuous current within 10a, maximum current 20A
Speed range: 5% - 100%
Application: the motor governor can be applied to electric stove, water heater heat regulation, dimming lamp, small motor speed control, electric iron thermostat, etc.
Made with high quality circuit board which ensures a longer service life.

Matters needing attention:1. When the DC motor speed controller inputs DC power, it cannot be directly connected to AC power (such as household use)Otherwise, it burn out

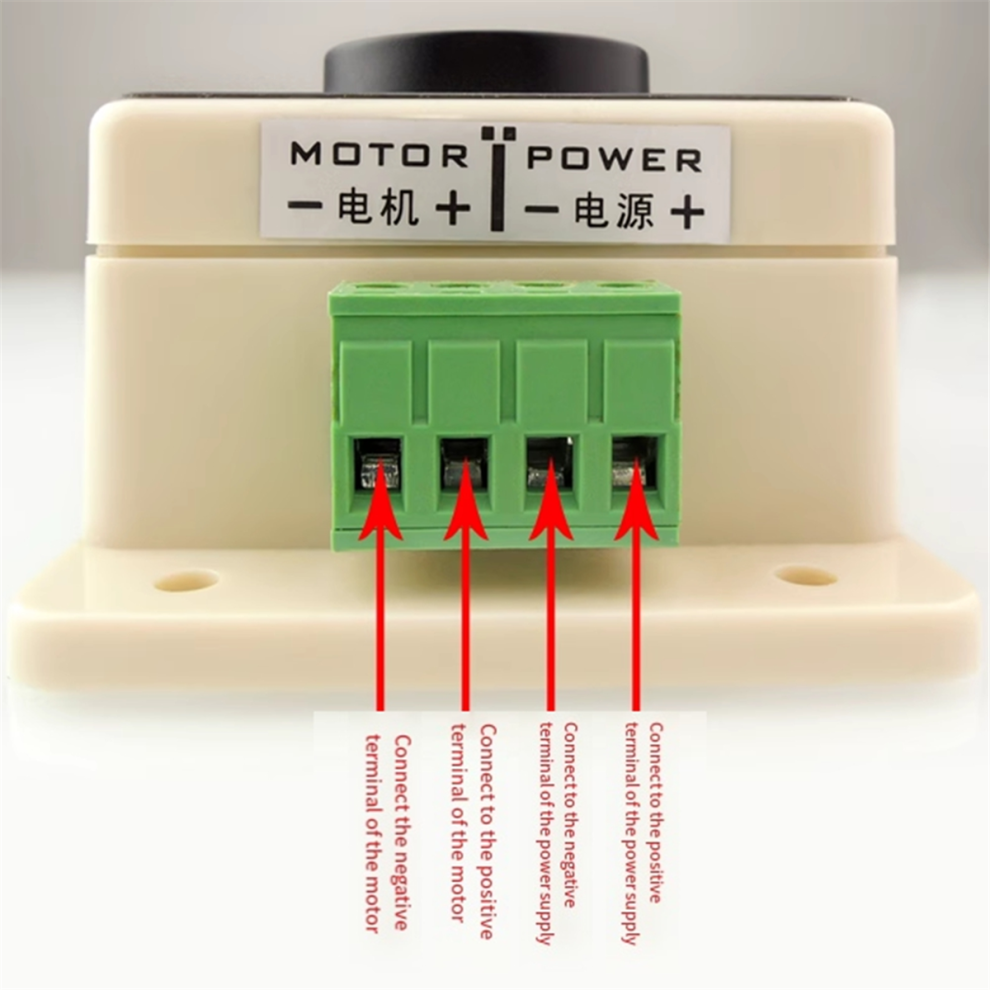

2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the speed regulator be damaged
3. Motors are not divided into positive and negative directions. When the direction of operation is different from the expected direction, it can be adjusted by adjusting the wiring sequence Change direction.

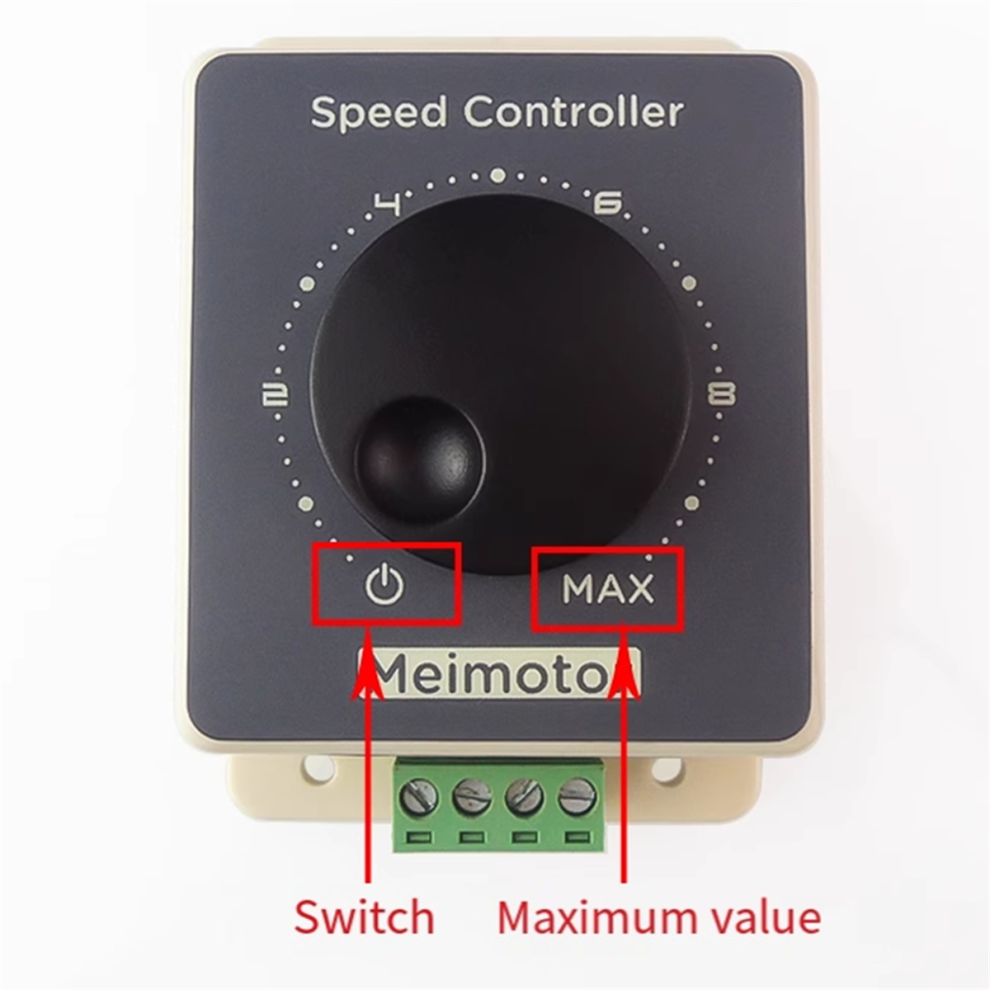

4. The potentiometer knob can change the duty cycle of the governor output, thereby changing the motor speed.652F PWM DC Motor Governor 12V 24V 48V 20A High Power Controller Waterproof
Color: As Shown
Material: plastic

Package Contents:
1 x 20A DC Motor Motor Regulator

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
