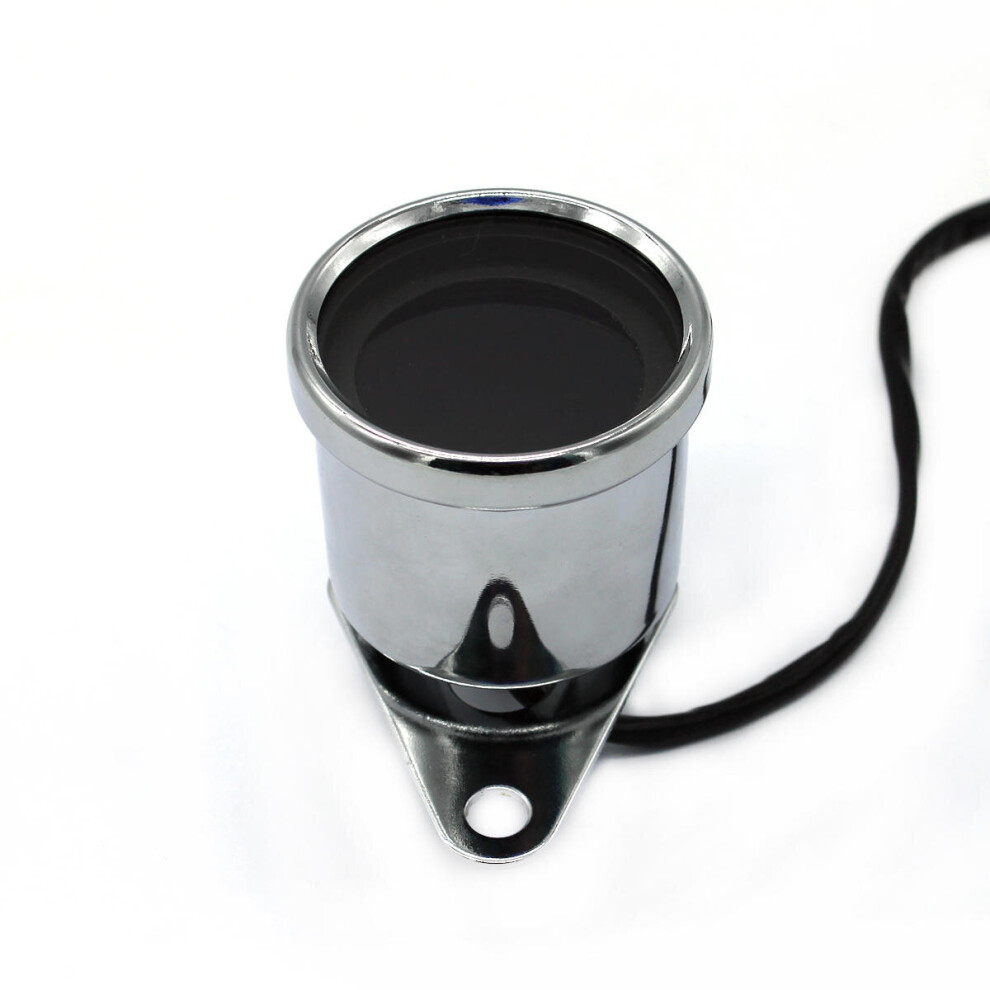

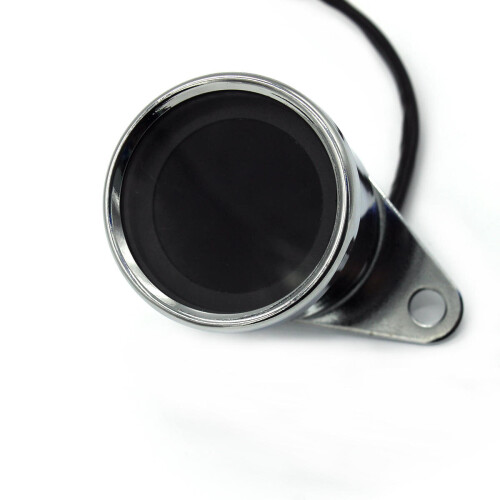

Motorcycle Digital Odometer Speedometer Tachometer Fuel Level Gauge

Motorcycle Digital Odometer Speedometer Tachometer Fuel Level Gauge Description

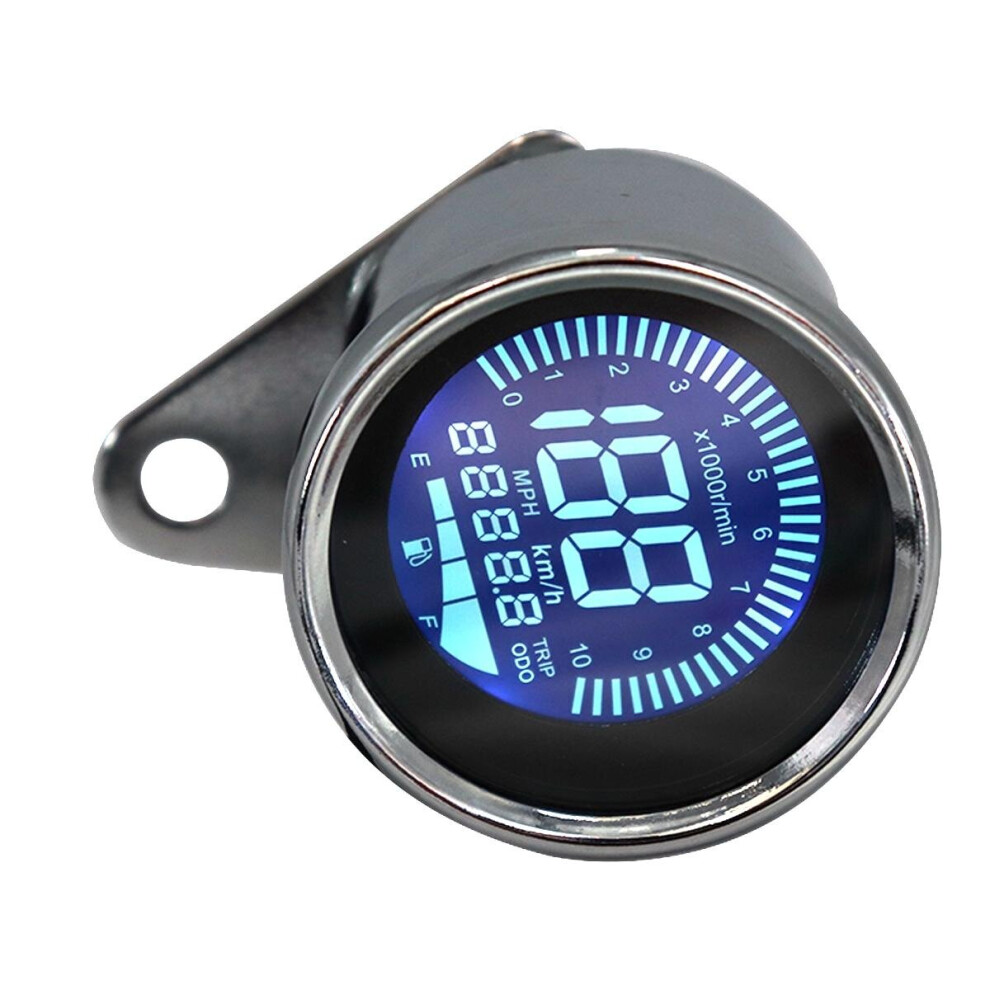

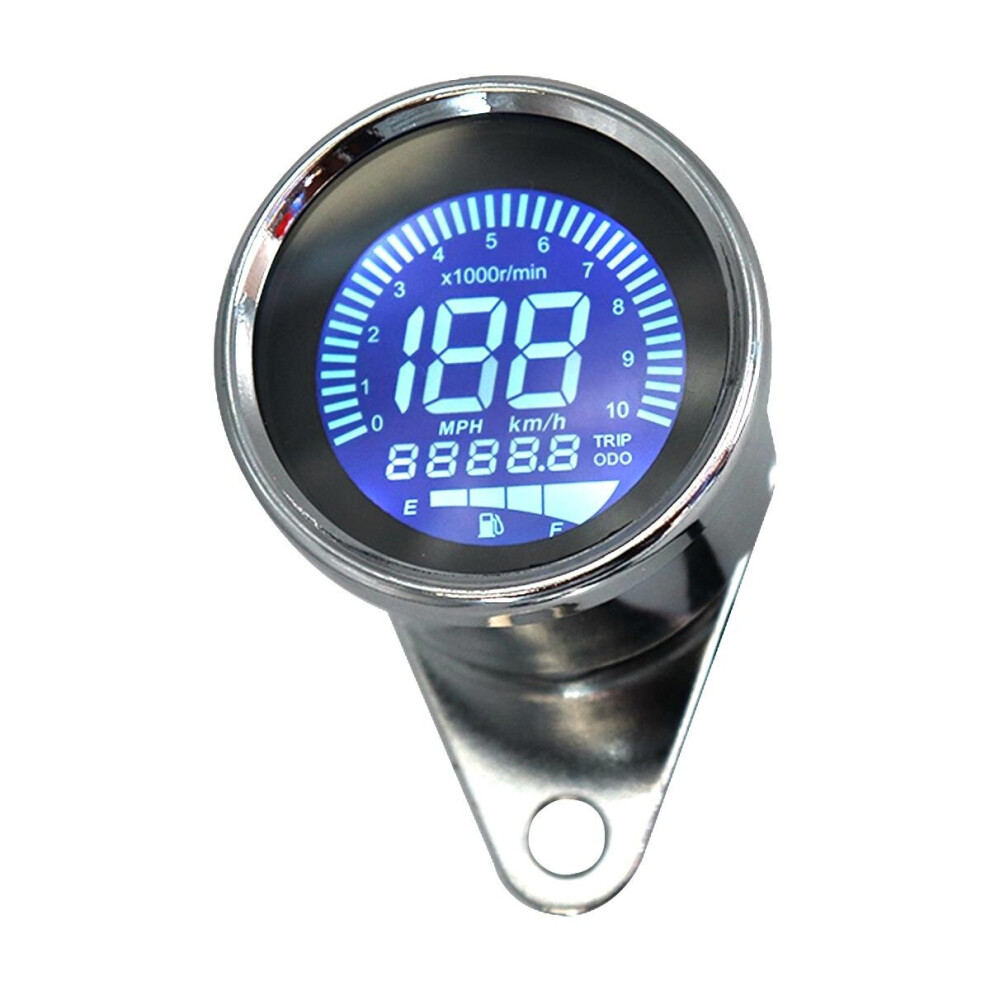

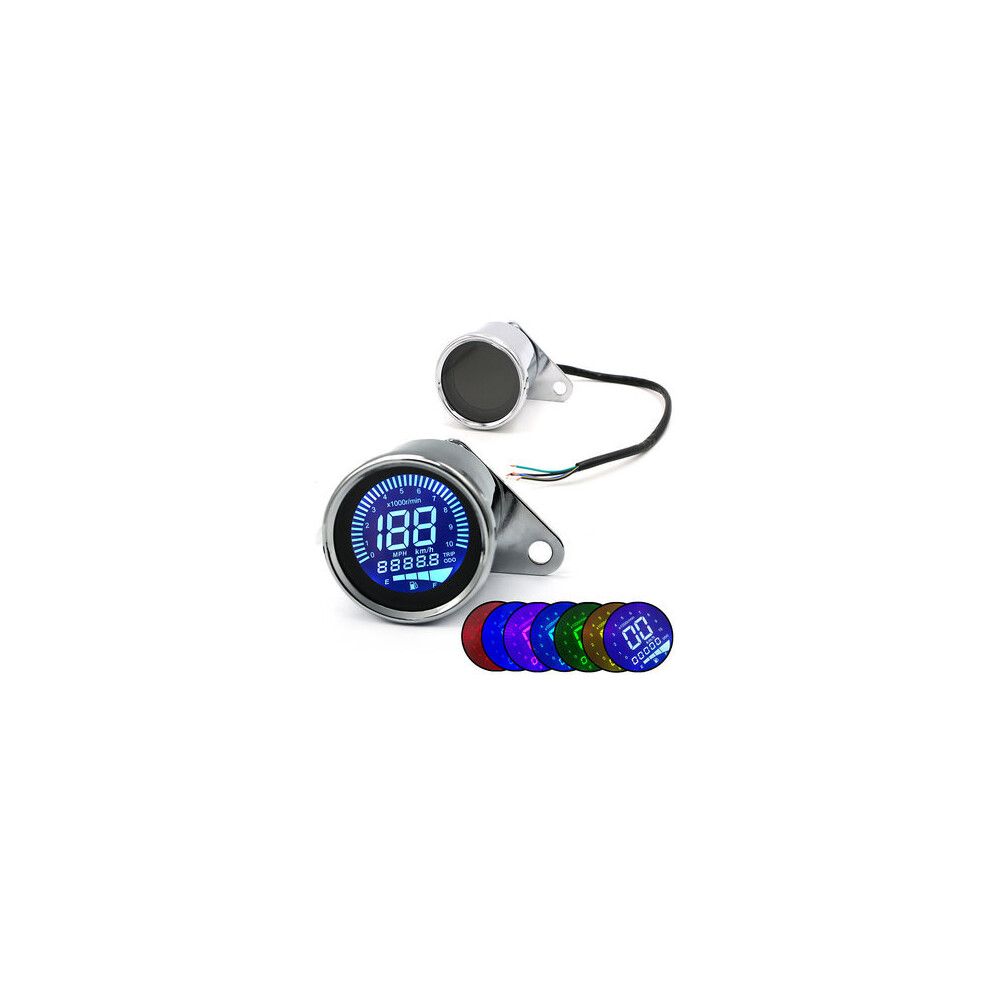

Description: LCD digital displayFuel level gauge. Both MP/H And KM/H Are Available.4 IN 1 Muti-function Gauge.Easy to install.Fits for all motorcycle.High capacity and practical..General mechanical speed line interface..ODO/TRIP function can be switched on the black button on the back of the meter.Specification: LED Backlight Colors:7 Colors Type: Motorcycle Odometer Tachometer (0-10000RPM) Model: B3180 Shape: Circle Material: Iron plating + Glass surface Color: Chrome  Voltage: DC 12V Speedometer unit: KM/H MP/H Odometer unit: km Odometer measurement: 0-199KM/HFitment: Universal Fit For All Motorcycle.  Wire Connection:  Black = Positive Green = Negative Blue White = Oil Gauge Yellow Black = Tachometer Signal  Setting: 1. Backlight Switch: press the button in the ODO state for 3 seconds to switch the backlight color 2. KM/H MP/H Switch : Press and hold the button and then Ignite the bike. The screen displays P0000. At this time, ones place 0 will flash, long press until tens place 0 flash, then short press to make tens place display 1,Then long press until hundreds place flash, And short press 6 times to display 6. Long press until thousands place flash, Short press 6 times to display 6, then the screen shows 00466, this means 46.6HZ corresponds to 60KM/H. Short press to skip this step , then the screen displays 1001,1001 means KM/H, if you want to switch to MPH, Lond press switch to 1002 , Which indicates that you have set it to MPH.  3.Cylinder Setting .Flowing the above steps. Short press the screen to display 2002, indicating that this is a 2-cylinder (166HZ corresponds to 10*1000RPM/MIN). Short press skip to the next step.long press untiel ones place flash, then long press to make the 2 swtich to 4 ,which means 4 cylinders (333HZ corresponds to 10*1000RPM/MIN), short press to skip to the next program. 4. Fuel Level settings. Follow the above steps, short press the until screen displays 3002, which means that this time is a 2-line oil meter, short press to save all settings and exit, long press until ones place flash, and then long press to display 3003, that means has switched to 3-line oil gauge.Note: Please allow 1-3MM differs due to manual measurement.Instuction is not included.  Package Included: 1 X Motorcycle Odometer
