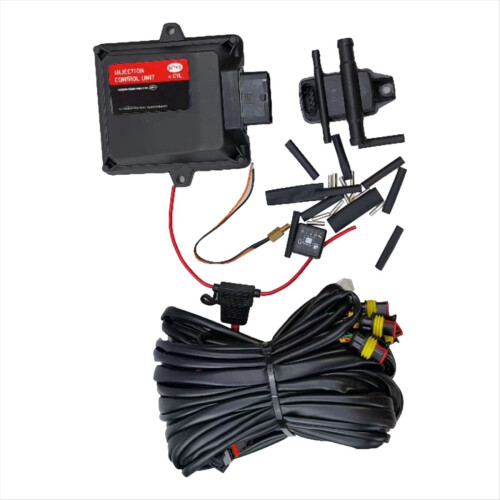

MP48 Gas ECU Kit 4 Cylinder Without OBD for RC Conversion Kit

MP48 Gas ECU Kit 4 Cylinder Without OBD for RC Conversion Kit Description

MP48 ECU (48 pin plug) is one of the most popular and non problematic autogas controller. Has been designed to enable conversions of 2, 3 and 4 cylinder engines equipped with sequential petrol injection. The controller offers high efficiency, but is at the same time compact in size and easy to fit.
MP48 ECU is designed for 3-4 cylinders multipoint timed sequential injection engines.
While running on gas, MP48 considers the petrol injection time and the pressure on the rail to calculate the equivalent amount of gas to be injected in the intake manifold to replicate the performance of the engine running on petrol MP48 is equipped with a diagnosis system on every Gas component, whose status can be monitored by the calibration software during the installation of the system and at any moment of the engine .
This feature may preventmalfunctioning problems and makes technical interventions easier.

Supply voltage: Vbatt=10-16V
Operating temperature: -40-110C
Current absorption with the actuators disabled: 0.5A
Current absorption in standby mode: Istandby 0.5A
Actuators managed:
up to 4 injectors with the following characteristics =6, Vbatt,max=16V
[Pmax=25W, =2A (power and maximum current for each output with two outputs enabled)
Pmax=50W, =4A (power and maximum current with just one output enabled)]
Sensors managed:

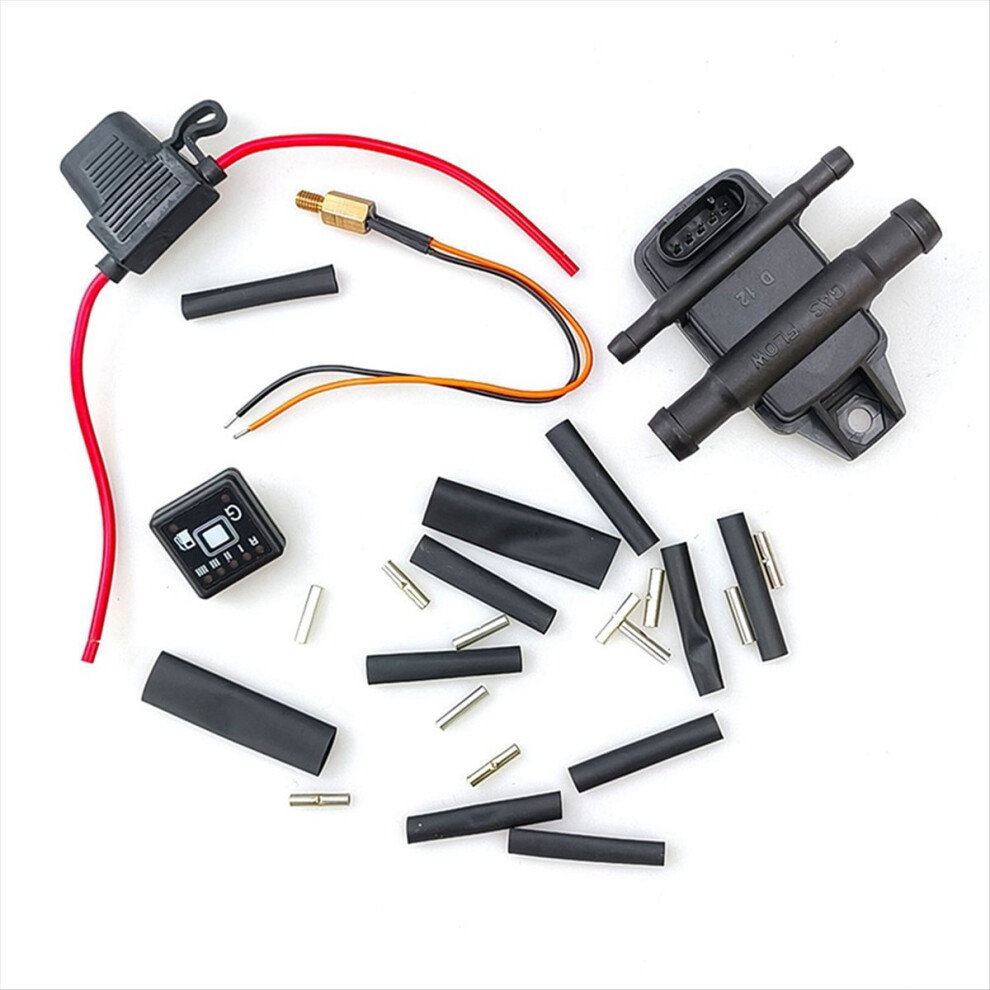

PT MAP sensor: 463059000 ( Ø10), 463500000 ( Ø12), 463505000 ( Ø14)
MAP sensor: the car's sensor
Gas temperature sensor: sensor (4.7kOhm - included in PT MAP sensor), 2.2KOhm sensor
Water temperature sensor: 4K7,
Gas level sensor: o-90Ω, non standard, non standard inverted
Oxygen sensor: 0-1V, 0-5V, 5-0V, 0.8-1.6V
Management of 119B type switch
There are some differences between the actual product and the picture due to different batches. There are differences in the printed labels, which not affect normal use.
Colour:Black
Material:plastic
Specification: B: Without OBD

Package Contents:

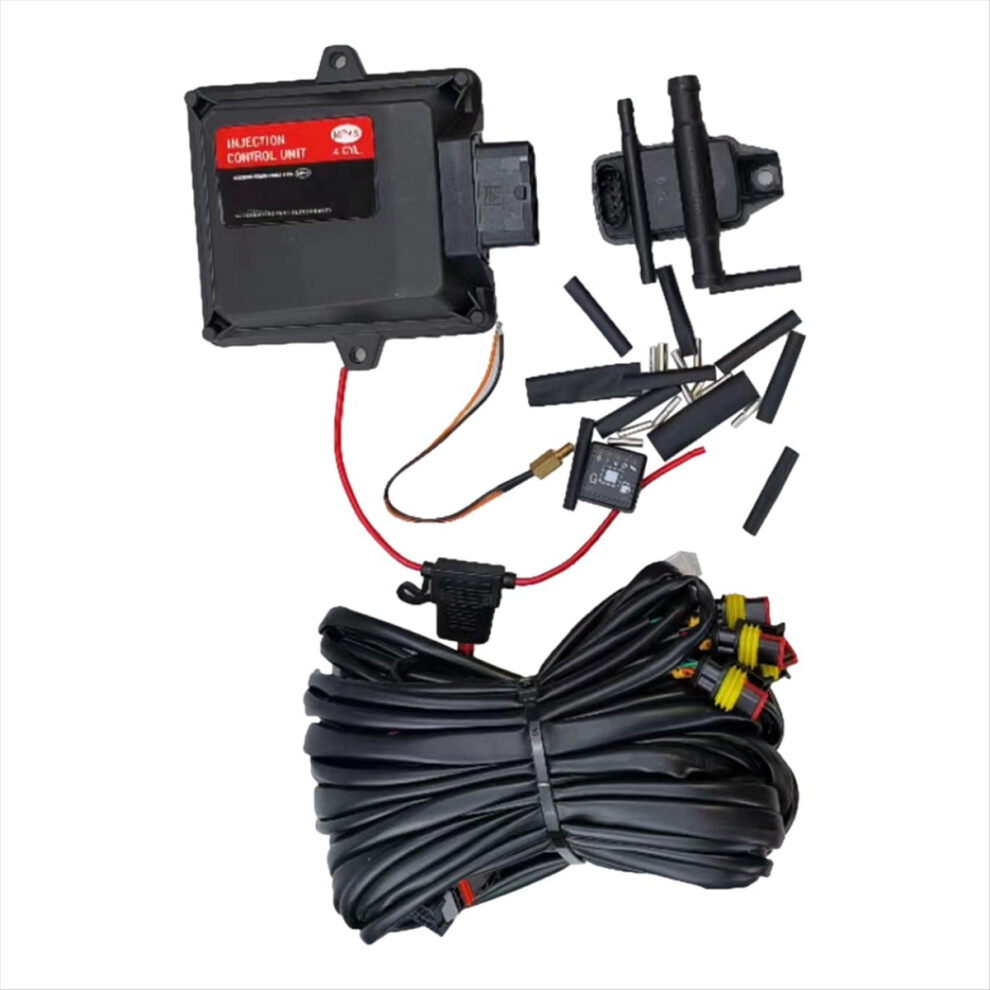

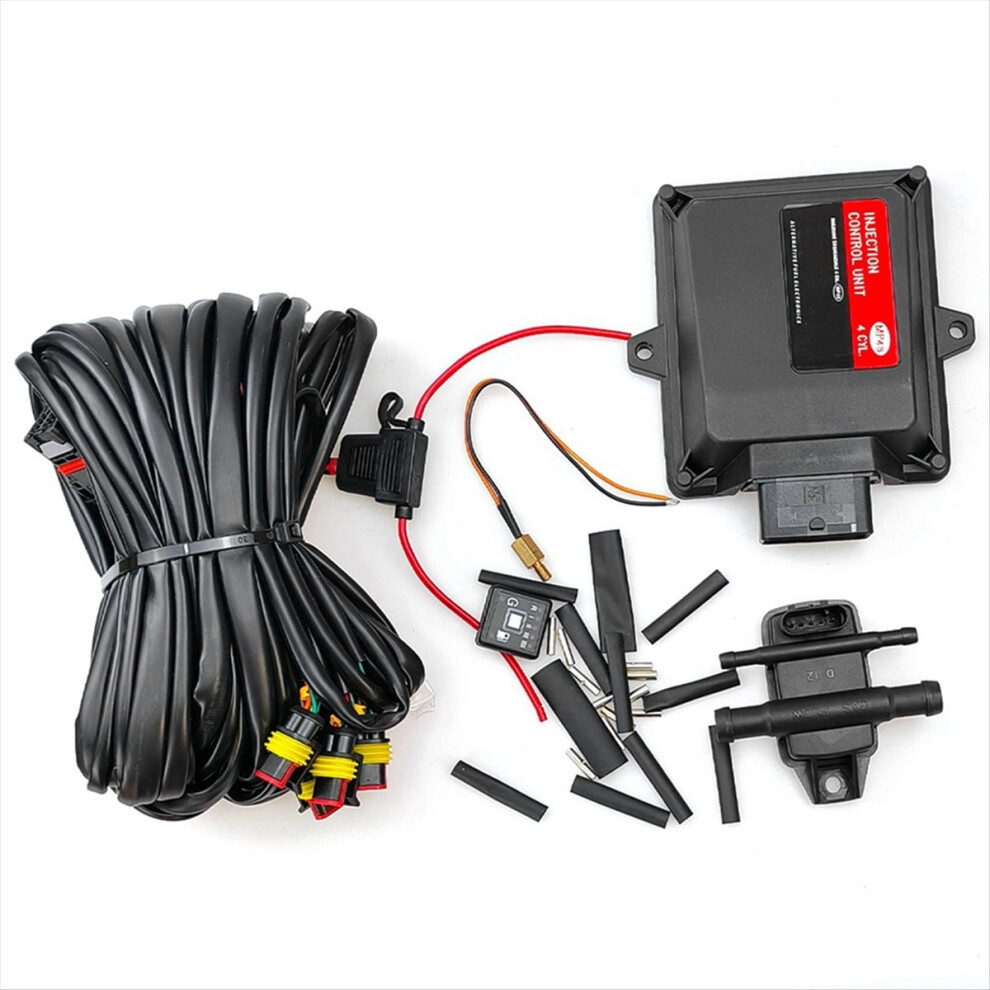

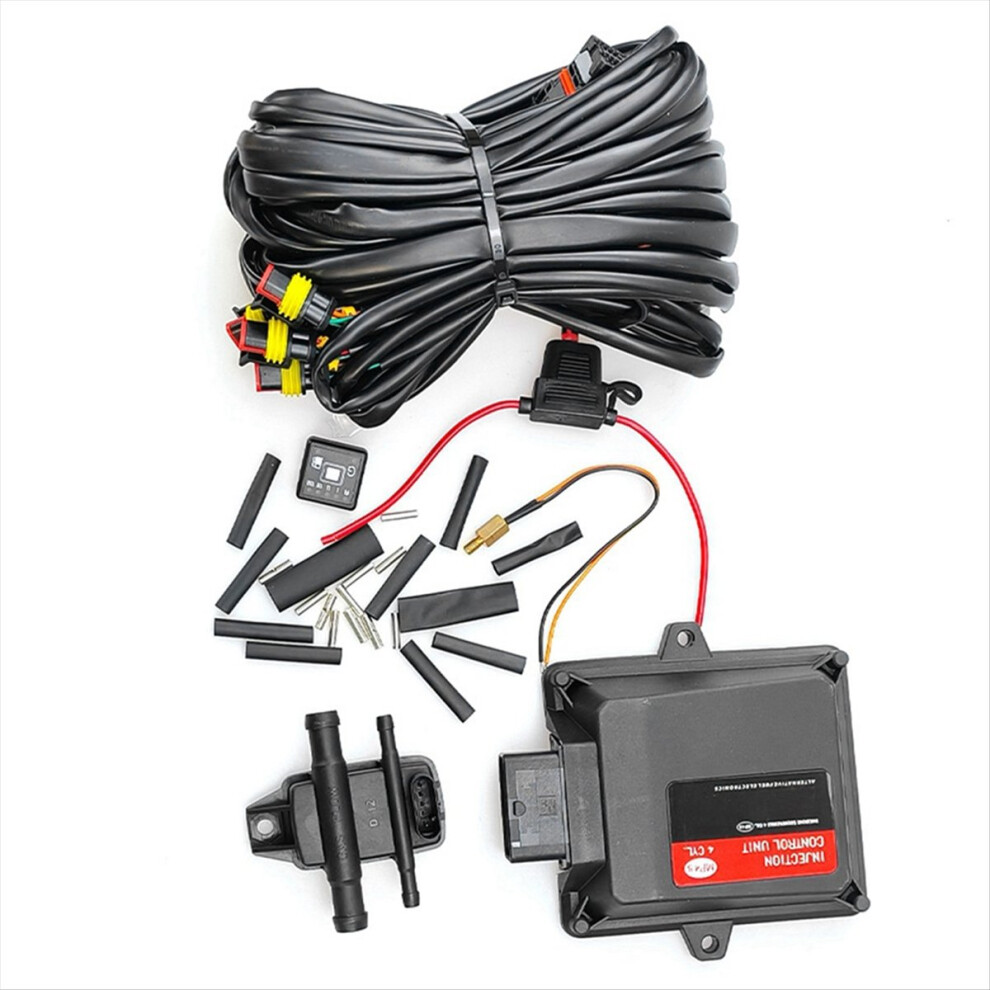

1 x MP48 Gas ECU kits

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
