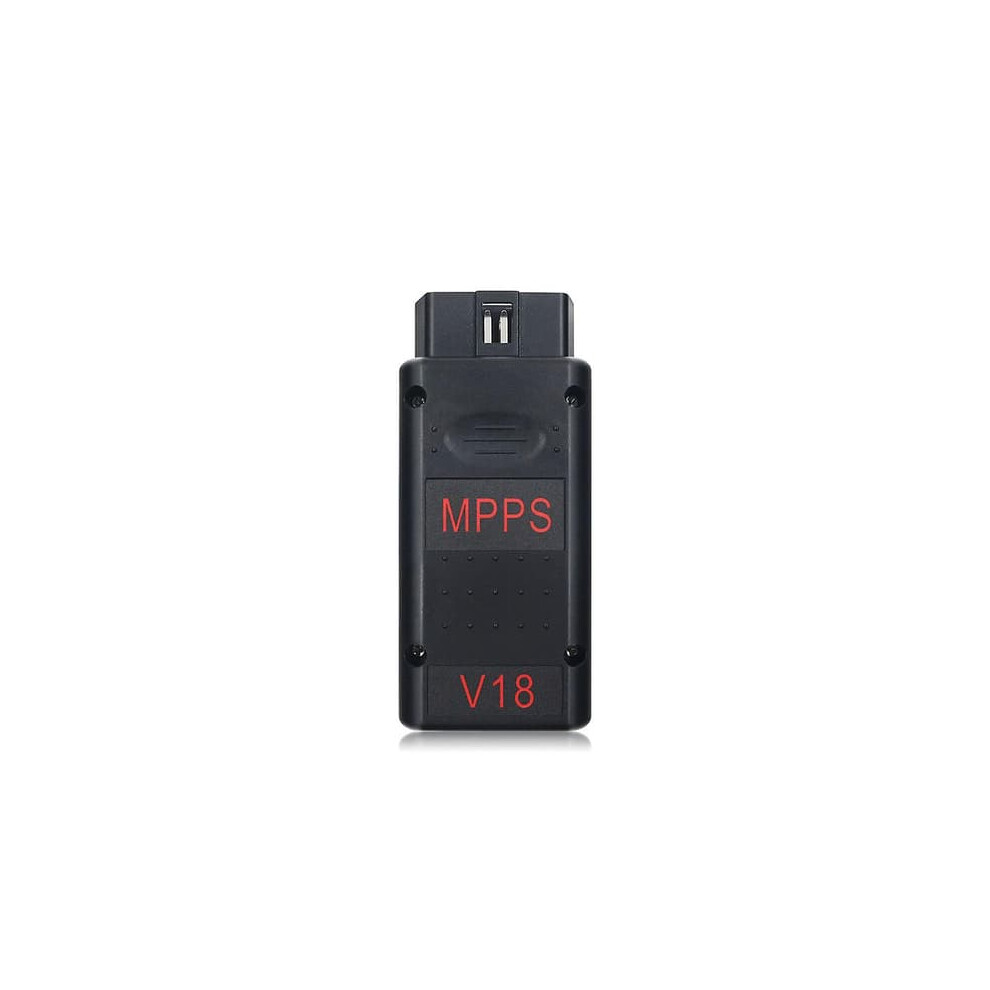

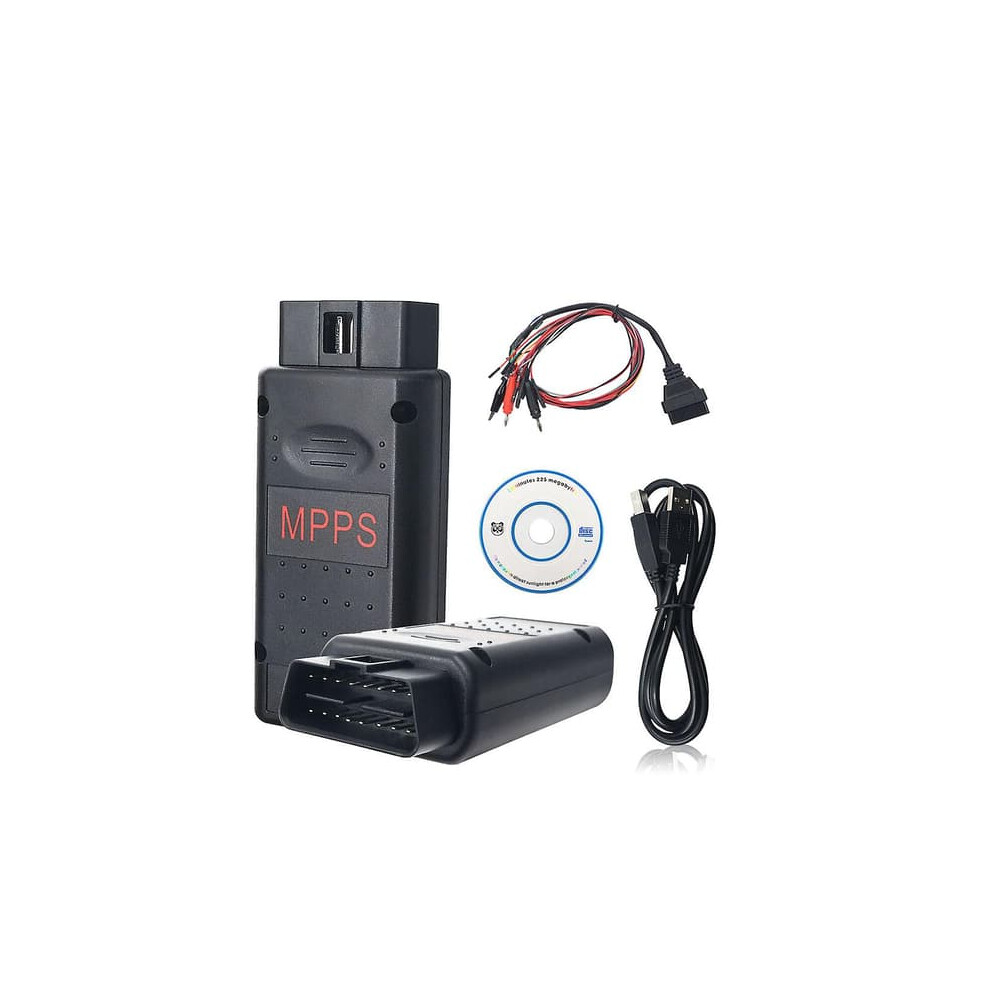

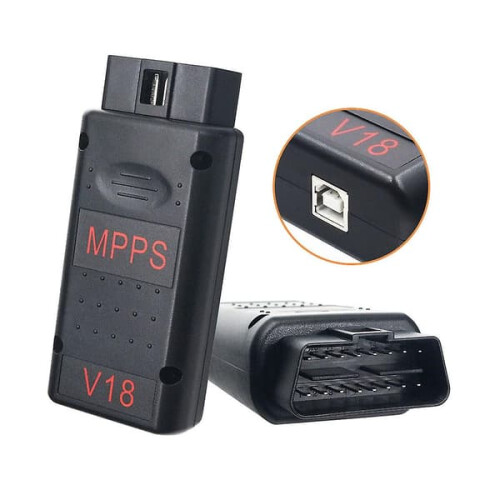

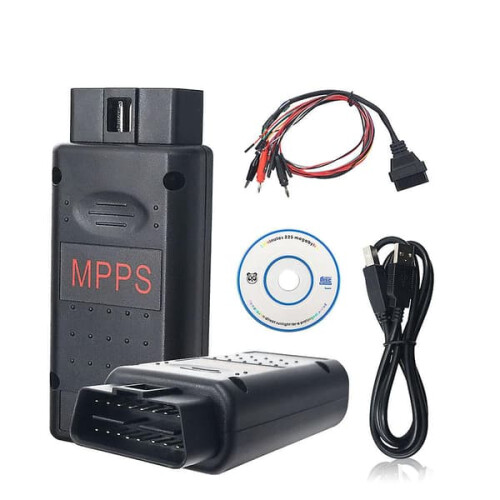

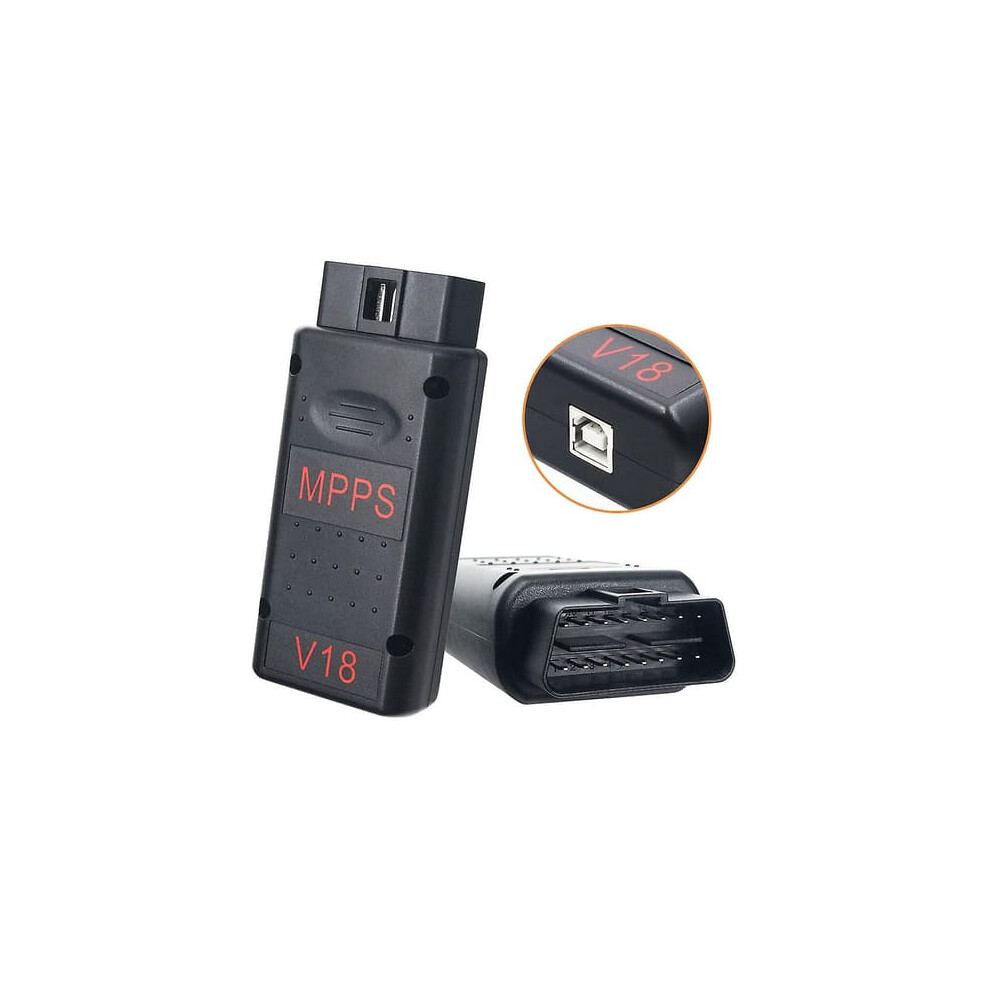

MPPS V18 OBD2 Diagnostic Tool with Tricore and Multiboot

MPPS V18 OBD2 Diagnostic Tool with Tricore and Multiboot Description

Automatic detection of K-Line/CAN, and the ability to bypass and force preferred means of communication. Temporary bypass of immobilizer to enable bench flashing on ME7 systems. Supports boot mode for ECUs with C167 and ST10 processors. EEprom read/write functions for some ECUs included. For MEDC17 TPROT level check without opening the ECU. 1. Install on Win7 system 2. Install the driver well and then open the software, otherwise the software cannot be opened. Make sure you use the driver from our CD, DO NOT USE the driver for other MPPS versions. This module adds support for advanced functions on for ECUs. MPPS covers a number of ECUs including M3.8, M5.9, ME7xx, MED9, MED17, EDC15/16/17, for , for , for , for Delco, for , for Trionic and many others Fitment: For 6JF - Full Read/Write type and EEprom via K-line. For 8DF - Full Read/Write type and EEprom via K-line. For 8F2 - Full Read/Write type and EEprom via K-line and CAN. For 8F3 - Full Read/Write type and EEprom via K-line and CAN. For 8GM - Full Read/Write type and EEprom via CAN. For 8GS - Full Read/Write type and EEprom via CAN. For 5SF3 - Full Read/Write Flash and EEprom via CAN. For 5SF3 - Full Read/Write EEprom via K-Line. For 5SF8 - Full Read/Write Flash and EEprom via K-line and CAN. For 5SF9 - Full Read/Write Flash and EEprom via CAN. Material: ABS plastic Color: black Package Contents: 1 * MPPS V18.12.3.8 1 * Breakout Tricore Cable 1 * Connection Cable 1 * CD The above package contents only, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
