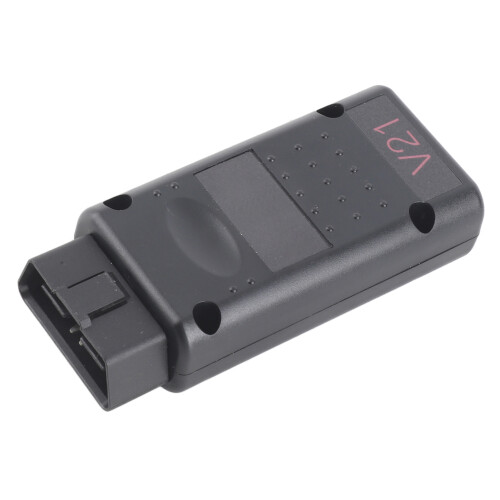

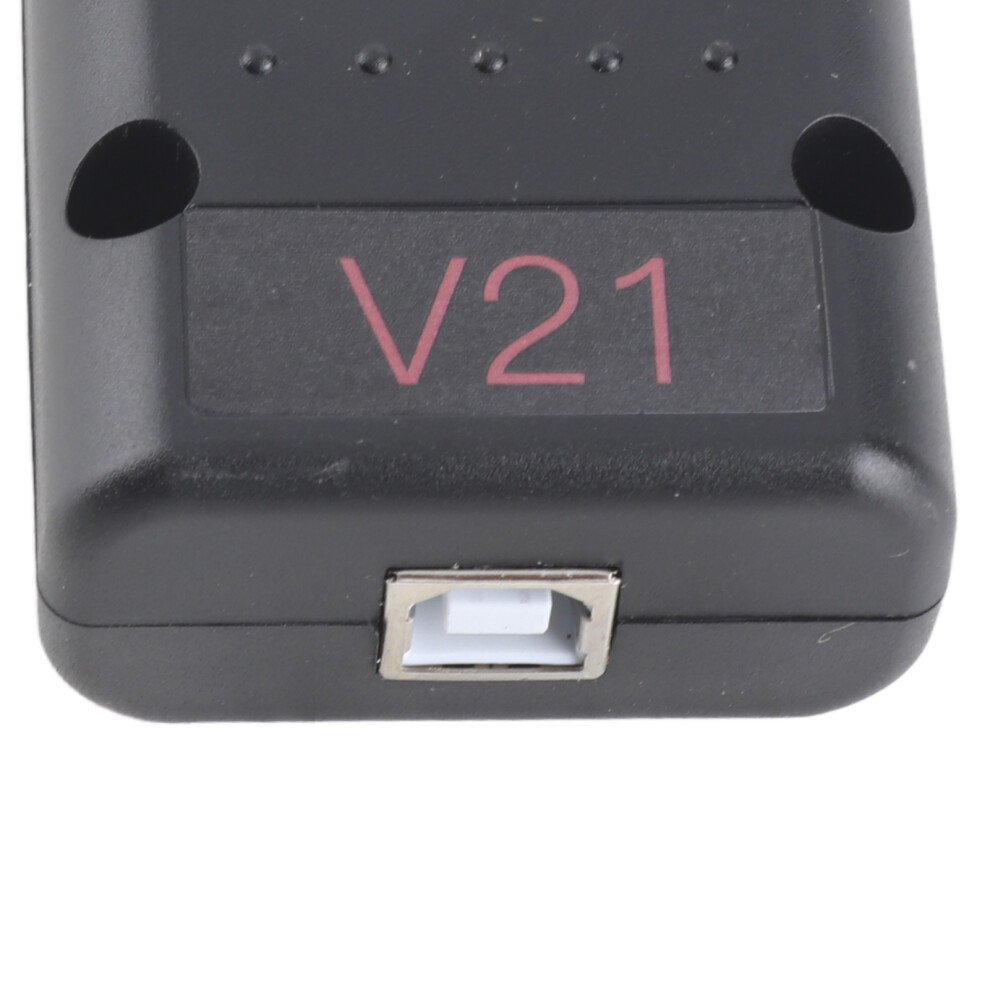

MPPS V21 Tricore Cable ECU Tuning Scanner with Auto Processor Detection

MPPS V21 Tricore Cable ECU Tuning Scanner with Auto Processor Detection Description

MPPS V21 Main+Tricore+Multiboot Tricore Cable ECU Chip Tuning Scanner for Car Diagnostic
Item Type: ECU Chip Tuning Scanner
Material: ABS
Color: As picture shown

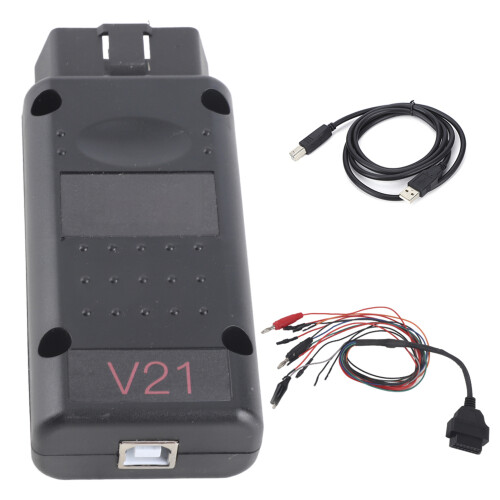

MPPS V21 MAIN + TRICORE + MULTIBOOT with Tricore Cable
This module adds support for advanced functions on Marelli ECU's. MPPS covers a range of controllers including for M3.8, for M5.9, for ME7xx, for MED9, for MED17, for EDC15/16/17, for Delphi, for Marelli, for Sagem, for Trionic and many others…
MPPS V21 Features:
Read / Write of Micro, Flash and EEprom without using a programmer!
Fit for 6F3 - Full Read / Write Micro, Flash and EEprom over K-line and CAN.
Fit for 6JF - Full Read / Write Micro and EEprom over K-line.
Fit for 8DF - Full Read / Write Micro and EEprom over K-line.
Fit for 8F2 - Full Read / Write Micro and EEprom over K-line and CAN.
Fit for 8F3 - Full Read / Write Micro and EEprom over K-line and CAN.
Fit for 8GM - Full Read / Write Micro and EEprom over CAN.
Fit for 8GS - Full Read / Write Micro and EEprom over CAN.
Fit for 5SF3 - Full Read / Write Flash and EEprom over CAN.
Fit for 5SF3 - Full Read / Write EEprom over K-Line.
Fit for 5SF8 - Full Read / Write Flash and EEprom over K-line and CAN.
Fit for 5SF9 - Full Read / Write Flash and EEprom over CAN.
Fit for ME7.9.10 - Full Read / Write Micro over CAN.
Fit for ME7.6.3 - Full Read / Write Micro over CAN.
Fit for 6O2 - Full Read / Write Micro, Flash and EEprom over K-line and CAN.
Fit for 6O3 - Full Read / Write Micro, Flash and EEprom over K-line and CAN.
Fit for 6JO - Full Read / Write Micro and EEprom over K-line.
This module adds boot mode support for controllers with the tricore processor. Features:
Auto detects ECU and processor type. No need to select from list, everything is automatic!
Read/Write of all memories Eeprom, Irom, Xrom (where possible)
Patch function for OBD Flashing of TPROT ECU's
TPROT / for DS check feature, for testing if TPROT is active without opening ECU.
Supports for upto TP12
Support for unlocking of Simos PCR and Simos 8.
Checksum Correction supported for MEDC17.
The MPPS is a powerful programming tool. It offers general reading / writing operations and checksum support, however it also includes some additional features:
Excellent recovery functions. In some cases MPPS can recover ECU's which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).
Selectable full / partial reading and writing when the ECU allows this function.
Selectable reading / writing speed.
Writing "changes only" function for faster programming (when supported by the ECU).
Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.
Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.
Boot mode support for ECU's with C167 and ST10 processors.
EEprom read/write functions for some ECU's are included.
MEDC17 TPROT level checking without opening the ECU.
