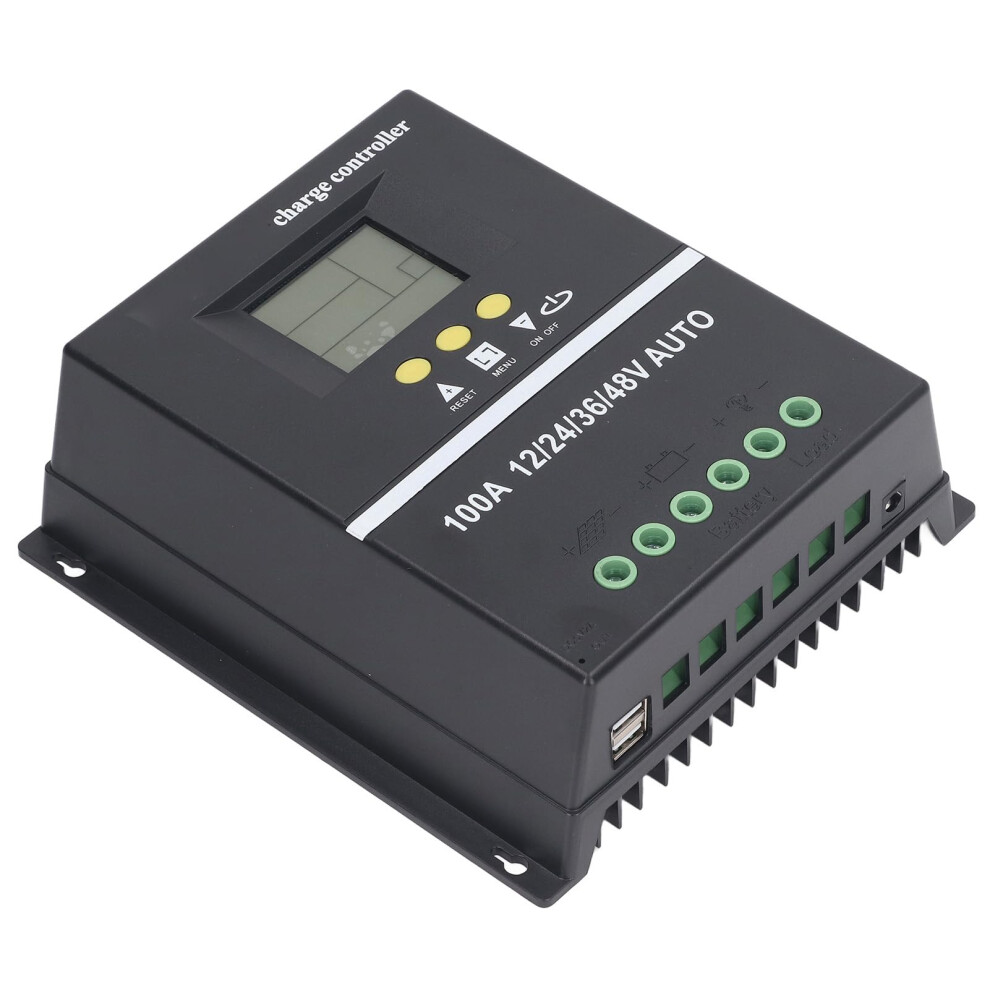

MPPT Solar Charge Controller 12V 24V 36V 48V, Adaptive 7 Modes, Reverse Polarity Protection

MPPT Solar Charge Controller 12V 24V 36V 48V, Adaptive 7 Modes, Reverse Polarity Protection Description

Solar Panel Controller - Adaptive MPPT Charge Controller Key Benefits Maximizes solar energy capture with MPPT technology, converting more sunlight into usable power for lighting systems. Supports four input voltage ranges (12 V, 24 V, 36 V and 48 V), allowing flexible use with a wide variety of solar panels. Seven selectable operating modes automatically adapt to different load types, ensuring charging and protection for batteries and lights. Built‑in reverse‑connection protection prevents damage if solar panel wires are installed incorrectly. Simple wiring and plug‑in connectors make installation quick and error‑, even for users with minimal electrical experience. Core Features MPPT (Maximum Power Point Tracking) for conversion efficiency. Adaptive voltage selection: 12 V, 24 V, 36 V or 48 V input. Seven operating modes: PWM, MPPT, Boost, Buck, Buck‑Boost, Float and Equalize. Reverse polarity protection to safeguard the controller and connected components. LED status indicators display power input, charging status and fault conditions. Compact, robust plastic housing designed for indoor or sheltered outdoor mounting. Temperature‑compensated charging algorithm extends battery life in varying climates. Compatibility Works with sealed lead‑acid, lithium‑iron‑phosphate and gel batteries in the supported voltage range. Ideal for off‑grid lighting arrays, garden illumination, RV or boat lighting systems, and remote signage. Typical Applications 1. Off‑grid garden lighting - Connect a 24 V solar panel array to the controller and link it to LED floodlights. The controller tracks the maximum power point and supplies a steady charge to the battery, keeping lights on throughout the night. 2. Remote construction site illumination - Use a 48 V panel setup to charge a battery bank that powers ‑bay LED work lights. The controller's reverse‑connection safety and multi‑mode operation handle varying load demands without manual adjustments. 3. Small‑scale renewable lighting for cabins - Pair a 12 V panel with a lithium‑iron‑phosphate battery and interior LED fixtures. The controller's compact size fits easily on a cabin wall, providing reliable power with minimal wiring. Installation Highlights Connect the solar panel leads to the designated input terminals, respecting polarity (the controller will protect against accidental reversal). Attach the battery leads to the output terminals, matching the selected voltage range. Choose the appropriate operating mode via the mode selector switch; the controller will automatically adjust charging parameters. Verify status LEDs for correct operation before powering the lighting load. Performance Summary conversion efficiency through MPPT tracking, typically achieving 95 % or greater under sun exposure. Stable voltage regulation across all supported modes, preventing over‑charging and extending battery lifespan. Designed for reliable long‑term operation in outdoor lighting projects with minimal maintenance. This solar panel controller provides a practical, adaptable solution for any low‑voltage solar lighting installation, delivering efficient power management, safety features and ease of use.
