Description & Details
Summary
- 1. High-quality double-panel design with power indication and TTL signal output indication;
- 2. DO switch signal (TTL) output and AO analog signal output;
- 3. TTL output high and low levels. (Can be directly connected to a single-chip microcomputer or relay module)
- 4. Analog output voltage changes with concentration.
- 5. There is a screw hole for easy positioning;

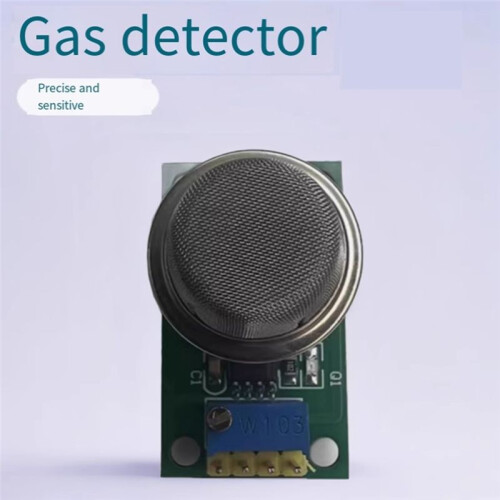

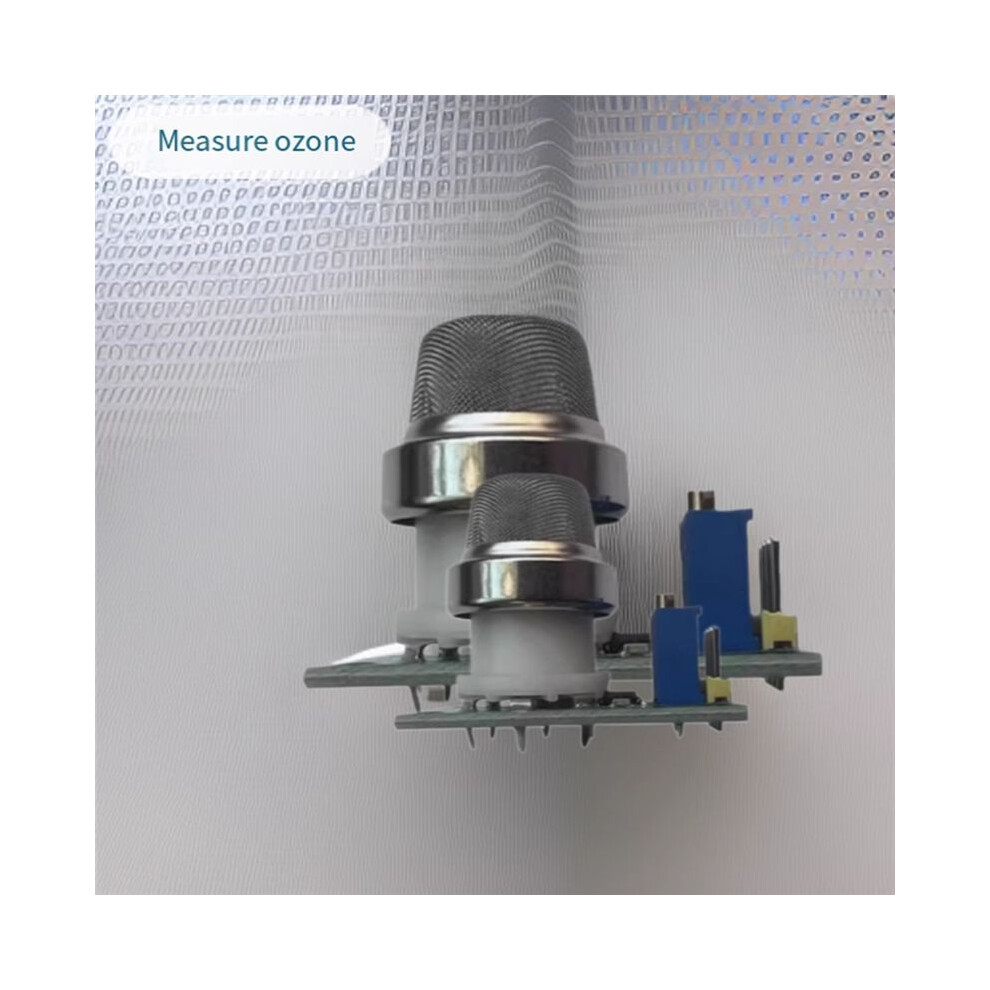

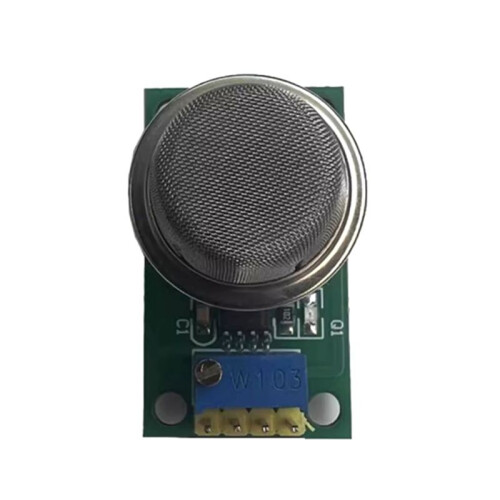

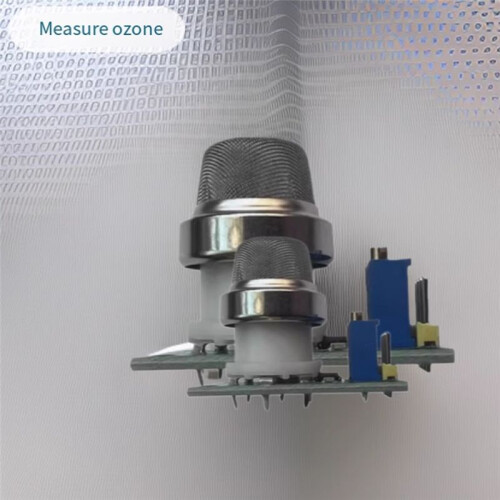

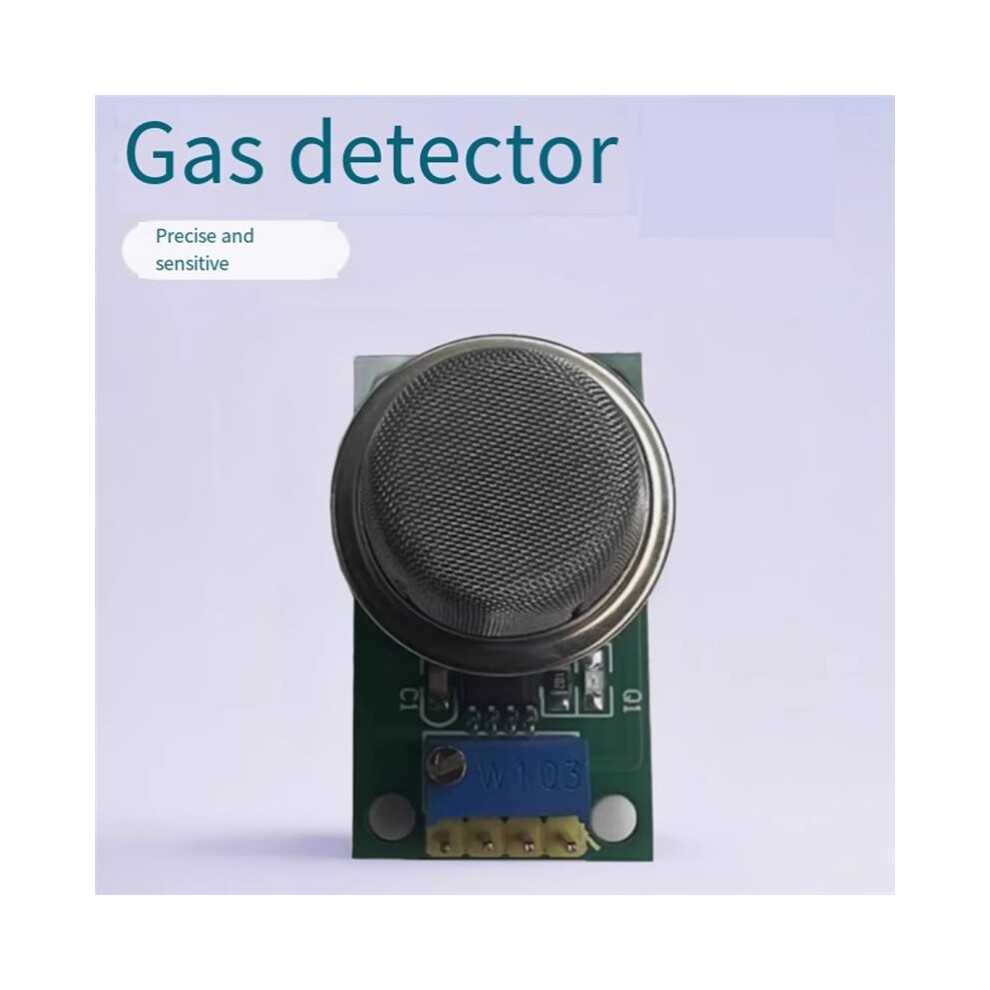

MQ138 Formaldehyde Gas Detection Sensor Formaldehyde Sensor Module Gas Sensor High Sensitivity 4.5-5.5V 10A TTL Description
1. High-quality double-panel design with power indication and TTL signal output indication;
2. DO signal (TTL) output and AO analog signal output;
3. TTL output high and low levels. (Can be directly connected to a single-chip microcomputer or relay module)
4. Analog output voltage changes with concentration.
5. There is a screw hole for easy positioning;
With long service life and reliable stability
Fast response recovery characteristics
Electrical performance:
Input voltage: DC5V Power consumption (current): 150mA
DO output: TTL digital quantity 0 and 1 (0.1 and 5V)
AO output: analog level signal
Special reminder: After the sensor is powered , it needs to be preheated for about 20S before the measured data is stable. It is normal for the sensor to heat because there is a heating wire inside. If it is hot, it is not normal.

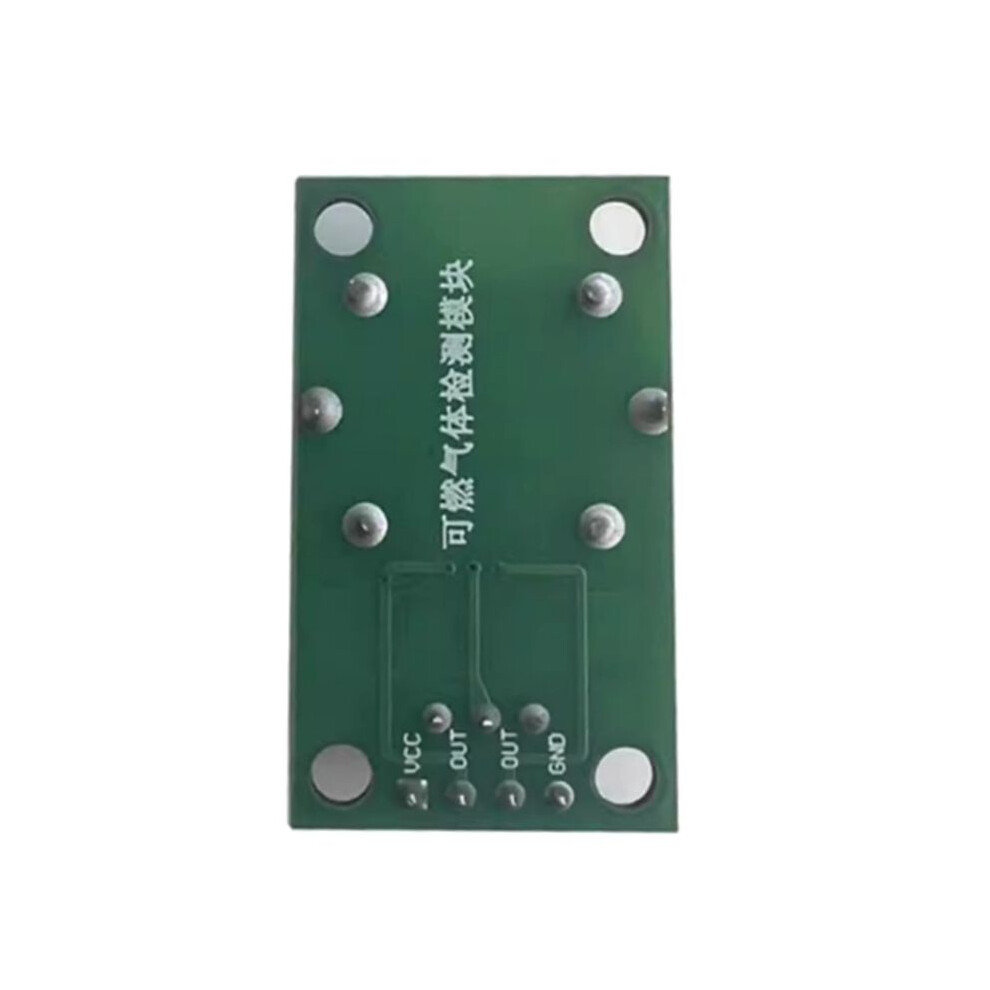

Wiring method:
1. VCC: connected to the positive pole of the power supply (5V)
2. GND: connected to the negative pole of the power supply
3. DO: TTL signal output
4. AO: analog signal output
5. There are fixing bolt holes for easy installation
Color: As Shown
Material: PCB
Package Contents:
1 x MQ138 Formaldehyde Sensor Module
Details
| OPC | PRSKBR7 |
|---|---|
| Brand | Jojomino |
| Codes | 6031192241081 (EAN) |
Product Data
| Height | 7cm |
|---|---|
| Width | 10cm |
| Length | 10cm |
| Weight | 0.15kg |
| Colour | As Shown |
| Material | PCB |
