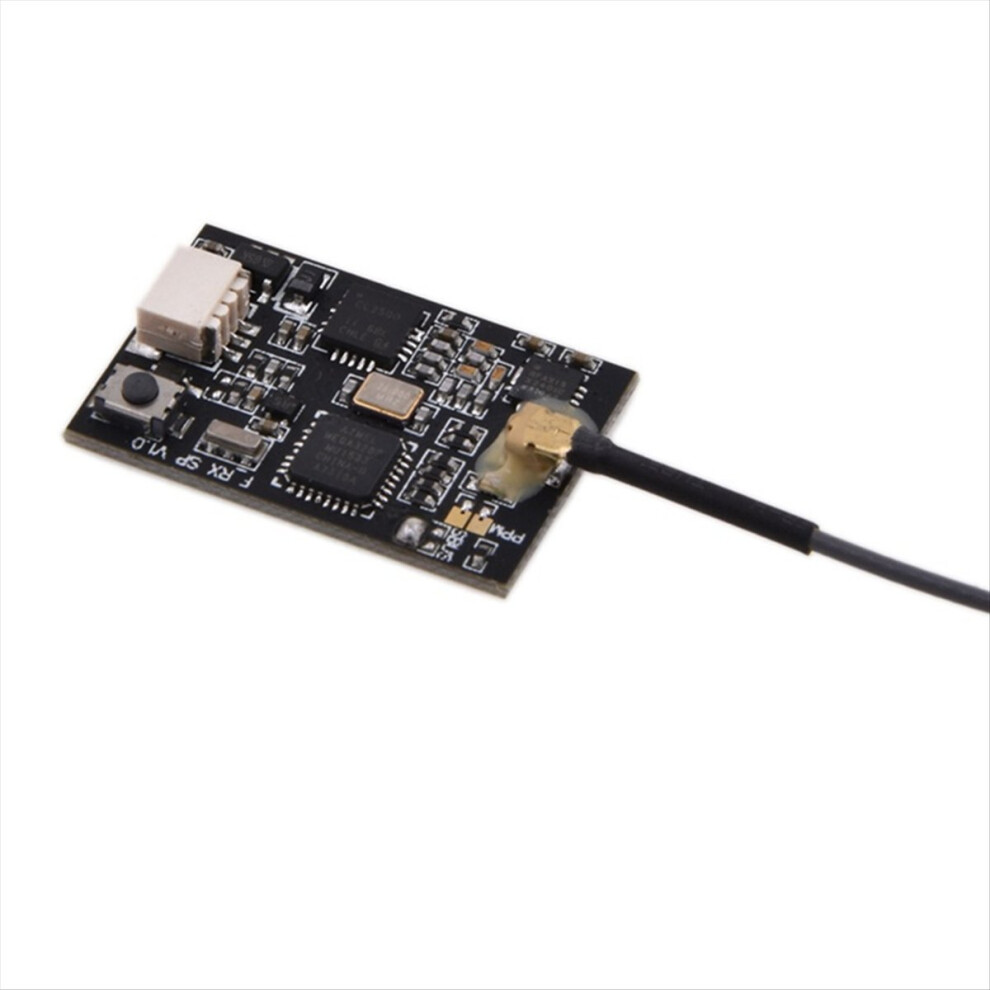

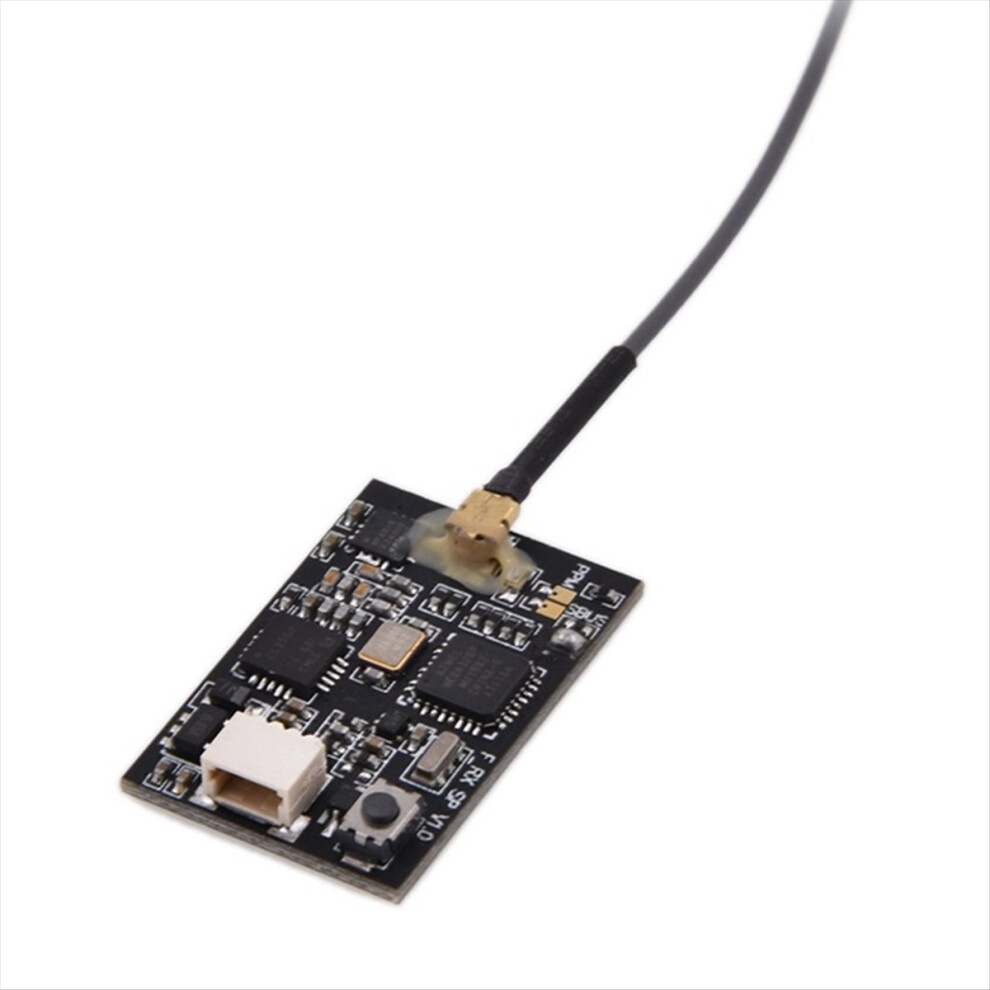

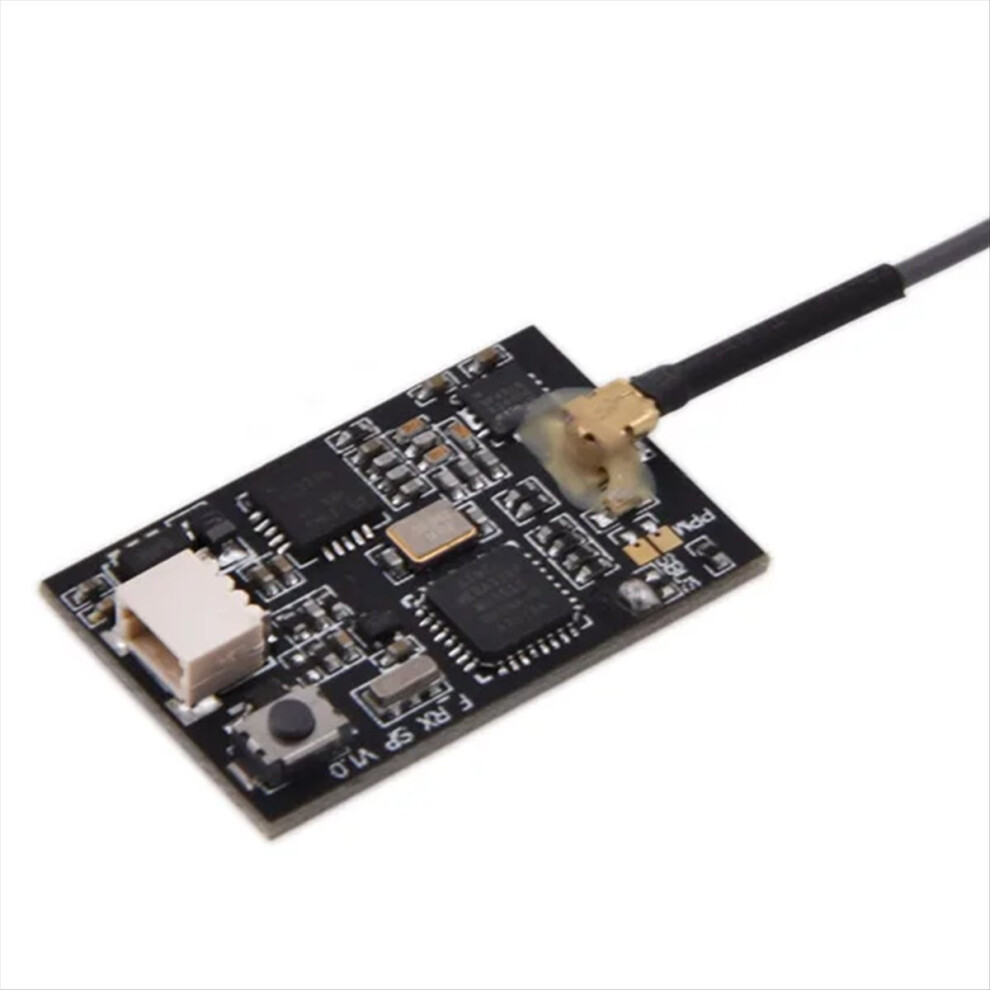

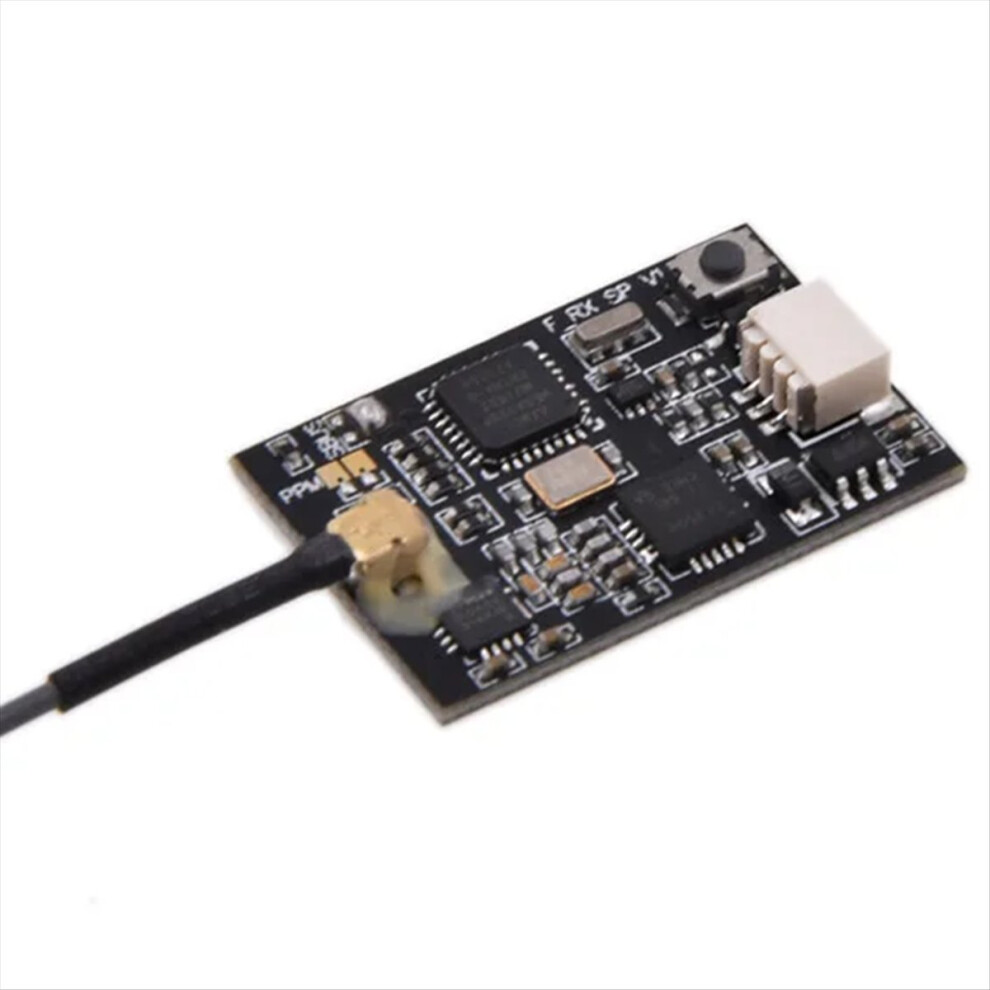

MRF8CHA 2.4G for 8CH Output SBUS Mini D8 Receiver Module

MRF8CHA 2.4G for 8CH Output SBUS Mini D8 Receiver Module Description

Use high-quality PC to high receiving sensitivity.
Miniaturized design, MRF8CHA uses tiny components, the overall size is smaller, suitable for ultra-small aircraft.
Serial signal S-BUS/(8CH) output, directly connected to the flight control system, specially designed for miniature aircraft such as ride-through aircraft.
The remote control system has two-way communication, which can display real-time change data such as the voltage and received signal of the receiver on the remote control end.

Model:MRF8CHA
Working voltage:4.8V-8.4V
Size:20x12x5mm () (without antenna)
Weight:1.8g ()
Output channel:S-BUS (8CH)
Receiving antenna:single antenna
Communication data:two-way communication
Compatible system:
Compatible with for OPEN TX D8 remote control system.
Suitable for X9D, X9DP, XJT and other remote controls that support D8 format

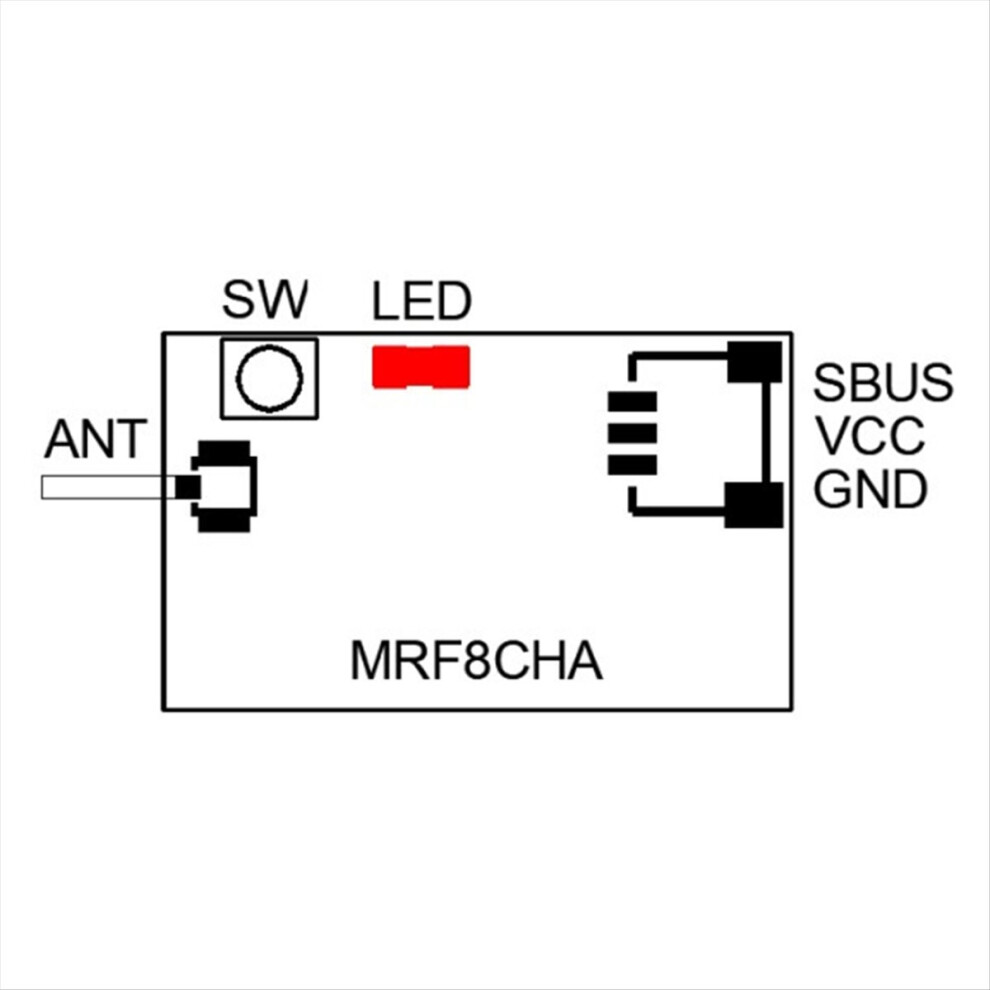

Code description:
1. Open the remote control and select MENU and enter the MODEL SETUP (system) menu, move the cursor to select D8 mode And the BIND function.
2. and hold the SW button of the receiver first and then power on. The red light of the receiver is on and then goes out to indicate the completion of the linking.
3. The remote control exits the BIND function, and the red light is on after the receiver is powered on again, it means the linking is successful.
4. If the linking fails, please repeat the above steps.
Due to different product batches, the appearance , which does not affect the use.
Colour:As Shown
Material:PC

Package Contents:
1 * Receiver Module

Only the above package content, other products are not included.
