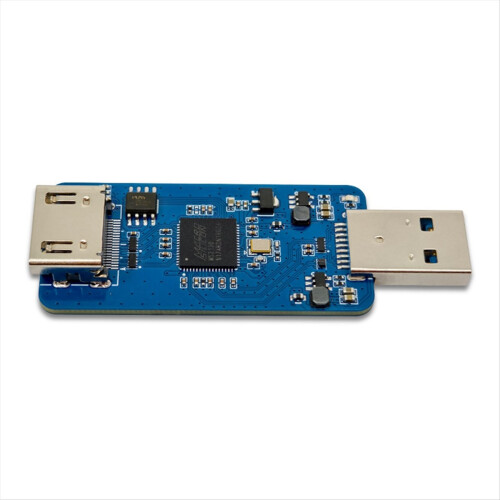

MS2109 -Compatible to USB2.0 HD Video Capture Card

MS2109 -Compatible to USB2.0 HD Video Capture Card Description

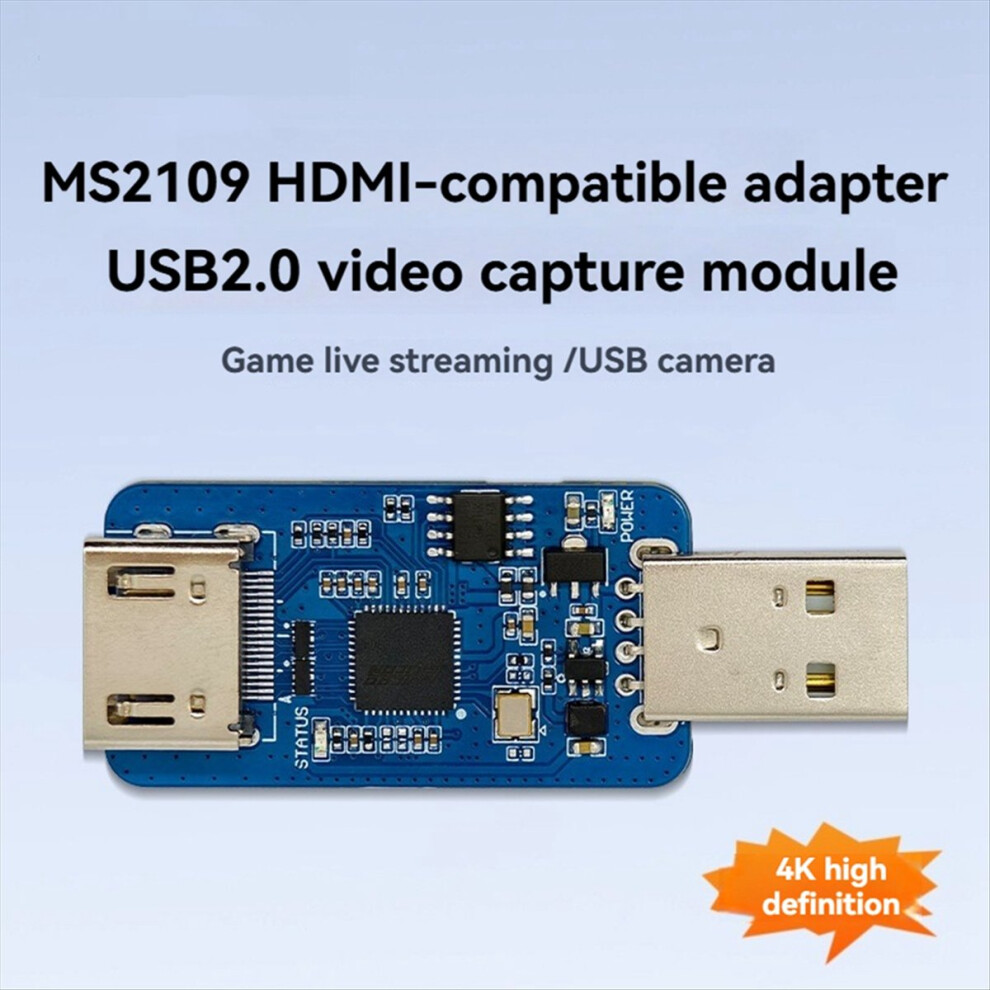

MS2109 to USB 2.0 Video Capture Module. Game Live Streaming/USB Camera
USB 2.0 Type A Male Output, 4K@30Hz
Type A Female Input
Maximum input resolution 4K@30Hz for crisp detail, capturing exciting moments. Supports deep color 24/30/36-bit modes and -861-E/-861-F video formats
Game live streaming allows you to capture your while simultaneously gaming and live streaming for smoother gameplay. Supports YUV and MJPEG output modes, with a maximum output resolution of 1920 x 1080@30Hz. The MS2109 is a high-definition video capture chip integrating a USB 2.0 controller, data transceiver module, HD RX module, and audio and video processing modules. The MS2109 can transmit HD audio and video signals via USB to PCs, tablets, and other devices for preview or capture

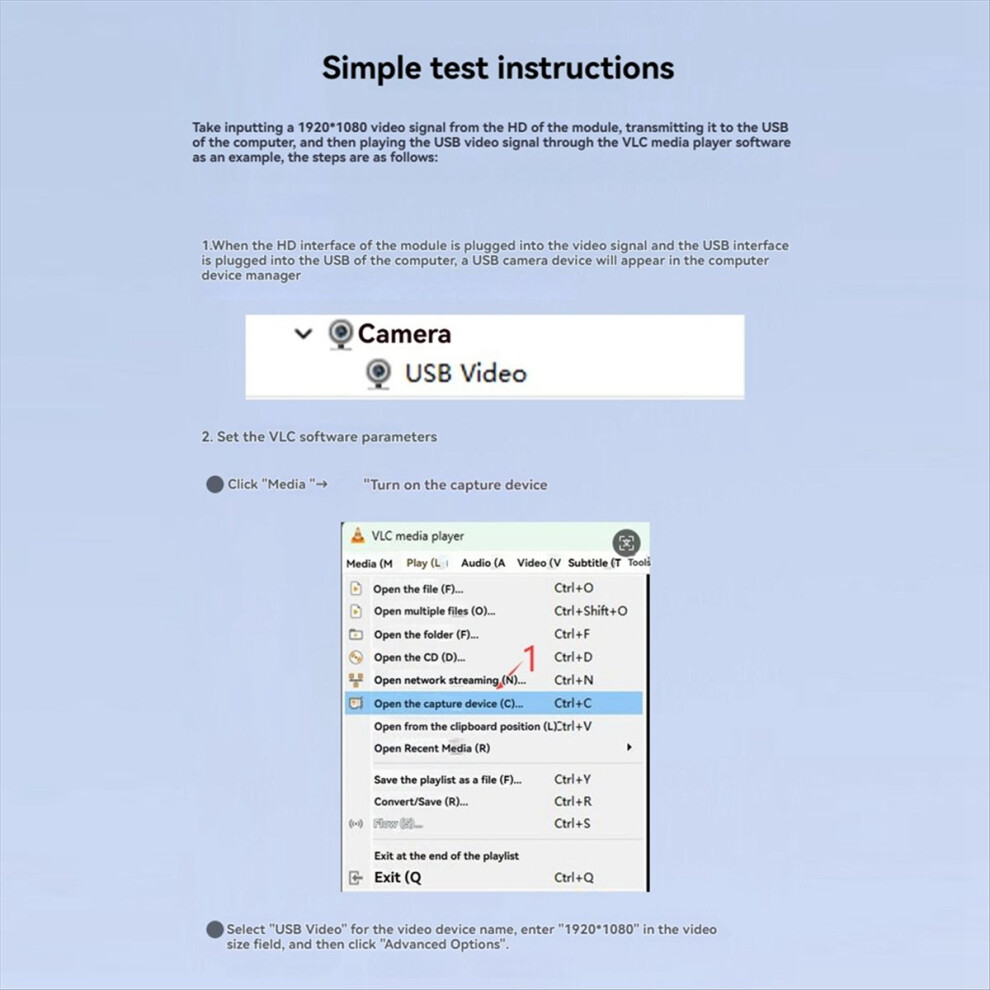

Plug-and-play, multi-OS compatibility, supports , Android, and macOS. Simple test instructions:
For example, we'll input a 1920 x 1080 video signal from the module's port, transfer it to a computer's USB port, and then play the USB video signal using VLC media player. The steps are as follows:
1. Connect the video signal to the module's port and the USB port to the computer's USB port. The USB camera device appear in the computer's device manager.
2. Set the VLC software parameters.
Click "Media" "Open Capture Device."

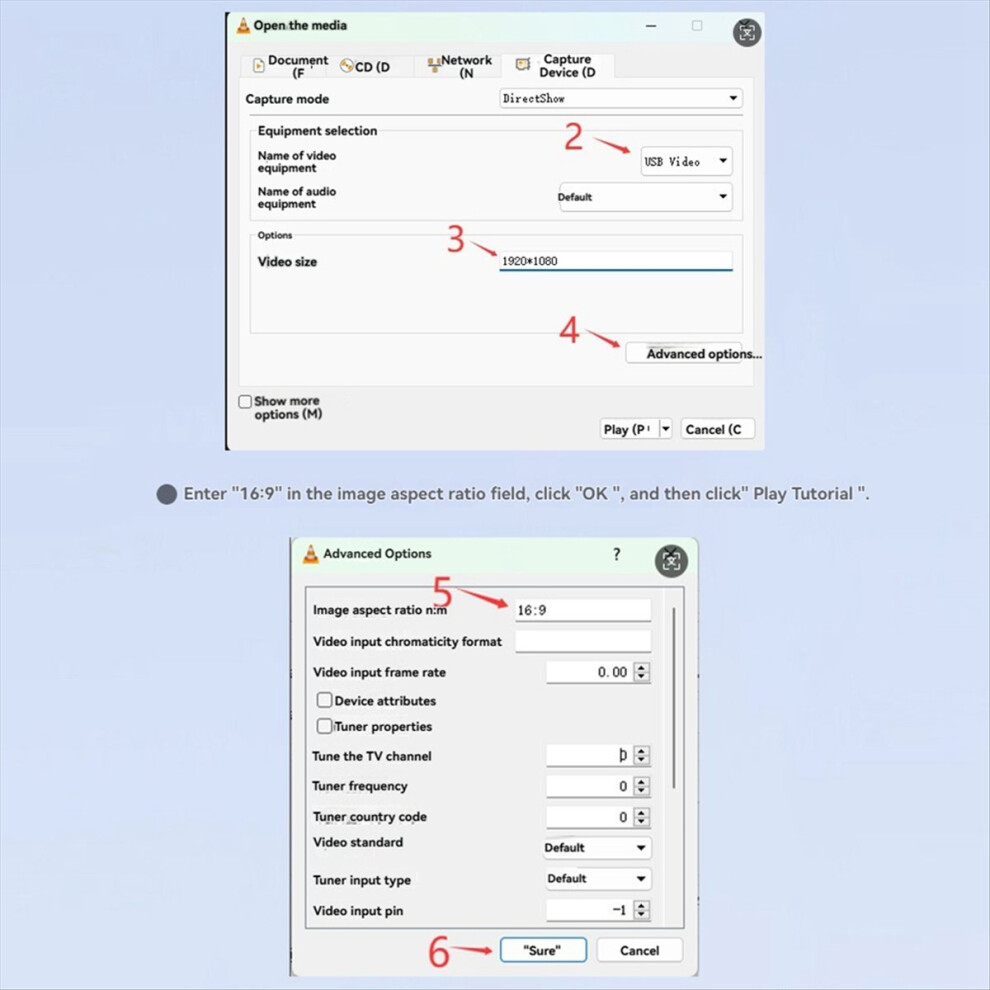

Select "USB Video" for the video device name, enter "1920 x 1080" for the video size, and then click "Advanced Options."
Enter "16:9" for the image aspect ratio, click "OK," and then click "Play."

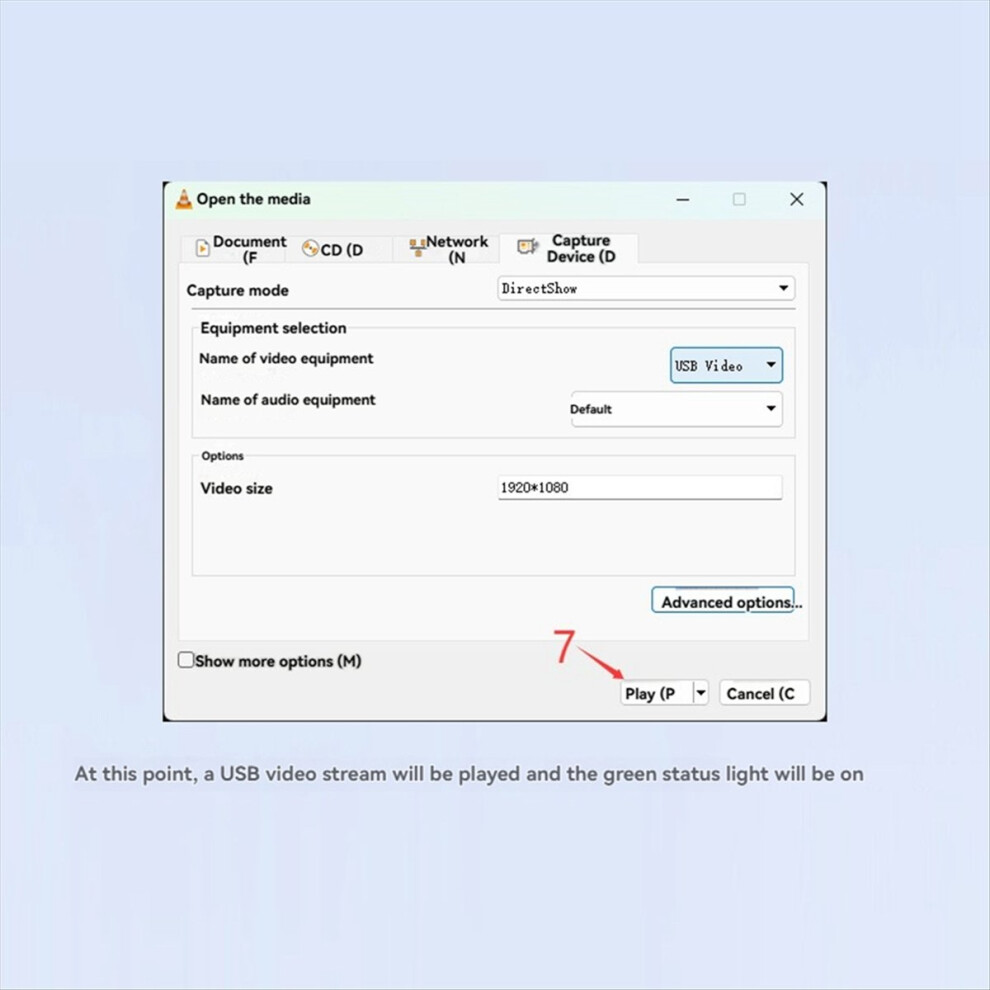

3. The USB video stream now play, and the green status light illuminate.
Specifications: USB 2.0
Color: As Shown
Material: PCB

Package Contents:
1 * Adapter Card

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
