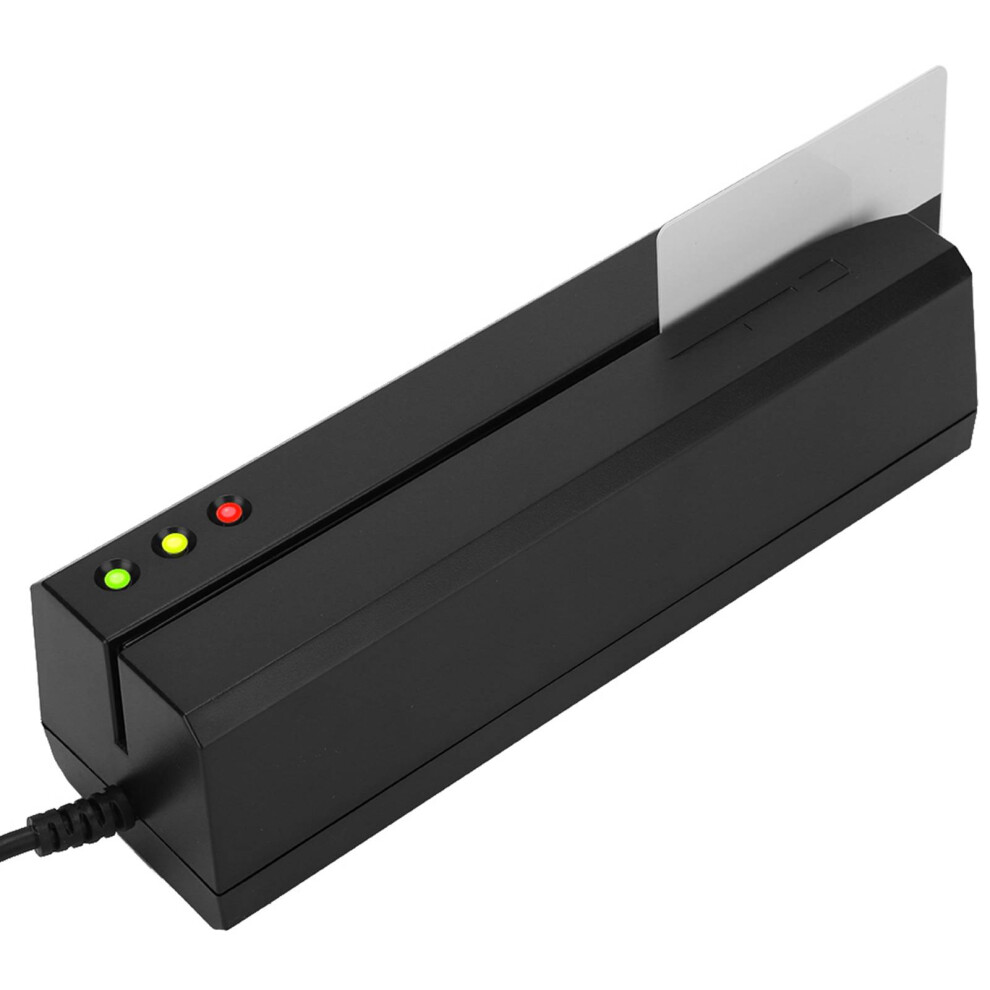

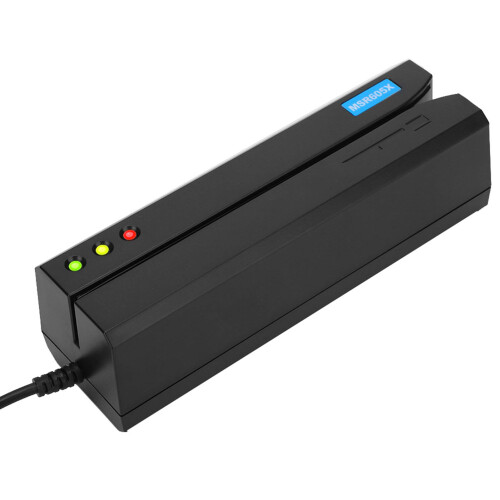

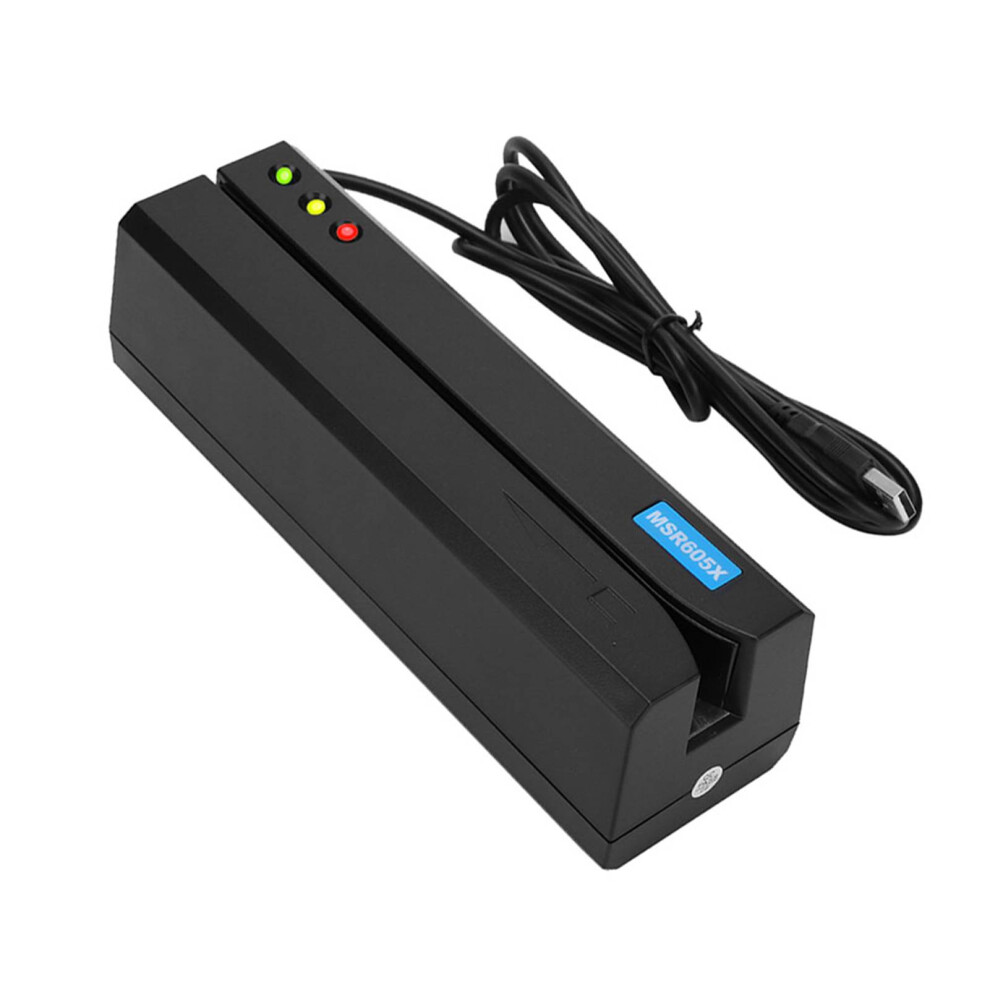

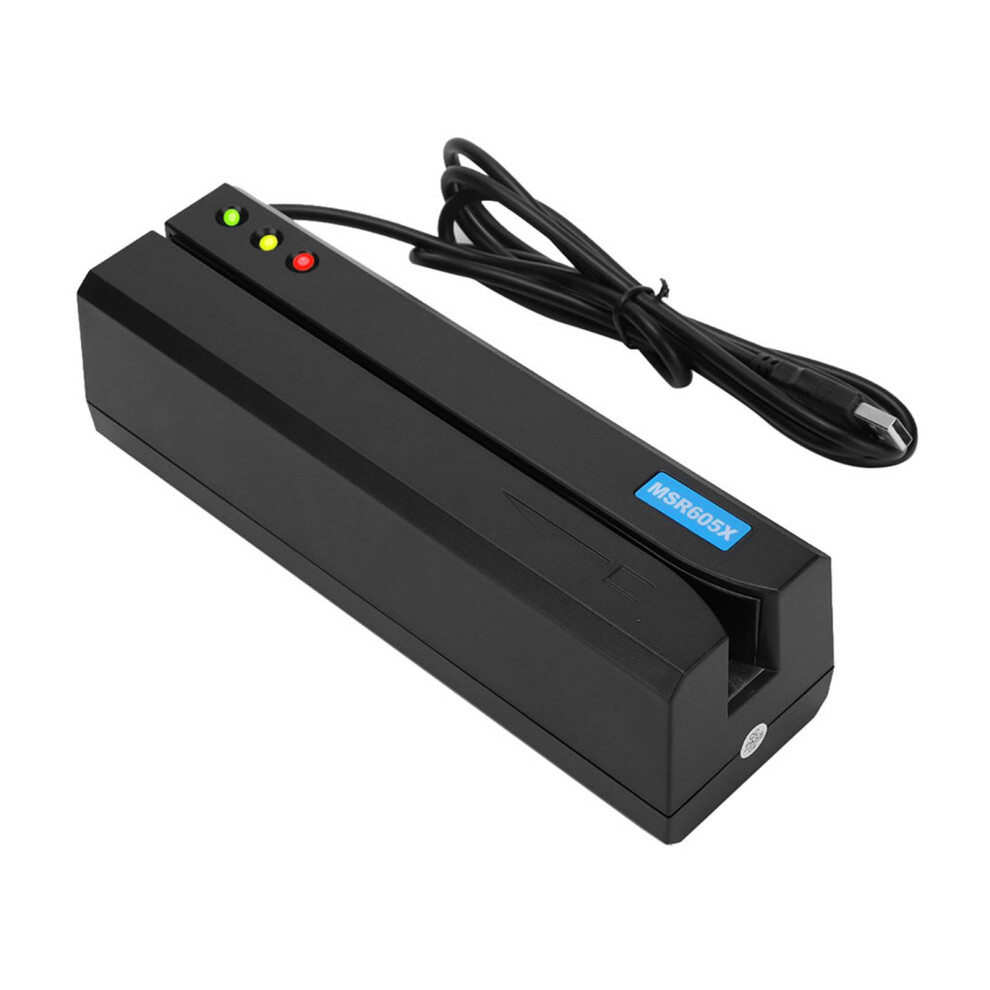

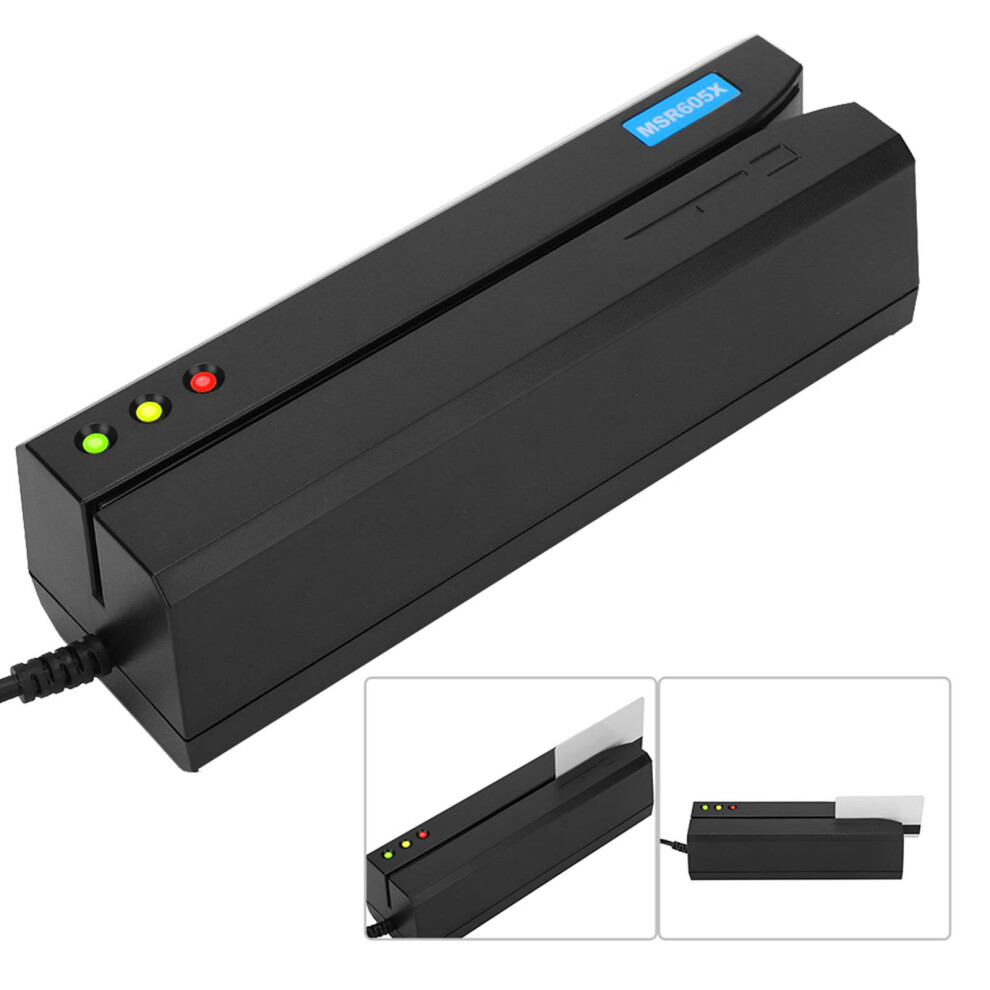

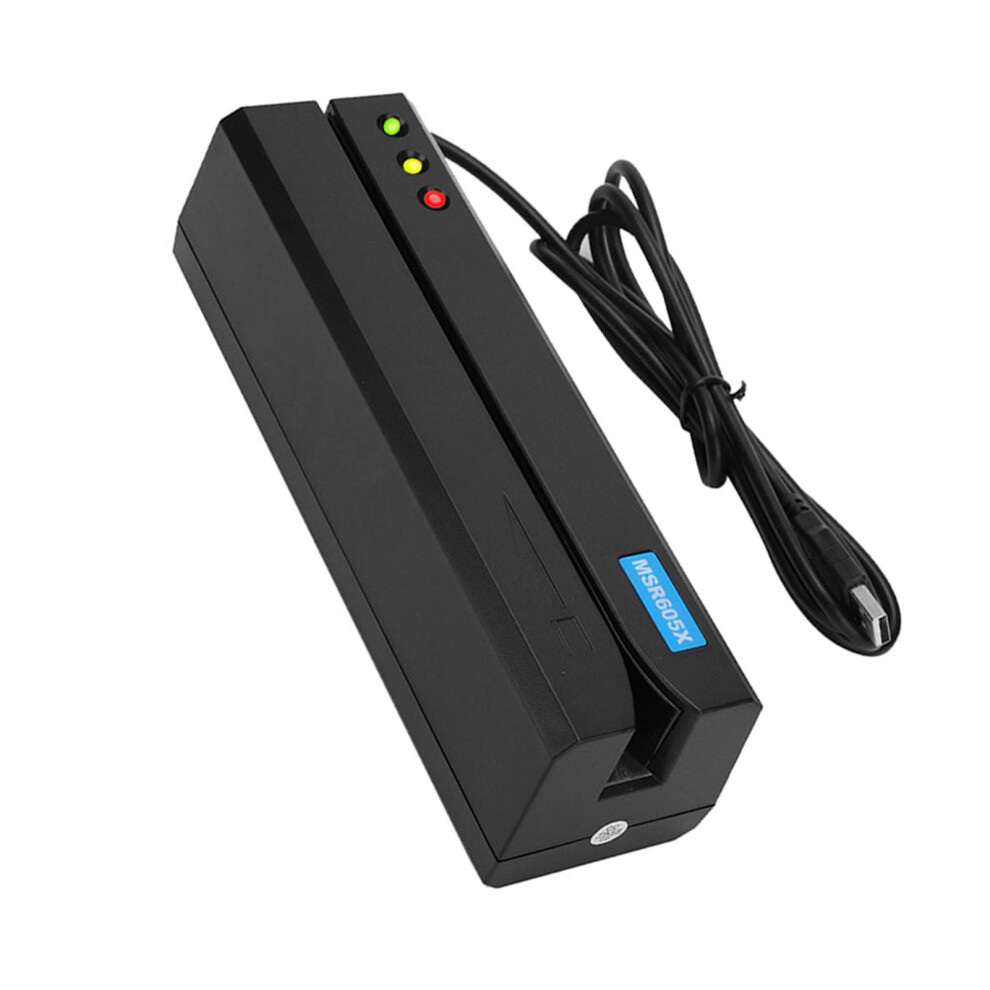

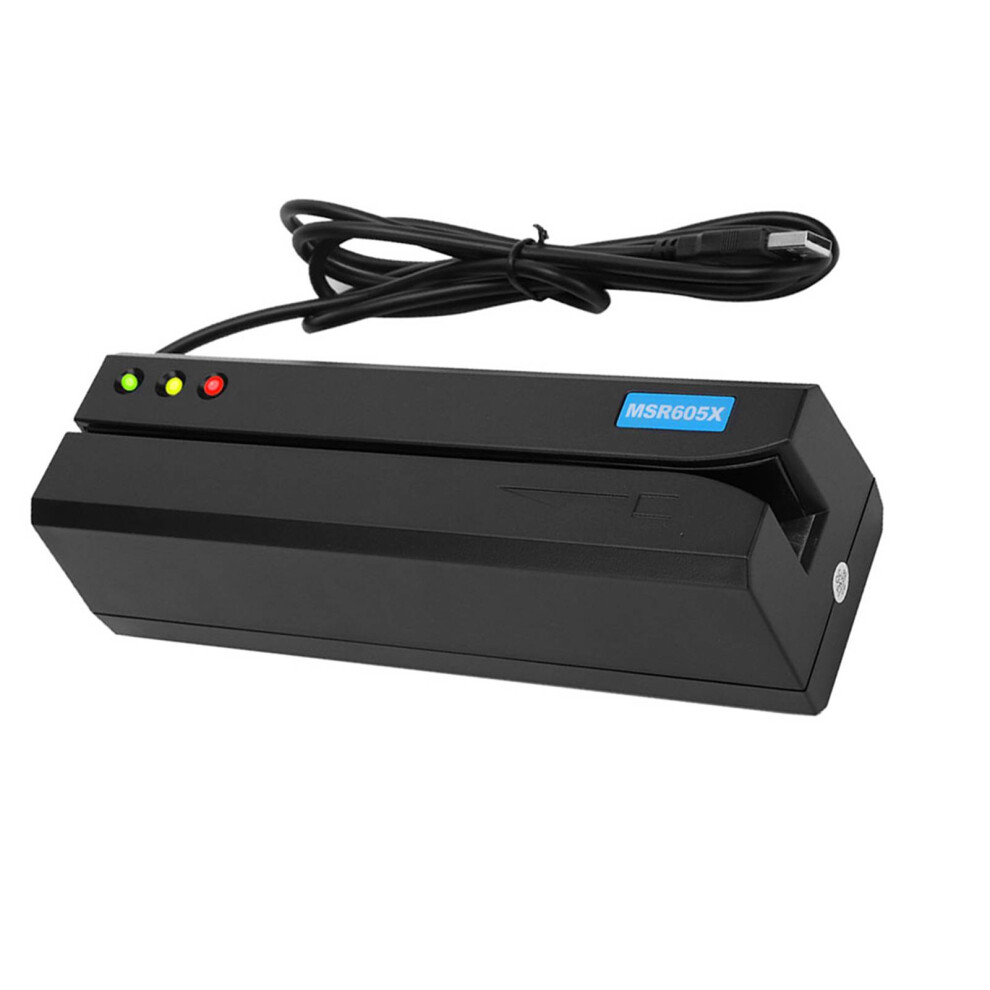

MSR605X Magnetic Strip Card Reader LED Indicator Magstripe Writer 3 Tracks

MSR605X Magnetic Strip Card Reader LED Indicator Magstripe Writer 3 Tracks Description

Professional-Grade Magnetic Stripe Card Reader/Writer (MSR605X)

Powerful, Reliable, and Versatile Data Handling. Meet the MSR605X, a high-performance magnetic stripe reader/writer designed for secure, efficient, and multi-format card processing. Ideal for access control, membership systems, and data management.

Multi-Track Read/Write Capability

Process data with speed and efficiency. This device can simultaneously read and write to all three tracks (Track 1, 2, and 3) of a magnetic card, enabling convenient and fast operation for encoding and retrieving information in a single swipe.

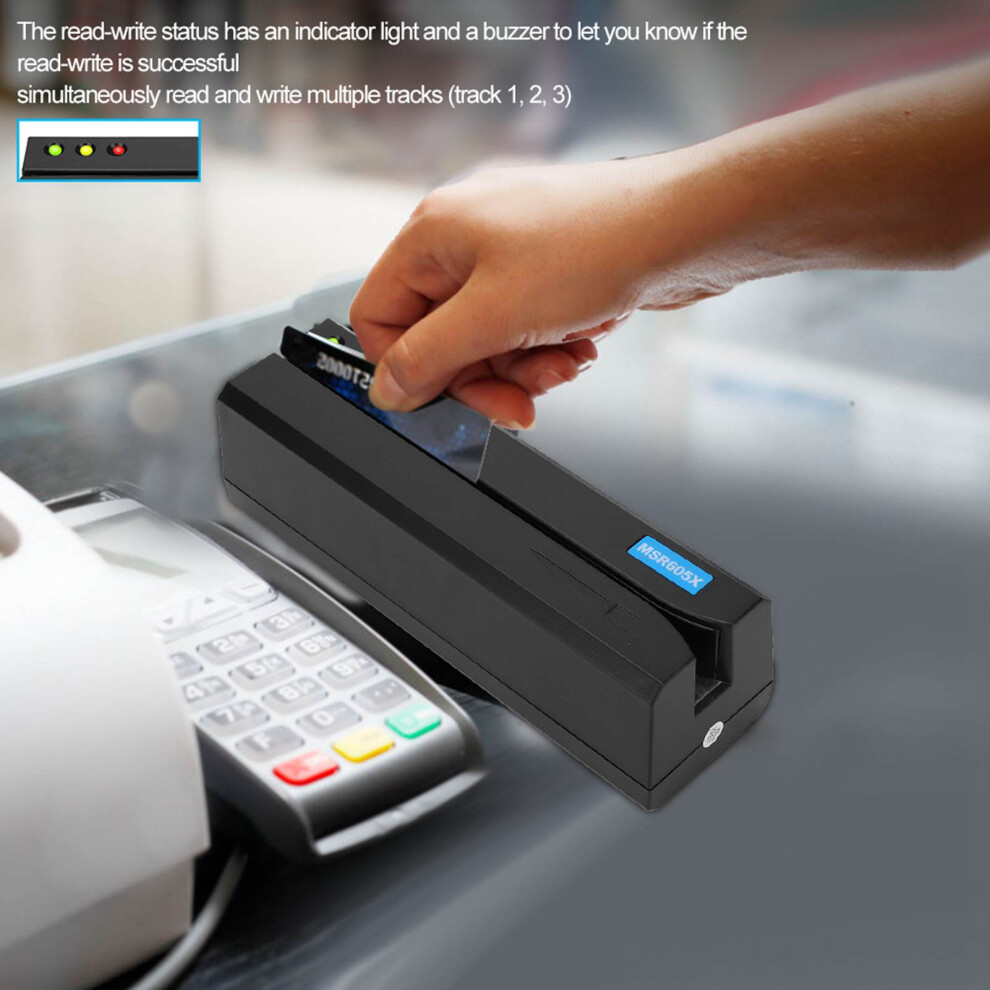

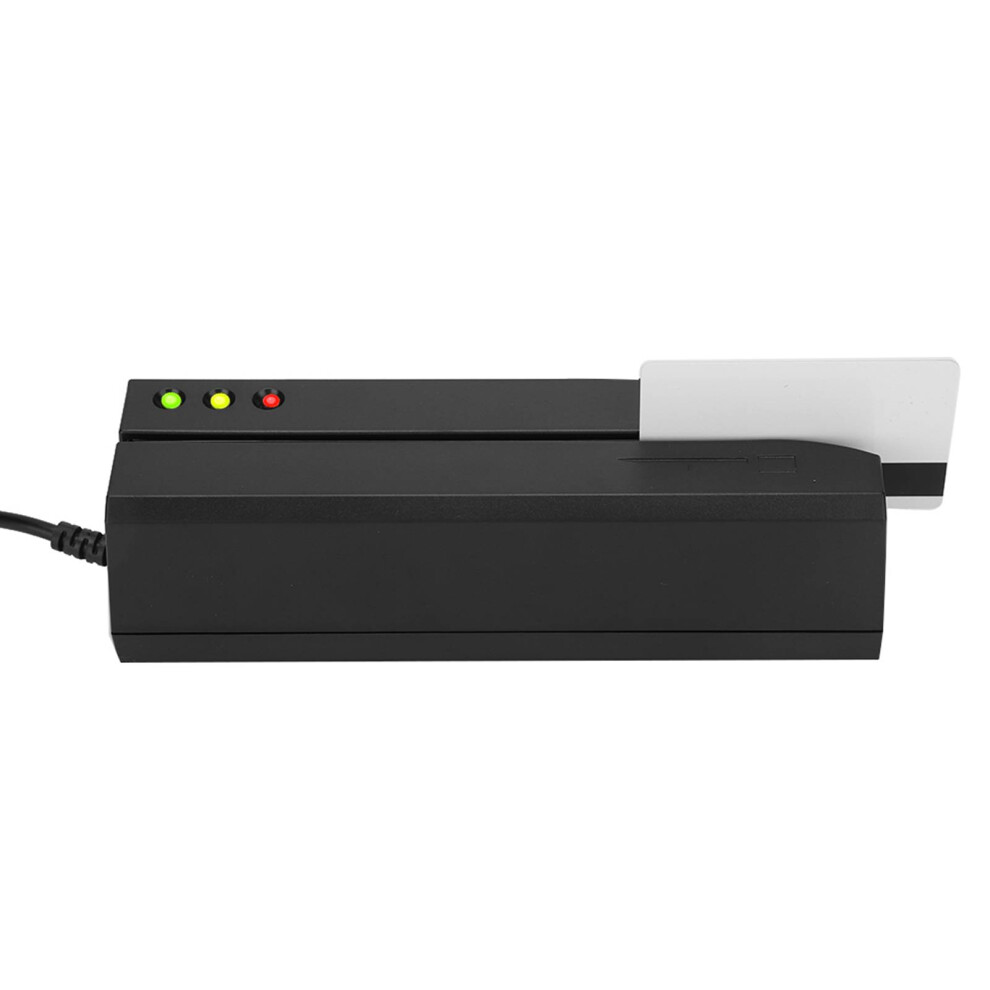

Clear Visual & Audible Feedback

Never guess the operation status. Equipped with a clear indicator light and a buzzer, the device provides instant visual and audible confirmation for both successful read and write actions, ensuring reliable and error-free data handling.

Manual Swipe with Speed Control

Flexible operation for any workflow. Featuring manual card swiping, it supports both high and low swipe speeds (10-120cm/s), giving you control over the data transfer process to suit different card types and application requirements.

Broad Multi-Standard Compatibility

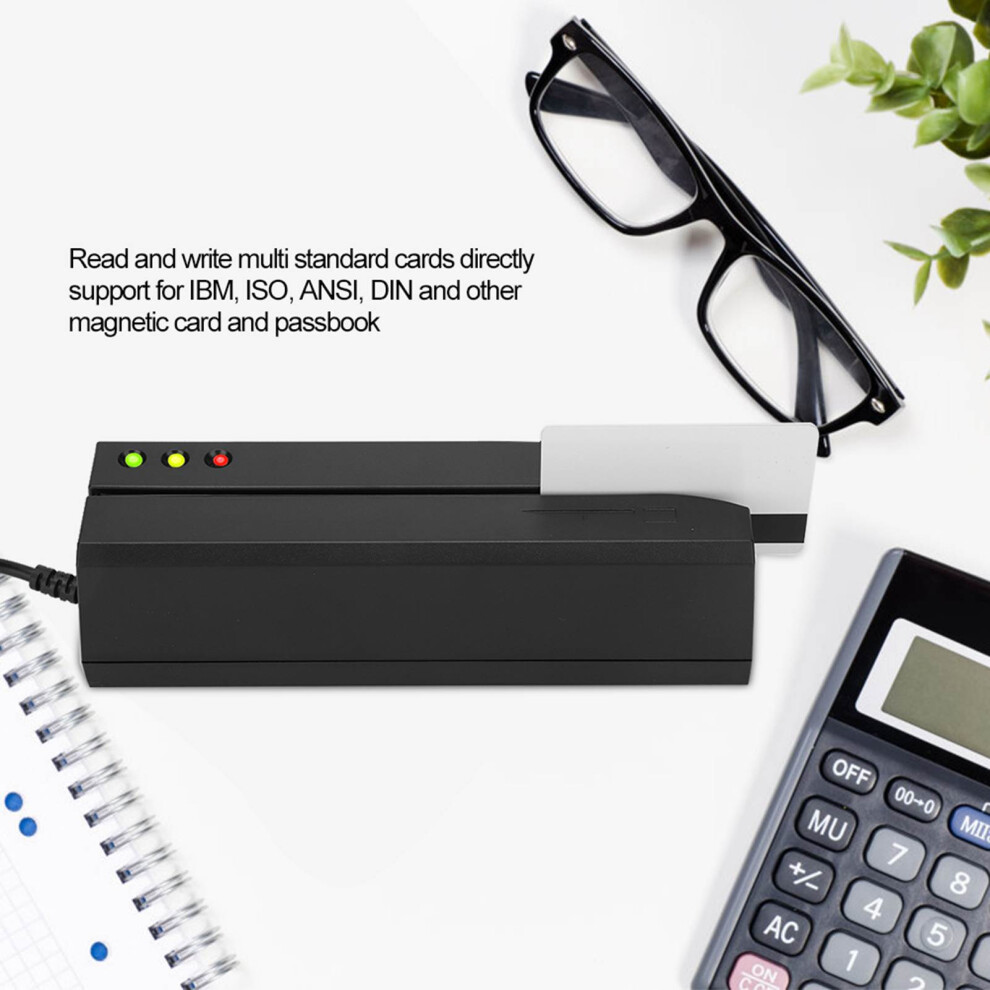

Read and write virtually any magnetic card. It directly supports multiple industry standards including IBM, ISO, ANSI, and DIN formats for magnetic cards and passbooks. Each track can automatically identify IBM/ISO formats, and supports command-controlled switching for flexible use.

Comprehensive Development Support

Integrate seamlessly into your system. The device comes with demo drivers and a secondary development environment for Windows, allowing for easy customization. Develop various instruction sets based on your specific application requirements.

Rugged & Reliable for Any Environment

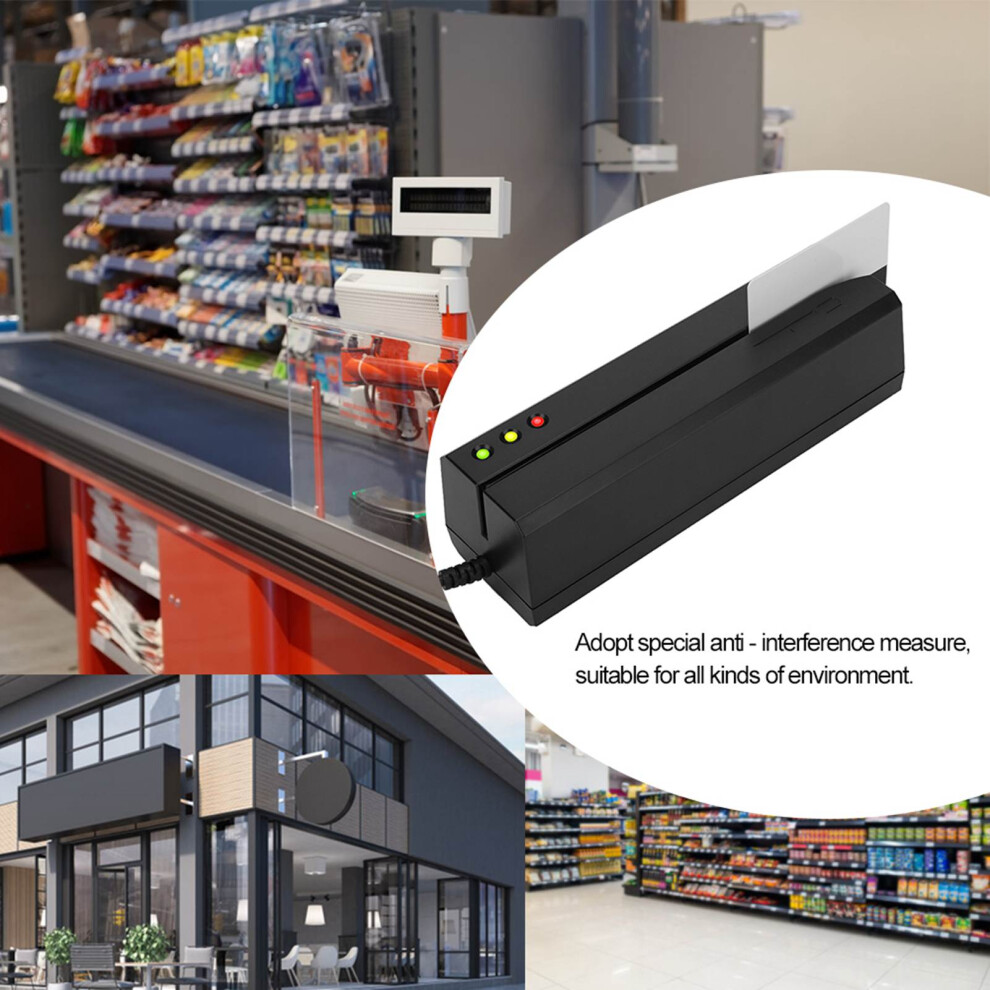

Built for professional, all-conditions use. Incorporating special anti-interference measures, it operates reliably in a wide range of environments. It is durable, with a magnetic head life of over 800,000 swipes, ensuring long-term stability.

Specification

Condition: Brand New

Item Type: Card Reader

Color: Black

Model: MSR605X

Card Swiping Speed: 10 - 120cm/s

Reading and Writing Standards: ISO7810/7811

Read-Write Coerce Range: 300-4000 Oe Magnetic Card

Card Thickness: 0.76-1.2mm/0.03-0.05in

Record Density (Character) : Track 1:210BPI(76 Characters);Track 2:75BPI(Low Density 37 Characters)/210BPI(High Density 104 Characters);Track 3:210BPI(104 Characters)

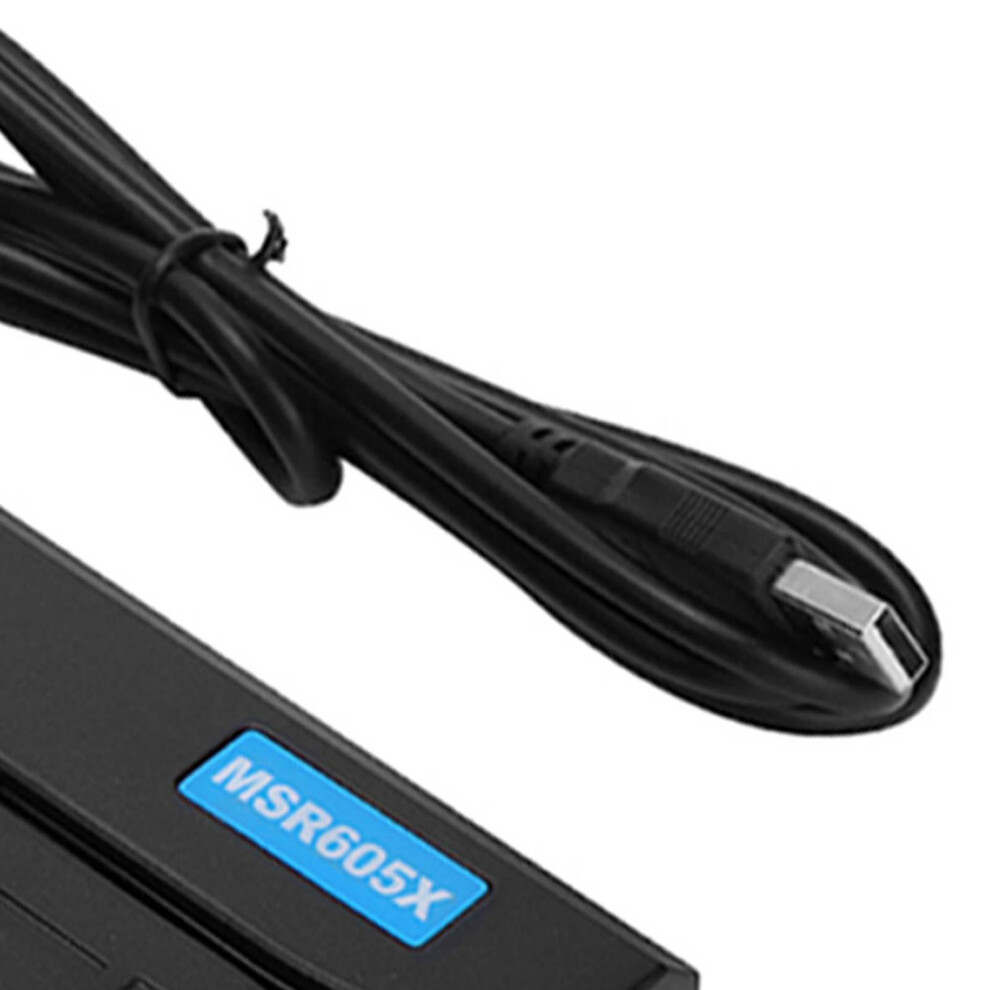

Output Port: USB

Power Supply: DC5V USB Power Supply

Magnetic Head Life: > 800,000 Times

Power Supply: External Switching Power Supply, Input: 100-240 Volts Ac, Output :9 VDC 2a

Working Environment: Temperature -10℃ - 60℃, Humidity 10% - 85%RH

Repetition Rate: Read Card <1/1000, Write Card <1/100

Data Standard: for IBM/ISO/ANSI or DIN Standard

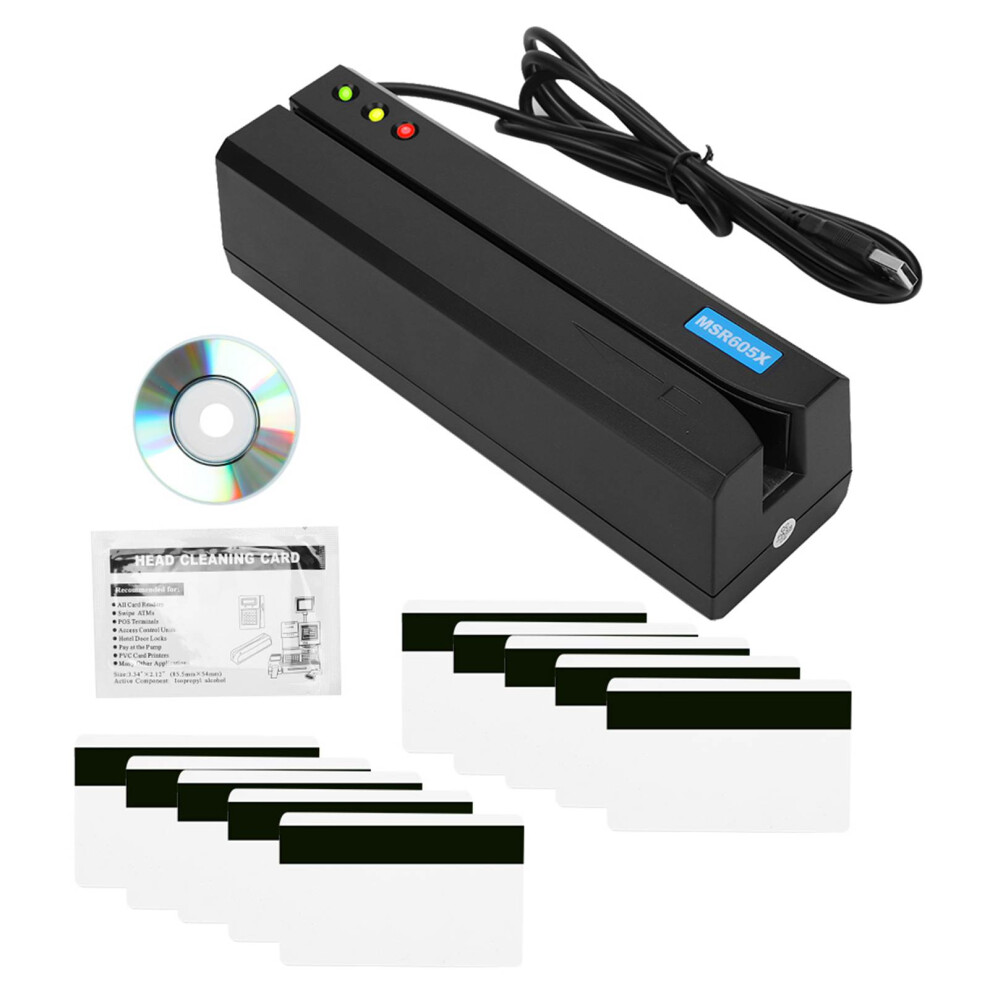

Package List

1 x Magnetic Stripe Reader

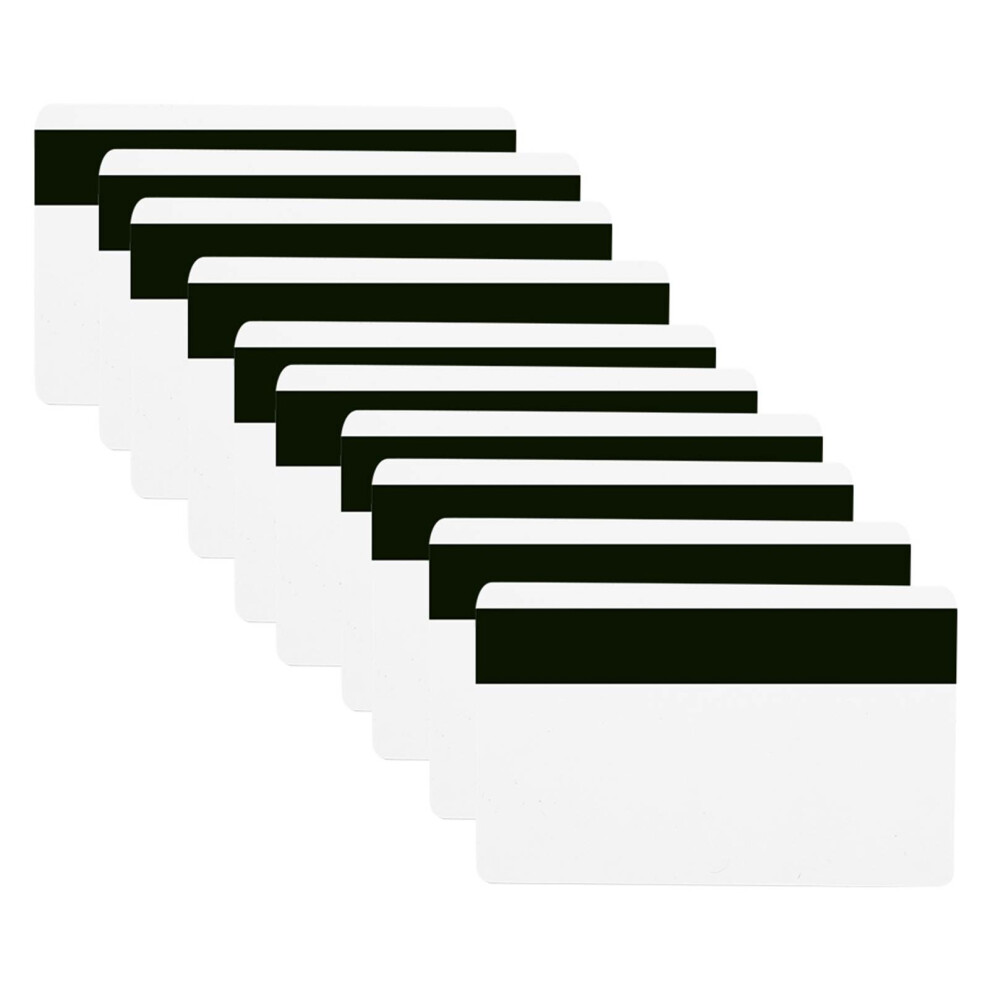

10 x Magnetic Card

1 x Remove Card

1 x Software CD

Note

The product is only compatible for windows system, not compatible for Linux, for OS and other systems.
